Introduction

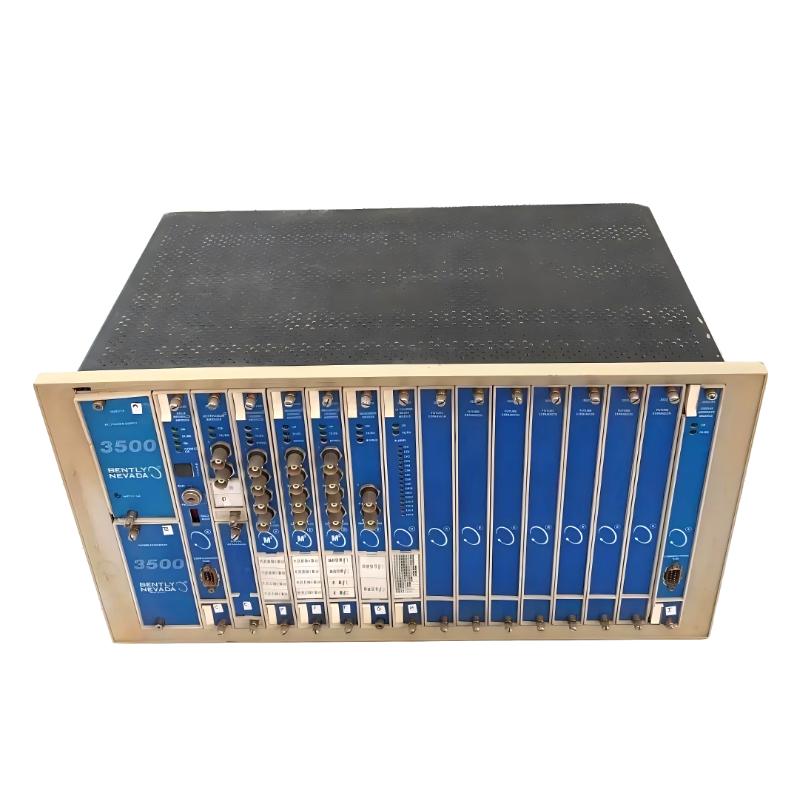

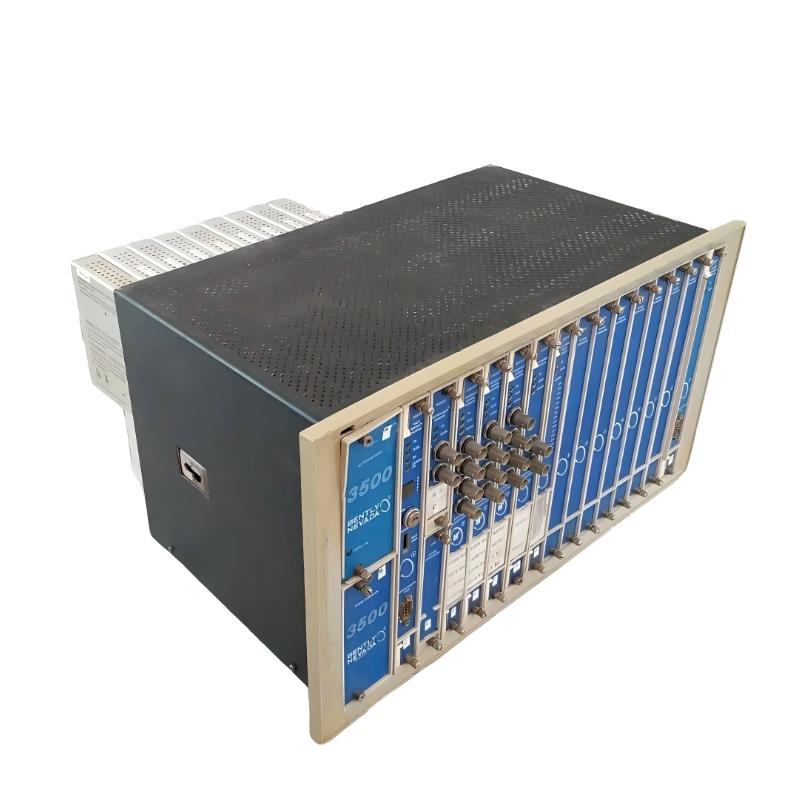

The Bently Nevada 3500/05-01-01-00-00-00 System Rack offers a secure and organized platform for installing up to 14 half-height 3500 Series modules.
Its robust steel construction ensures long-term durability and stability in industrial environments, while the modular design facilitates maintenance, airflow, and system expansion.
This rack provides a professional and organized solution for machinery monitoring and protection systems across industrial plants.

Technical Specifications

Parameter	Description
Product Type	3500/05 System Rack
Model	3500/05-01-01-00-00-00
Module Capacity	14 half-height modules
Rack Size	19-inch standard
Material	Industrial-grade steel
Installation	Horizontal 19-inch rack mount
System Compatibility	Bently Nevada 3500 Series modules
Weight	4.5 kg

Recommended Related Models

Model	Description
3500/22	Vibration Monitor Module
3500/23	Vibration Monitor Module
3500/25	Proximity Probe Module
3500/32	Speed & Keyphasor Module
3500/45	Overspeed Trip Module
3500/62	Analog Output Module
3500/64	Digital Output Module
3500/94M	10-inch Touchscreen Display
3500/05 125565-01	Half-height Module Card Guide Rack
3500/05 130768-01	Full-height Blank Monitor Cover Kit

Popular Related Models

Model	Description
3500/05-01-01-00-00-00	3500/05 System Rack
3500/05-01-01-00-00	3500/05 System Rack
3500/05-01-00-00-01	3500/05 System Rack
3500/22	Vibration monitoring module
3500/32	Speed & Keyphasor module
3500/94M	Touchscreen display module
3500/62	Analog output module
3500/64	Digital output module
3500/25	Proximity probe module
3500/45	Overspeed trip module

Applications

The Bently Nevada 3500/05-01-01-00-00-00 System Rack is designed to provide a robust and organized platform for 3500 Series monitoring modules.
Common applications include:

Centralized housing of multiple 3500 Series modules for machinery monitoring
Organizing I/O connections for vibration, speed, and condition monitoring systems
Supporting industrial plants in power, oil & gas, and chemical industries
Facilitating maintenance and expansion of monitoring systems
Providing a structured platform for distributed control and protection modules

Advantages

Houses up to 14 half-height modules in a standard 19-inch rack
Industrial-grade steel construction ensures stability and long-term durability
Optimized layout promotes proper airflow and cooling of installed modules
Easy installation and removal of modules for minimal downtime
Organized cable management enhances system clarity and reduces wiring errors
Fully compatible with 3500 Series modules, allowing flexible system design
Lightweight yet durable, enhancing portability and installation efficiency
Professional design provides a clean and organized appearance for industrial monitoring systems

FAQs

1. How many modules can the 3500/05-01-01-00-00-00 rack support?
It supports up to 14 half-height 3500 Series modules.

2. Can full-height modules be installed in this rack?
No, it is designed specifically for half-height modules.

3. What standard rack size is used?
The rack is a standard 19-inch industrial rack.

4. Can modules be replaced while the system is powered?
No, modules should be installed or removed with the system powered down.

5. Does the rack include active cooling?
No, but it is designed to allow proper airflow for module cooling.

6. Is the rack suitable for high-vibration environments?
Yes, it is built to withstand industrial vibration and mechanical stress.

7. Can the rack be mounted vertically?
It is designed primarily for horizontal 19-inch rack mounting.

8. Are power and signal connectors included?
No, connections are made via the module backplanes; the rack provides slots and guides.

9. Is the rack compatible with older 3500 modules?
Yes, it supports all half-height 3500 Series modules.

10. What materials are used in the construction of the rack?
The rack is constructed from industrial-grade steel for durability and long-term reliability.
