Bently Nevada 3500/05-01-01-00-00-01 3500/05 System Rack

Applications

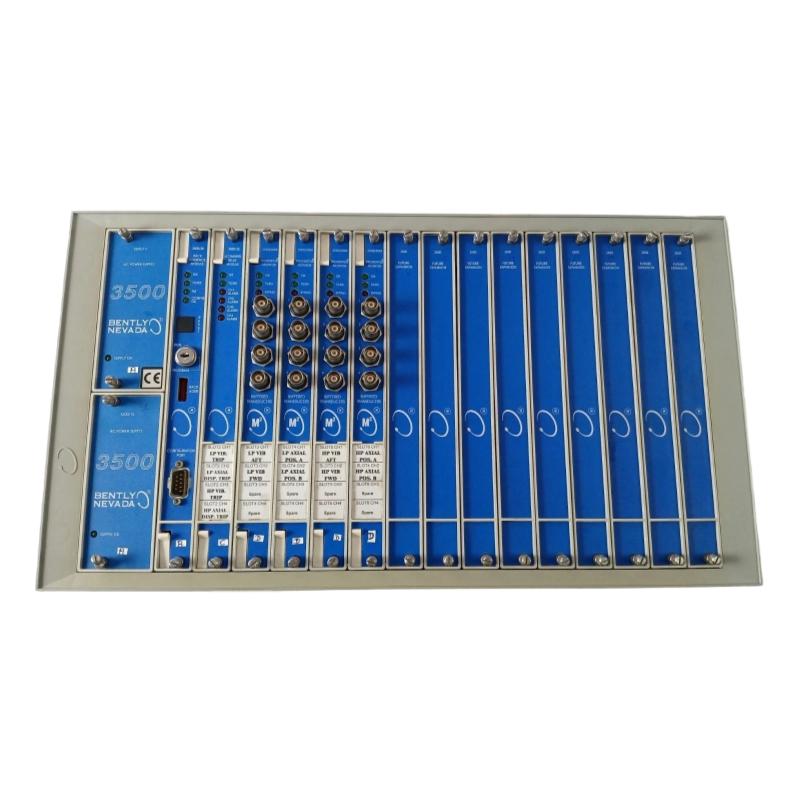

The Bently Nevada 3500/05-01-01-00-00-01 System Rack is engineered to host and organize 3500 Series monitoring modules within a standardized industrial mounting environment.
Typical use cases include:

• Structuring multi-channel vibration and condition monitoring systems

• Providing a central rack for speed, proximity, and relay modules

• Supporting high-reliability protection systems in rotating machinery

• Allowing modular system expansion for large industrial assets

• Integrating monitoring hardware in power plants, refineries, and chemical facilities

Advantages

• Supports up to 14 half-height modules, ideal for complete machinery protection setups

• 19-inch industry-standard form factor ensures compatibility with existing control cabinets

• Rigid steel frame delivers long-lasting structural stability

• Neat internal organization simplifies wiring and reduces installation errors

• Efficient airflow design helps maintain optimal module operating conditions

• Flexible configuration enables quick adaptation to changing system requirements

• Professional, clean appearance suitable for mission-critical environments

• Reliable platform for long-term operation of Bently Nevada 3500 systems

FAQs

1. What is the total module capacity of this rack?
It can hold up to 14 half-height 3500 Series modules.

2. Does the rack accept full-height modules?
No, it is designed specifically for half-height modules.

3. Is the rack compliant with standard cabinet sizes?
Yes, it conforms to the 19-inch industry rack standard.

4. Can modules be changed without shutting the system down?
No, modules should be installed or removed only when the system is powered off.

5. Does the rack include integrated power distribution?
Power distribution is handled through the installed 3500 power supply modules, not the rack frame itself.

6. What cooling mechanism is used?
The rack relies on natural airflow, supported by an open-frame design for ventilation.

7. Is the frame suitable for high-vibration areas?
Yes, it is designed to withstand typical industrial vibration levels.

8. How are backplane connections managed?
All communication and power connections are integrated into the rear backplane assembly.

9. Is it compatible with legacy 3500 Series modules?
Yes, any half-height 3500 module can be installed.

10. What type of mounting orientation is recommended?
Horizontal mounting inside a 19-inch cabinet is recommended for proper alignment and airflow.
