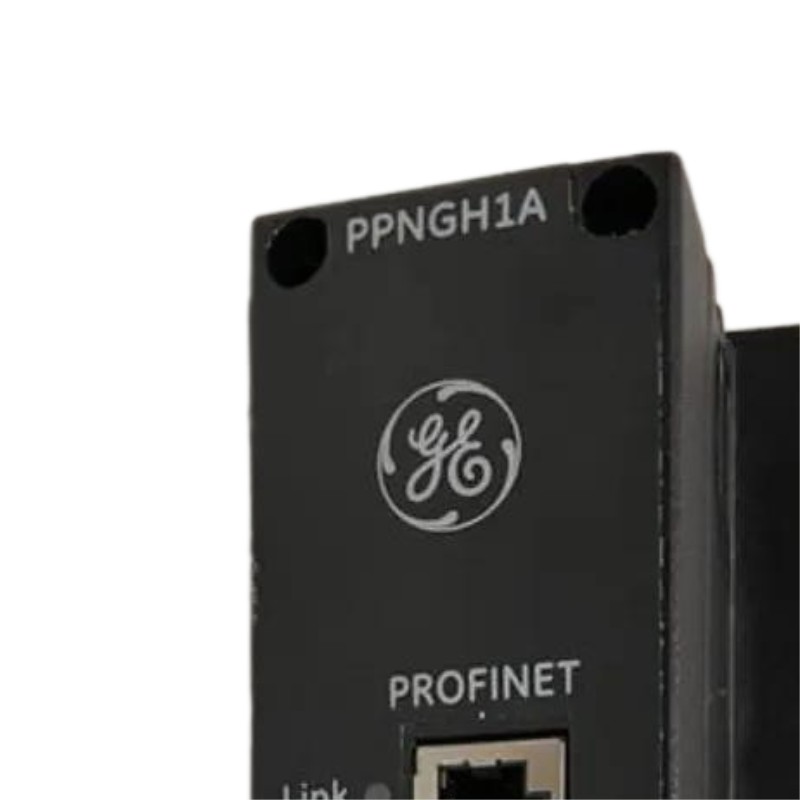

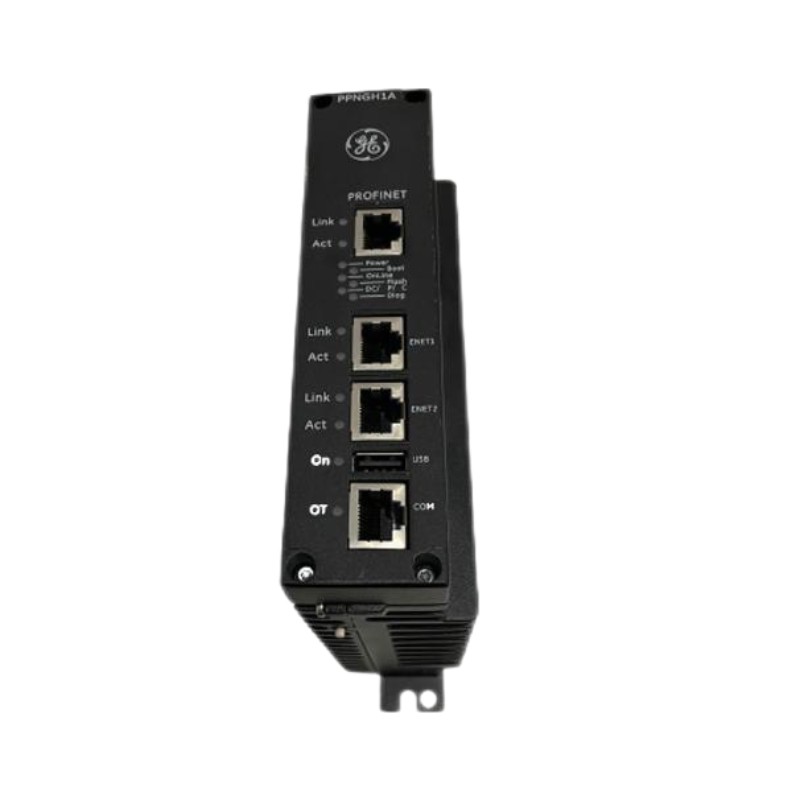

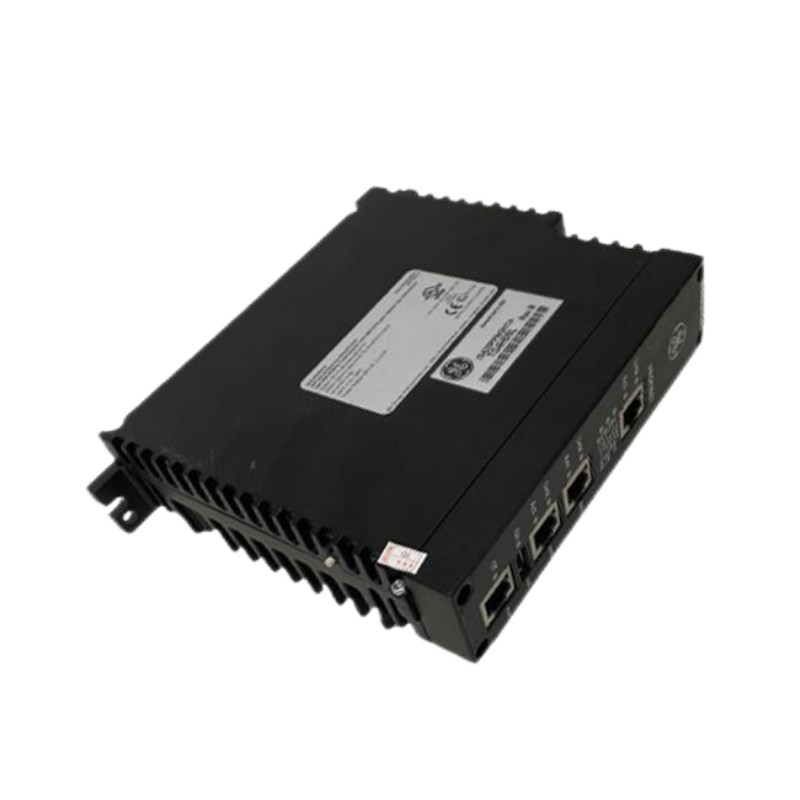

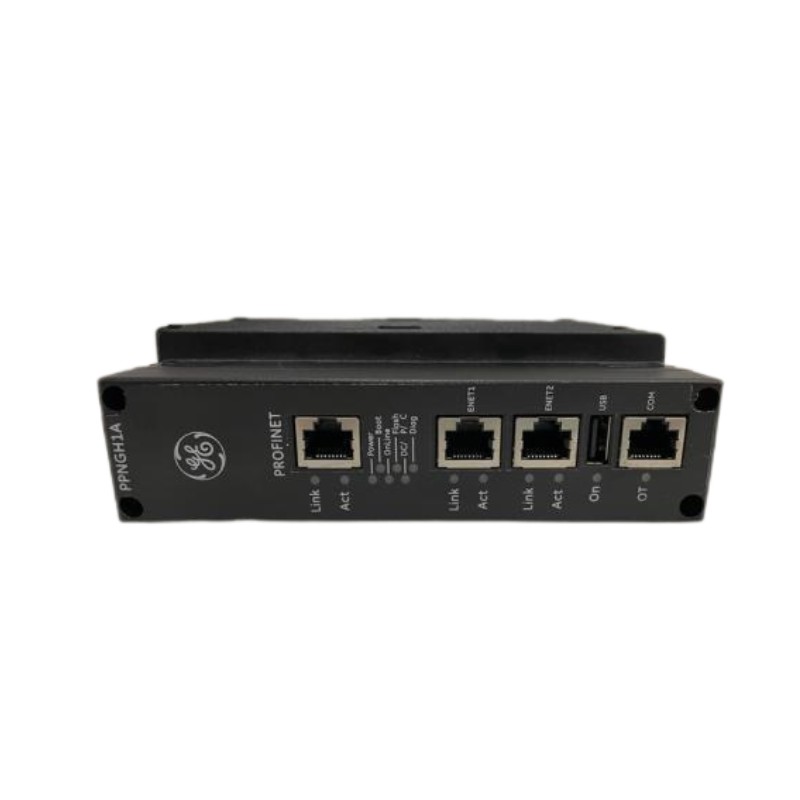

The GE IS420PPNGH1A is a PROFINET Gateway Module designed by General Electric (GE) to provide seamless and deterministic Ethernet communication between Mark VIe/VIeS controllers and PROFINET I/O devices. This module enables integration of modern Ethernet-based field devices into advanced turbine and process control systems. Its rugged design ensures reliable operation in industrial environments such as power generation plants, oil & gas facilities, and heavy process automation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GE (General Electric) |
| Model | IS420PPNGH1A |
| Module Type | PROFINET Gateway Module |
| Communication Protocols | PROFINET IO (Controller), IONet |
| Ethernet Ports | 1 × PROFINET RJ45 (10/100 Mbps), 2 × IONet RJ45 (10/100 Mbps) |
| Processor | 1066 MHz Intel EP80579 |
| Memory | 256 MB DDR2 SDRAM |
| Operating System | QNX Neutrino RTOS |
| Input Voltage | 24 V DC ±10% |
| Operating Temperature | ‑40 °C to +70 °C |
| Mounting | Vertical panel mount, air-cooled |
| Maximum PROFINET Rate | ~6 KB per millisecond |
| Dimensions (L×W×H) | 200 mm × 86 mm × 56 mm |
| Weight | 1.09 kg |
| Certifications | Industrial control compliance |
