Brand:Honeywell DCS Item No.:900SP1-0300 Product Origin:USA Product Dimensions:137 × 38.1 × 151.7 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

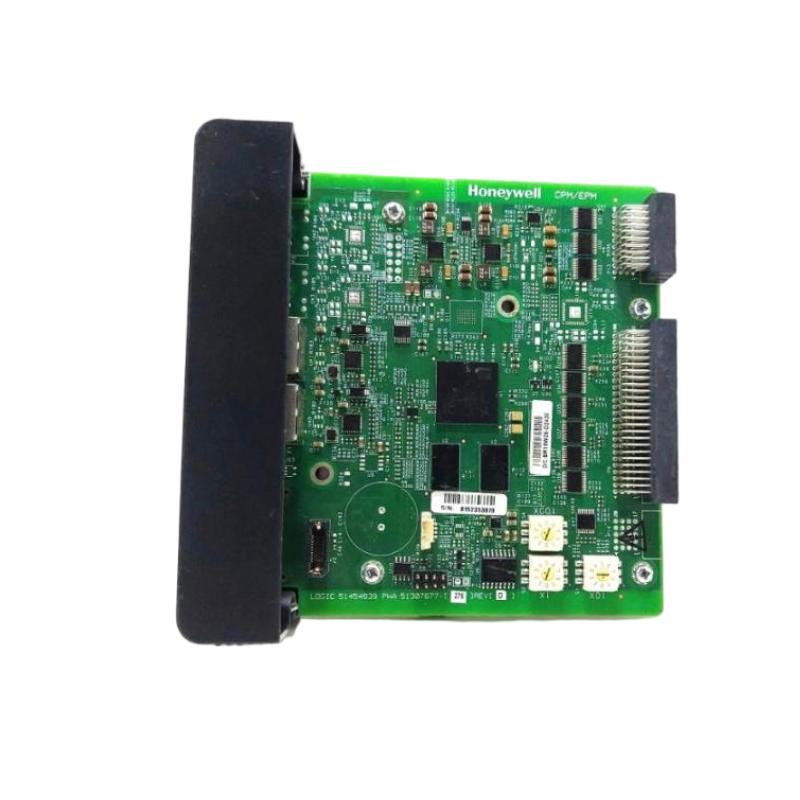

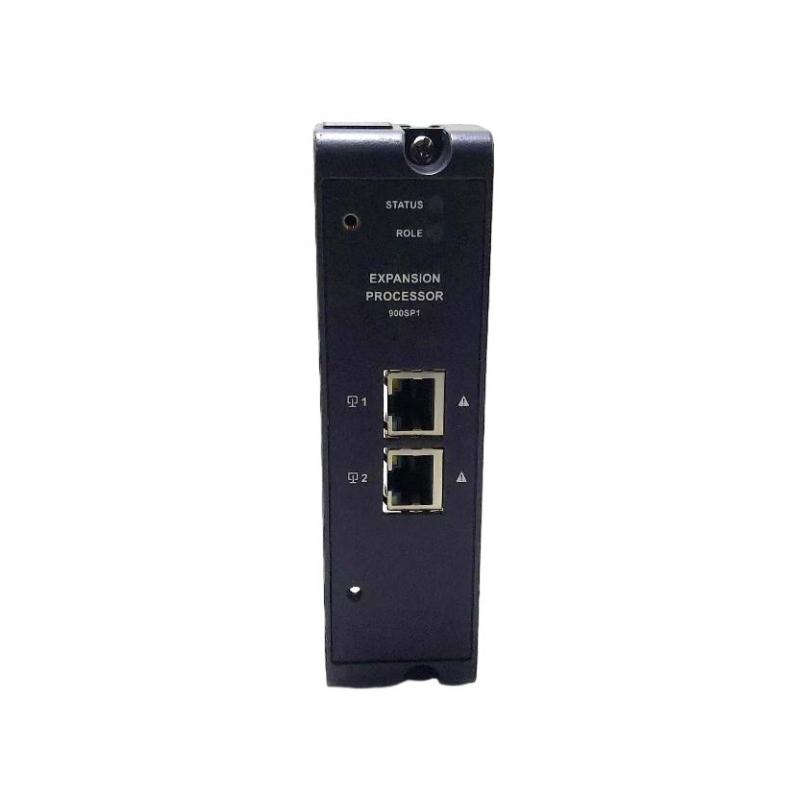

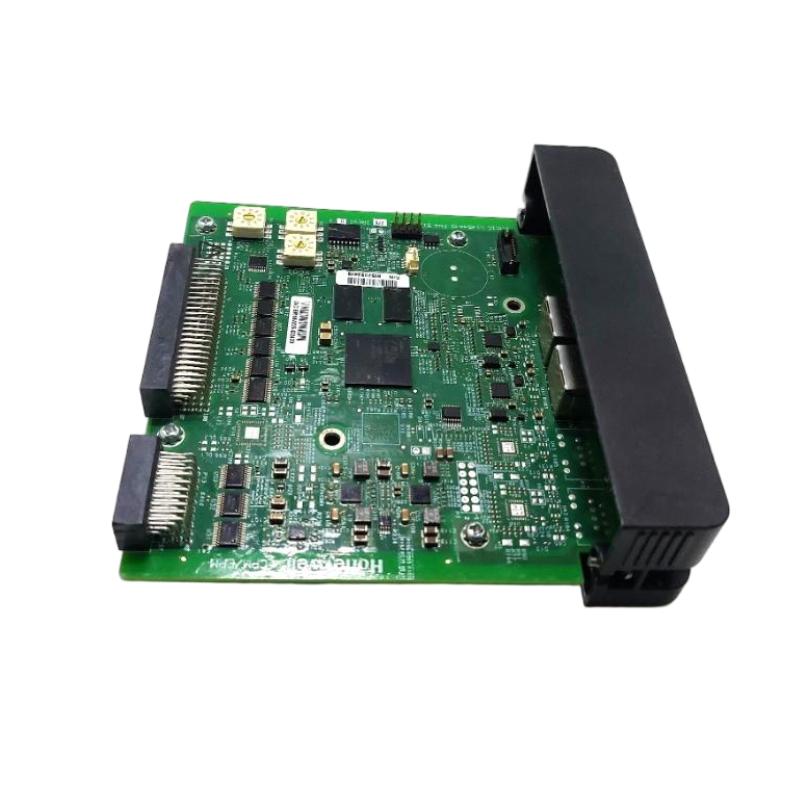

The Honeywell 900SP1-0300 HC900 Extended Processor Module is designed to enhance the processing and communication capabilities of HC900 distributed control systems. It acts as a bridge between the central processor and remote I/O racks, ensuring reliable, high-speed data exchange.
With dual-core processing and robust communication support, this module is ideal for complex industrial applications that require scalable control architectures. Its industrial-grade construction and extended temperature tolerance make it reliable in harsh environments, providing consistent performance and long-term system stability.
Technical Specifications
Parameter
Details
Model
900SP1-0300
Product Type
Extended / Expansion Processor Module
Dimensions
137 × 38.1 × 151.7 mm
Weight
0.32 kg
Processor
Dual-core processor
Communication
Dual Ethernet 10/100 Mbps
Operating Temperature
-40°C to +70°C
Addressing
Rotary switch (1–99)
Application
HC900 distributed control systems
Recommended Companion Models
900C50-0460 – HC900 Controller CPU Module
900P01-0101 – HC900 Power Supply
900H01-0001 – Relay Output Module
900H02-0001 – Analog Input Module
Popular Related Models
900SP1-0100 – Extended Processor Module
900SP1-0200 – Extended Processor Module
900CP1-0300 – Control Processor Module
900SP1-0400 – Extended Processor Module
Typical Application Scenarios
Expansion of I/O capacity in HC900 distributed control systems
Large-scale industrial automation with multi-rack configurations
Process industries such as oil & gas, chemical, and power generation
Applications requiring high-speed data exchange between racks
Harsh environments with extended temperature requirements
Key Advantages
Enables seamless communication between control processor and remote I/O racks
Dual-core processing ensures fast and stable data handling
Supports flexible network topologies via dual Ethernet ports
Extended temperature capability for demanding environments
Compact and modular design for easy system expansion
High reliability for continuous industrial operation
Technical FAQs
1. What is the primary role of this module?
It functions as an expansion processor, linking I/O racks with the main control processor.
2. Does it improve system scalability?
Yes, it allows additional I/O racks to be integrated into the control system.
3. What type of processor does it use?
It uses a dual-core processor for efficient distributed processing.
4. How does it communicate with other modules?
Through Ethernet-based I/O communication interfaces.
5. Is it suitable for distributed control systems?
Yes, it is designed for distributed HC900 architectures.
6. Can it operate in extreme environments?
Yes, it supports extended temperature ranges suitable for harsh industrial conditions.
7. Does it support different network topologies?
Yes, it can be deployed in star, ring, or other Ethernet-based configurations.
8. How is addressing configured?
Addressing is set using a rotary switch for rack identification.
9. Does it include diagnostic features?
Yes, LED indicators provide real-time module and communication status.
10. What is its impact on system performance?
It enhances processing distribution and improves communication efficiency across racks.
