Product Overview

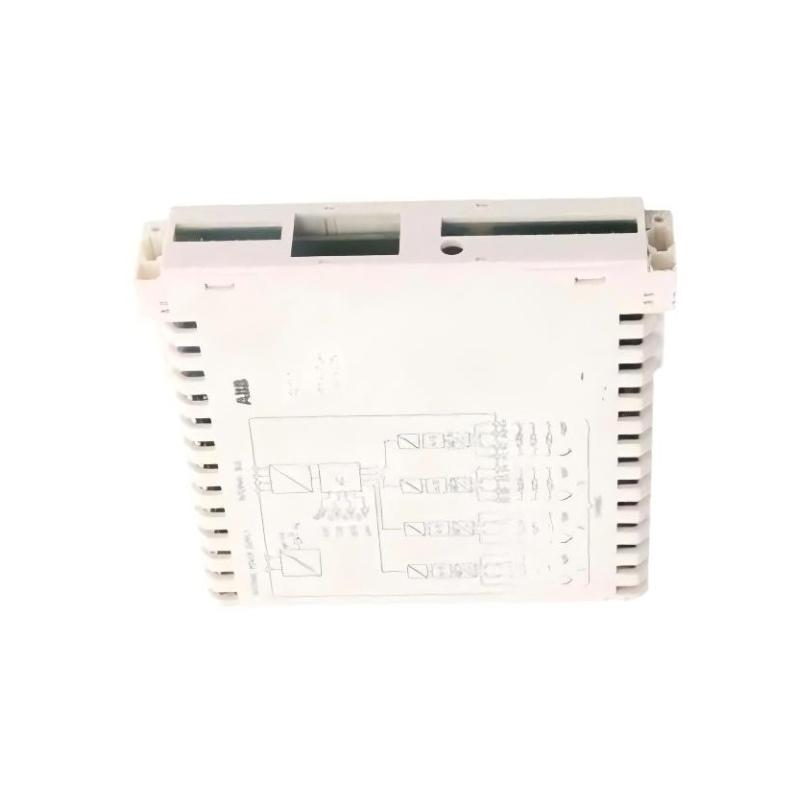

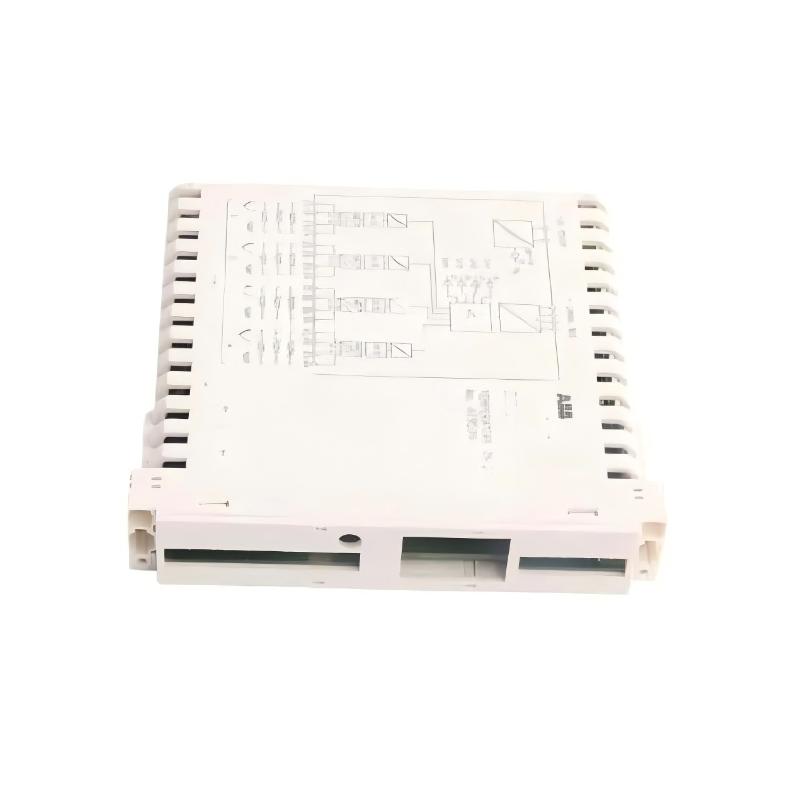

The ABB AO920B 3KDE175532L9200 is a high-performance analog output module tailored for modern industrial automation systems. Built to deliver consistent and accurate signal output, it plays a vital role in translating digital control commands into precise analog signals for field devices.

Its compact design and advanced internal architecture ensure efficient operation while maintaining signal integrity. Whether used in new installations or system upgrades, the AO920B provides dependable performance that aligns with the expectations of mission-critical applications.

Technical Specifications

Parameter	Specification
Output Type	Analog (Current/Voltage)
Signal Range	4–20 mA, 0–10 V
Resolution	High resolution (application-grade)
Accuracy	±0.1% typical
Isolation	Channel and system isolation
Operating Temperature	-20°C to +60°C
Power Consumption	Low power design
Mounting	Rack-mounted
Dimensions	20 x 104 x 104 mm
Weight	0.14 kg

Recommended Alternatives

Model	Description
ABB AO910	Analog Output Module, compatible with ABB PLC systems
ABB AO930	High-precision Analog Output Module for process control
ABB AO945	Modular Analog Output Module for flexible automation
ABB AO920C	Updated version of AO920 series with extended features

Frequently Selected Companion Models

Model	Description
ABB AI920	Analog Input Module, works seamlessly with AO920B
ABB DI920	Digital Input Module for process and automation integration
ABB DO920	Digital Output Module, compatible with ABB I/O racks
ABB AO915	Additional Analog Output Module often paired for expansion

Where It Performs Best

Process industries such as chemical, oil & gas, and power generation
Factory automation systems requiring precise actuator control
Water treatment and environmental monitoring applications
Integration within PLC and DCS architectures for analog signal output
Retrofit projects upgrading legacy control systems with modern I/O modules

Key Strengths at a Glance

High-resolution analog signal output for precise control
Robust industrial-grade construction ensuring long-term durability
Seamless compatibility with ABB automation ecosystems
Low signal drift and excellent stability over time
Efficient channel isolation minimizing interference risks

Technical FAQs

1. What output signal standards are supported?
The module supports common industrial standards such as 4–20 mA and 0–10 V outputs.

2. How many output channels are available?
It is equipped with multiple independent output channels for flexible control tasks.

3. Does the module include electrical isolation?
Yes, it features internal isolation to protect against signal interference and system faults.

4. Can it be integrated into existing ABB systems easily?
Yes, it is designed for seamless integration with ABB distributed control systems.

5. What level of accuracy can be expected?
The module provides high-resolution output suitable for precision-driven processes.

6. Is it suitable for continuous operation?
Yes, it is built for stable 24/7 industrial operation.

7. How is configuration handled?
Configuration is managed through ABB engineering tools within the control environment.

8. Does it support redundant system architectures?
It can be deployed in redundancy setups depending on system configuration.

9. What kind of signal stability does it offer?
It maintains stable output with minimal drift over time.

10. Is shielding required for wiring?
Shielded cables are recommended to ensure optimal signal integrity.
