Brand:ABB PLC Item No.:SD811V1 Product Origin:Sweden (SE) Product Dimensions:155 × 55 × 87 mm Product Weight:0.512 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

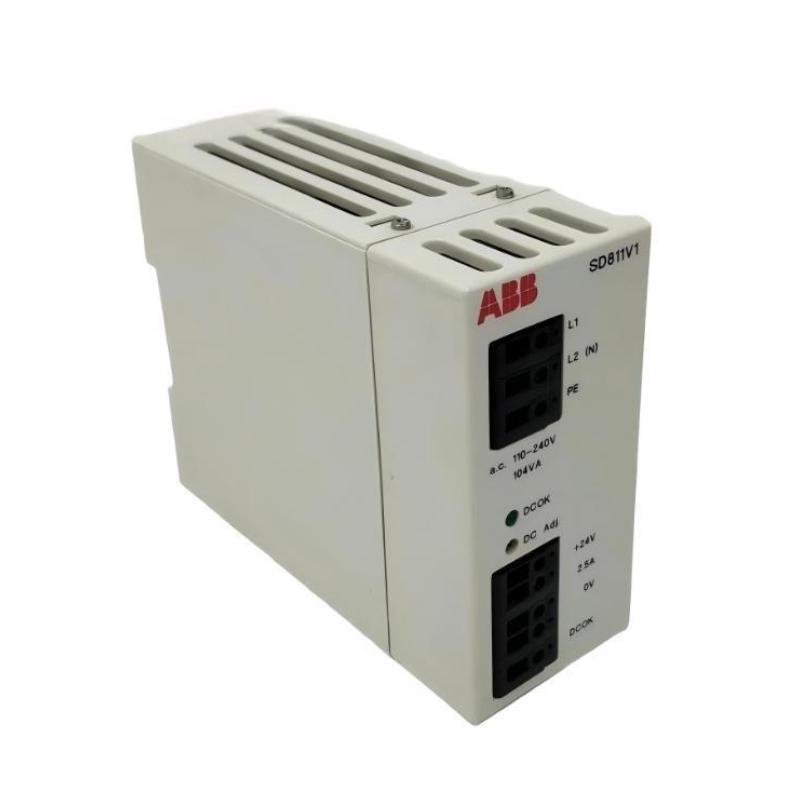

The ABB SD811V1 3BSC610044R1 Power Supply is a high-performance module engineered to deliver stable and reliable DC power for industrial automation systems. Its compact, rugged design ensures long-term operational reliability while minimizing heat generation and electrical noise.
Designed for seamless integration with ABB PLCs, I/O modules, and control panels, the SD811V1 supports continuous operation in demanding industrial environments. Its advanced protection features, high efficiency, and consistent power output make it ideal for factory automation, process control, and system retrofits where stable power is critical for mission-critical operations.
Technical Specifications
Parameter
Specification
Module Type
Power Supply
Output Type
Regulated DC
Voltage / Current
Standard industrial DC (e.g., 24 VDC)
Protection
Overload, short-circuit, overvoltage
Operating Temperature
-20°C to +60°C
Mounting
Rack / Control panel
Dimensions
155 × 55 × 87 mm
Weight
0.512 kg
Recommended Alternatives
Model
Description
ABB SD811V2
Updated power supply module with higher efficiency
ABB SD812
Standard DC power supply for ABB automation systems
ABB SD813
Compact power module with low-noise design
ABB SD815
High-reliability power supply for industrial control panels
Frequently Selected Companion Models
Model
Description
ABB AI520
Analog Input Module compatible with SD811V1
ABB DI520
Digital Input Module for integrated control systems
ABB DO520
Digital Output Module for full I/O coverage
ABB AO520
Analog Output Module for signal conversion and control
Where It Performs Best
Industrial automation systems requiring stable and reliable DC power
Control panels for ABB PLCs and I/O modules
Factory and process automation setups needing continuous power supply
Retrofitting legacy systems with modern power modules
Applications demanding low-noise, high-efficiency power delivery
Key Strengths at a Glance
Stable DC output for consistent system operation
Compact, industrial-grade construction for robust performance
High efficiency and low heat generation
Excellent protection against overload, short-circuit, and overvoltage
Easy integration with ABB automation and control systems
Technical Questions & Expert Answers
1. What type of output does the SD811V1 provide?
It provides regulated DC output suitable for ABB PLCs and automation modules.
2. What is the typical output voltage and current?
Standard industrial DC voltage (e.g., 24 VDC) with current rating according to system requirements.
3. Is it compatible with ABB control systems?
Yes, designed for seamless integration with ABB PLCs and I/O modules.
4. Does it have protection features?
Yes, includes overload, short-circuit, and overvoltage protection.
5. What is the operating temperature range?
Rated for industrial environments, typically -20°C to +60°C.
6. How is the module mounted?
It can be installed on racks or within control panels as required.
7. Can it handle continuous operation?
Yes, designed for 24/7 industrial use with high reliability.
8. Does it generate noise that affects other modules?
No, low-noise design ensures minimal interference with sensitive electronics.
9. How is it powered?
It operates from standard industrial AC supply, converting to regulated DC output.
10. Can it be used in retrofitting older systems?
Yes, it is compatible with legacy setups requiring stable DC power.
