Brand:ABB PLC Item No.:YXU 169F Product Origin:Sweden (SE) Product Dimensions:173 x 67 x 25 mm Product Weight:0.48 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

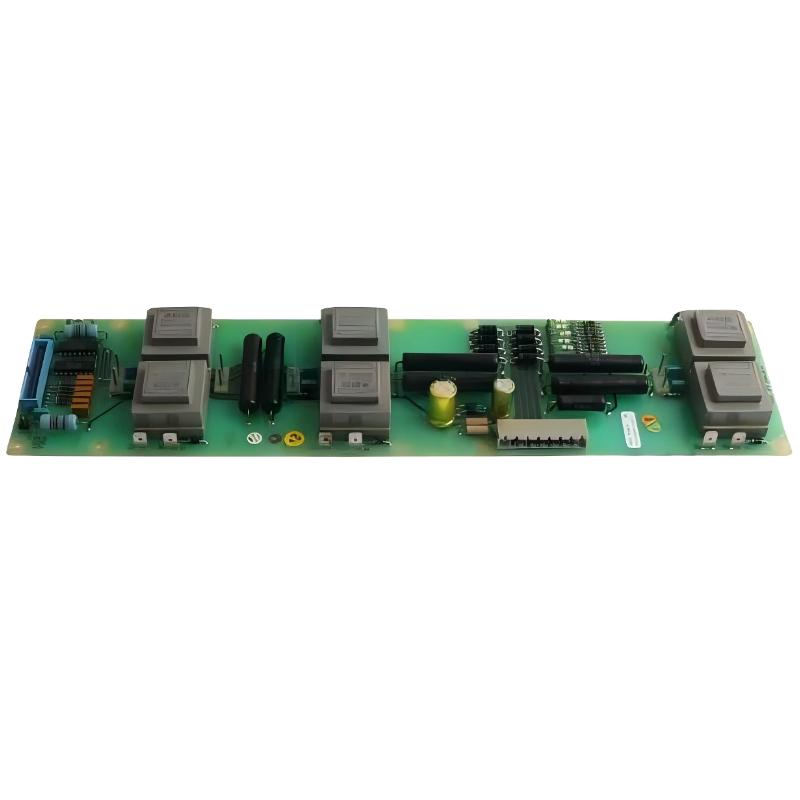

The ABB YXU 169F YT204001-JT Trigger Pulse Board is a high-performance module designed for accurate and reliable trigger pulse generation in industrial automation systems. Its compact, rugged construction ensures stable operation even in demanding environments.
Engineered for seamless integration with ABB PLCs and pulse control modules, the YXU 169F supports multiple channels, low-noise operation, and fast response times. It is ideal for precise motor control, actuator timing, process monitoring, and retrofitting legacy systems, delivering reliable, timing-sensitive signals critical for industrial automation.
Technical Specifications
Parameter
Specification
Module Type
Trigger Pulse Board
Signal Type
Trigger Pulse Signals
Channels
Multi-channel (system dependent)
Response Time
High-speed
Protection
Built-in protection for reliable operation
Operating Temperature
-20°C to +60°C
Mounting
Rack / Panel
Dimensions
173 × 67 × 25 mm
Weight
0.48 kg
Recommended Alternatives
Model
Description
ABB YXU 169E
Standard Trigger Pulse Board for ABB systems
ABB YXU 169G
High-speed Trigger Pulse Board with extended channels
ABB YXU 170A
Modular Trigger Pulse Board for flexible configurations
ABB YXU 171F
Advanced Trigger Pulse Board for precision industrial control
Frequently Selected Companion Models
Model
Description
ABB AI520
Analog Input Module compatible with YXU 169F
ABB DI520
Digital Input Module for ABB pulse control systems
ABB DO520
Digital Output Module for integrated control applications
ABB AO520
Analog Output Module for signal conversion and control
Where It Performs Best
Industrial automation systems requiring precise trigger pulse generation
Motor and actuator control applications with timing-sensitive operations
Integration with ABB PLCs and pulse control modules
Process monitoring and factory automation setups needing reliable trigger signals
Retrofitting legacy systems with modern trigger pulse boards
Key Strengths at a Glance
High-accuracy trigger pulse generation for precise timing control
Compact, industrial-grade construction for reliable operation
Low-noise performance ensures stable signal output
Seamless integration with ABB PLCs and automation modules
Supports multiple channels for flexible configuration and system expansion
