Brand:ABB PLC Item No.:YXU 169G Product Origin:Sweden (SE) Product Dimensions:177 x 46 x 83 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

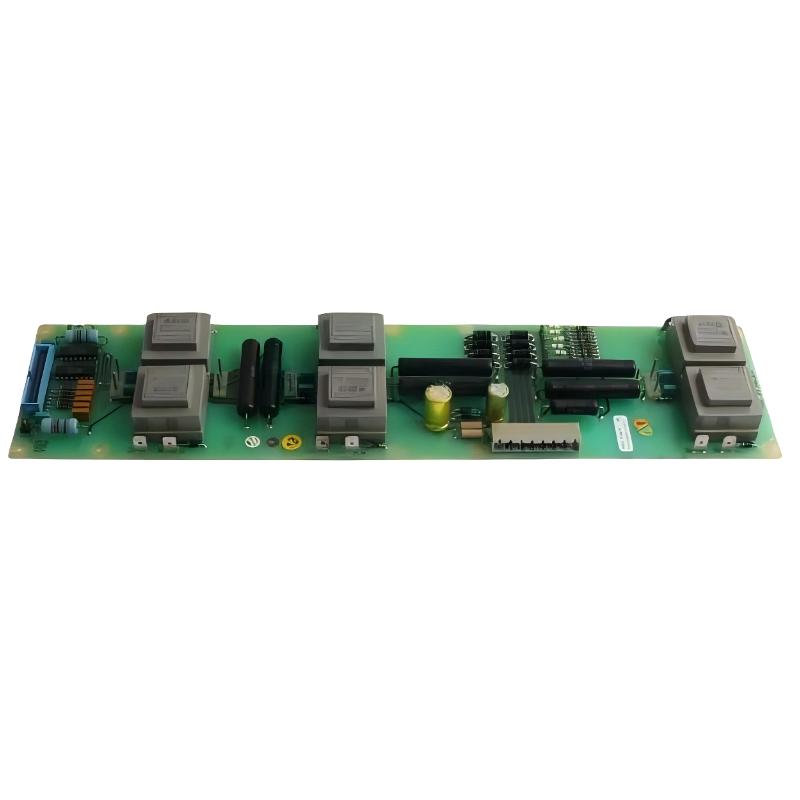

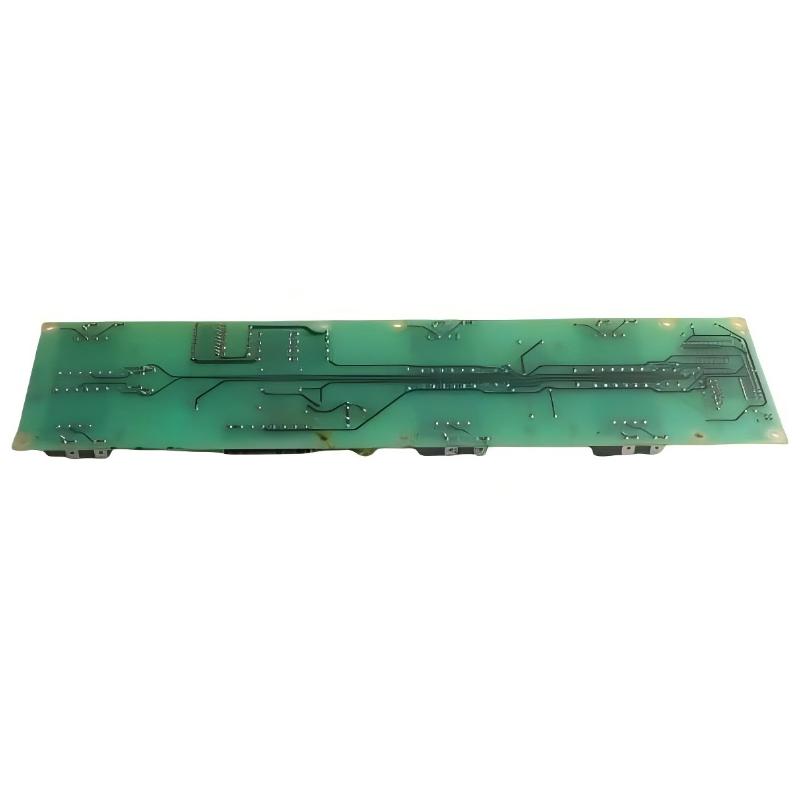

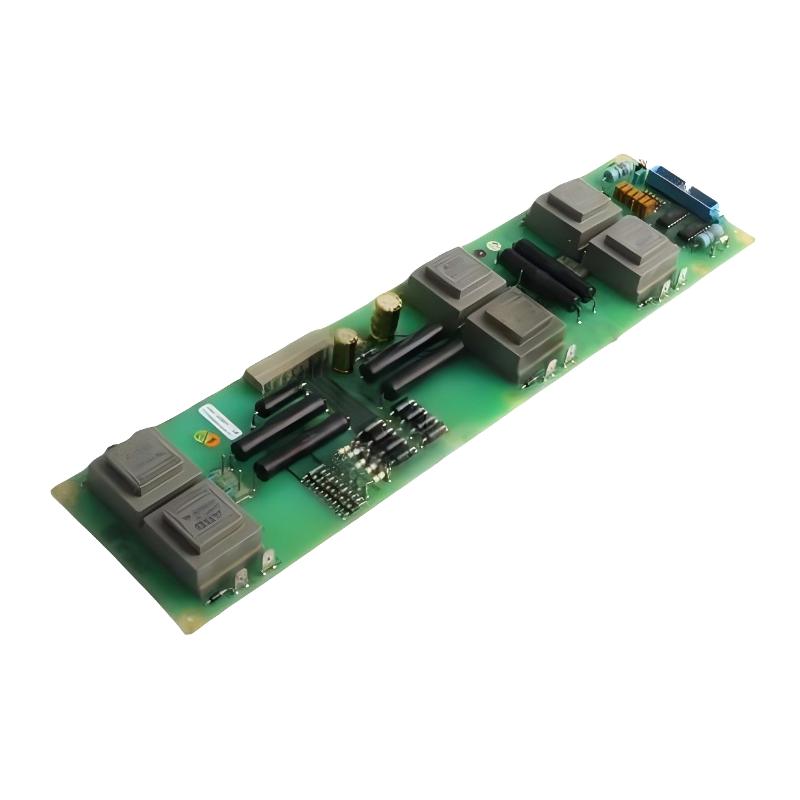

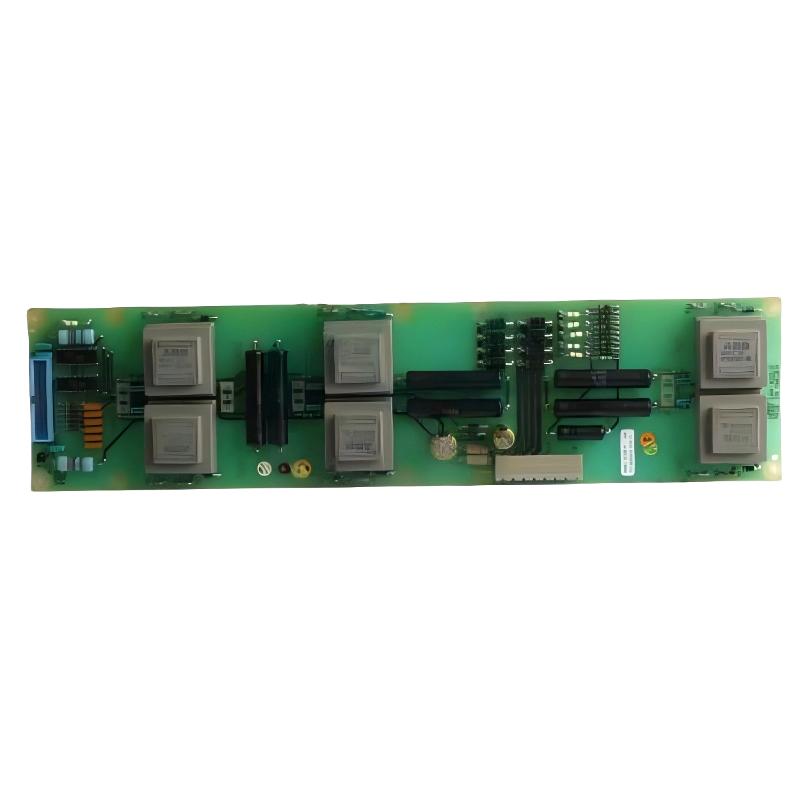

The ABB YXU 169G YT204001-KV Pulse Conversion Unit is engineered for precise and reliable pulse signal conversion in industrial automation environments. Its robust construction and compact design ensure long-term stability and performance even under demanding conditions.
Designed for seamless integration with ABB PLCs and pulse control modules, the YXU 169G provides high-accuracy pulse conversion, low-noise operation, and support for multiple channels. Ideal for motor control, actuator timing, process monitoring, and retrofitting legacy systems, it ensures accurate and reliable pulse signal translation critical for industrial operations.
Technical Specifications
Parameter
Specification
Module Type
Pulse Conversion Unit
Signal Type
Pulse Signals
Channels
Multi-channel (system dependent)
Response Time
High-speed
Protection
Built-in protection for stable operation
Operating Temperature
-20°C to +60°C
Mounting
Rack / Panel
Dimensions (W×H×D)
177 × 46 × 83 mm
Weight
1.2 kg
Recommended Alternatives
Model
Description
ABB YXU 169F
Trigger Pulse Board for ABB systems
ABB YXU 169H
High-speed Pulse Conversion Unit with extended channels
ABB YXU 170B
Modular Pulse Conversion Unit for flexible applications
ABB YXU 171G
Advanced Pulse Conversion Unit for precision industrial control
Frequently Selected Companion Models
Model
Description
ABB AI520
Analog Input Module compatible with YXU 169G
ABB DI520
Digital Input Module for ABB pulse control systems
ABB DO520
Digital Output Module for integrated control applications
ABB AO520
Analog Output Module for signal conversion and control
Where It Performs Best
Industrial automation systems requiring precise pulse signal conversion
Motor and actuator control applications with timing-sensitive operations
Integration with ABB PLCs and pulse control modules
Process monitoring and factory automation setups needing accurate pulse translation
Retrofitting legacy systems with modern pulse conversion units
Key Strengths at a Glance
High-accuracy pulse conversion for reliable signal transmission
Compact, industrial-grade construction for stable operation
Low-noise performance ensures signal integrity in harsh industrial environments
Seamless integration with ABB PLCs and automation modules
Supports multiple input/output channels for flexible configuration
Technical Questions & Expert Answers
1. What type of signals does the YXU 169G handle?
It handles pulse signals and converts them between formats for ABB automation systems.
2. How many channels are available?
The unit supports multiple input/output channels depending on system design.
3. Is it compatible with ABB PLCs?
Yes, it integrates seamlessly with ABB PLCs and pulse-based control modules.
4. What is the typical response time?
Fast response suitable for real-time pulse conversion applications.
5. How is the module powered?
Operates with standard industrial DC supply voltages compatible with ABB systems.
6. Does it include protection features?
Yes, built-in protections prevent signal distortion and ensure reliable operation.
7. Can it operate in harsh industrial environments?
Yes, rated for industrial temperature ranges and high electromagnetic noise immunity.
8. How is it mounted?
Designed for panel or rack mounting according to system architecture.
9. Does it support diagnostics or monitoring?
Yes, system indicators allow monitoring of active channels and performance.
10. Can it be used for retrofitting legacy systems?
Yes, ideal for upgrading older systems requiring modern pulse conversion.
