Brand:Schneider PLC Item No.:BMXDDI3202K Product Origin:France Product Dimensions:Package dimensions: 52 x 110 x 115 mm Product Weight:0.112 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

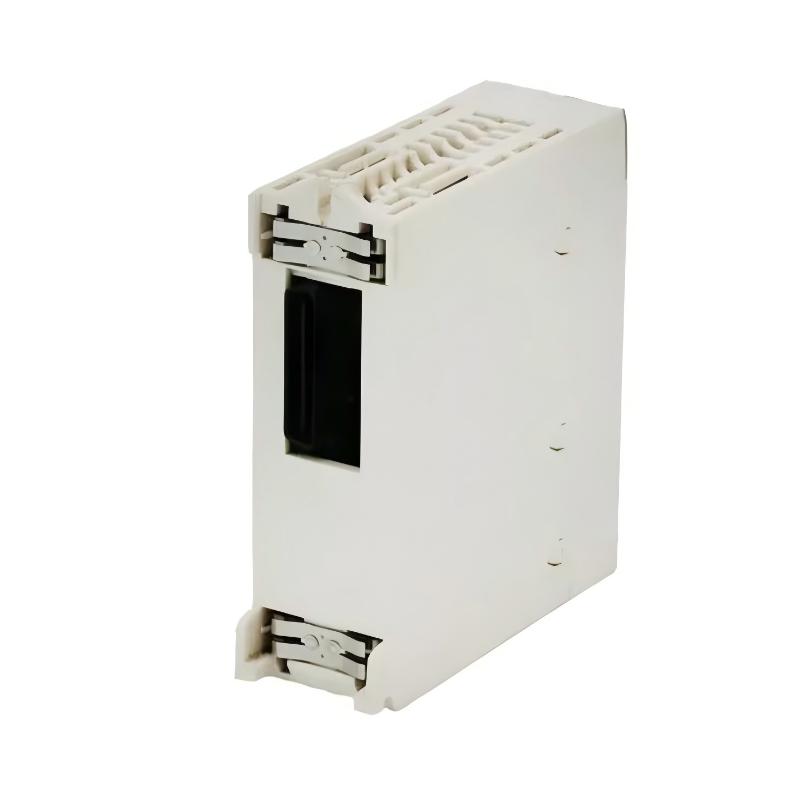

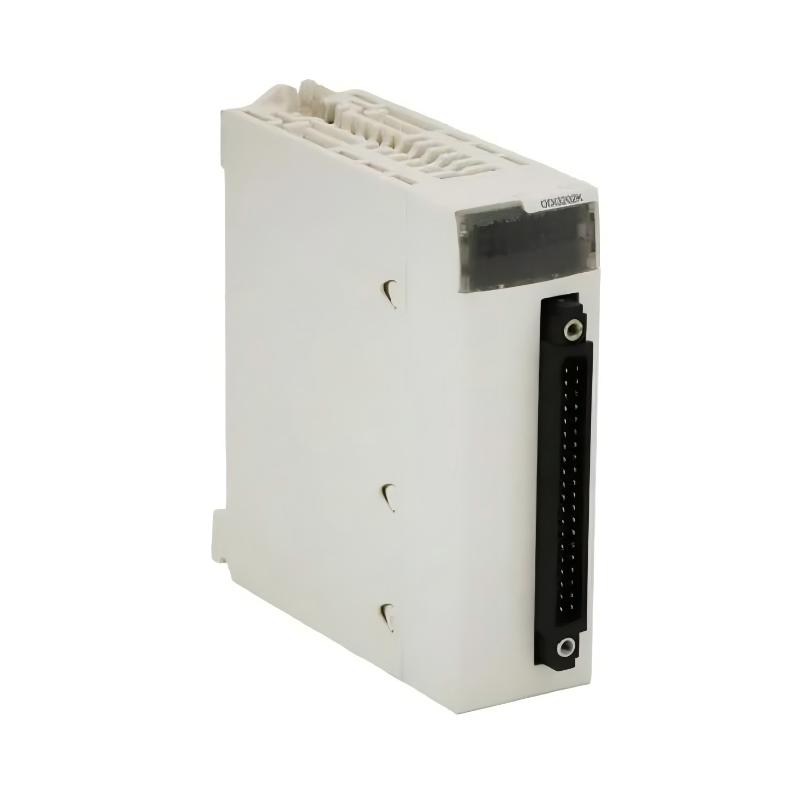

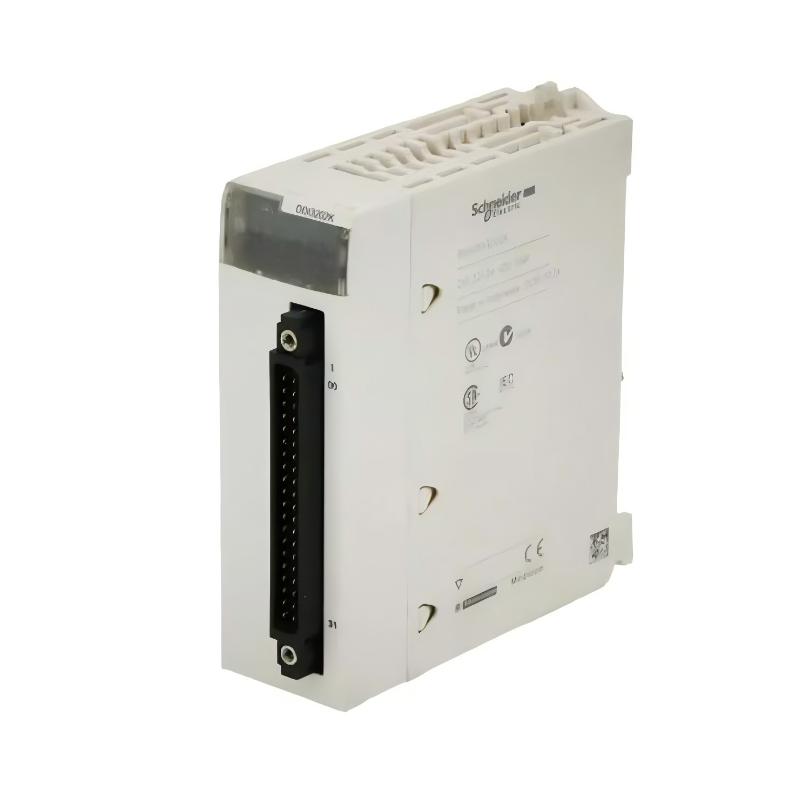

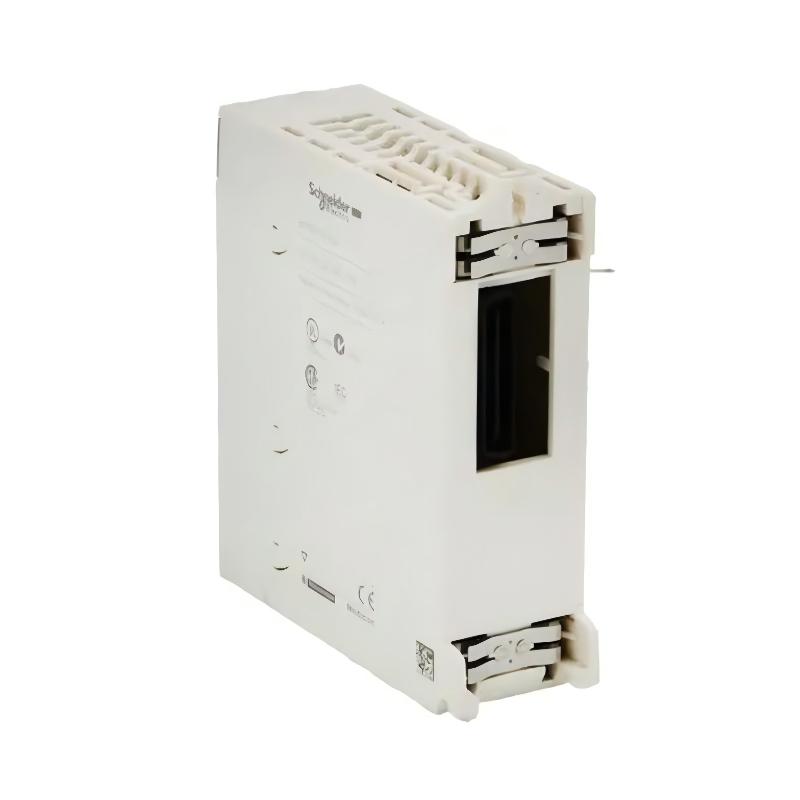

The BMXDDI3202K Discrete Input Module provides accurate, reliable, and compact discrete input monitoring for industrial automation systems.Its robust design and integrated diagnostics ensure operational confidence while simplifying system expansion and integration.
Technical Specifications
Feature
Specification
Input Type
Discrete (Digital) Input
Number of Channels
32
Response Time
Milliseconds
Isolation
Channel-to-channel and channel-to-ground
Operating Environment
Industrial
Package Dimensions
52 mm × 110 mm × 115 mm
Package Weight
0.112 kg
Recommended Related Models
BMXDDI3202R – Discrete input module with enhanced diagnostics
BMXDDI3202S – High-speed discrete input module for dynamic processes
BMXDDI3202T – Module with integrated fault monitoring
BMXDDI3202U – Compact discrete input module for tight installations
Popular Related Models
BMXDDI3200 – Standard discrete input module with 32 channels
BMXDDI3201 – High-precision discrete input module for critical applications
BMXDDI3203 – Entry-level discrete input module for general use
BMXDDI3204 – Enhanced discrete input module with remote diagnostics
Applications
Industrial automation – captures digital signals from sensors, switches, and field devices.
Process control systems – monitors discrete inputs to control processes safely and accurately.
Power distribution – acquires status signals from breakers, alarms, and interlocks.
Manufacturing systems – ensures accurate detection of machine states and control signals.
Building automation – monitors switches, safety devices, and digital sensors.
Advantages
Fast and reliable input detection – ensures timely and accurate processing of discrete signals.
Compact design – ideal for space-constrained control panels.
Seamless integration – fully compatible with Schneider Modicon M221, M241, and other PLC systems.
Modular and expandable – allows easy system expansion and addition of multiple input channels.
Enhanced diagnostics – detects wiring faults, input errors, and module status in real time.
Technical FAQs
1. What type of signals does BMXDDI3202K accept?
It accepts discrete (digital) input signals from field devices and switches.
2. How many channels are supported?
The module supports 32 discrete input channels.
3. Can multiple modules be installed together?
Yes, multiple modules can be installed in the same rack or PLC system.
4. Is it suitable for industrial environments?
Yes, designed to operate reliably in harsh industrial conditions.
5. Does it provide diagnostic capabilities?
Yes, it can detect input faults, wiring issues, and module status.
6. What is the response time of the module?
Response time is typically in milliseconds, suitable for real-time monitoring.
7. Is it compatible with older Schneider PLCs?
Yes, it integrates with legacy Modicon systems as well as modern PLC platforms.
8. Can it be used in hazardous areas?
Use in hazardous areas depends on the certification of the connected PLC and environment.
9. Does it require calibration?
No calibration is required; the module is ready for immediate use.
10. How is module status monitored remotely?
Through the PLC interface, enabling real-time diagnostics and monitoring of input channels.
