Brand:Schneider PLC Item No.:TM3TM3 Product Origin:France Product Dimensions:90 x 70 x 23.6 mm Product Weight:0.115 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

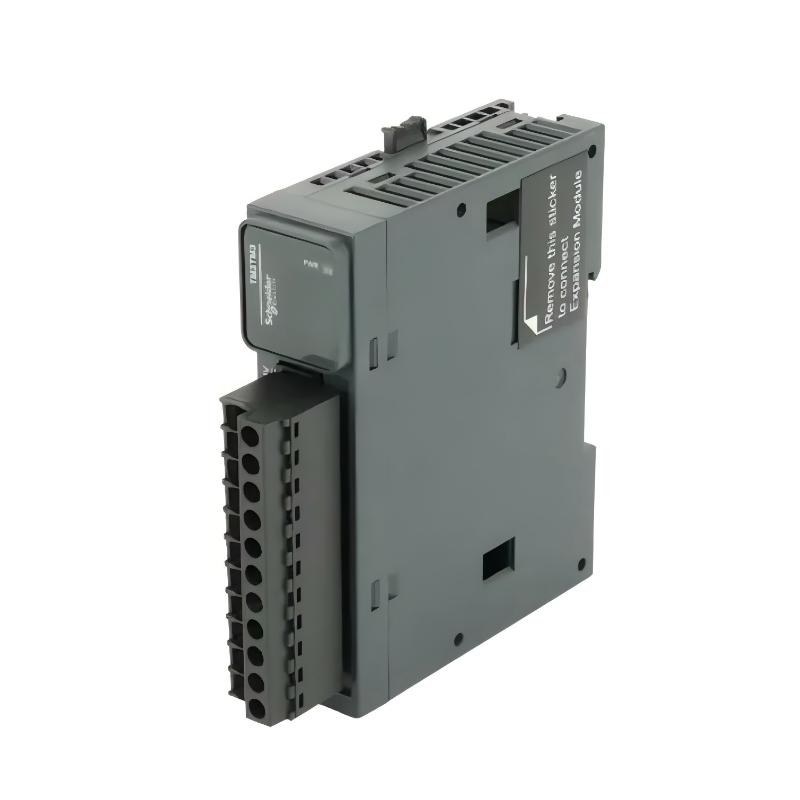

The TM3TM3 Analog I/O Module delivers a flexible and efficient solution for handling both analog inputs and outputs in modern automation systems.Its compact design and dual functionality reduce hardware requirements while maintaining high accuracy and reliable performance across a wide range of industrial applications.
Technical Specifications
Feature
Specification
Module Type
Analog I/O Module
Signal Type
Voltage / Current
Function
Analog Input & Output
Accuracy
High precision signal processing
Operating Temperature
0–55°C
Storage Temperature
-20–70°C
Humidity
5–95% RH, non-condensing
Dimensions
90 mm × 70 mm × 23.6 mm
Weight
0.115 kg
Recommended Related Models
TM3AI4 – Analog input module for precision signal acquisition
TM3AO2 – Analog output module for control applications
TM3AM6 – Mixed analog module with extended functionality
TM3TI4 – Temperature input module for thermal monitoring
Popular Related Models
TM3AI2 – Compact analog input module for basic applications
TM3AO1 – Entry-level analog output module
TM3AM3 – Integrated analog module for general-purpose use
TM3TI2 – Temperature input module for small systems
Applications
Industrial automation – handles both analog input and output signals for precise process control.
Machine control systems – supports real-time monitoring and adjustment of machine parameters.
Process industries – enables accurate data exchange between sensors and actuators.
Energy management systems – collects and transmits analog data for monitoring and optimization.
Building automation – integrates temperature, pressure, and flow control systems efficiently.
Advantages
Dual functionality design – supports both input and output in a single compact module.
High signal accuracy – ensures stable and precise analog data processing.
Compact footprint – ideal for installations where panel space is limited.
Seamless system compatibility – integrates smoothly with Schneider TM3 modular systems.
Reliable industrial performance – engineered for long-term stability in demanding environments.
Technical FAQs
1. What is the primary function of the TM3TM3 module?
It provides both analog input and output capabilities within a single compact module.
2. What types of signals are supported?
Supports standard analog voltage and current signals such as 0–10V and 4–20mA.
3. Can it be used for real-time control applications?
Yes, it supports fast signal processing suitable for dynamic control systems.
4. Is it compatible with TM3 expansion systems?
Yes, it integrates fully with Schneider TM3 modular platforms.
5. How does it ensure signal stability?
Built-in filtering and isolation reduce the effects of electrical noise.
6. Can multiple modules be installed together?
Yes, multiple TM3 modules can be combined for expanded functionality.
7. Does it support diagnostics?
Yes, it provides monitoring and status feedback for input and output channels.
8. Is it suitable for industrial environments?
Yes, designed to operate reliably in standard industrial conditions.
9. Does it require calibration?
Factory calibration is provided; additional calibration can be performed if required.
10. How is data accessed and monitored?
Through the connected PLC or HMI system for real-time monitoring and control.
