Introduction

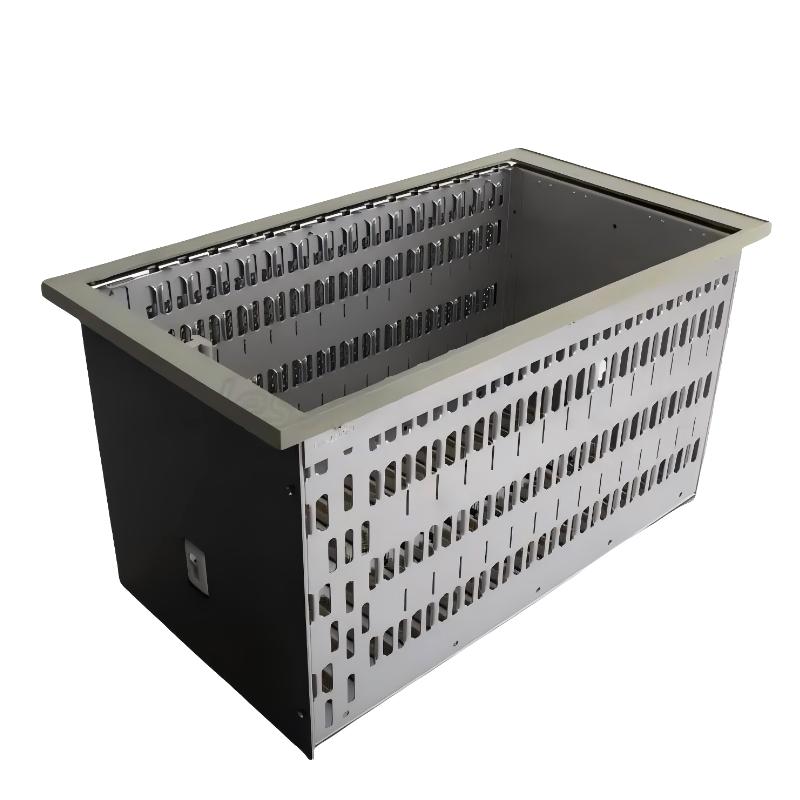

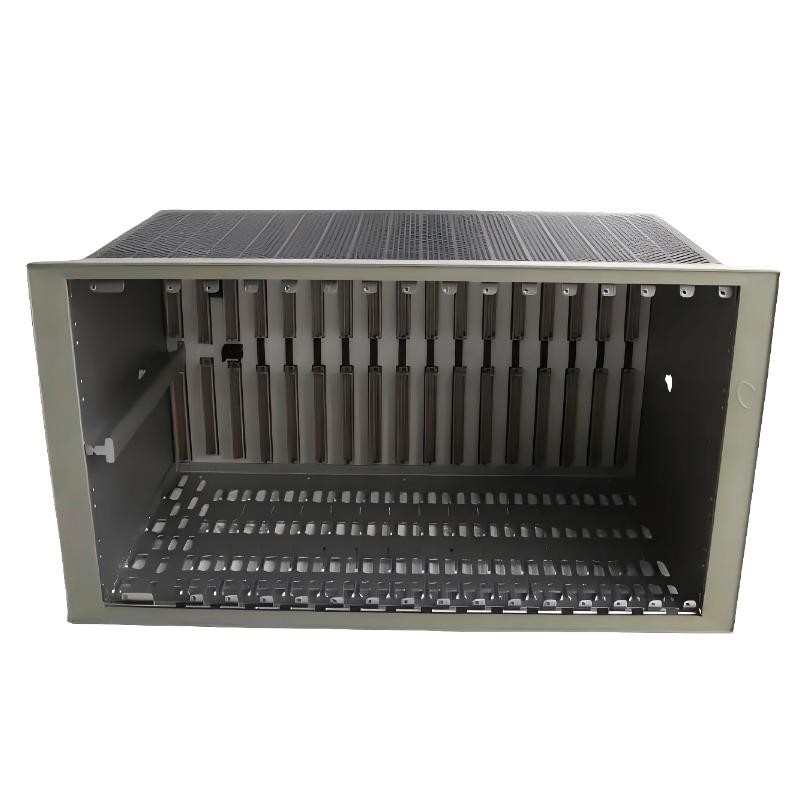

The Bently Nevada 3500/05-01-01-02-00-01 System Rack forms the structural core of the 3500 condition monitoring and protection platform. Engineered with a rugged industrial frame and an intelligent backplane architecture, it allows users to assemble a comprehensive monitoring system for a wide variety of rotating assets. With 14 available slots and a clean, organized front-access layout, the rack provides the flexibility, reliability, and long-term stability required in high-demand machinery protection applications. It is an essential foundation for any plant seeking higher operational continuity, predictive maintenance capabilities, and consistent machine health insights.

Technical Specifications

Item	Description
Product Name	Bently Nevada System Rack
Model	3500/05-01-01-02-00-01
Module Type	System Rack
Rack Size	19-inch standard
Slot Capacity	14 module slots
Supported Modules	Compatible with all Bently Nevada 3500 series modules
Frame Material	Industrial-grade aluminum alloy
Mounting Standard	19-inch rack mounting / panel installation
Electrical Interface	Integrated 3500 series backplane
Cooling Design	Natural convection with optimized airflow geometry
Rack Size	19-inch (14 module slots)
Weight	4.5 kg
Application Environment	Industrial machinery monitoring and protection systems

Recommended Related Models

Model	Description
3500/22M	Transient Data Interface Module
3500/40M	Proximitor Monitor
3500/42M	Dynamic Vibration Monitor
3500/25	Keyphasor Module
3500/32M	Relay Module
3500/93	System Communication Interface
3500/15	DC Power Supply Module
3500/94	Display Module
330130	Proximity Probes
330105	Extension Cables

Popular Related Models

Model	Description
3500/22M-01	High-performance Communication Module
3500/42M-01	Advanced Vibration Monitor
3500/32M-02	Relay Module Upgrade Version
3500/40M-01	Proximitor High-Sensitivity Module
3500/44M	Aeroderivative Turbine Monitor
330180	Standard Proximity Probe
3500/94-01	High-visibility Display Unit
3500/15-01	Redundant Power Supply
3500/60	Temperature/Process Monitor
3500/93-01	High-speed Data Interface

Applications

The Bently Nevada 3500/05-01-01-02-00-01 System Rack is purpose-built for demanding industrial environments where real-time machinery protection is essential. It is widely deployed across facilities that rely on uninterrupted operation and precise equipment diagnostics. Typical application areas include:

High-power turbomachinery in refineries and gas plants
Large compressors and expanders in chemical processing plants
High-speed pumps, motors, and blowers
Power generation turbines and auxiliary systems
Integrated machinery protection panels requiring modular scalability
Plants with strict compliance requirements for vibration and condition monitoring

Its reliable mechanical architecture and compatibility with the full 3500 monitoring suite make it a preferred choice for long-term plant reliability strategies.

Advantages

Purpose-engineered for industrial-grade reliability, ensuring dependable long-term performance
Accommodates 14 monitoring modules, enabling complex multi-parameter protection setups
Stable 19-inch mechanical frame designed for low vibration sensitivity
Backplane architecture ensures rapid signal throughput for real-time protection
Supports redundant power configurations for maximum system uptime
Simple front-access design, improving serviceability and configuration adjustments
Robust EMI shielding, protecting sensitive monitoring signals in harsh electrical environments
Optimized for full compatibility with all Bently Nevada 3500 modules and communication units

FAQs

1. Is this rack compatible with all existing 3500 monitoring modules?
Yes, it supports the entire 3500 module family without restrictions.

2. What type of power supply module is typically installed with this rack?
Most installations use the 3500/15 DC Power Supply, including redundant setups.

3. How many system communication modules can the rack hold?
It can support one primary communication module, such as the 3500/22M or 3500/93.

4. Does this rack support redundant configuration for system communications?
Yes, depending on the selected communication module version.

5. Is backplane communication fully isolated between slots?
Yes, each slot is electrically isolated to maintain reliable data flow and prevent interference.

6. What type of grounding is recommended during installation?
A solid chassis ground connection is required for proper noise suppression and signal stability.

7. Can vibration monitoring modules and temperature modules be mixed within the same rack?
Yes, the rack design fully supports mixing different monitoring types.

8. Is module insertion keyed to prevent incorrect installation?
Yes, slots and modules are mechanically keyed to avoid misalignment.

9. What operational environment is ideal for this rack?
It is intended for controlled industrial environments, typically within machinery protection panels.

10. Can the rack be mounted vertically or horizontally?
It is primarily designed for vertical installation in 19-inch cabinet systems.
