Brand:Bently Nevada PLC Item No.:3500/05-01-02 Product Origin:USA Product Dimensions:Rack Size : 19-inch (14 module slots) Product Weight:4.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

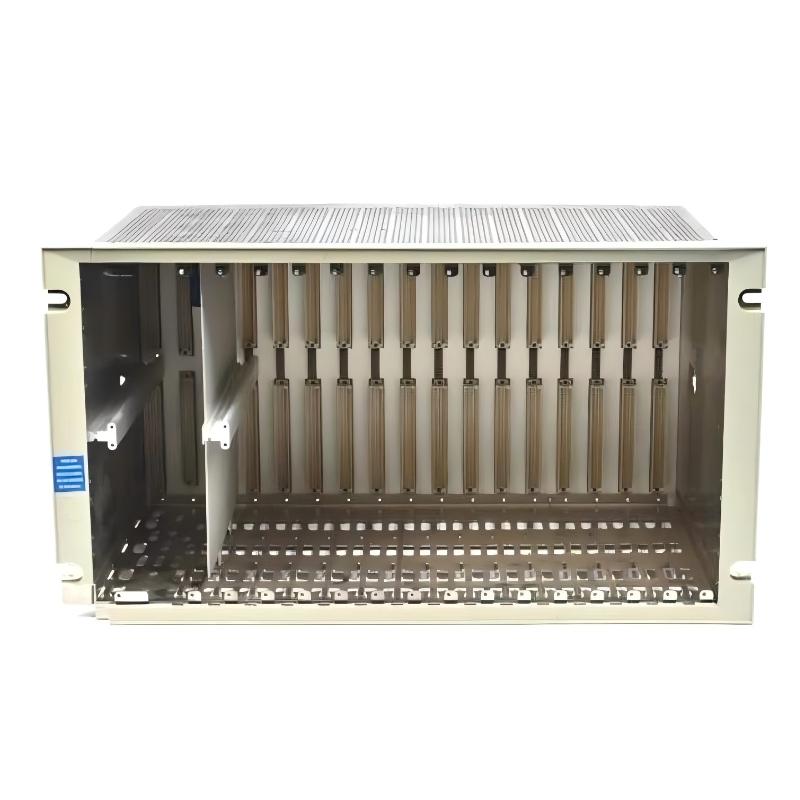

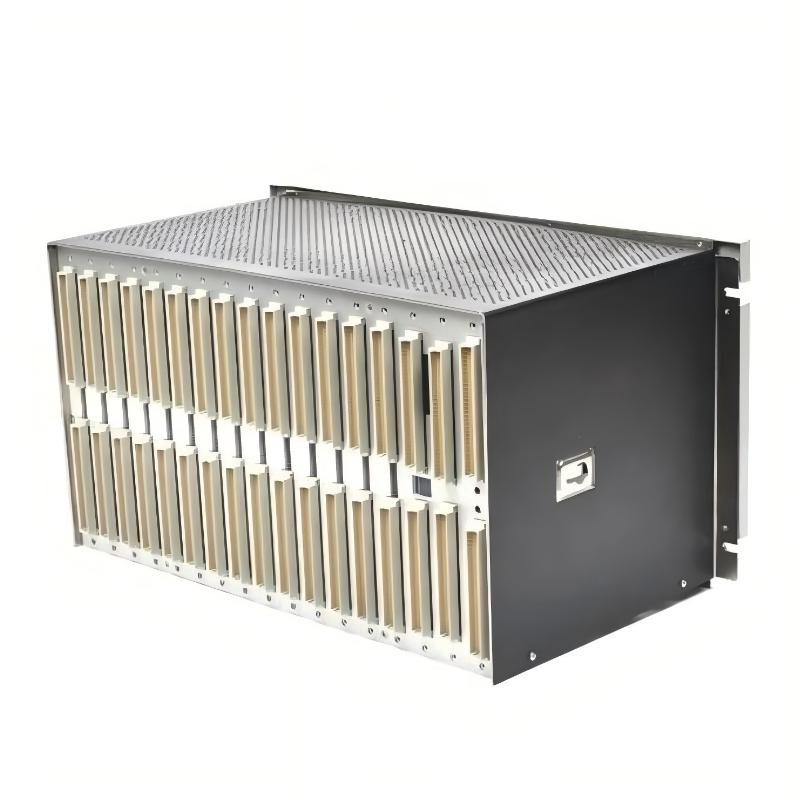

The Bently Nevada 3500/05-01-02 System Rack is a foundational hardware component of the renowned 3500 machinery protection platform. Engineered with durability and long-term stability in mind, it provides the structured framework needed to assemble an advanced monitoring and diagnostic system tailored to critical rotating machinery. Its 14-slot capacity, robust backplane architecture, and industrial-grade construction make it a vital element for plants seeking precision machinery protection and scalable condition monitoring capabilities. Reliable, adaptable, and engineered for industrial longevity, this rack represents the core infrastructure of many modern protection setups.
Technical Specifications
Item
Description
Product Name
Bently Nevada System Rack
Model
3500/05-01-02
Module Type
System Rack
Rack Standard
19-inch industrial frame
Module Capacity
14 slots
Compatible Modules
Full Bently Nevada 3500 monitoring and communication suite
Frame Material
Heavy-duty aluminum alloy
Mounting Type
19-inch cabinet mounting or panel integration
Backplane
Integrated high-reliability 3500 system backplane
Cooling
Passive convection airflow
Rack Size
19-inch (14 module slots)
Weight
4.5 kg
Typical Usage Environment
Precision machinery monitoring and protection systems
Recommended Related Models
Model
Description
3500/25
Keyphasor Module
3500/32M
Relay Output Module
3500/40M
Proximitor Monitoring Module
3500/42M
Vibration Monitoring Module
3500/22M
Transient Data Interface
3500/93
Communication Gateway
3500/50
Temperature Monitor
3500/15
DC Power Supply
3500/94
Display Module
330130
Proximity Sensors
Popular Related Models
Model
Description
3500/22M-01
Enhanced TDI Module
3500/42M-01
High-precision Vibration Monitor
3500/32M-02
Relay Module Upgraded Version
3500/40M-01
High-sensitivity Proximitor Monitor
3500/93-01
Advanced Communication Interface
3500/50-01
Expanded Temperature Monitoring
330180
Standard Proximity Probe
3500/94-01
Industrial Display Panel
3500/15-01
Redundant Power Supply Module
3500/60
Process and Temperature Monitor
Applications
The Bently Nevada 3500/05-01-02 System Rack is designed for environments where precision, reliability, and uninterrupted machinery protection are non-negotiable. This rack serves as the backbone of complex monitoring architectures, making it ideal for:
Turbomachinery monitoring in refineries and LNG facilities
Heavy-duty compressors and expanders in petrochemical systems
Facilities standardizing on the 3500 protection platform for predictive maintenance
With its structured slot layout and disciplined engineering, the rack supports mission-critical performance for the world’s most demanding industrial assets.
Advantages
14-slot architecture enabling dense monitoring configurations without compromising signal clarity
Stable 19-inch rack format compatible with most industrial cabinets and protection panels
High-integrity backplane design ensuring rapid module communication and stable signal routing
Engineered for minimal downtime, supporting redundant power supply options
Thermally balanced chassis, delivering dependable operation even under elevated ambient temperatures
Front-serviceable layout, simplifying module replacement, wiring, and configuration work
Rugged mechanical frame that resists vibration-induced fatigue in dynamic machinery areas
Fully scalable, allowing plant operators to expand protection coverage as operational needs grow
FAQs
1. How many modules can the 3500/05-01-02 rack hold?
It provides 14 dedicated slots for monitoring, communication, relay, and power modules.
2. Does this rack support redundant power supply installation?
Yes, compatible redundant DC power supply modules can be installed for higher system availability.
3. Is the rack suitable for mixed module types?
Yes, any standard 3500 series modules—vibration, temperature, relay, communication—can be combined.
4. What communication module is typically used with this rack?
The 3500/22M or 3500/93 modules are common choices for system and plant network integration.
5. Does the rack provide mechanical keying to prevent incorrect module insertion?
Yes, slot keying ensures accurate module alignment and prevents improper installation.
6. Is the backplane standardized across the 3500/05 rack variants?
Yes, all 3500/05 racks follow the same backplane interface for full module compatibility.
7. What ambient conditions are recommended for optimal operation?
It performs best in controlled industrial enclosures designed for protection systems.
8. Can the rack be integrated with legacy protection setups?
In most cases, yes—it supports standard 19-inch mounting, making it compatible with many existing panels.
9. Is hot-swapping supported for module replacement?
Most modules require system power-down before removal unless otherwise specified by the module type.
10. Is cable access straightforward during installation?
Yes, the design provides clear routing paths for power, communication, and sensor wiring.
