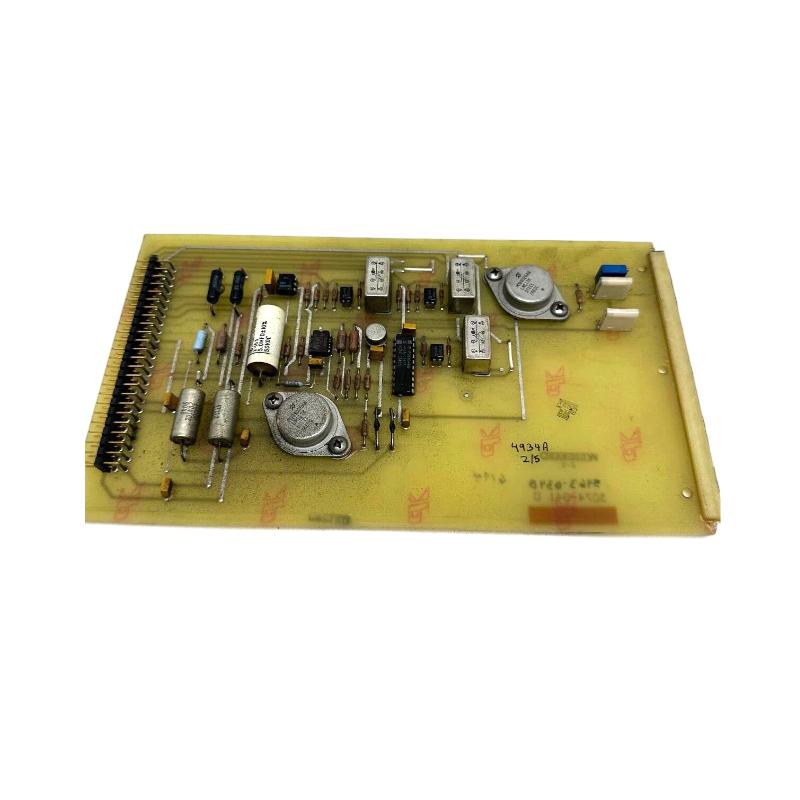

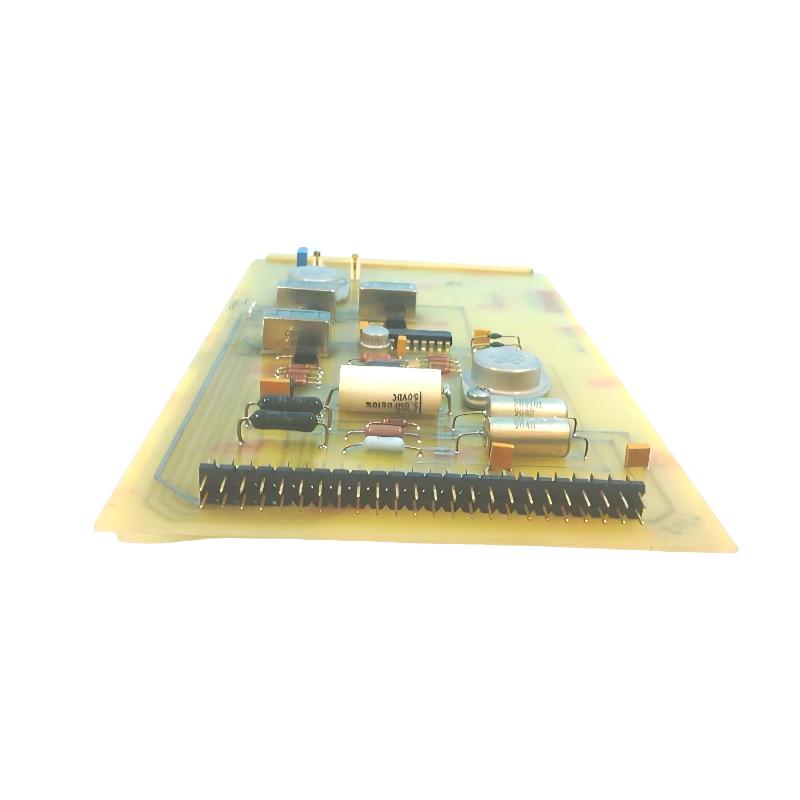

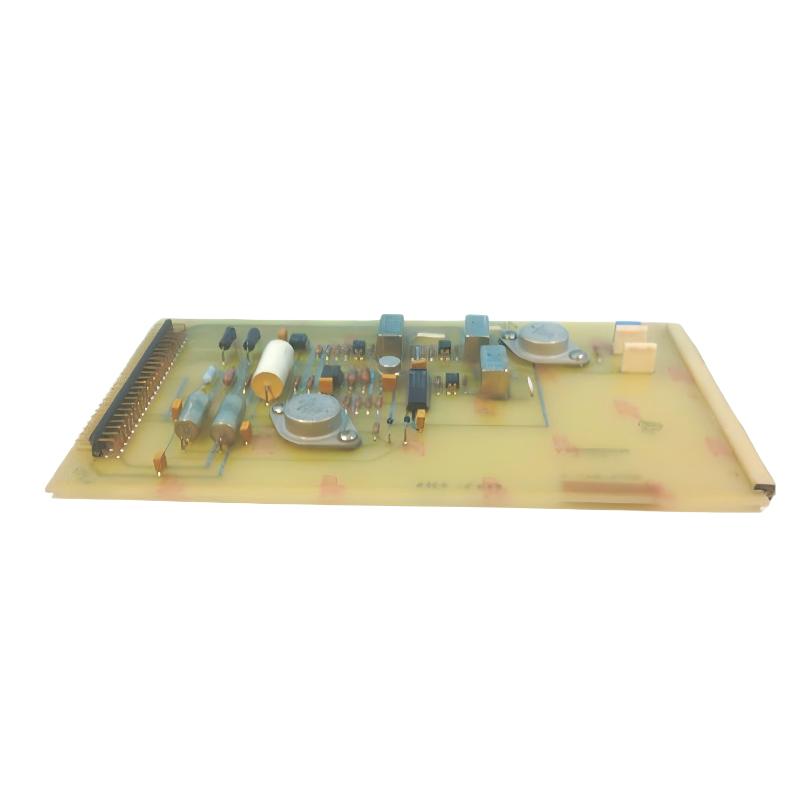

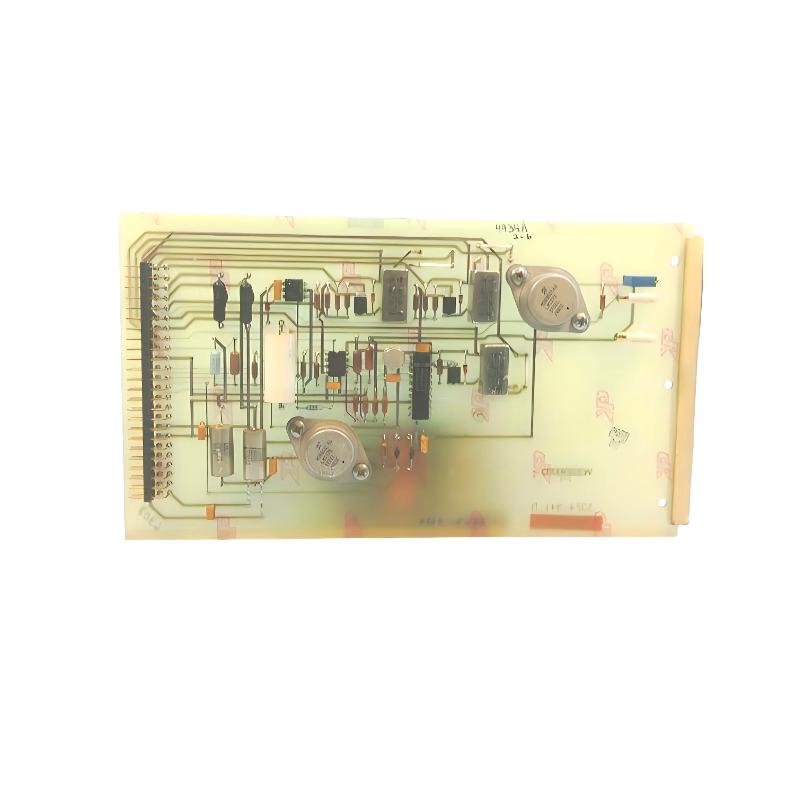

Woodward 5463‑034 Analog Input Module for High‑Integrity Industrial Control Systems
Woodward 5463‑034 Analog Input Module for High‑Integrity Industrial Control Systems
0.0
Points
Brand:Woodward Item No.:Woodward 5463‑034 Product Origin:USA Product Dimensions:229 × 178 × 45 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Woodward 5463‑034 is a precision analog input module designed to capture and condition multiple analog sensor signals for distributed control architectures. This module is typically used in Woodward control families such as MicroNet, NetCon, and NetCon 5000, where accurate analog measurements of process variables (e.g., temperature, pressure, flow) are essential. With its robust industrial design and reliable signal conditioning, the 5463‑034 enables precise analog data acquisition and seamless integration into turbine control, power generation, and process automation systems.
Technical Specifications
Specification
Details
Model
5463‑034
Module Type
Analog Input Module
Function
Captures and conditions analog sensor signals
Input Channels
Multiple independent analog inputs (system dependent)
Signal Types
Voltage (e.g., 0–10 V), Current (e.g., 4–20 mA), Thermocouple (with hardware config)
Input Resolution
High‑precision ADC for accurate data capture
Isolation
Channel‑to‑channel electrical isolation
Operating Voltage
24 V DC (nominal)
Operating Temp. Range
–20 °C to +70 °C (typical industrial)
Mounting
Rack or control cabinet installation
Dimensions (L×W×H)
Approx. 229 × 178 × 45 mm
Weight
1.2 kg
Status
Legacy module; available via surplus and refurbish channels
Note: Signal type support and channel count vary based on specific configuration and installation context.
Recommended Related Models
Woodward 5461‑644 Analog Output Module – Precision analog outputs
Woodward 5461‑655 Final Driver Module – High‑current actuator outputs
Woodward 5462‑750 Power Supply Module – Stable DC supply for racks
Woodward 5462‑757 Discrete Input Module – Digital input signal processing
Woodward 5441‑661 Relay Interface Module – Field relay interfacing
Popular Woodward Products
Woodward 5441 Series – Relay & discrete modules
Woodward 5461 Series – Analog & driver modules
Woodward 5462 Series – I/O and control modules
Woodward MicroNet, NetCon & DCS controllers
Applications
The 5463‑034 is ideal wherever accurate analog measurement is required:
Turbine control systems for speed, temperature, and pressure monitoring
Power generation automation (gas, steam, hydro)
Industrial process instrumentation and control
Oil & gas refining and process loops
Distributed control systems (DCS) within manufacturing plants
Legacy Woodward installations requiring analog expansion
Accurate analog data collection ensures reliable feedback loops, enabling control logic to maintain stable operations across complex industrial systems.
Key Advantages
Multi‑Channel Precision – Captures analog signals with high resolution and consistency
Flexible Signal Support – Handles both voltage and current analog inputs
Industrial‑Grade Design – Built for rugged plant environments
Seamless System Integration – Compatible with MicroNet and NetCon architectures
Channel Isolation – Reduces noise and enhances measurement integrity
OEM Legacy Support – Ideal for maintaining and upgrading existing platforms
Technical FAQs
1. What is the primary function of the Woodward 5463‑034?
It is an analog input module that conditions and transmits analog field signals to a controller.
2. What types of analog signals does it support?
It supports voltage (e.g., 0–10 V) and current (e.g., 4–20 mA) signals; thermocouple support may require configuration.
3. How many channels does it provide?
Channel count varies by configuration and installation needs.
4. What supply voltage is required?
It typically operates on a 24 V DC control rack supply.
5. What are its approximate dimensions?
Approximately 229 × 178 × 45 mm.
6. What is its weight?
About 1.2 kg.
7. Is it still in production?
It is generally a legacy module but is widely available through surplus and refurbished suppliers.
8. Where is this module commonly installed?
It is rack‑installed inside control cabinets alongside CPU, power, and output modules.
9. What industries commonly use this module?
Power generation, oil & gas, process automation, and heavy industrial sectors.
10. Why use a dedicated analog input module?
Dedicated analog modules provide accurate conversion, noise isolation, and signal conditioning essential for reliable control system performance.
