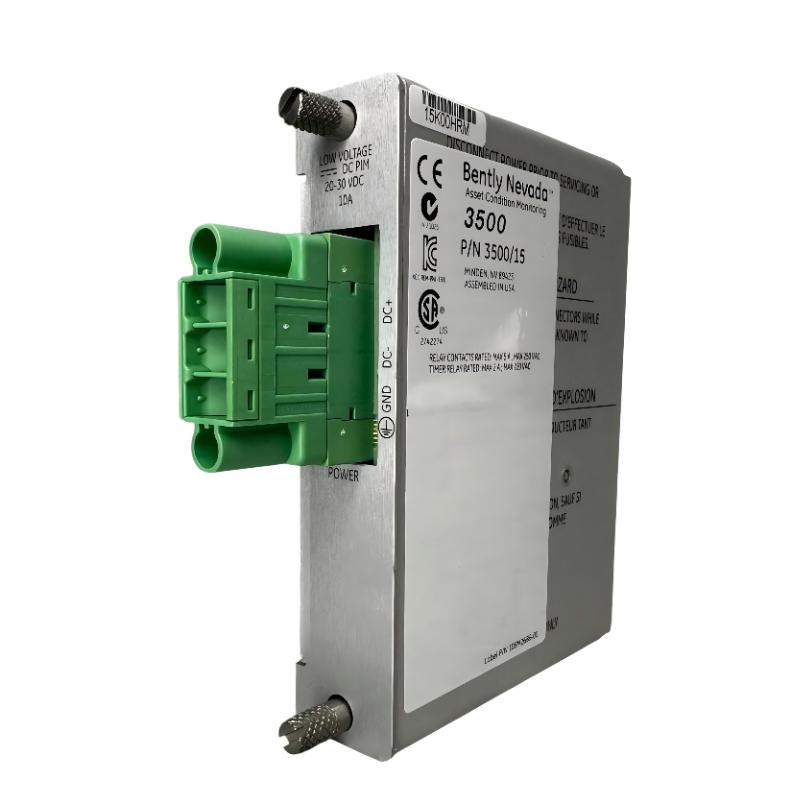

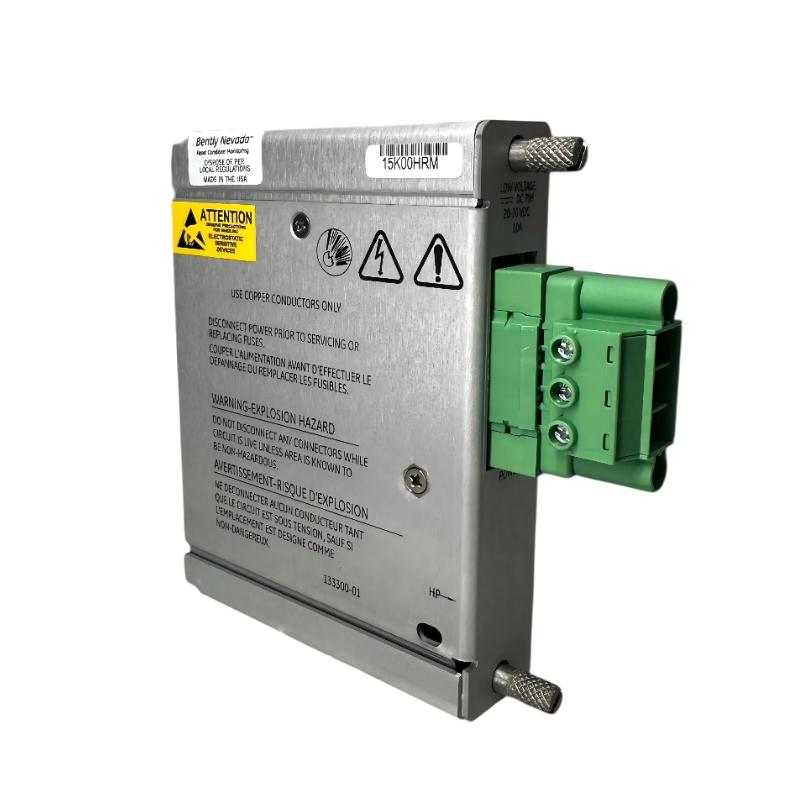

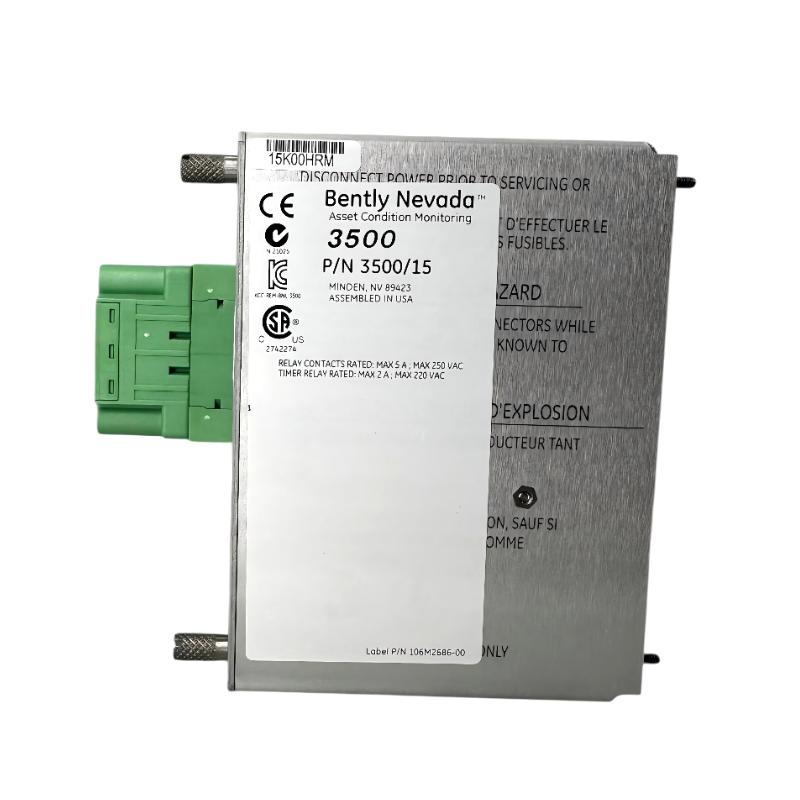

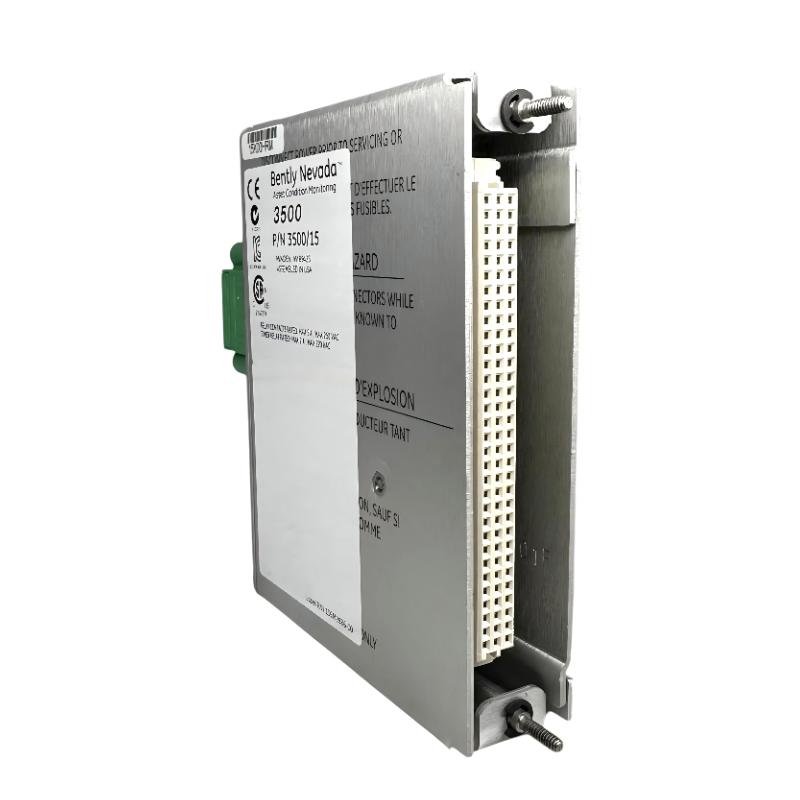

Bently Nevada 3500/15 133300-01 Low Voltage DC Power Input Module
Bently Nevada 3500/15 133300-01 Low Voltage DC Power Input Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/15 Product Origin:USA Product Dimensions:120.7 x 25.4 x 114.3 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/15 133300-01 Low Voltage DC Power Input Module is a critical power component for the 3500 machinery protection system, designed to deliver stable and reliable DC power under demanding industrial conditions. Compact yet highly efficient, it ensures the integrity of monitoring data by maintaining a clean and regulated power source across all rack modules. Its rugged build and compatibility with redundant configurations make it an indispensable part of any advanced condition monitoring or protection architecture. Whether supporting turbines, compressors, or high-speed rotating machinery, this power module plays a foundational role in keeping plant equipment protected.
Technical Specifications
Item
Description
Product Name
Low Voltage DC Power Input Module
Model
3500/15 133300-01
Module Type
Power Supply Module
Input Type
Low-Voltage DC
Output
Regulated DC power for full 3500 rack
Compatibility
All Bently Nevada 3500 series racks
Redundancy
Supports dual-module redundant operation
Cooling
Passive convection
Dimensions
120.7 mm × 25.4 mm × 114.3 mm
Weight
0.34 kg
Installation
3500 rack front-accessible module slot
Typical Use
Powering vibration and protection modules in critical machinery systems
Recommended Related Models
Model
Description
3500/05
System Rack
3500/22M
Transient Data Interface Module
3500/40M
Proximitor Monitor
3500/42M
Vibration Monitoring Module
3500/32M
Relay Module
3500/93
System Communication Module
3500/50
Temperature Monitoring Module
3500/15-02
High-voltage DC Power Input Version
330130
Proximity Probe
330105
Probe Extension Cable
Popular Related Models
Model
Description
3500/22M-01
Enhanced Communication Interface
3500/42M-01
Advanced Vibration Monitoring Module
3500/32M-02
Relay Output Upgrade Module
3500/40M-01
High-Sensitivity Proximitor Monitor
3500/94
Industrial Display Module
330180
Standard Proximity Probe
3500/15-01
Redundant Power Supply Variant
3500/93-01
High-Speed Data Interface
3500/60
Temperature & Process Monitoring Module
330130-040
Extended-range Proximity Probe
Applications
The Bently Nevada 3500/15 133300-01 Low Voltage DC Power Input Module is purpose-built for supplying clean, stable power to the 3500 machinery protection system. It delivers regulated low-voltage DC power to ensure uninterrupted operation of monitoring, diagnostics, and protection hardware. This module is commonly deployed in:
High-value turbomachinery protection systems
Petrochemical, LNG, and refinery vibration monitoring architectures
Continuous-duty compressor and turbine panels
High-speed pump monitoring systems
Industrial control rooms requiring reliable low-voltage DC distribution
Any 3500 rack installation requiring redundant or primary regulated DC input
Its electrical purity, stable regulation, and fault-tolerant design make it an essential component in high-reliability machinery monitoring environments.
Advantages
Provides steady and noise-free low-voltage DC power, ensuring accurate and stable monitoring signals
Designed for redundancy, enabling dual-power configurations for high system uptime
Compact and efficient form factor, fitting seamlessly into a 3500 rack without consuming unnecessary space
Fast startup and stable regulation, supporting immediate system readiness during plant operations
Low thermal output, contributing to a stable rack temperature profile
Built with high-reliability components for long operational life under continuous service
Simple installation and wiring, reducing setup times and maintenance windows
Optimized for the entire 3500 platform, guaranteeing seamless compatibility
FAQs
1. What type of power does the 3500/15 133300-01 provide to the rack?
It supplies regulated low-voltage DC power for all modules installed in the rack.
2. Can this module be used in redundant power configurations?
Yes, it supports full redundancy when paired with a second power supply module.
3. What input voltage does this version accept?
This model is designed for low-voltage DC input ranges suitable for industrial cabinet distribution systems.
4. Does the module feature internal overcurrent protection?
Yes, it includes built-in protection to prevent supply faults from affecting the rack.
5. Is the module hot-swappable?
Most installations require the rack to be powered down before replacement for safety and stability.
6. Does the module power all 14 slots in a 3500 rack?
Yes, when used as the primary supply, it powers all modules installed in the rack.
7. How does the module ensure power quality?
It uses industrial-grade filtering and regulation circuits to minimize noise and voltage ripple.
8. Is it necessary to pair this module with AC power converters?
Only if the plant distribution provides AC; otherwise, direct DC input is supported.
9. Can this module operate in high-temperature environments?
Yes, as long as it remains within the recommended enclosure temperature limits.
10. How is module health monitored?
The 3500 system provides status indications and diagnostic reporting for power supply health.
