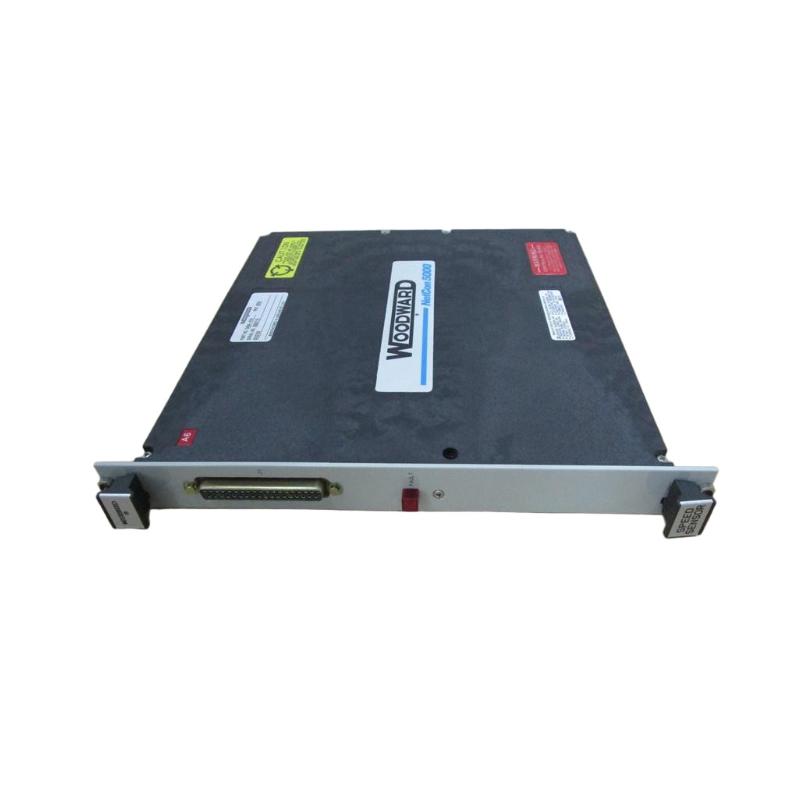

Woodward 5464‑414 Analog Input/Output Interface Module for Distributed Industrial Control Systems
Woodward 5464‑414 Analog Input/Output Interface Module for Distributed Industrial Control Systems
0.0
Points
Brand:Woodward Item No.:Woodward 5464‑414 Product Origin:USA Product Dimensions:229 × 178 × 45 mm Product Weight:USA Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Woodward 5464‑414 is a versatile Analog Input/Output (I/O) Interface Module engineered for rugged industrial automation and control environments. Designed to interface analog field devices with Woodward distributed control architectures—such as NetCon 5000 and MicroNet—this module provides accurate two‑way analog conversion between sensors/actuators and control logic.
With reliable signal conditioning, robust noise immunity, and industrial construction, the 5464‑414 excels in applications requiring dependable analog processing and seamless integration into PLC, DCS, or dedicated turbine control systems.
Technical Specifications
Specification
Details
Model
5464‑414
Module Type
Analog Input/Output Interface Module
Function
Converts and conditions analog field signals
Supported Signals
Voltage (0–10 V), Current (4–20 mA)
Input Channels
Multiple analog inputs (system dependent)
Output Channels
Multiple analog outputs (system dependent)
Accuracy
High‑resolution with precision conditioning
Isolation
Channel isolation for reduced electrical noise
Supply Voltage
24 V DC (nominal industrial supply)
Operating Temperature
−20 °C to +70 °C
Mounting
Rack / control cabinet installation
Dimensions (L×W×H)
Approx. 229 × 178 × 45 mm
Weight
1.2 kg (approx.)
Compatibility
Woodward NetCon 5000, MicroNet, PLC/DCS systems
Status
Legacy module, commonly found as new surplus or refurbished
Recommended Related Models
Woodward 5461‑644 – Analog Output Module
Woodward 5461‑655 – Final Driver Module
Woodward 5462‑750 – Power Supply Module
Woodward 5462‑757 – Discrete Input Module
Woodward 5441‑661 – Relay Interface Module
These represent typical companions when expanding analog and discrete I/O capability within a control rack or distributed automation system.
Popular Woodward Control Components
5441 Series – Relay & Discrete Interface Modules
5461 Series – Digital & Analog I/O Modules
5462 Series – Power & Discrete I/O Expansion
5463 Series – Sensor Interface & Conditioning Modules
NetCon 5000 / MicroNet Controllers – Core distributed control platforms
Applications
The Woodward 5464‑414 is ideally suited for systems demanding accurate analog interfacing, including:
Industrial process automation loops
PID control based feedback loops
Turbine performance and parameter monitoring
Generator control and synchronization signals
Temperature, flow, and pressure analog sensor integration
PLC/DCS control signals requiring high signal fidelity
Accurate analog I/O enables smoother control response, tighter regulation, and better overall system performance.
Key Advantages
Dual Analog I/O Capability – Handles both input and output analog signals efficiently
High Signal Integrity – Precision analog conditioning enhances measurement confidence
Industrial Isolation – Reduces electrical interference for stable measurements
Seamless Integration – Works with Woodward NetCon/MicroNet systems and third‑party PLC/DCS environments
Rugged Construction – Durable hardware for continuous industrial operation
Legacy Support – Ideal for maintaining and expanding older control systems
Technical FAQs
1. What is the main function of the 5464‑414?
It converts analog field signals into controller‑ready data and converts control signals back to analog outputs.
2. What types of analog signals does it support?
Typically voltage (0–10 V) and current (4–20 mA) analog signals.
3. What is the power requirement?
It uses a nominal 24 V DC industrial control supply.
4. Can it be mounted in a standard control rack?
Yes, it is designed for rack or cabinet mounting.
5. What are the physical dimensions?
Approximately 229 × 178 × 45 mm.
6. How much does the module weigh?
About 1.2 kg.
7. Where is it typically installed?
Inside control cabinets alongside controllers and other I/O modules.
8. Is it compatible with modern PLC systems?
Yes, with appropriate control logic it integrates with PLC and DCS platforms.
9. What industries use it?
Power generation, oil & gas, chemical, utilities, and heavy manufacturing.
10. Why use a dedicated analog I/O module?
Dedicated modules provide precise conversion, conditioning, and noise reduction crucial for analog signal integrity.
