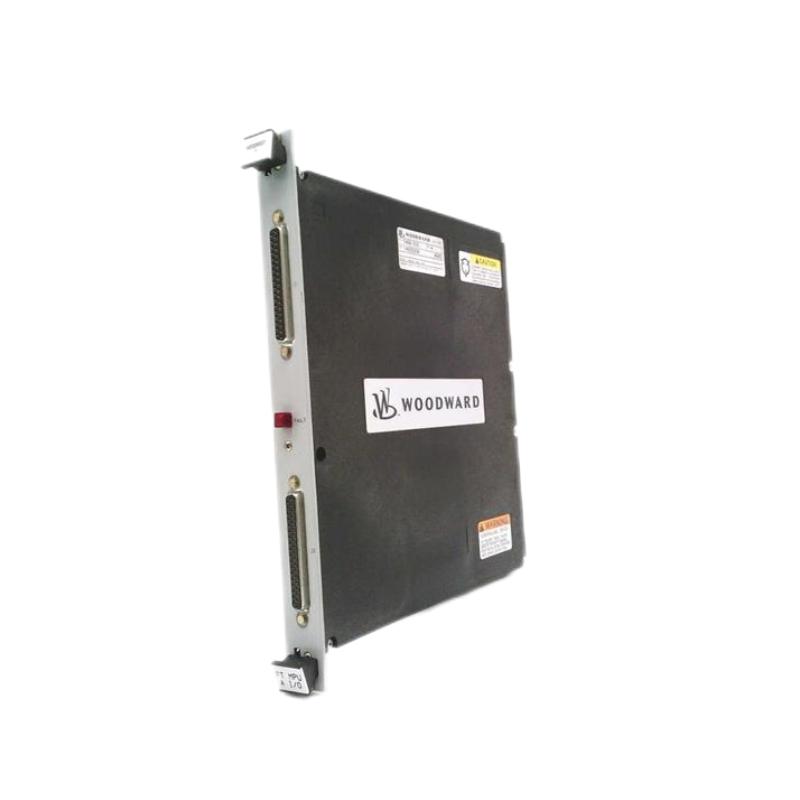

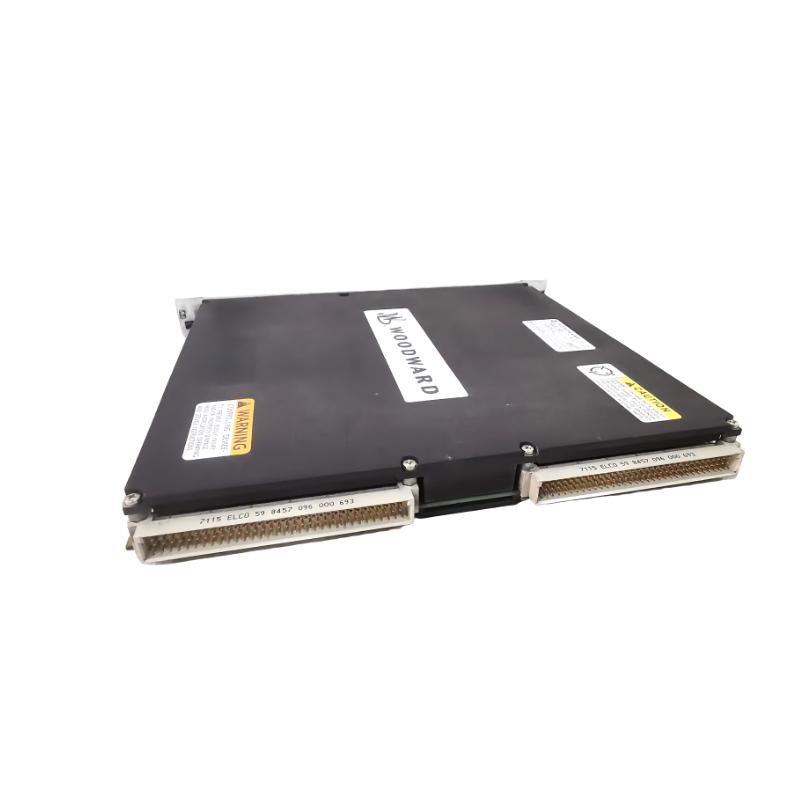

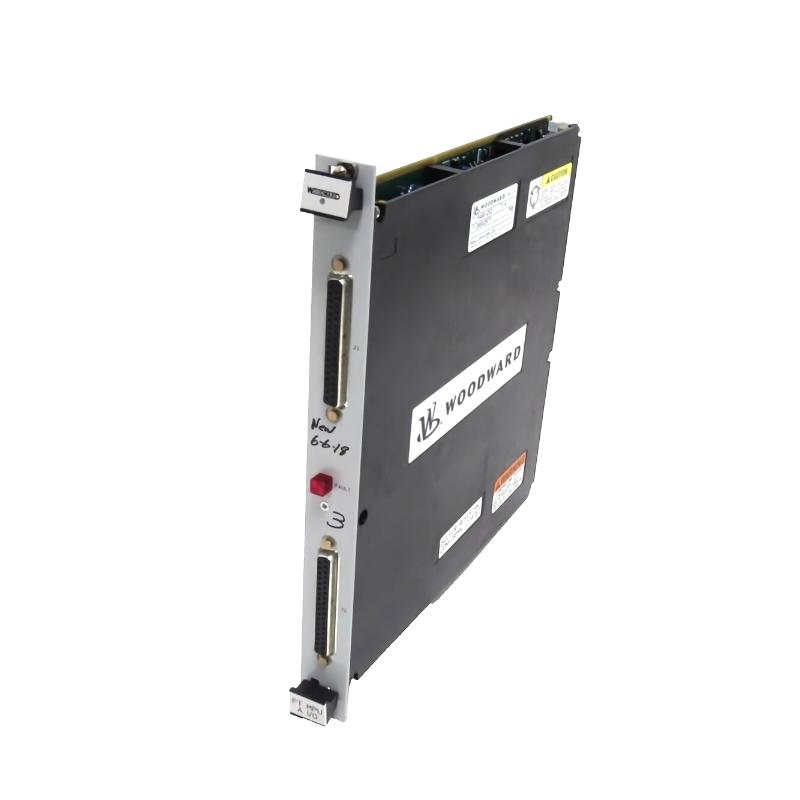

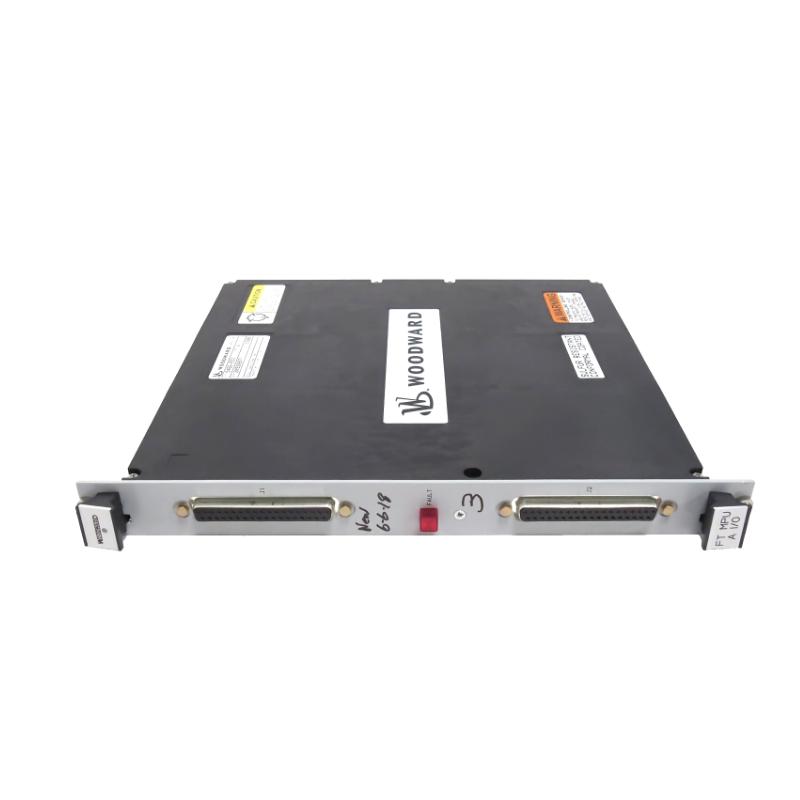

The Woodward 5466‑253 is a high-density Analog Combo Module for distributed control systems like NetCon 5000 and MicroNet TMR. It consolidates analog inputs, outputs, speed sensors, and actuator drives into a single module, simplifying rack design and reducing wiring complexity. Ideal for turbine control, generator automation, and industrial process applications, it provides precise signal processing and robust integration into legacy and modern control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 5466‑253 |
| Module Type | High-Density Analog Combo I/O Module |
| Function | Integrated analog input/output, speed sensor input, and actuator drive |
| Analog Inputs | 8 channels (4–20 mA typical) |
| Analog Outputs | 4 channels (4–20 mA or actuator drive) |
| Speed Sensor Inputs | 4 channels (magnetic pickup / proximity) |
| Proportional Actuator Outputs | 2 channels (configurable) |
| Update Time | ~5 ms |
| Operating Temperature | –20 °C to +70 °C |
| Mounting | Rack / panel installation |
| Dimensions (L × W × H) | 229 × 178 × 45 mm |
| Weight | 1.9 kg |
| Compatibility | Woodward NetCon 5000, MicroNet TMR, PLC/DCS systems |
| Status | Supported legacy module |
