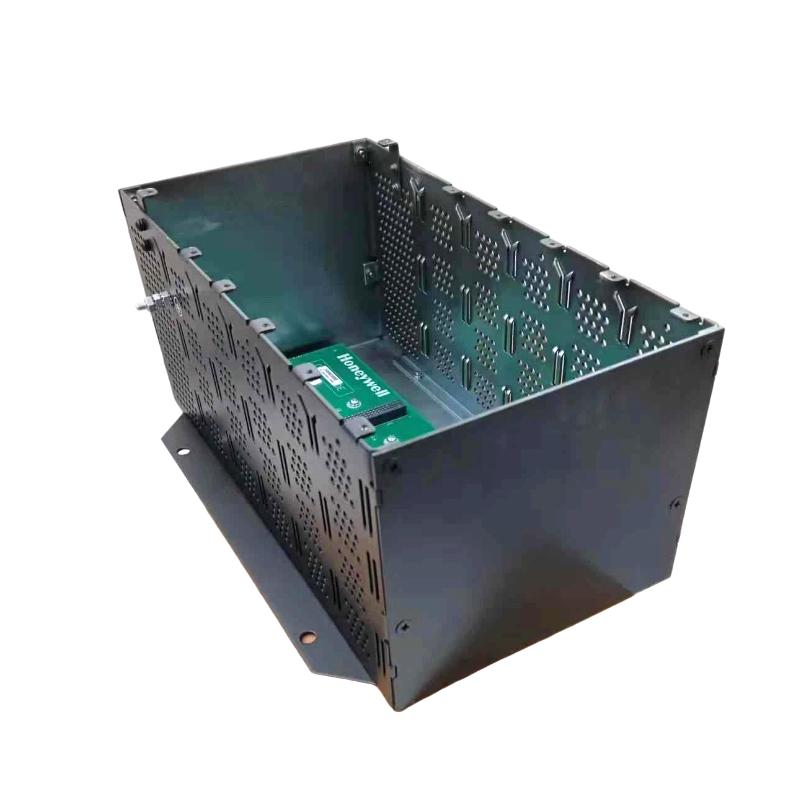

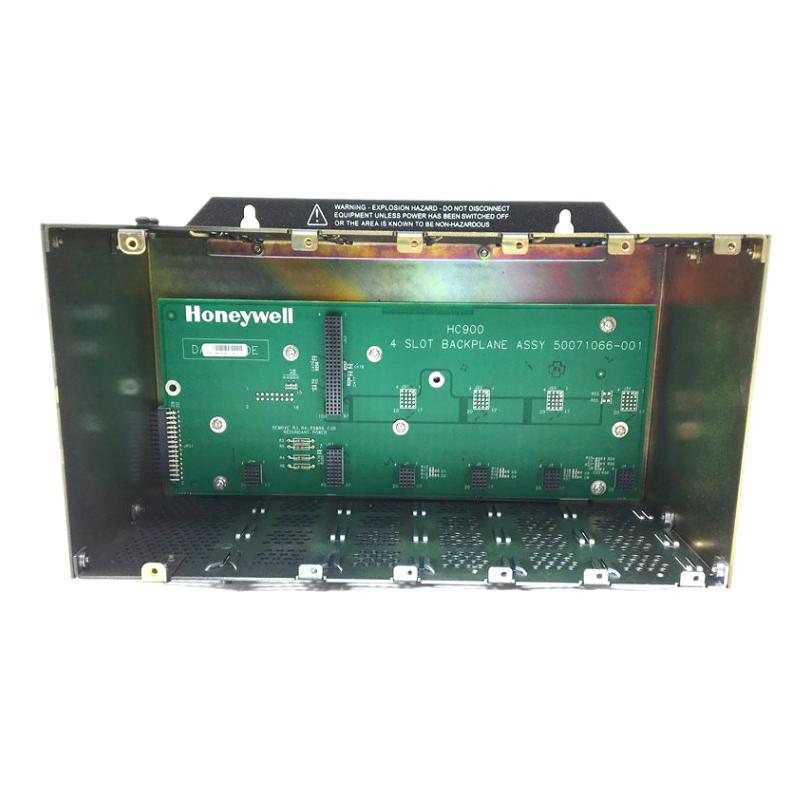

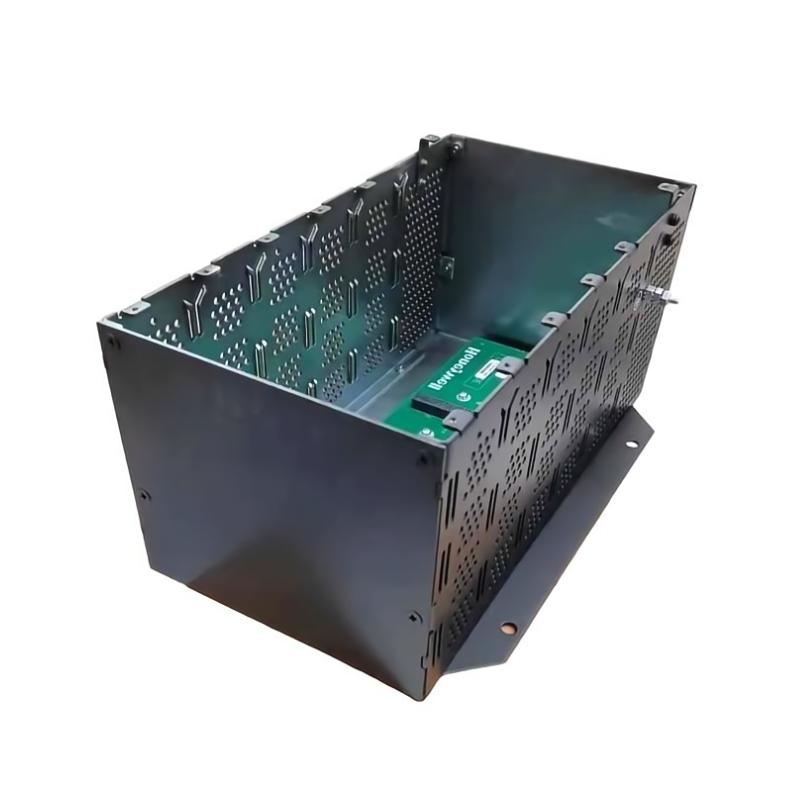

Honeywell 900R04-0200 4-slot I/O Rack

Applications

• Provides a modular platform for connecting up to four HC900 I/O modules.

• Supports both analog and digital input/output operations in process control.

• Integrates with HC900 controllers and redundant racks for high reliability.

• Facilitates organized and expandable wiring in control cabinets.

• Enables distributed control architecture with centralized monitoring.

• Ideal for industrial automation systems requiring flexible module expansion.

Key Advantages

• Modular Design: Supports up to four I/O modules, allowing easy expansion.

• High Reliability: Industrial-grade construction ensures long-term stable operation.

• Seamless Integration: Compatible with HC900 controllers, CPU modules, and redundant racks.

• Compact Form Factor: Efficient footprint for control cabinets with limited space.

• Simplified Maintenance: Easy access to modules for installation, replacement, or troubleshooting.

• Enhanced System Organization: Neatly houses multiple modules for orderly wiring and signal routing.

Technical FAQs

1. What is the primary function of the 900R04-0200 I/O rack?
It houses up to four HC900 I/O modules for modular process control.

2. Can it handle both analog and digital modules?
Yes, it supports standard analog and digital I/O modules compatible with HC900 systems.

3. How does it integrate with controllers?
It connects directly to HC900 controllers and CPU modules via the system bus.

4. Is it compatible with redundant racks?
Yes, it integrates seamlessly with HC900 redundant CPM racks.

5. What are the dimensions of the rack?
The rack measures 137 × 266.7 × 151.7 mm.

6. How much does it weigh?
The weight is 2.104 kg.

7. Can it be installed in compact cabinets?
Yes, its modular and compact design allows efficient space utilization.

8. Is it suitable for industrial environments?
Yes, it is built with industrial-grade materials for durability and reliability.

9. How are modules secured in the rack?
Modules are installed into slots with proper connectors to ensure secure connections.

10. Can multiple racks be used together?
Yes, multiple 4-slot racks can be combined for larger I/O configurations.
