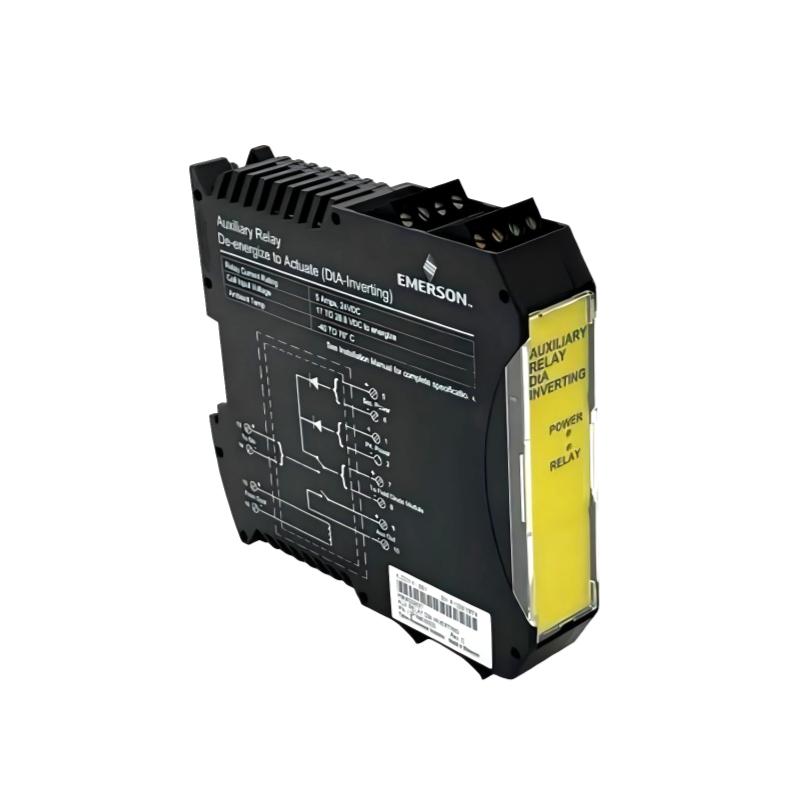

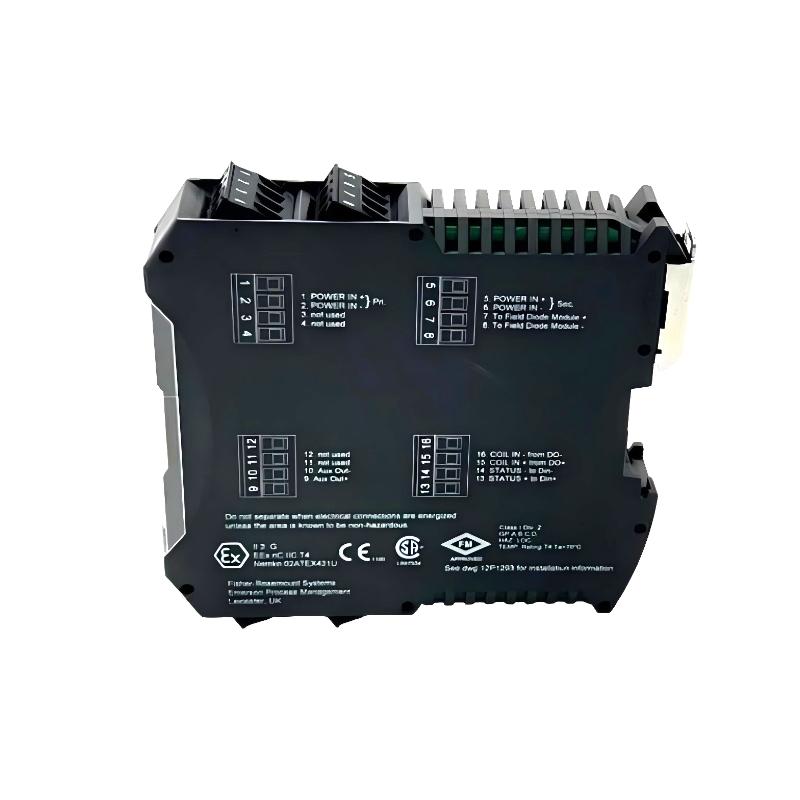

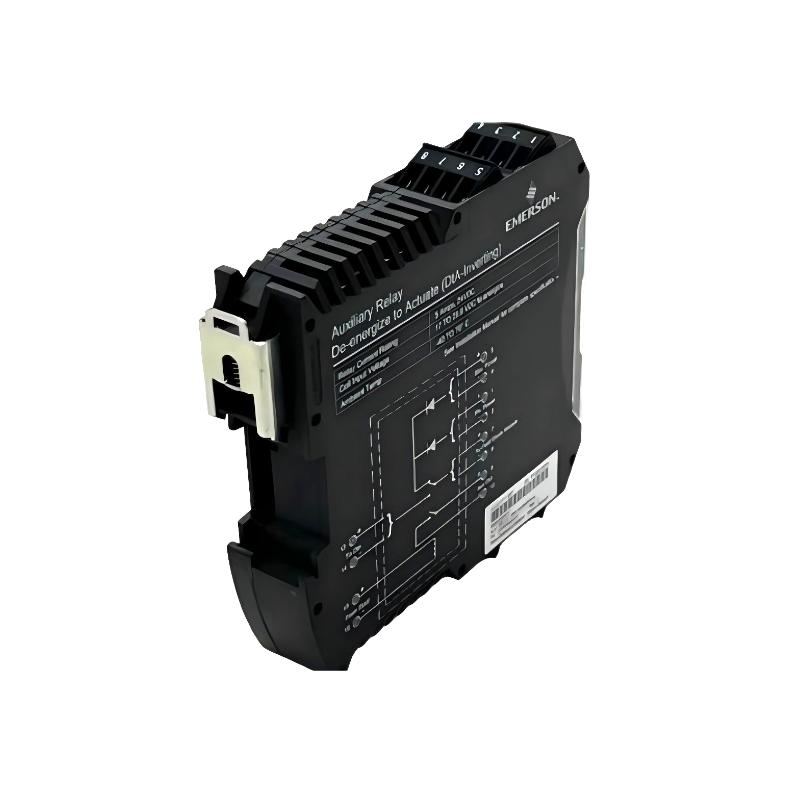

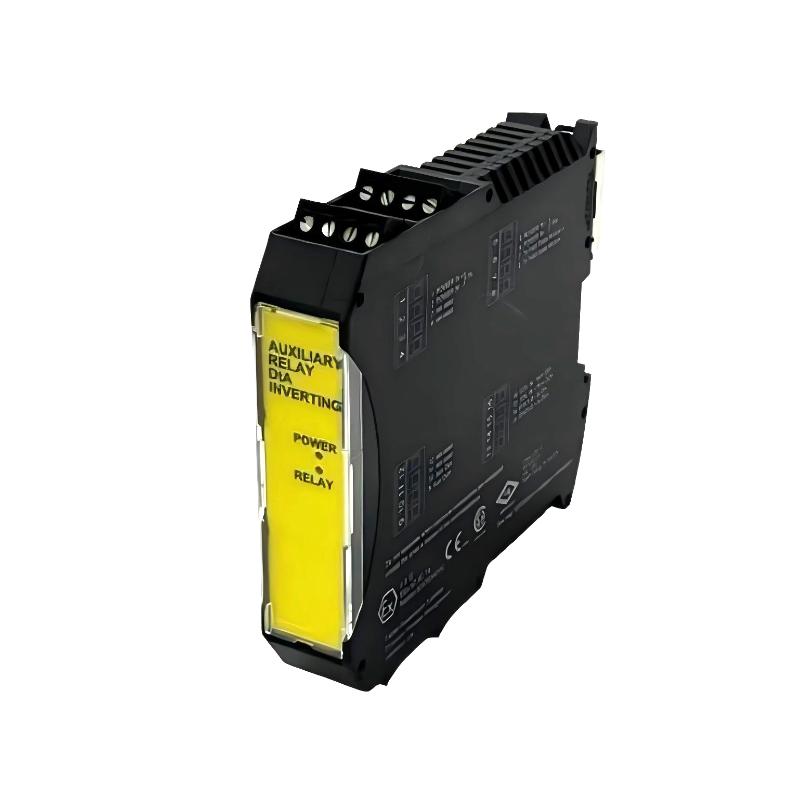

Emerson KJ2231X1-BB1 Relay Module

Applications

• Provides relay-based switching control for industrial automation systems.

• Interfaces between control signals and high-power field devices.

• Enables safe isolation between low-level control circuits and output loads.

• Controls motors, valves, alarms, and other actuators.

• Integrates with Emerson control systems for reliable output switching.

• Suitable for safety-critical and high-reliability process environments.

Key Advantages

• Electrical Isolation: Ensures safe separation between control and power circuits.

• Reliable Switching: Provides stable relay-based output control.

• Industrial Durability: Built to withstand harsh operating conditions.

• Compact Design: Saves space in control panels and cabinets.

• Seamless Integration: Compatible with Emerson controllers and I/O systems.

• Enhanced Safety: Reduces risk of electrical interference and system faults.

Technical FAQs

1. What is the main function of the KJ2231X1-BB1 module?
It provides relay-based output switching for controlling external devices.

2. What types of devices can it control?
It can control motors, valves, alarms, and other industrial actuators.

3. What are the physical dimensions of the module?
The module measures 36 × 89 × 77.6 mm.

4. How much does the module weigh?
The weight is 0.4 kg.

5. Does it provide electrical isolation?
Yes, it isolates control circuits from field devices for safety.

6. Is it compatible with Emerson systems?
Yes, it integrates with Emerson controllers and I/O modules.

7. Can it be used in industrial environments?
Yes, it is designed for reliable operation in harsh conditions.

8. How is it installed?
It is mounted in a control rack or panel and connected to system wiring.

9. Does it support continuous operation?
Yes, it is suitable for continuous industrial use.

10. Is maintenance required?
Minimal maintenance is required; periodic inspection is recommended.
