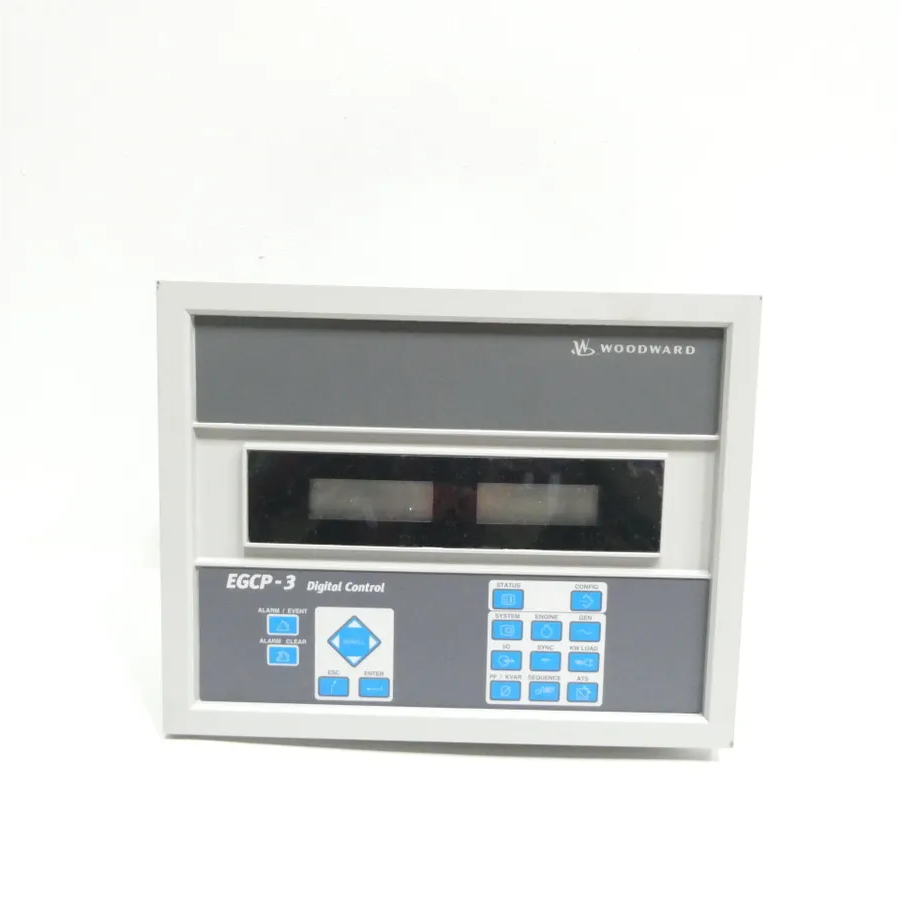

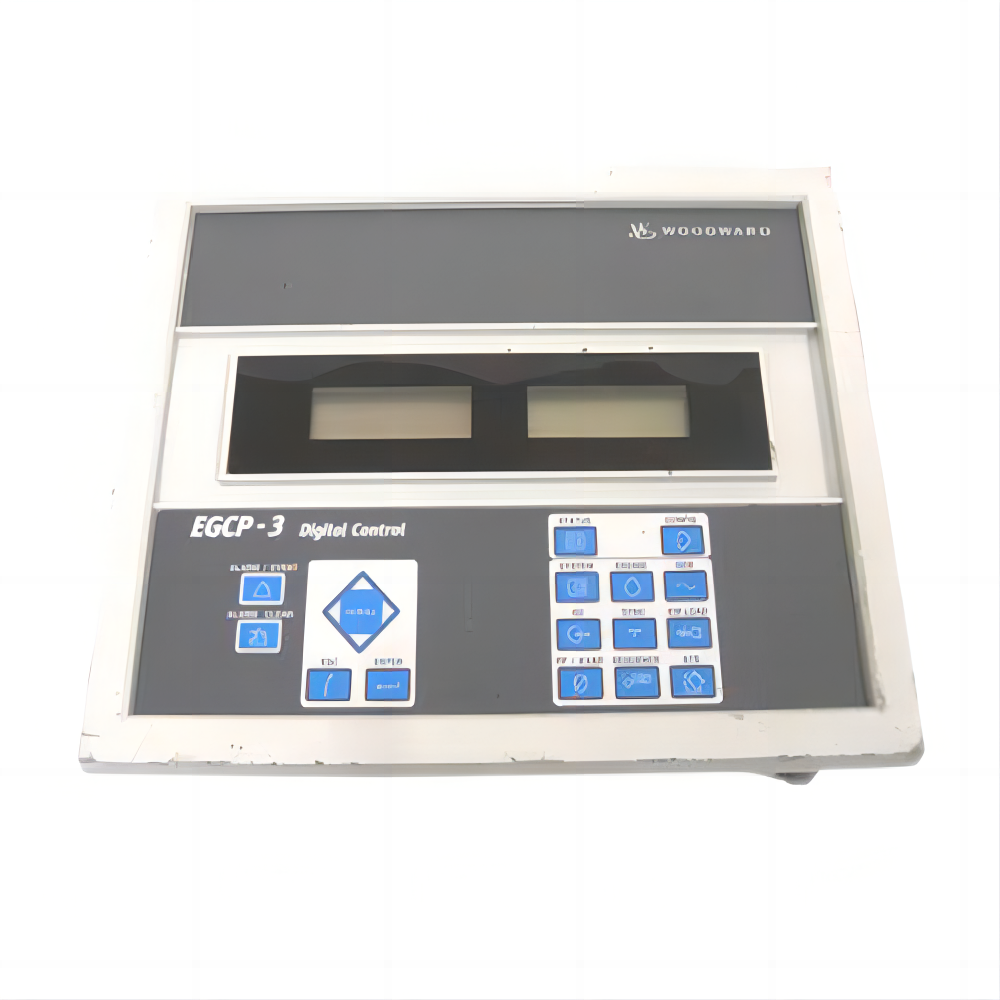

The Woodward 8406-113 is a high-performance Engine Generator Control Package (EGCP-3) Load Sharing Operator Interface Module, specifically engineered for advanced generator and engine control systems. Built on a microprocessor-based architecture, this unit integrates monitoring, control, protection, and load sharing functions into a single compact interface.
Featuring a dual LCD display with keypad control, it allows operators to monitor system status, configure parameters, and manage generator synchronization with precision. Designed for demanding environments such as power plants, marine systems, and industrial energy applications, the 8406-113 delivers reliable, real-time control and seamless integration with multi-generator systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8406-113 |
| Module Type | Operator Interface / Load Sharing Controller |
| Series | EGCP-3 |
| Function | Engine generator control, monitoring, and load sharing |
| Input Voltage | 18–32 V DC (nominal 24 V DC) |
| Power Consumption | ≤ 20–22 W |
| Analog Inputs | 4–20 mA / 1–5 V DC |
| Analog Outputs | 4–20 mA |
| Speed Bias Output | 4–20 mA, 0–5 V, PWM, ±3 V |
| Communication Ports | RS-232 / RS-422 / RS-485 |
| Display Interface | Dual backlit LCD + keypad |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –30 °C to +80 °C |
| Protection Rating | NEMA 4 / IP54 (installed enclosure) |
| Mounting | Panel mount / control cabinet |
| Dimensions (H × W × D) | 282 × 359 × 135 mm |
| Weight | 4.3 kg |
| Status | Discontinued; widely available surplus/refurbished |
Technical data compiled from EGCP-3 documentation and product references.
