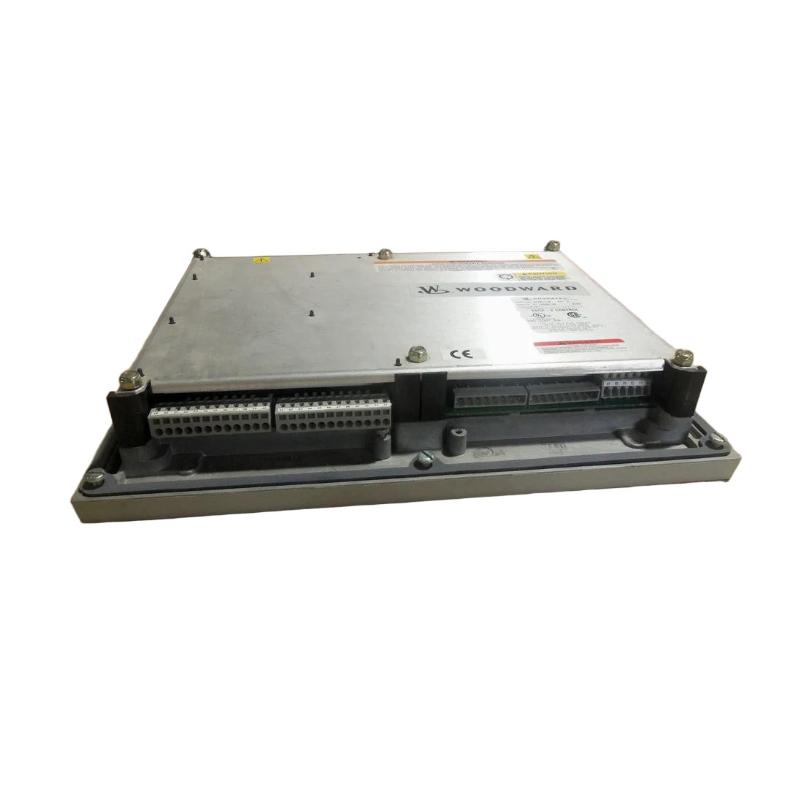

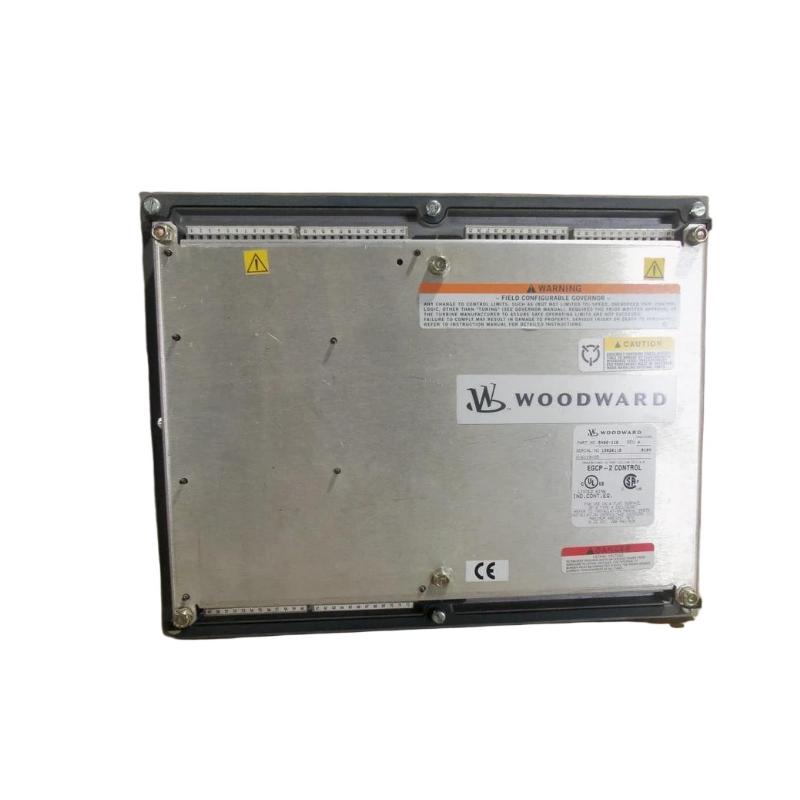

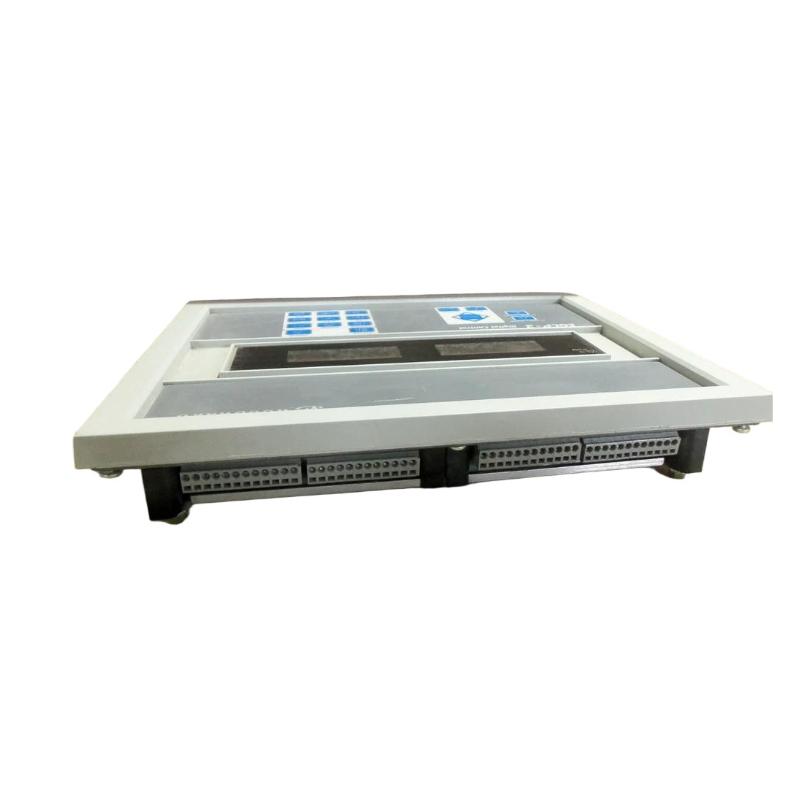

The Woodward 8406-116 is a sophisticated EGCP-3 Engine Generator Control Package Operator Interface Module, designed to deliver precise generator control, synchronization, and load sharing in complex power systems. As an enhanced variant within the EGCP-3 family, it combines real-time monitoring, advanced control logic, and flexible communication interfaces into a single, panel-mounted unit.

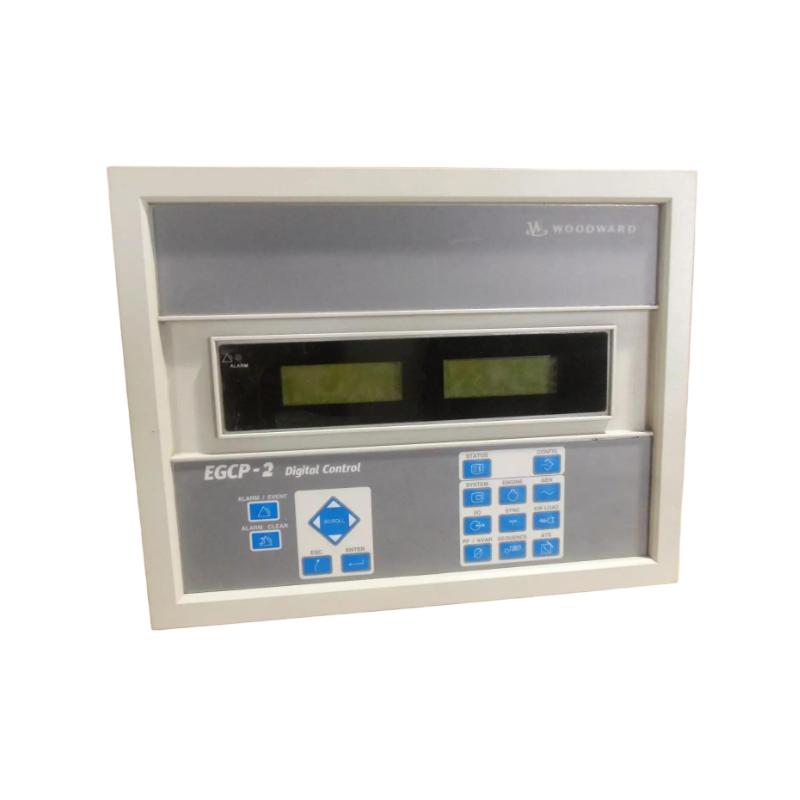

With its dual LCD display and intuitive keypad, operators can easily manage generator performance, adjust parameters, and monitor system status in real time. Built for industrial-grade reliability, the 8406-116 is widely deployed in power plants, marine systems, oil & gas facilities, and distributed energy systems, where dependable generator coordination is essential.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8406-116 |
| Module Type | Operator Interface / Load Sharing Controller |
| Series | EGCP-3 |
| Primary Function | Generator control, synchronization, and load sharing |
| Input Voltage | 18–32 V DC (nominal 24 V DC) |
| Power Consumption | ≤ 25 W |
| Analog Inputs | 4–20 mA / 1–5 V DC |
| Analog Outputs | 4–20 mA |
| Speed Bias Output | 4–20 mA, PWM, ±3 V |
| Communication Ports | RS-232 / RS-422 / RS-485 |
| Display Interface | Dual backlit LCD + keypad |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –30 °C to +80 °C |
| Protection Rating | NEMA 4 / IP54 (panel mounted) |
| Mounting | Panel mount / control cabinet |
| Dimensions (H × W × D) | 282 × 359 × 135 mm |
| Weight | 4.5 kg |
| Status | Discontinued; available as surplus/refurbished |
