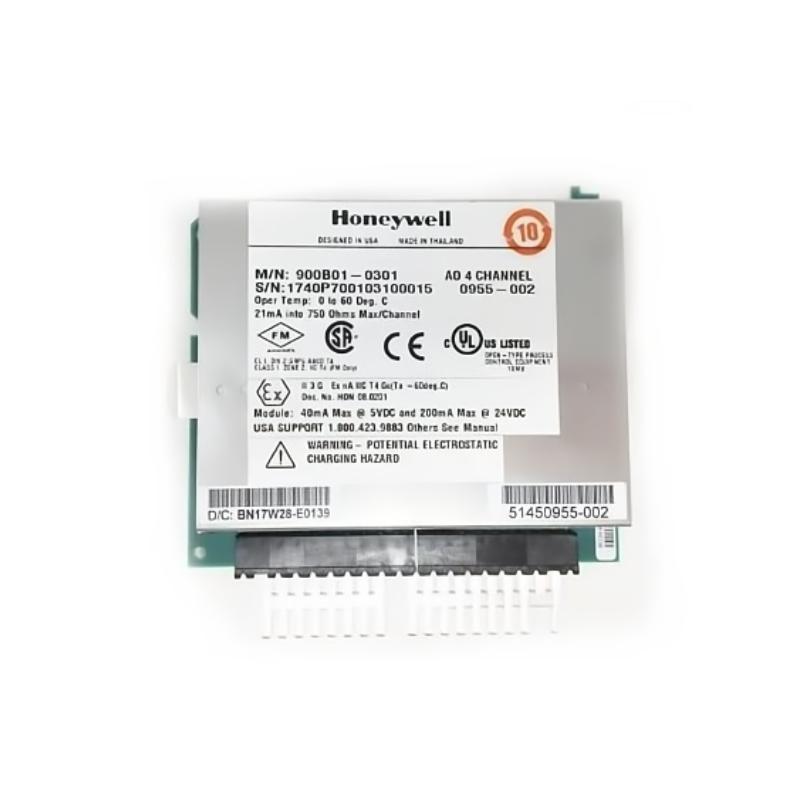

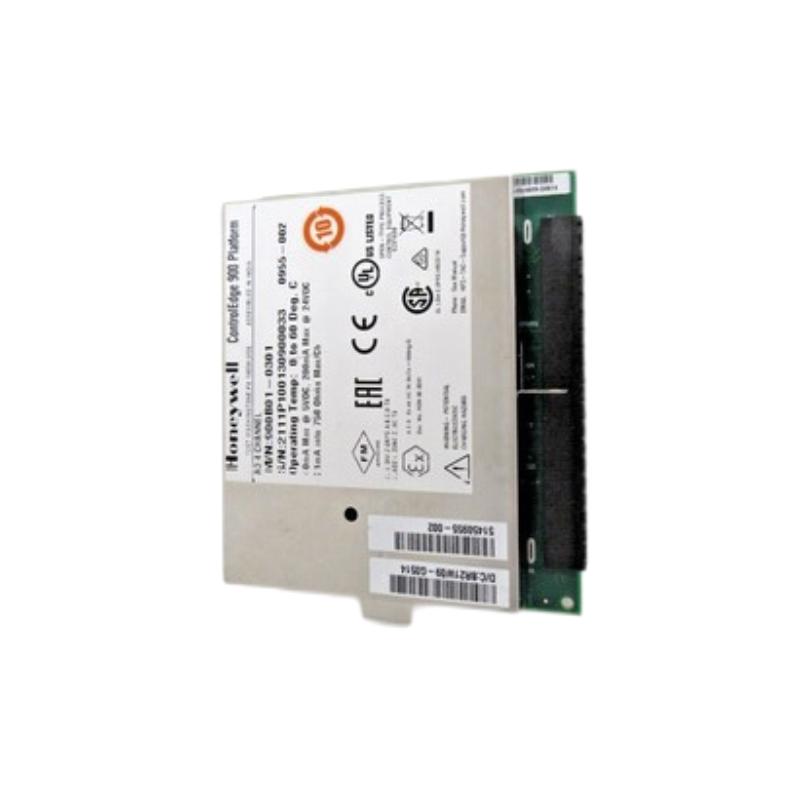

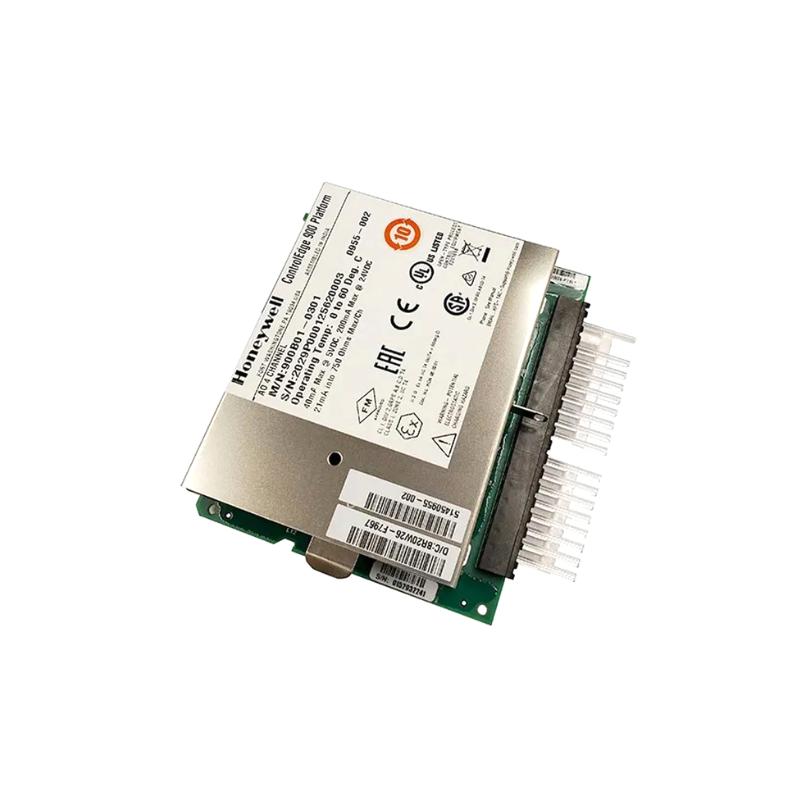

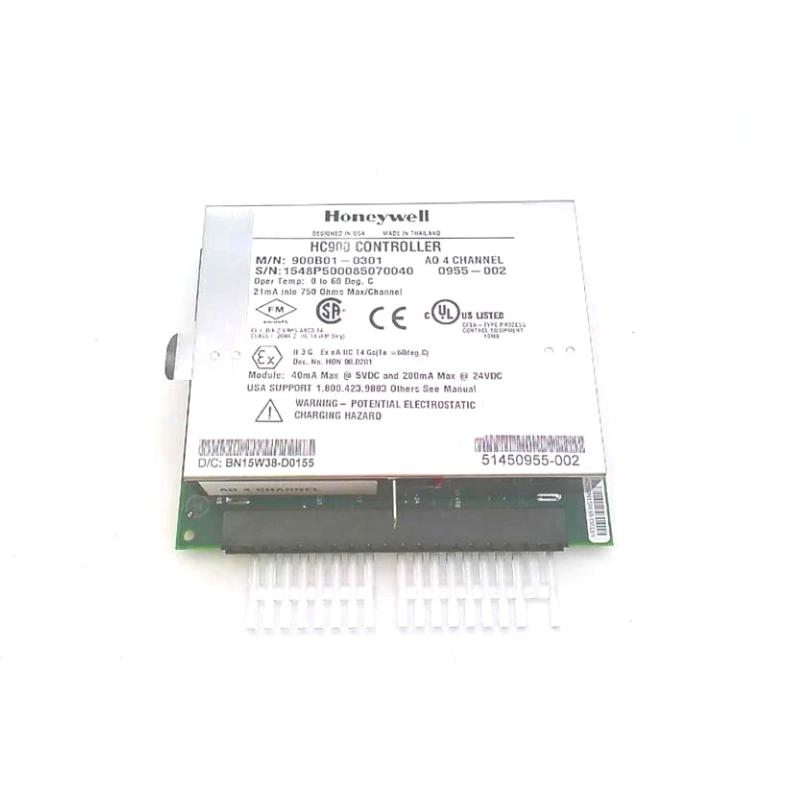

Honeywell 900B01‑0301 4‑Channel Analog Output Module for Industrial ControlEdge/HC900 Systems

Applications

The 900B01‑0301 excels in applications where reliable analog current output is needed for device control:

• Industrial process loops (pressure, flow, level, temperature)
• Control of proportional valves and actuators
• Feedback loops in manufacturing automation
• Distributed logic control with analog interfacing
• Retrofits and expansions of legacy HC900 installations

Its isolated outputs and precise resolution ensure clean, stable analog control even in noisy plant environments.

Advantages

• High Precision Outputs – ±0.1 % full scale ensures accurate analog signals
• Isolated Channels – Reduces noise and interference between loops
• Compact Footprint – Fits standard HC900 I/O racks efficiently
• Built‑In Diagnostics – Supports reliable commissioning and maintenance
• Flexible Output Span – 0–20 mA loop support across diverse devices
• Industry‑Proven Design – Long‑standing field use in automation systems

Technical FAQs

1. What does the 900B01‑0301 do?
It provides four isolated analog current outputs for control of field devices like valves and actuators.

2. What is the output range?
Standard 0–20 mA current outputs.

3. Is each channel isolated?
Yes—each output channel is individually isolated.

4. What are the physical dimensions?
Approximately 137 mm (H) × 35 mm (W) × 120 mm (D).

5. How much does it weigh?
About 0.41 kg.

6. What systems is it designed for?
It is designed for Honeywell ControlEdge HC900 modular control systems.

7. What accuracy does it provide?
Approximately ±0.1 % full scale.

8. Can it handle high load resistance?
Yes—for typical analog loops up to 750 Ω per channel.

9. What temperature range can it operate in?
From –20 °C to +60 °C.

10. Should new designs use this module?
This part is considered legacy; new designs should consider updated I/O modules from Honeywell.
