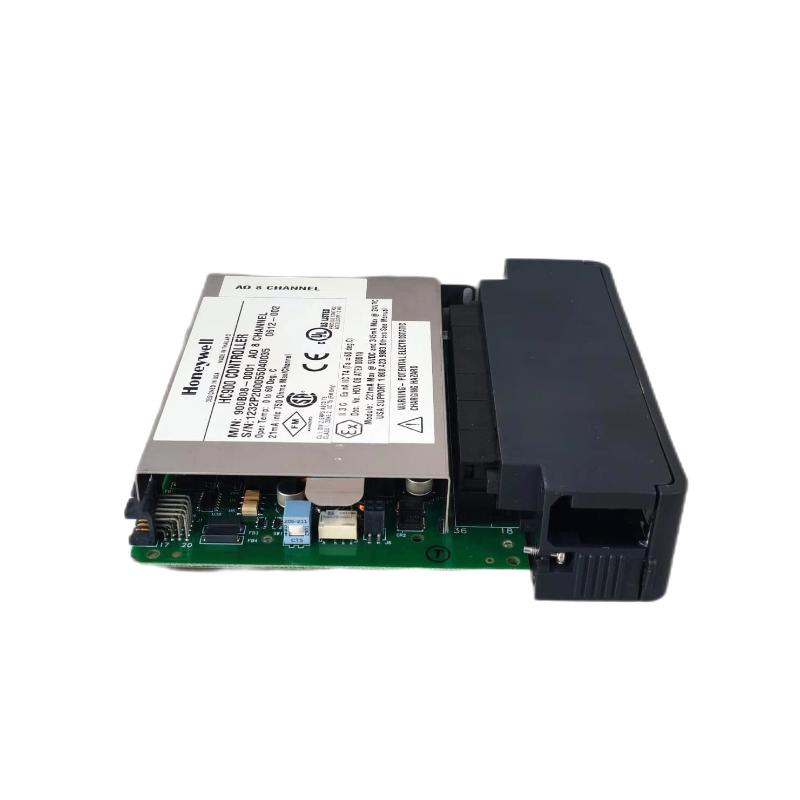

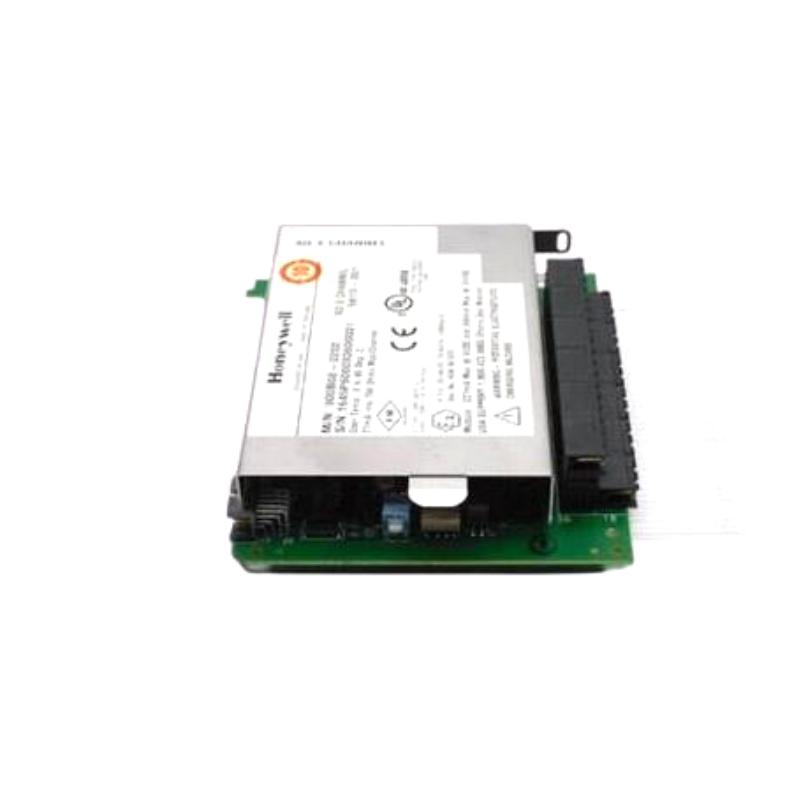

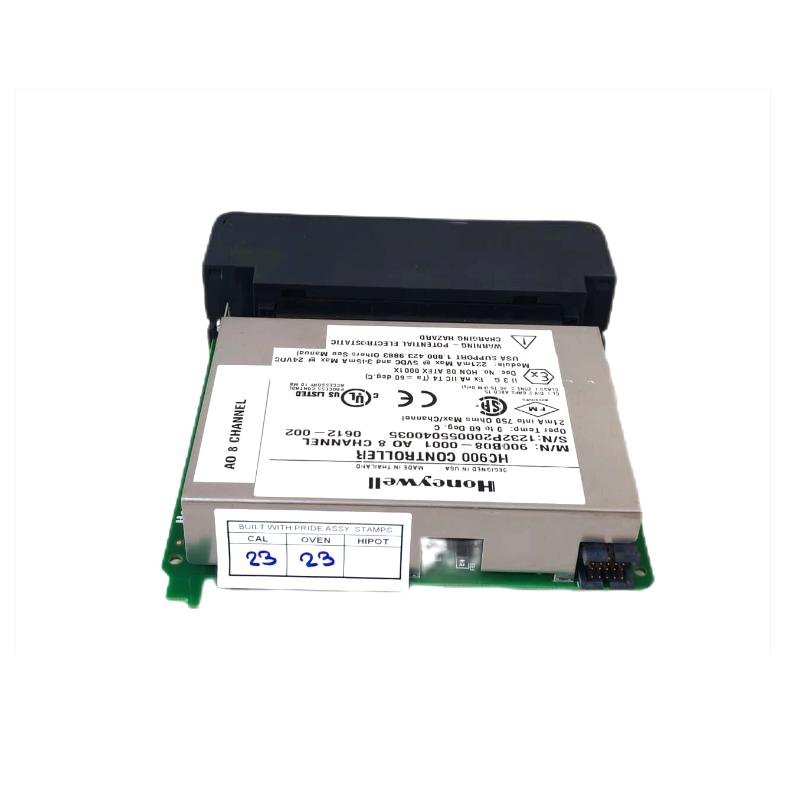

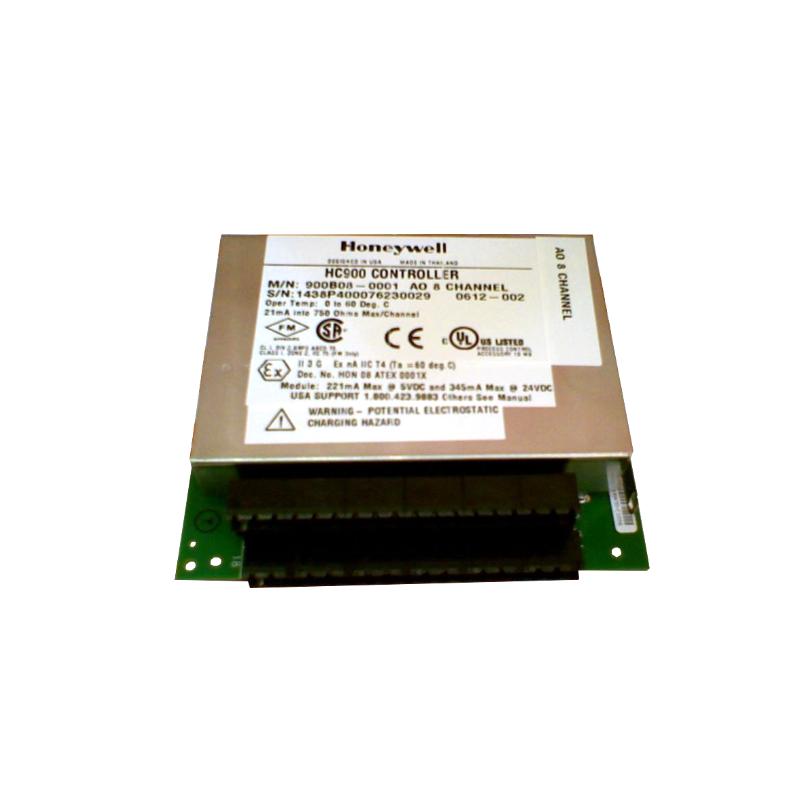

Honeywell 900B08‑0001 High‑Density 8‑Channel Analog Output Module for ControlEdge HC900 Industrial Automation
Honeywell 900B08‑0001 High‑Density 8‑Channel Analog Output Module for ControlEdge HC900 Industrial Automation
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900B08‑0001 Product Origin:USA Product Dimensions:137 × 65 × 120 mm Product Weight:0.82 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900B08‑0001 is a high‑density 8‑channel analog output module engineered for industrial process control and automation within the Honeywell ControlEdge HC900 programmable logic controller (PLC) family. Designed to provide multiple 0–20 mA current outputs from a single compact module, it enables precise control of valves, actuators, and proportional devices across demanding applications. With robust signal isolation, high accuracy, and integrated diagnostics, this module supports reliable system performance under industrial conditions.
Technical Specifications
Specification
Details
Model
900B08‑0001
Module Type
8‑Channel Analog Output Module
Controller Family
Honeywell ControlEdge HC900
Output Channels
8 isolated analog current outputs
Output Range
0–20 mA (standard industrial loop)
Resolution
12‑bit digital‑to‑analog conversion
Accuracy
±0.1 % full scale (typical)
Max Load Resistance
≤ 750 Ω per channel
Isolation
Channel‑to‑channel galvanic isolation
Operating Voltage
Typically 24 V DC rack supply
Operating Temperature
–20 °C to +60 °C
Mounting
DIN rail / backplane in HC900 I/O rack
Dimensions (H × W × D)
137 × 65 × 120 mm (approx.)
Weight
~0.82 kg
Status
Active/Legacy supported Honeywell I/O module
Dimensions and weight are approximate based on typical HC900 module family sizes.
Recommended Related Modules
Honeywell 900B01‑0301 – 4‑channel analog output module
Honeywell 900A01‑0202 – Analog input module
Honeywell 900G03‑0202 – Digital input module
Honeywell 900H03‑0202 – Digital output module (AC)
Industrial automation panels for water/wastewater, HVAC, and manufacturing
Analog signal control in batch/process industries
Applications
The 900B08‑0001 is ideal for control systems that require multiple analog outputs to manage field devices:
Proportional valve and actuator control in process loops
Chemical dosing and feed optimization systems
Flow and level control in treatment plants
Feedback control loops in energy and utility automation
Distributed manufacturing automation requiring multiple control outputs
Expansion of legacy HC900 control racks for higher I/O density
Its multiple outputs and isolation features help ensure clean, stable current loops even in electrically noisy environments.
Advantages
High Channel Density – 8 analog outputs in one module reduce rack space needs
Precision Control – ±0.1 % accuracy with 12‑bit resolution supports tight control loops
Galvanic Isolation – Protects each channel from noise and ground issues
Robust Industrial Design – Works reliably across broad temperature ranges
Flexible Integration – Easy plug‑in module for HC900 I/O expansion
Reliable Diagnostics – Built‑in feedback and status monitoring support maintainability
Technical FAQs
1. What is the function of the Honeywell 900B08‑0001?
It provides eight isolated analog current outputs from a single module for control of field devices like valves and actuators.
2. What output range does it support?
Standard 0–20 mA industrial current loops.
3. Is each output isolated?
Yes—each channel is galvanically isolated for noise immunity.
4. What are the approximate dimensions? 137 mm (H) × 65 mm (W) × 120 mm (D).
5. How much does it weigh?
Approximately 0.82 kg.
6. What controller family does it integrate with?
Honeywell ControlEdge HC900 modular PLC systems.
7. What accuracy does it provide?
Typically ±0.1 % full scale.
8. Can it drive high resistive loads?
Yes—up to 750 Ω per channel typical.
9. What temperature range can it operate in?
From –20 °C to +60 °C.
10. Why choose this module?
It offers high output density, precise control, and strong isolation, making it suitable for demanding multi‑loop control applications.
