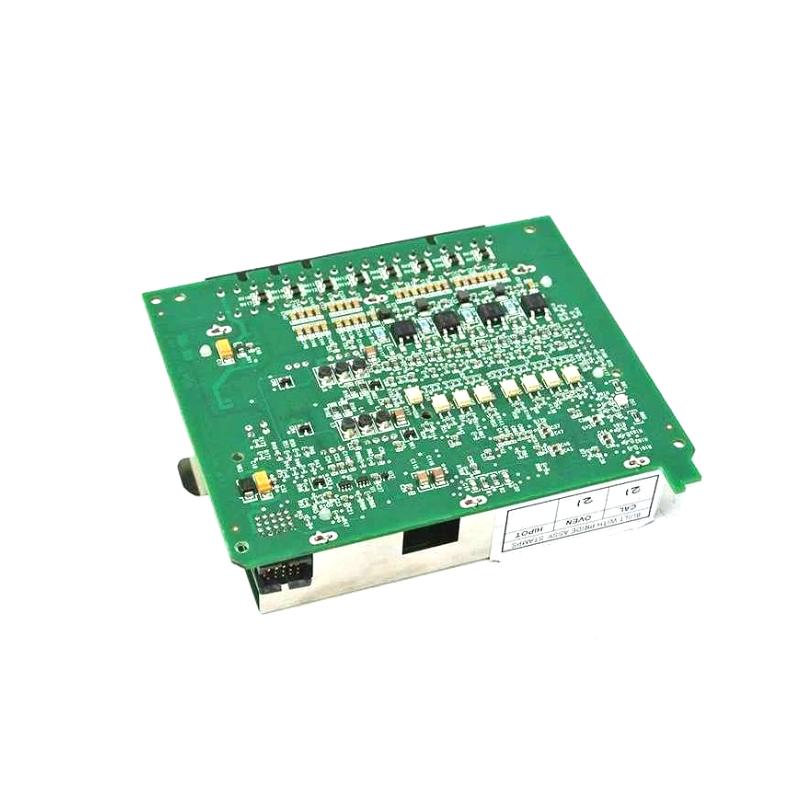

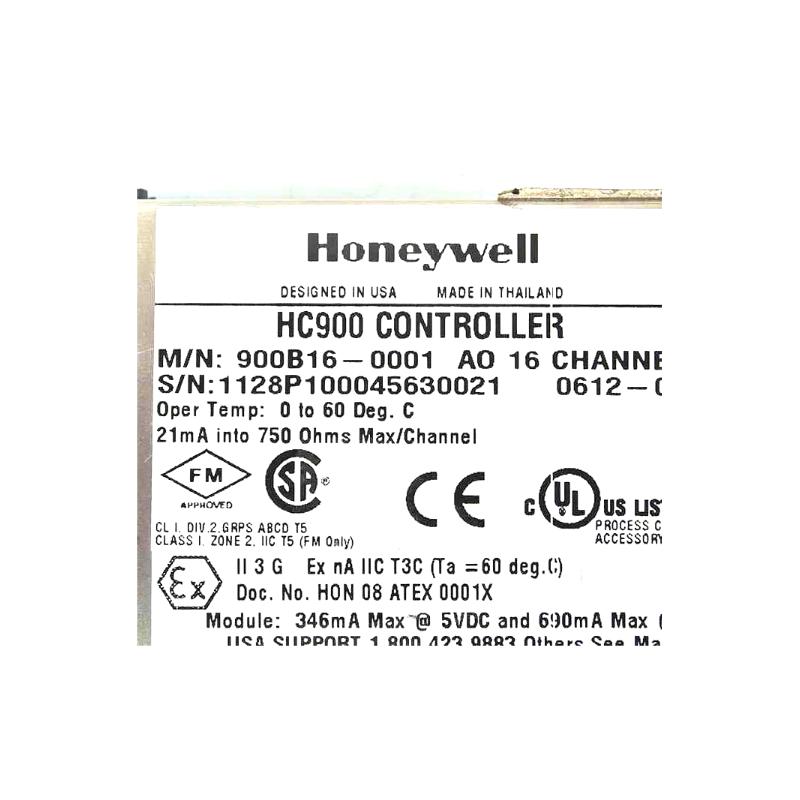

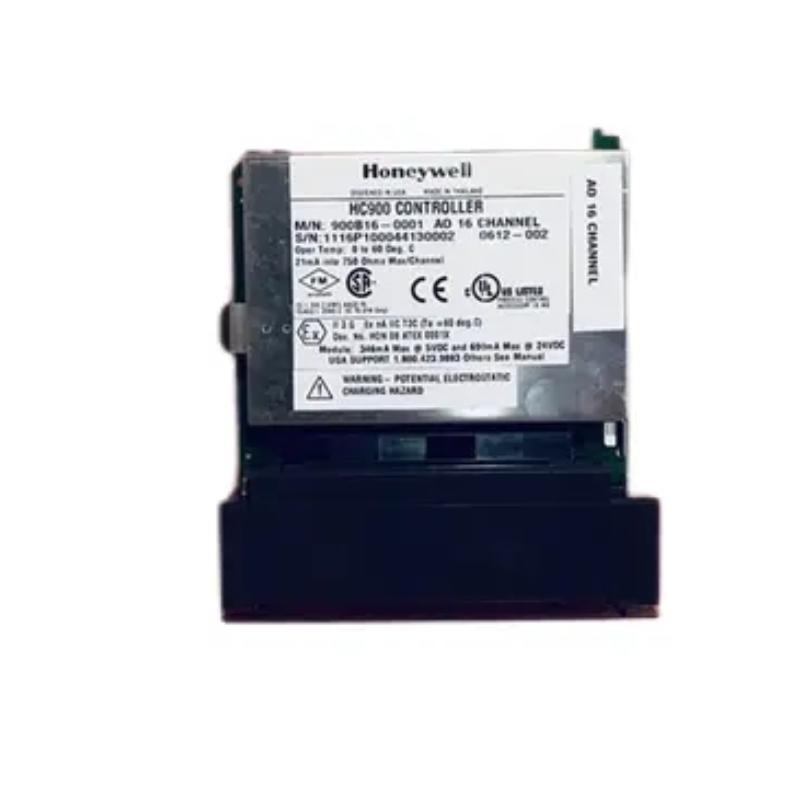

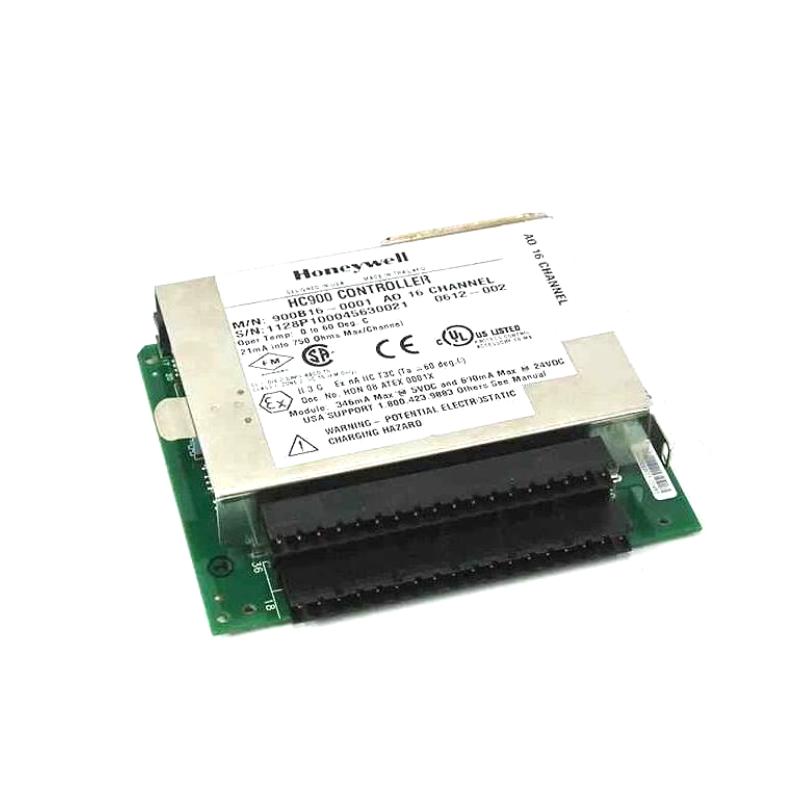

Honeywell 900B16‑0001 Universal I/O Interface Module for ControlEdge HC900 & Industrial Automation Systems
Honeywell 900B16‑0001 Universal I/O Interface Module for ControlEdge HC900 & Industrial Automation Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900B16‑0001 Product Origin:USA Product Dimensions:137 × 80 × 120 mm Product Weight:0.95 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900B16‑0001 is a versatile Universal I/O Interface Module designed for use in industrial process control and automation platforms such as the Honeywell ControlEdge HC900 PLC family. As a flexible input/output expansion module, it supports a mix of signals—enabling system designers to handle analog, digital, and specialized inputs/outputs with a single, adaptable device. Its modular design supports integration into control racks, providing dependable signal interfacing for a wide range of field devices and automation scenarios.
Technical Specifications
Specification
Details
Model
900B16‑0001
Module Type
Universal I/O Interface Module
Controller Family
Honeywell ControlEdge HC900
I/O Types Supported
Mixed analog and digital inputs/outputs (configurable)
Analog Input Range
0–20 mA / 4–20 mA / 0–10 V (configurable)
Analog Output Range
0–20 mA current outputs
Digital I/O
Multiple discrete input/output points
Resolution
Typically 12‑bit for analog channels
Isolation
Galvanic isolation across channels
Operating Voltage
Standard 24 V DC system supply
Operating Temp. Range
−20 °C to +60 °C
Protection
Industrial‑grade isolation and noise suppression
Mounting
DIN rail / backplane installation
Dimensions (H × W × D)
137 × 80 × 120 mm (approx.)
Weight
~0.95 kg
Status
Supported module in HC900 ecosystem
Typical Use
Flexible I/O interfacing for mixed industrial signals
Physical dimensions and weight are approximate and typical based on the Honeywell I/O module family.
Recommended Related Modules
Honeywell 900B08‑0202 – 8‑channel analog output module
Honeywell 900A01‑0202 – 8‑channel analog input module
Honeywell 900G03‑0202 – Digital input module
Honeywell 900H03‑0202 – Digital output module (AC)
Honeywell 900B01‑0301 – 4‑channel analog output module
Popular Honeywell Control Platforms
Honeywell ControlEdge HC900 distributed PLC system
Modular I/O control racks for process automation
Batch and continuous process control solutions
Analog and discrete I/O interface systems
Applications
The 900B16‑0001 Universal I/O Module is ideal for automation environments requiring flexible signal interfacing, including:
Combined analog and digital input/output control loops
Integration of proportional controllers and discrete devices
Feedback systems in manufacturing and utility automation
Water/wastewater treatment signal interfacing
HVAC and building automation control
Modular PLC racks requiring mixed I/O expansion
Its ability to support multiple signal types reduces the need for separate dedicated modules—simplifying design and reducing cabinet space.
Advantages
Versatile I/O Support – Handles both analog and digital signals in one module
High Resolution – 12‑bit analog conversion supports precise measurement and control
Channel Isolation – Improves noise immunity and signal integrity
Industrial Reliability – Built to withstand harsh plant environments
Simplified Integration – Reduces the number of modules and interconnections needed
Technical FAQs
1. What is the Honeywell 900B16‑0001 used for?
It is a universal I/O interface module that supports a combination of analog and digital inputs/outputs.
2. What analog signals does it support?
It can handle 0–20 mA, 4–20 mA, and 0–10 V analog signals depending on configuration.
3. Does it support discrete I/O?
Yes—digital inputs and outputs are supported for contact and relay interfacing.
4. What controller family is it designed for?
The ControlEdge HC900 series and similar modular PLC systems.
5. What are its approximate dimensions?
About 137 × 80 × 120 mm.
6. How much does it weigh?
Approximately 0.95 kg.
7. What range of temperature can it operate in?
From about −20 °C to +60 °C in industrial environments.
8. Is the module isolated?
Yes—channels are galvanically isolated for improved signal reliability.
9. Can it handle multiple signal types simultaneously?
Yes—it’s designed for mixed I/O support in a single module.
10. Why choose this module?
It provides flexible configuration, reduced cabinet complexity, and reliable industry‑grade performance in mixed signal automation applications.
