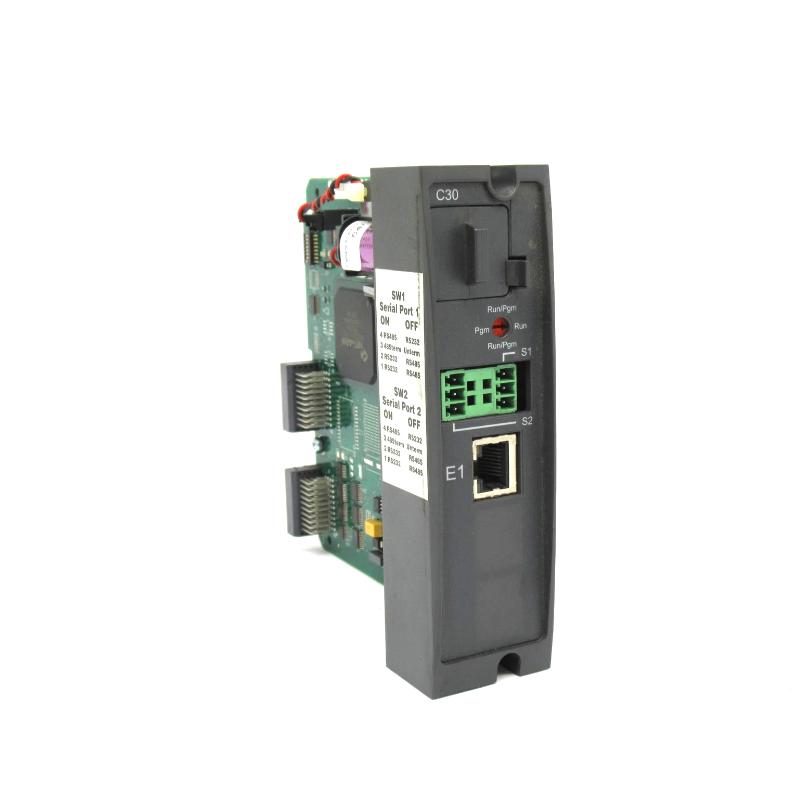

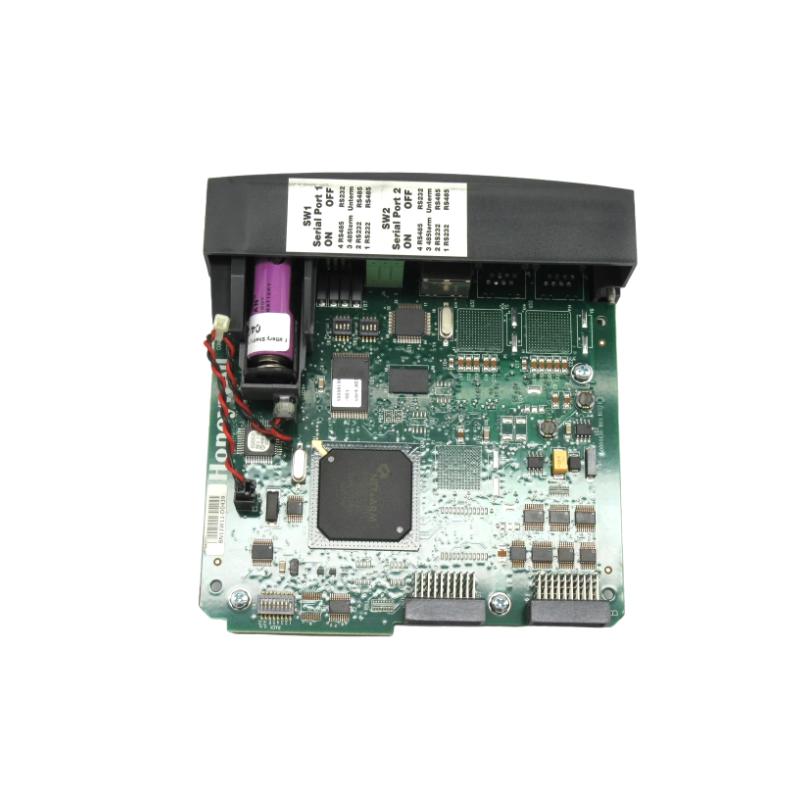

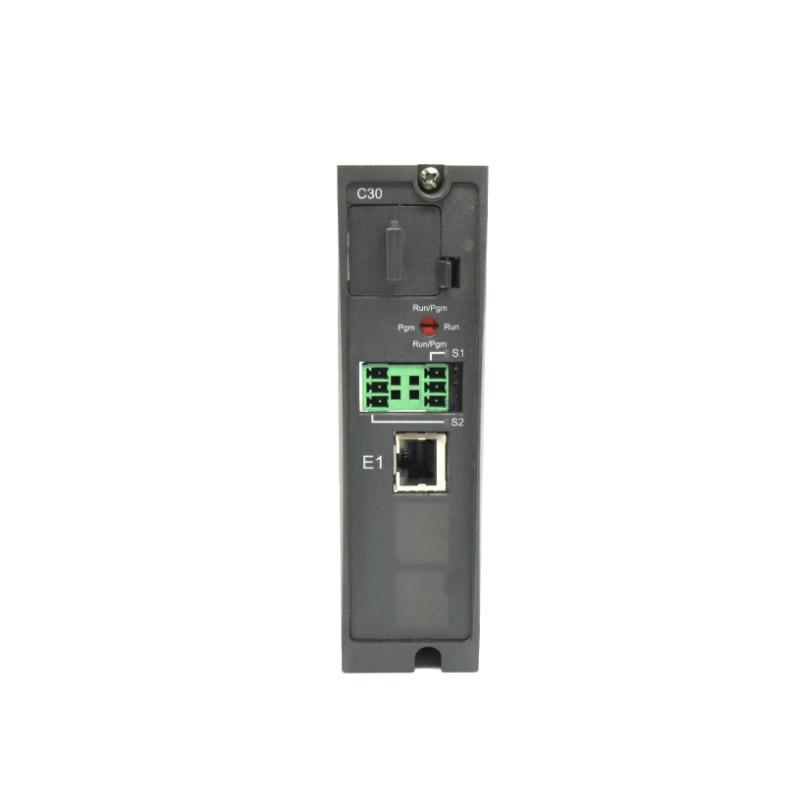

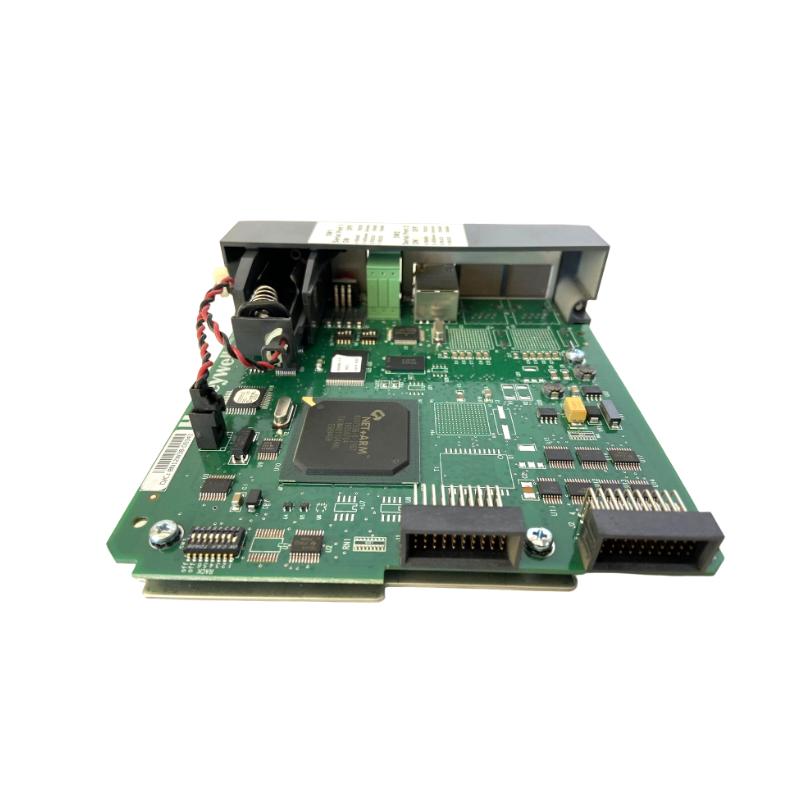

The Honeywell 900C32-0244-00 is a compact and efficient C32 CPU controller module designed for the ControlEdge HC900 platform. As a mid-range controller, it delivers reliable real-time control, data processing, and communication capabilities for small to medium-sized automation systems.

Engineered for flexibility and performance, this controller supports a wide range of I/O configurations while maintaining a compact footprint, making it ideal for space-constrained control panels. It is well-suited for applications requiring dependable control without the complexity of high-end controllers, offering a balanced combination of performance, scalability, and cost-efficiency.

Technical Specifications

Specification	Details
Model	900C32-0244-00
Module Type	C32 CPU Controller Module
Controller Platform	Honeywell ControlEdge HC900
Processor	Industrial-grade 32-bit CPU
Memory	Approx. 512 MB RAM + 64 MB Flash
Control Capacity	Up to ~200 function blocks
Analog Input Capacity	Up to ~128 channels (system dependent)
Analog Output Capacity	Up to ~32 channels
Digital I/O Capacity	Up to ~256 points
Communication Interfaces	Ethernet, Modbus TCP/RTU, serial communication
Programming Support	Function block configuration, ladder logic
Power Supply	Backplane powered
Operating Temperature	–20 °C to +60 °C
Mounting	Rack / backplane mounting
Dimensions (H × W × D)	137 × 32 × 120 mm
Weight	0.30 kg
Status	Active / widely used controller

Recommended Related Modules

Honeywell 900C30-0460 – Higher-performance C30 CPU controller
Honeywell 900C50-0460 – Advanced CPU with expanded capabilities
Honeywell 900S50-0460 – Remote I/O scanner module
Honeywell 900B08-0202 – Analog output module
Honeywell 900A01-0202 – Analog input module

Popular Honeywell Control Platforms

ControlEdge HC900 modular PLC system
Distributed process control architectures
Industrial automation control panels
Hybrid PLC/DCS systems

Applications

The 900C32-0244-00 is ideal for applications that require compact yet capable control performance:

Small to medium process automation systems
HVAC and building automation control
Water and wastewater treatment systems
OEM machinery and equipment control
Batch processing and discrete manufacturing
Retrofit projects replacing legacy PLCs

Its efficient design allows engineers to deploy reliable control systems while optimizing cabinet space and system cost.

Advantages

Compact Controller Design – Ideal for limited panel space
Balanced Performance – Suitable for mid-range control applications
Scalable I/O Integration – Supports flexible system expansion
Reliable Operation – Proven performance in industrial environments
Flexible Communication – Integrates easily with existing systems
Cost-Effective Solution – Delivers strong performance at a competitive level

Technical FAQs

1. What is the Honeywell 900C32-0244-00 used for?
It is a C32 CPU controller used for managing automation processes in HC900 systems.

2. What type of applications is it best suited for?
Small to medium-sized automation systems such as HVAC, water treatment, and OEM equipment.

3. What are its dimensions?
Approximately 137 × 32 × 120 mm.

4. What is the module weight?
About 0.30 kg.

5. Does it support expansion modules?
Yes, it supports a wide range of HC900 I/O modules.

6. What communication protocols are available?
Supports Ethernet, Modbus TCP/RTU, and serial communication.

7. What programming methods are supported?
Function block programming and ladder logic within HC900 systems.

8. Can it handle analog and digital I/O?
Yes, it supports both analog and digital signals through expansion modules.

9. What temperature range does it support?
From –20 °C to +60 °C.

10. Why choose this controller?
It offers a compact size, reliable performance, and cost-effective control solution for mid-scale industrial automation.
