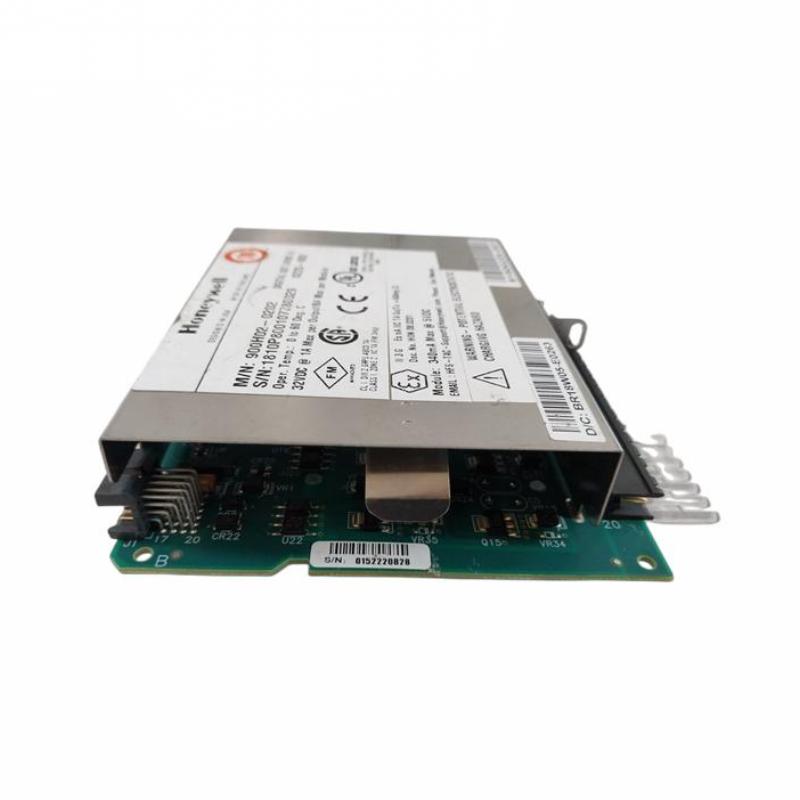

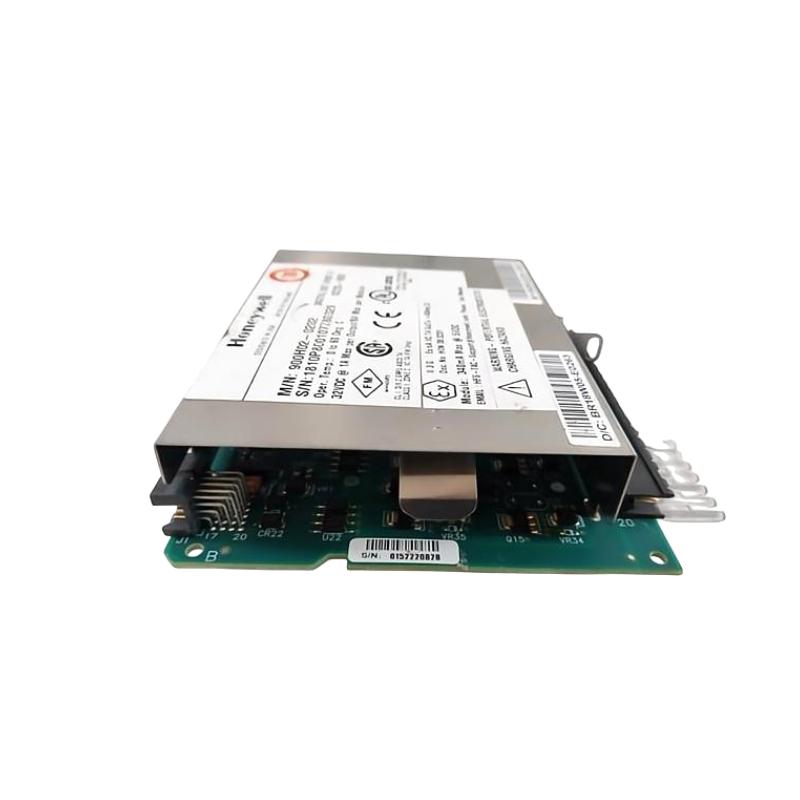

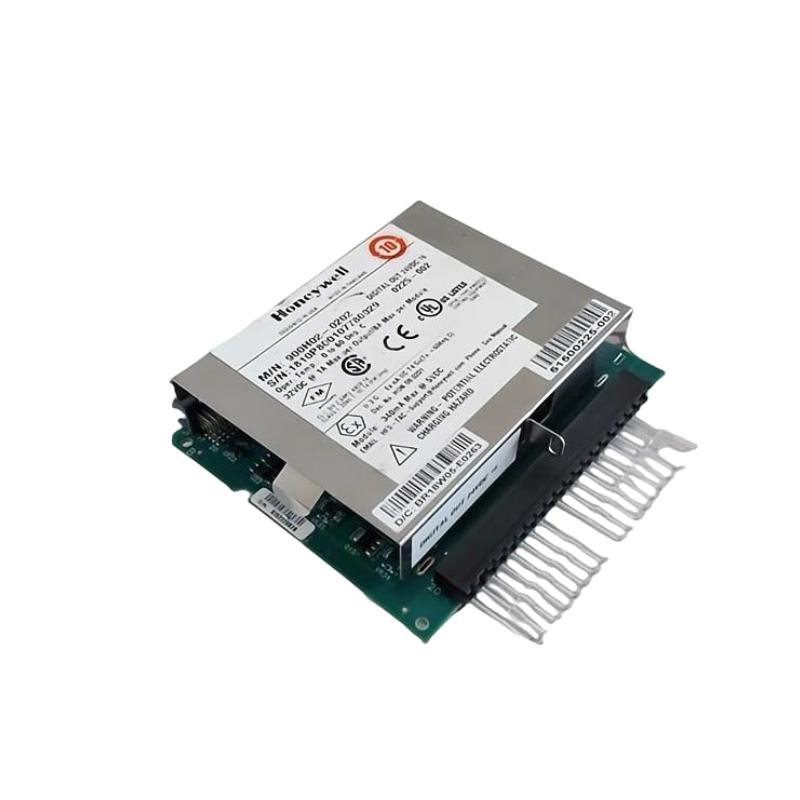

The Honeywell 900G02-0202 is a high-precision multi-channel analog output module designed for the ControlEdge HC900 platform. It provides reliable conversion of digital control signals into continuous analog outputs, enabling precise control of industrial field devices such as control valves, actuators, and variable frequency drives (VFDs).
Built for stable performance, high accuracy, and strong noise immunity, this module is ideal for demanding process control environments where consistent output signals are essential for maintaining system efficiency and safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 900G02-0202 |
| Module Type | Analog Output Module |
| Platform | Honeywell ControlEdge HC900 |
| Output Channels | Typically 8 analog output channels |
| Output Signal Types | 4–20 mA, 0–10 V (configurable per channel) |
| Resolution | High-resolution D/A conversion |
| Accuracy | High precision for process control applications |
| Load Capacity | Suitable for industrial actuators and control devices |
| Isolation | Channel-to-channel and system isolation |
| Update Rate | Fast output refresh for real-time control |
| Communication | Backplane communication with HC900 CPU |
| Power Supply | Provided via HC900 rack/base |
| Operating Temperature | –20 °C to +60 °C |
| Mounting | Rack / DIN rail installation |
| Dimensions (H × W × D) | Approx. 120 × 40 × 110 mm |
| Weight | Approx. 0.30 kg |
| Status | Active industrial I/O module |
Recommended Related Modules
- Honeywell 900G01-0202 – Analog input module
- Honeywell 900G02-0102 – Analog output module (mid-range variant)
- Honeywell 900G02-0001 – Analog output module (entry variant)
- Honeywell 900E01-0102 – Digital input module
- Honeywell 900C50-0460 – CPU controller
