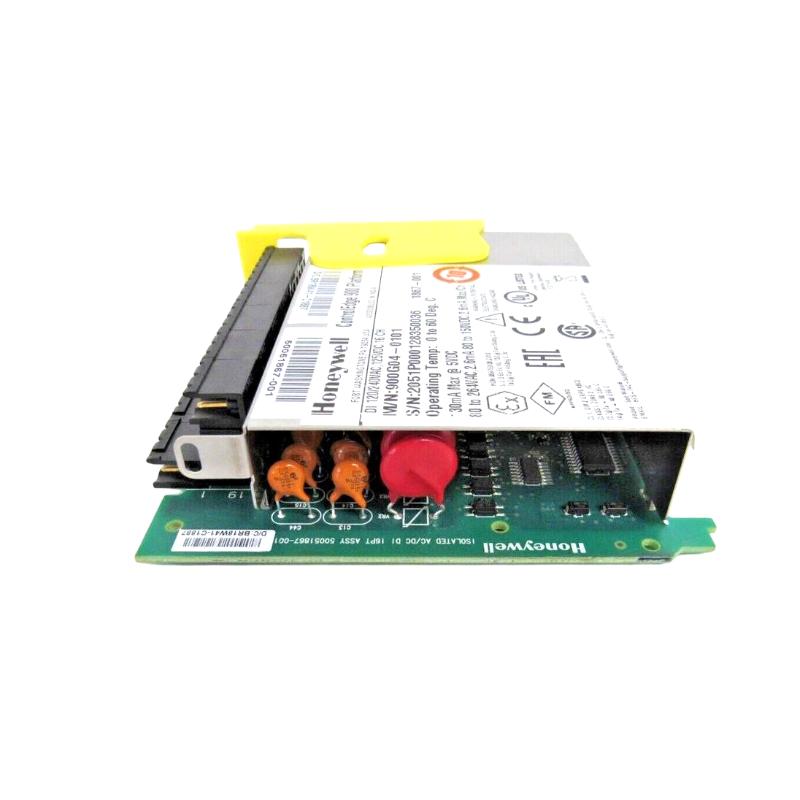

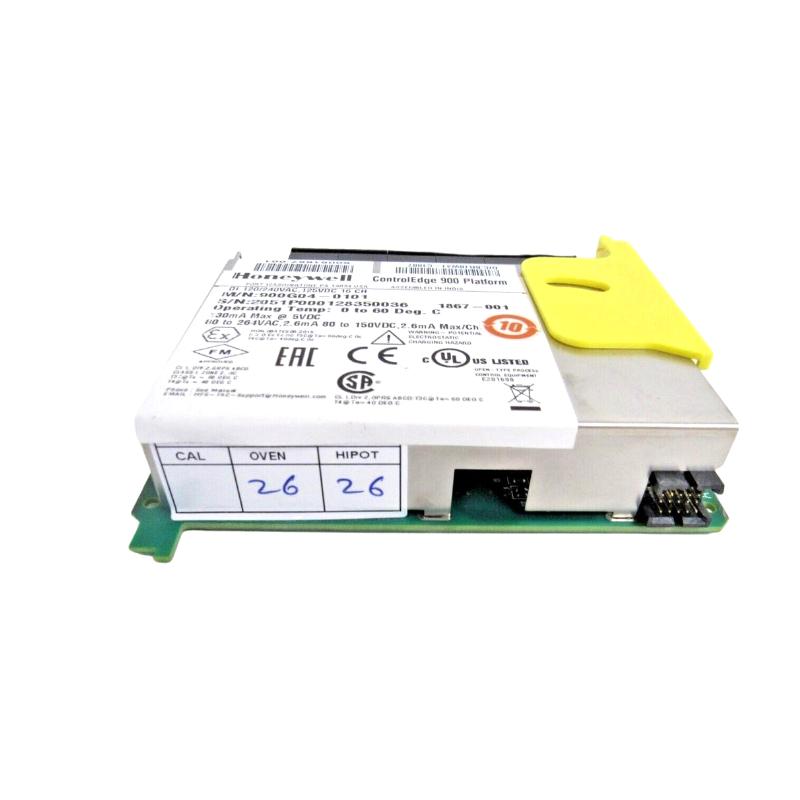

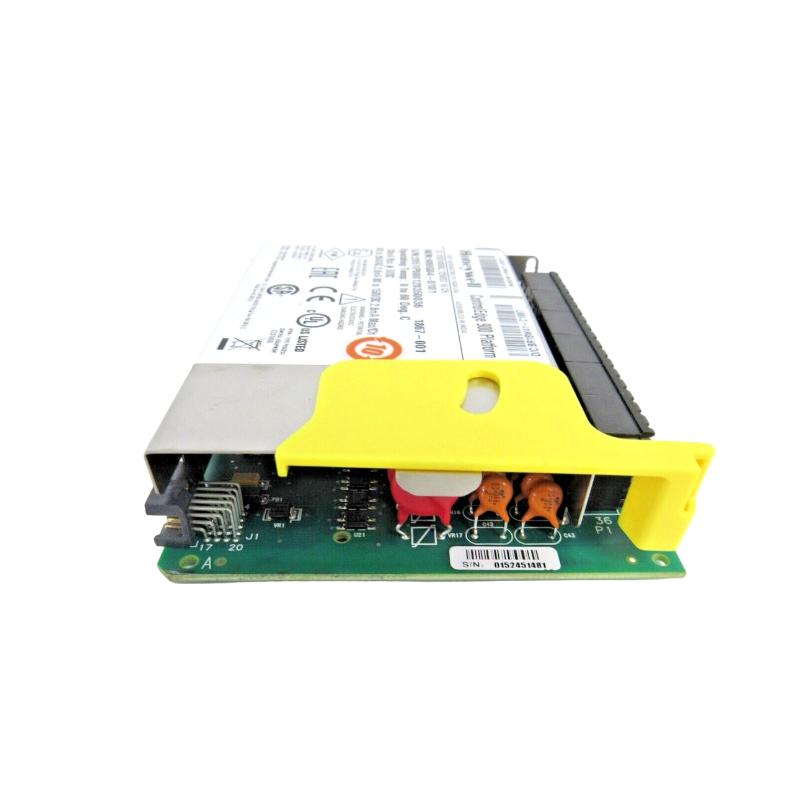

Honeywell 900G04-0101 Universal AC/DC Digital Input Module for ControlEdge HC900 Industrial Systems
Honeywell 900G04-0101 Universal AC/DC Digital Input Module for ControlEdge HC900 Industrial Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900G04-0101 Product Origin:USA Product Dimensions:170 × 90 × 60 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900G04-0101 is a universal AC/DC digital input module designed for the ControlEdge HC900 platform. It enables reliable acquisition of high-voltage discrete signals from industrial field devices, supporting both AC and DC input types within a single module.
With its wide voltage compatibility and 16-channel high-density design, this module is particularly suited for systems where mixed signal types are present, eliminating the need for separate input modules and simplifying system architecture.
Technical Specifications
Specification
Details
Model
900G04-0101
Module Type
Universal AC/DC Digital Input Module
Platform
Honeywell ControlEdge HC900
Input Channels
16 individually isolated channels
Input Voltage (AC)
80–264 V AC (47–63 Hz)
Input Voltage (DC)
80–125 V DC
Isolation
350 V AC (channel-to-channel & system)
Signal Type
Digital / discrete (AC & DC compatible)
Communication
Backplane communication with HC900 CPU
Power Consumption
Up to 15 W
Operating Temperature
–20 °C to +60 °C
Mounting
Rack / backplane installation
Dimensions (H × W × D)
170 × 90 × 60 mm
Weight
0.5 kg
Status
Active industrial I/O module
Recommended Related Modules
Honeywell 900G03-0202 – AC digital input module
Honeywell 900G03-0120 – 24 V DC digital input module
Honeywell 900G02-0202 – Analog output module
Honeywell 900G01-0202 – Analog input module
Honeywell 900C75-0560 – High-performance CPU controller
Popular Honeywell Control Platforms
ControlEdge HC900 hybrid PLC/DCS system
Distributed I/O automation architectures
Industrial process control systems
High-availability and safety-integrated systems
Applications
The 900G04-0101 is ideal for industrial environments with mixed AC/DC signal requirements:
Monitoring high-voltage field devices (motors, relays, breakers)
Power distribution and electrical systems
Alarm and interlock signal acquisition
Oil & gas and petrochemical plants
Power generation and energy systems
Water and wastewater infrastructure
Its wide voltage range and universal input capability make it especially useful in systems where signal types vary across field devices.
Advantages
Universal AC/DC Compatibility – Handles both AC and DC inputs in one module
Wide Voltage Range – Supports high-voltage industrial signals
16-Channel High Density – Efficient handling of multiple inputs
High Isolation Protection – Enhances system safety and reliability
Reduced System Complexity – Eliminates need for separate AC/DC modules
Industrial-Grade Reliability – Designed for harsh environments
Technical FAQs
1. What is the Honeywell 900G04-0101 used for?
It is a universal digital input module used to collect both AC and DC discrete signals.
2. How many input channels does it provide?
It supports 16 individually isolated input channels.
3. What voltage range does it support? 80–264 V AC and 80–125 V DC, making it suitable for high-voltage applications.
4. What are its dimensions?
Approximately 170 × 90 × 60 mm.
5. What is its weight?
Around 0.5 kg.
6. Does it support isolation?
Yes, it provides high-level electrical isolation (350 V AC).
7. What systems is it compatible with?
Honeywell ControlEdge HC900 systems.
8. What industries use this module?
Power, oil & gas, chemical processing, and industrial manufacturing.
9. Why choose the 900G04-0101?
Because it offers flexibility, high voltage compatibility, and simplified system design.
10. Is it suitable for mixed signal environments?
Yes—this is one of its key advantages, supporting both AC and DC inputs in one unit.
