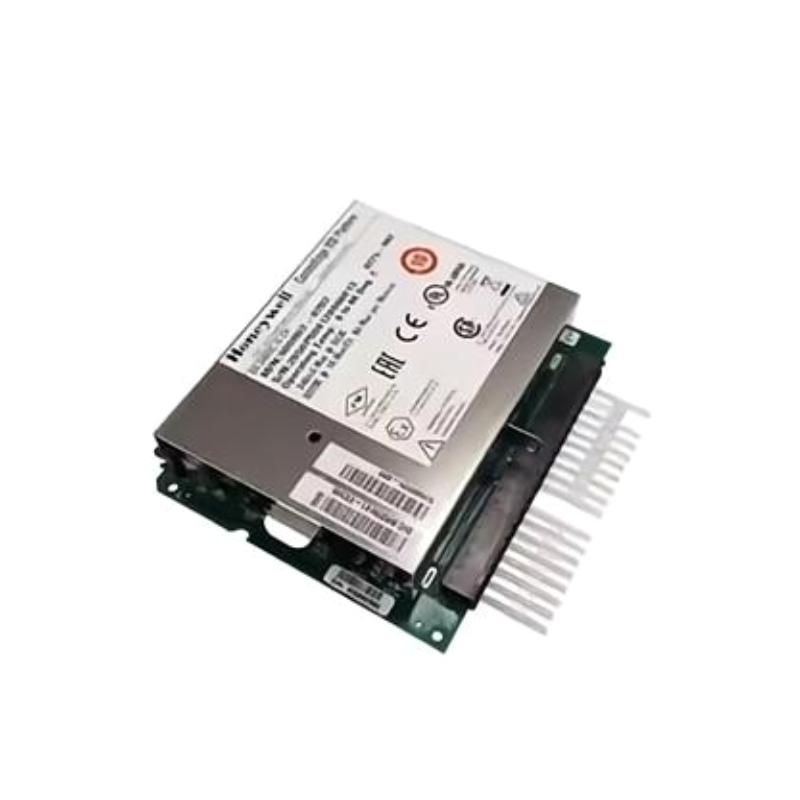

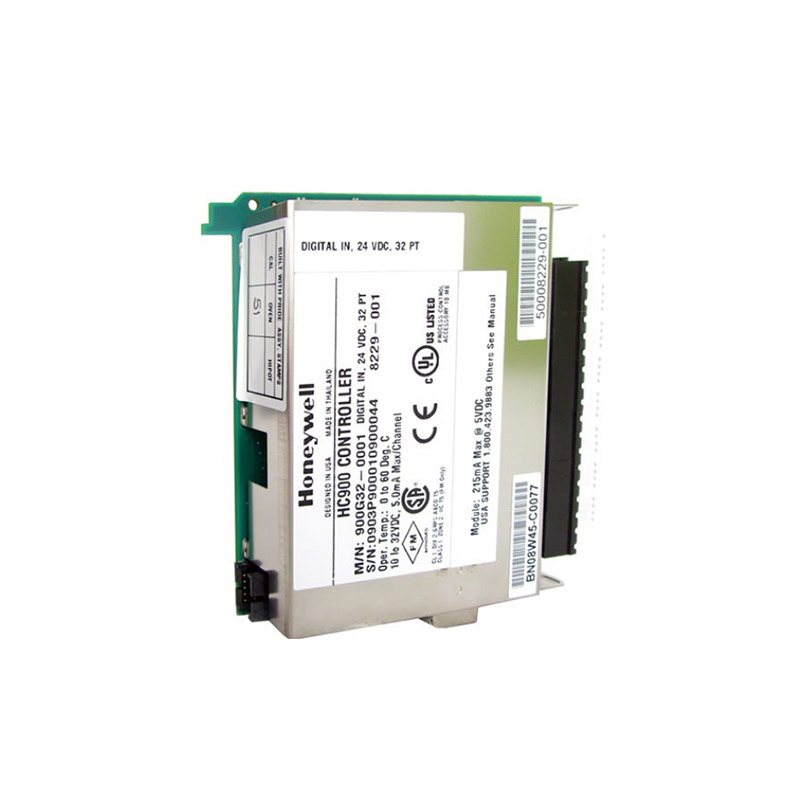

Honeywell 900G32-0101 32-Channel 24VDC Digital Input Module for ControlEdge HC900 High-Density I/O Systems
Honeywell 900G32-0101 32-Channel 24VDC Digital Input Module for ControlEdge HC900 High-Density I/O Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900G32-0101 Product Origin:USA Product Dimensions:134 × 35 × 137 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900G32-0101 is a high-density digital input module designed for the ControlEdge HC900 platform, providing 32 channels of 24VDC discrete input for large-scale industrial automation systems.
This module is optimized for applications requiring high I/O density, fast signal acquisition, and reliable field signal processing, making it ideal for complex control systems where space efficiency and performance are critical.
Technical Specifications
Specification
Details
Model
900G32-0101
Module Type
Digital Input Module
Platform
Honeywell ControlEdge HC900
Input Channels
32 channels (sinking inputs)
Input Voltage Range
10–32 VDC
Peak Voltage
32 VDC
ON Voltage Level
≥ 9.5 VDC
OFF Voltage Level
≤ 3.5 VDC
Input Current
~3.5 mA @ 24 VDC
Input Impedance
~6.9 kΩ
Response Time
≤ 5 ms (ON/OFF)
Isolation
2 groups of 16 inputs (galvanic isolation)
Communication
Backplane communication with HC900 CPU
Mounting
Rack / backplane installation
Operating Temperature
–20 °C to +60 °C
Dimensions (H × W × D)
Approx. 134 × 35 × 137 mm
Weight
≈0.30 kg
Origin
USA
Recommended Related Modules
Honeywell 900G32-0001 – Digital input module (variant)
Honeywell 900G03-0202 – 16-channel AC digital input module
Honeywell 900G03-0120 – 12-channel DC digital input module
Honeywell 900G02-0202 – Analog output module
Honeywell 900C75-0560 – High-performance CPU controller
Popular Honeywell Control Platforms
ControlEdge HC900 hybrid PLC/DCS
Distributed high-density I/O systems
Industrial process automation architectures
SCADA and DCS integrated systems
Applications
The 900G32-0101 is widely used in large-scale industrial systems requiring high channel density:
Monitoring large numbers of digital field signals
Machine and production line status acquisition
Alarm and interlock systems
Power and energy distribution monitoring
Oil & gas and petrochemical plants
Water and wastewater treatment facilities
Its 32-channel design significantly reduces cabinet space and wiring complexity in large systems.
Advantages
32 High-Density Inputs – Maximizes I/O per module
Wide DC Input Range – Compatible with standard 24VDC systems
Fast Response Time – Suitable for real-time control applications
Galvanic Isolation – Enhances system safety and signal integrity
Compact Design – Reduces panel space requirements
Reliable Industrial Performance – Designed for continuous operation
Technical FAQs
1. What is the Honeywell 900G32-0101 used for?
It is a 32-channel digital input module used to collect multiple discrete signals in industrial systems.
2. What input voltage does it support? 10–32 VDC, suitable for standard 24VDC industrial signals.
3. How many input channels does it provide? 32 channels, grouped in two isolated blocks of 16.
4. What is the response time?
Typically ≤ 5 ms for ON/OFF transitions.
5. What are its dimensions?
Approximately 134 × 35 × 137 mm.
6. What is the weight?
Around 0.30 kg.
7. Does it support isolation?
Yes—galvanic isolation between input groups for improved reliability.
8. What systems is it compatible with?
Honeywell ControlEdge HC900 platform.
9. What industries use this module?
Manufacturing, energy, oil & gas, and process industries.
10. Why choose the 900G32-0101?
It offers high channel density, fast response, and reliable performance, making it ideal for large automation systems.
