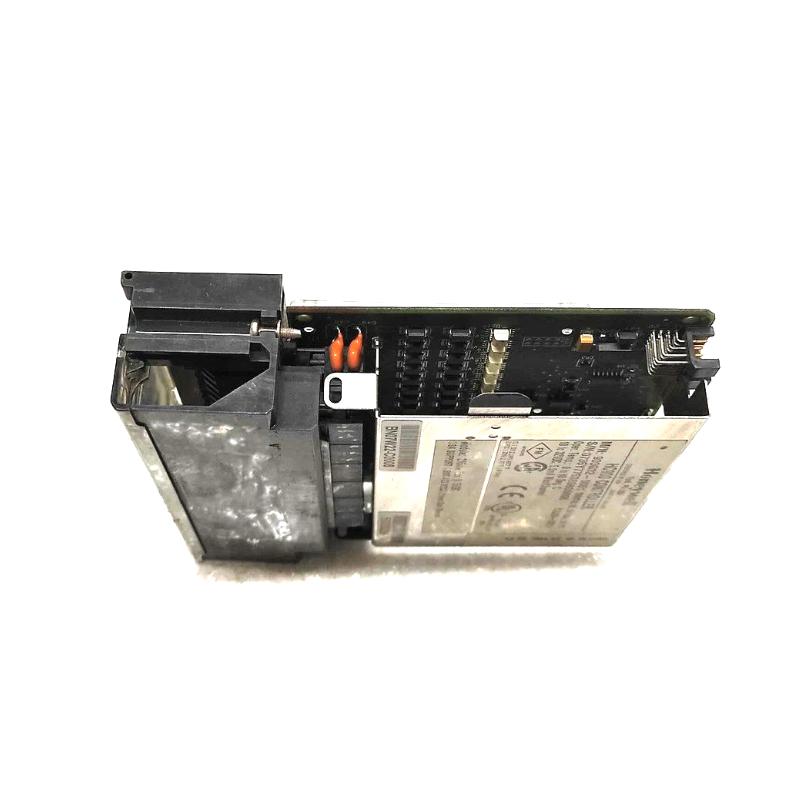

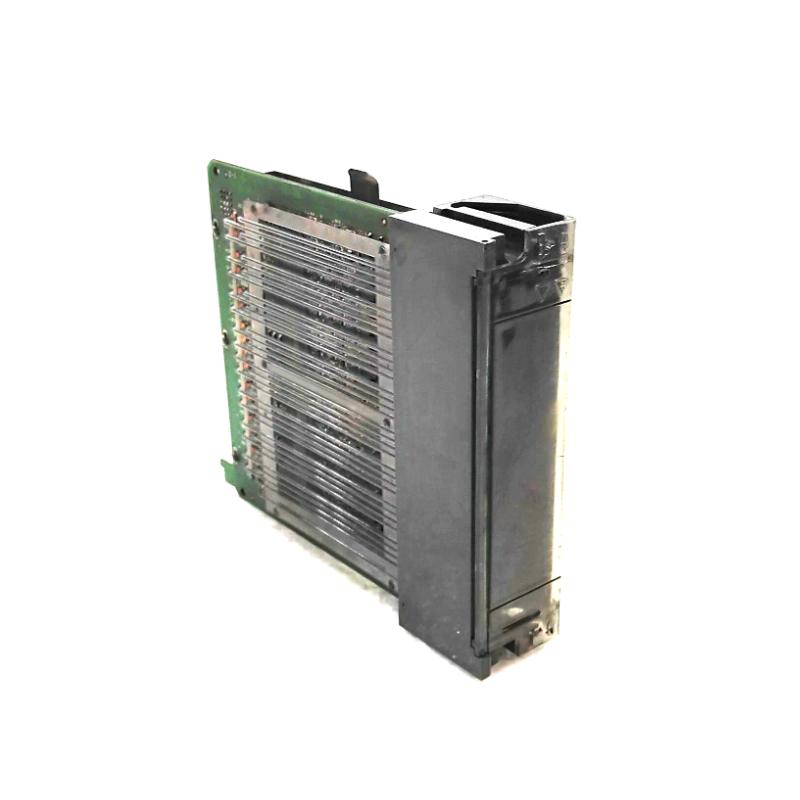

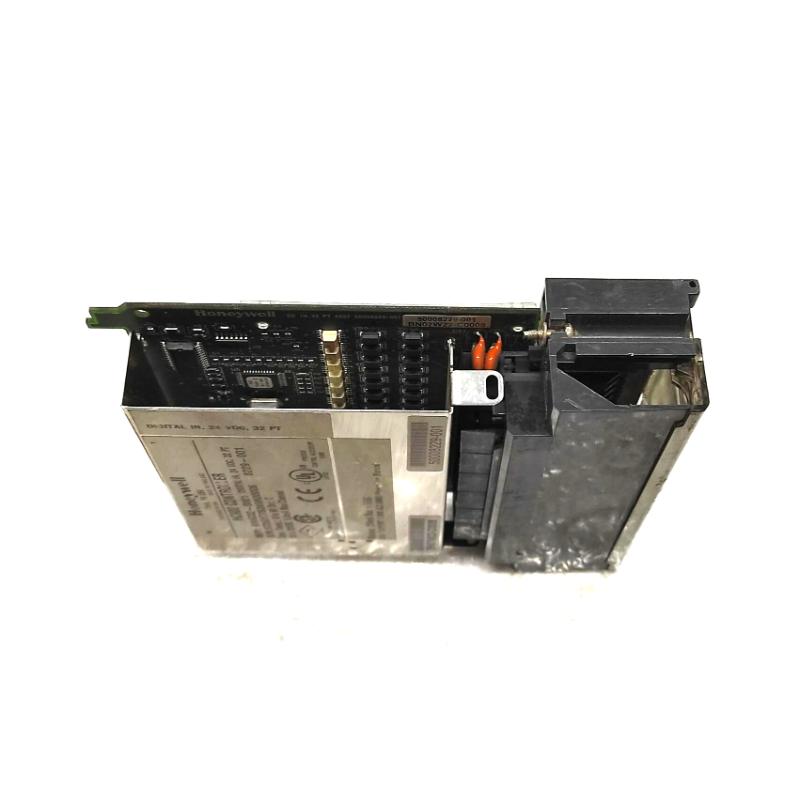

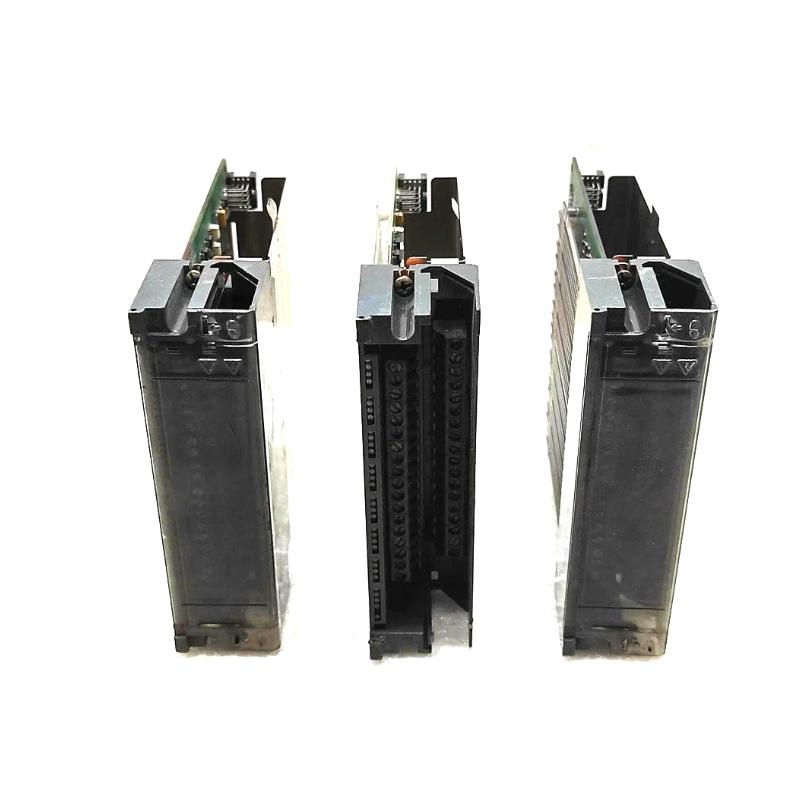

Honeywell 900G32‑0301 32‑Channel 120/240 VAC Digital Input Module for ControlEdge HC900 High‑Density Field Signal Acquisition
Honeywell 900G32‑0301 32‑Channel 120/240 VAC Digital Input Module for ControlEdge HC900 High‑Density Field Signal Acquisition
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900G32‑0301 Product Origin:USA Product Dimensions:134 × 35 × 137 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900G32‑0301 is a high‑density AC digital input module engineered for the ControlEdge HC900 platform. With 32 wide‑voltage AC input channels, this module captures status and discrete signals directly from field devices in industrial environments—eliminating the need for external voltage converters.
Built with robust electrical isolation and industrial‑grade reliability, the 900G32‑0301 is ideal for systems requiring high channel counts and direct 120/240 VAC signal interfacing, such as large machine control panels, power distribution monitoring, and complex process automation systems.
Technical Specifications
Specification
Details
Model
900G32‑0301
Module Type
Digital Input Module
Platform
Honeywell ControlEdge HC900
Input Channels
32 channels
Input Voltage Range
90–264 VAC
Signal Type
AC discrete / ON‑OFF state detection
Input Current
Typical industrial AC input range
Isolation
Individual channel and module isolation
Communication
Backplane communication with HC900 CPU
Mounting
Rack / backplane installation
Operating Temperature
–20 °C to +60 °C
Dimensions (H × W × D)
Approx. 134 × 35 × 137 mm
Weight
Approx. 0.32 kg
Status
Active industrial I/O module
Recommended Related Modules
Honeywell 900G32‑0101 – 32‑channel 24 VDC digital input module
Honeywell 900G03‑0202 – 16‑channel AC digital input module
Honeywell 900G03‑0120 – 12‑channel DC digital input module
Honeywell 900G02‑0202 – Analog output module
Honeywell 900C75‑0560 – Redundant high‑availability CPU controller
Popular Honeywell Control Platforms
ControlEdge HC900 hybrid PLC/DCS system
Distributed high‑density I/O control architectures
Industrial process automation systems
SCADA and DCS integrated environments
Applications
The 900G32‑0301 excels in systems where large volumes of AC discrete signals must be collected and processed:
AC field status monitoring (motors, breakers, relays)
Machine and equipment condition detection
Power distribution panel automation
Alarm and interlock signal acquisition
Oil & gas plants and process facilities
Water and wastewater treatment automation
Its 32‑channel density significantly reduces the number of modules needed and optimizes cabinet space for complex installations.
Advantages
High Channel Density – 32 AC discrete inputs maximize I/O per module
Wide AC Voltage Support – Directly handles 90–264 VAC signals
Industrial Reliability – Designed for continuous operation in harsh environments
Strong Electrical Isolation – Improves safety and signal integrity
Fast Response – Suitable for real‑time control logic execution
Seamless HC900 Integration – Fully compatible with ControlEdge systems
Technical FAQs
1. What is the Honeywell 900G32‑0301?
It is a 32‑channel digital input module designed for wide‑range AC (90–264 VAC) signal acquisition.
2. How many channels does it support?
It supports 32 discrete AC input channels.
3. What voltage range is supported? 90–264 VAC, covering standard industrial AC field signal levels.
4. What are its dimensions?
Approximately 134 × 35 × 137 mm.
5. What is its weight?
Around 0.32 kg.
6. What systems is it compatible with?
Honeywell ControlEdge HC900 automation systems.
7. What industries commonly use this module?
Manufacturing, power systems, oil & gas, utilities, and water/wastewater.
8. Does it provide electrical isolation?
Yes; it includes individual channel and module isolation for improved stability and safety.
9. How is it installed?
Mounted on an HC900 rack backplane or compatible DIN mounting.
10. Why choose the 900G32‑0301?
It offers high channel density, wide AC voltage compatibility, and industrial‑grade performance, making it ideal for demanding automation environments.
