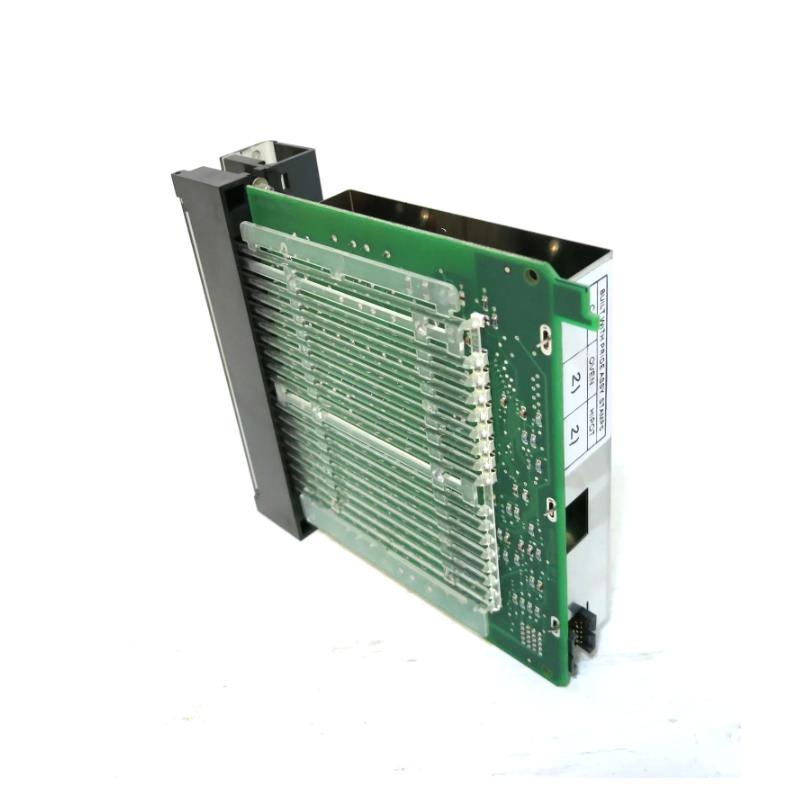

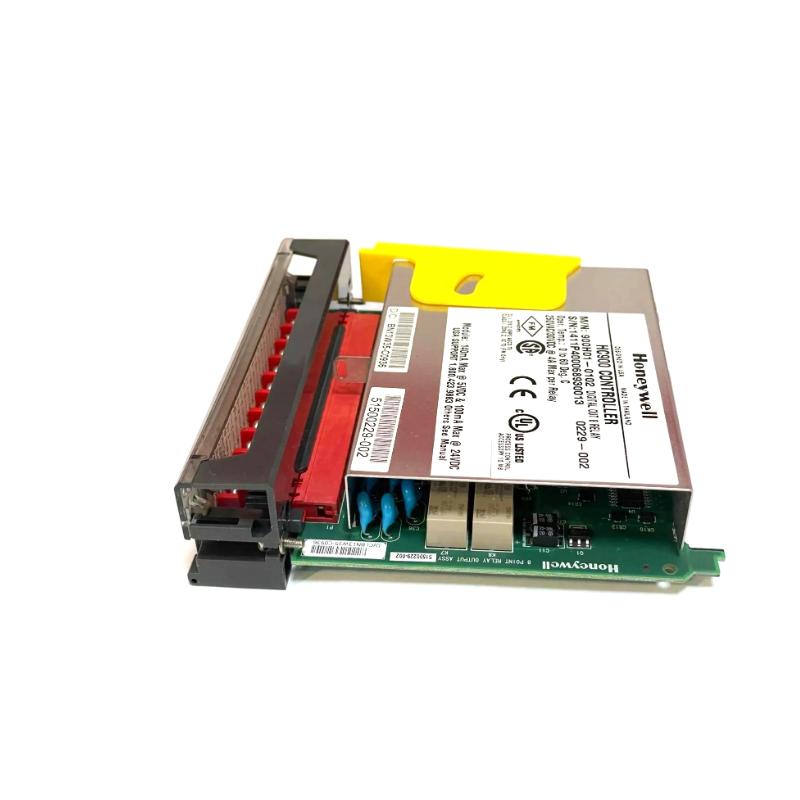

Honeywell 900H01-0102 High-Accuracy Analog Input Module for ControlEdge HC900 Industrial Process Control Systems
Honeywell 900H01-0102 High-Accuracy Analog Input Module for ControlEdge HC900 Industrial Process Control Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900H01-0102 Product Origin:USA Product Dimensions:120 × 40 × 110 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900H01-0102 is a high-accuracy analog input module designed for the ControlEdge HC900 platform, enabling precise acquisition of continuous process signals from a wide range of industrial field instruments. It is commonly used with pressure transmitters, temperature sensors, flow meters, and level devices, converting analog signals into reliable digital data for advanced control and monitoring.
Engineered for stability, accuracy, and strong noise immunity, this module is ideal for demanding industrial environments where consistent and high-quality signal acquisition is essential.
Technical Specifications
Specification
Details
Model
900H01-0102
Module Type
Analog Input Module
Platform
Honeywell ControlEdge HC900
Input Channels
Typically 8–16 analog inputs
Input Signal Types
4–20 mA, 0–10 V (model dependent)
Resolution
High-resolution A/D conversion
Accuracy
High precision measurement
Isolation
Channel-to-channel and system isolation
Sampling Rate
Fast acquisition for real-time monitoring
Communication
Backplane communication with HC900 CPU
Power Supply
Provided via HC900 rack/base
Operating Temperature
–20 °C to +60 °C
Mounting
Rack / DIN rail installation
Dimensions (H × W × D)
Approx. 120 × 40 × 110 mm
Weight
Approx. 0.30 kg
Status
Active industrial I/O module
Recommended Related Modules
Honeywell 900H02-0102 – Analog output module
Honeywell 900G01-0202 – Analog input module (standard series)
Honeywell 900E01-0102 – Digital input module
Honeywell 900E02-0102 – Digital output module
Honeywell 900C50-0460 – CPU controller
Popular Honeywell Control Platforms
ControlEdge HC900 hybrid PLC/DCS system
Distributed industrial I/O architectures
Process automation systems
SCADA and DCS integrated environments
Applications
The 900H01-0102 is widely used in industries requiring accurate analog signal measurement:
Temperature, pressure, flow, and level monitoring
Chemical and petrochemical processing
Power generation and energy systems
Water and wastewater treatment plants
Industrial manufacturing and batch processes
It ensures stable and high-precision signal acquisition, supporting optimized process control and operational efficiency.
Advantages
High Measurement Accuracy – Reliable and precise data acquisition
Flexible Signal Compatibility – Supports standard industrial analog signals
Fast Response Time – Suitable for real-time control applications
Strong Noise Immunity – Performs well in harsh environments
Seamless Integration – Fully compatible with HC900 controllers
Compact Design – Efficient use of control cabinet space
Technical FAQs
1. What is the Honeywell 900H01-0102 used for?
It is an analog input module used to collect continuous signals from field instruments.
2. What signal types does it support?
Typically 4–20 mA and 0–10 V signals.
3. How many channels does it provide?
Usually 8 to 16 channels, depending on configuration.
4. What are its dimensions?
Approximately 120 × 40 × 110 mm.
5. What is its weight?
Around 0.30 kg.
6. What systems is it compatible with?
Honeywell ControlEdge HC900 systems.
7. What industries use this module?
Oil & gas, power generation, chemical processing, and water treatment.
8. Does it support isolation?
Yes, it includes electrical isolation for safe and stable operation.
9. How is it installed?
Mounted on an HC900 rack or DIN rail base.
10. Why choose the 900H01-0102?
It offers high precision, reliability, and seamless integration, making it ideal for industrial process control.
