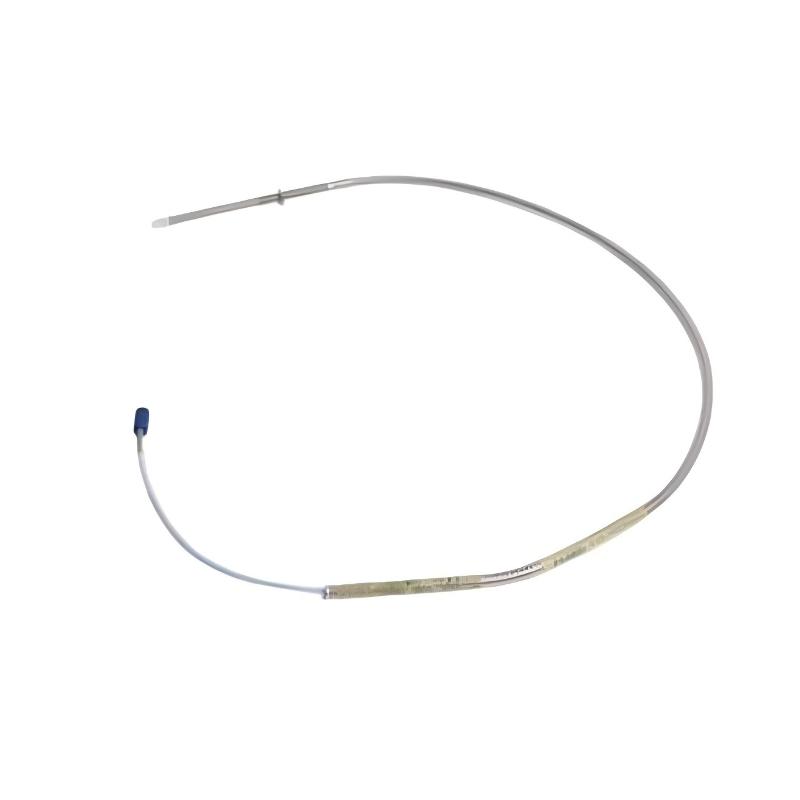

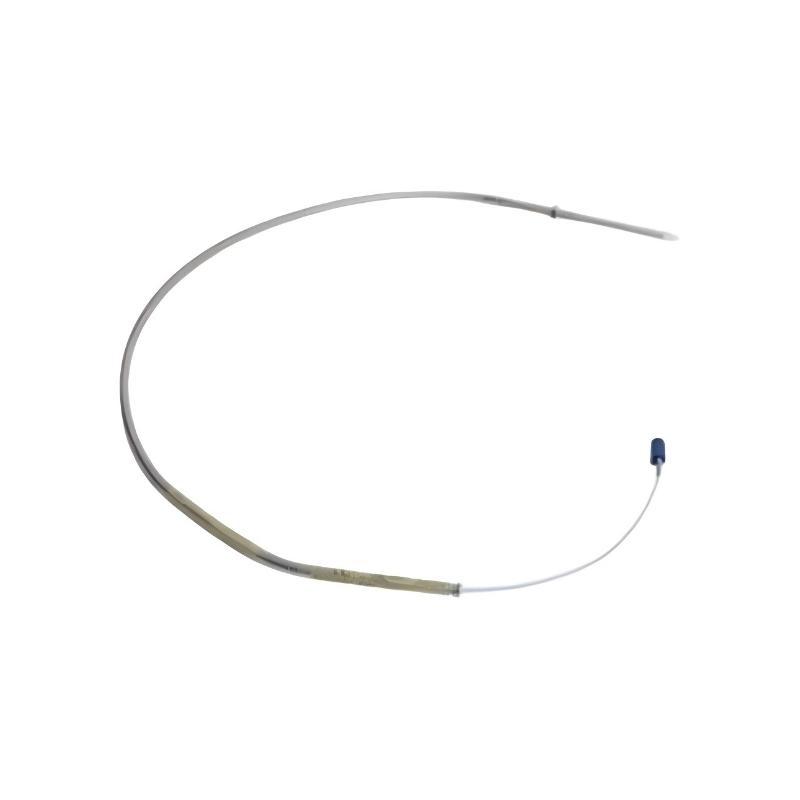

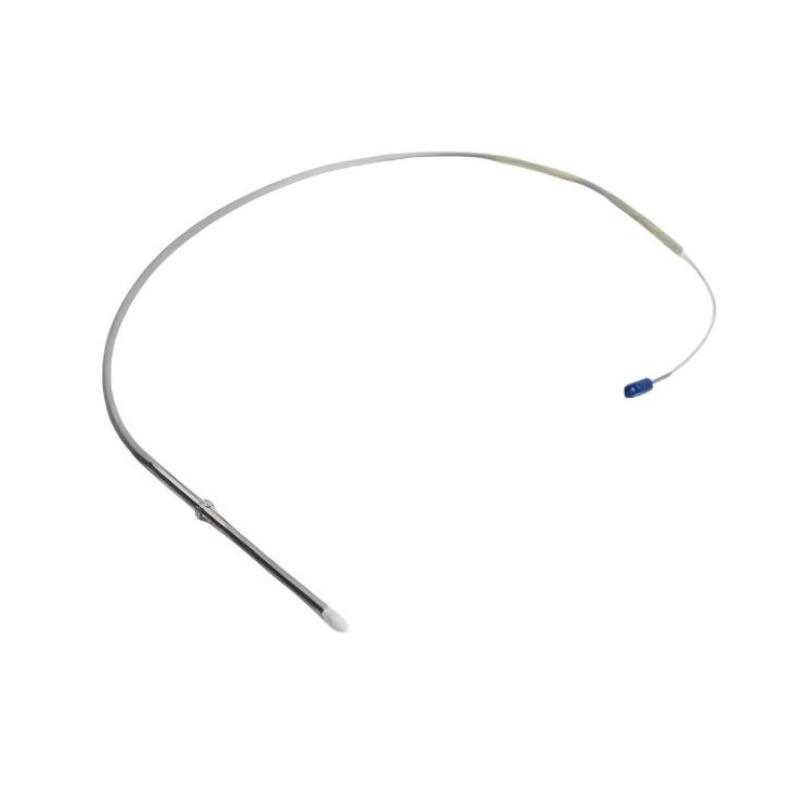

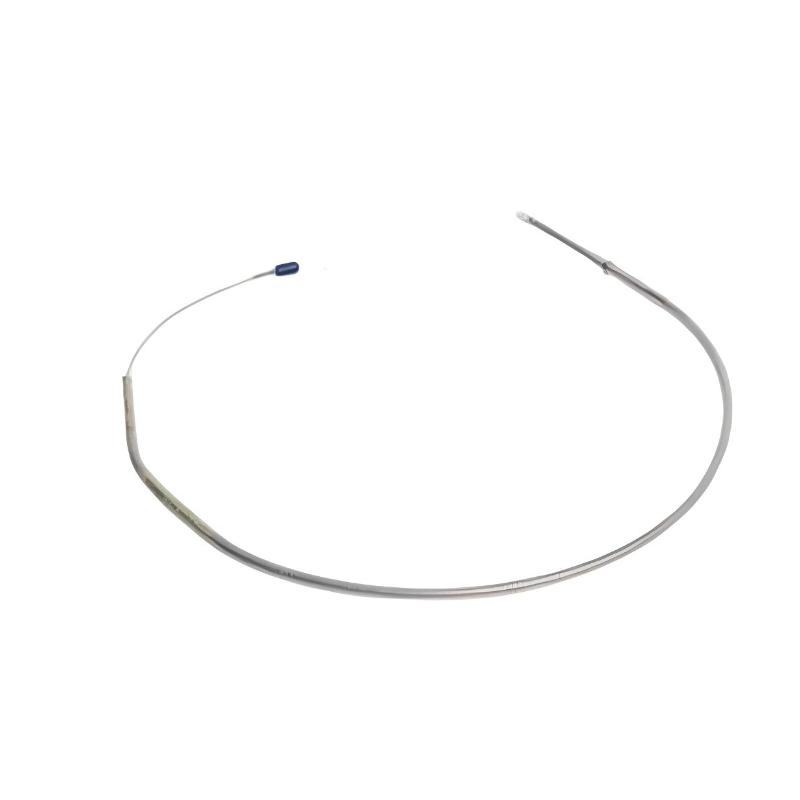

Bently Nevada 330904-07-15-05-02-00 3300 NSv Proximity Probe

Applications

• Rotating Machinery Monitoring – Provides accurate shaft displacement measurement for turbines, compressors, and generators.

• Vibration Detection & Analysis – Captures subtle oscillations to support predictive and preventive maintenance programs.

• Non-Contact Clearance Measurement – Ensures accurate proximity readings without mechanical wear, increasing reliability.

• Industrial & Power Plant Applications – Designed for heavy-duty industrial environments with high operational demands.

Key Advantages

• High Precision – Delivers micron-level accuracy for critical shaft position and vibration monitoring.

• Non-Contact Operation – Minimizes mechanical wear and reduces maintenance requirements.

• Rapid Response – Captures fast dynamic events with minimal delay.

• Robust & Compact Design – Fits into tight spaces while withstanding vibration and industrial stress.

• System Compatibility – Fully compatible with Bently Nevada 3300 NSv and 3300 XL monitoring systems.

Technical FAQs

1. What is the total probe length?
The probe has a total length of 1.0 meter.

2. What materials can the probe measure?
Optimized for conductive metallic shafts, such as steel.

3. What is the nominal sensing range?
The 8 mm nominal gap provides precise displacement measurement.

4. Can it operate in harsh industrial environments?
Yes, it is resistant to dust, oil, vibration, and standard industrial temperature variations.

5. Is calibration required?
Factory calibration ensures accurate operation; periodic verification is recommended.

6. How is the probe mounted?
It can be mounted using standard 3300 NSv threaded or flanged mounting options.

7. Does it support continuous monitoring?
Yes, it is designed

8. What is the typical response time?
Response time is under 1 ms, suitable for high-speed rotating machinery.

9. Is it compatible with 3300 XL systems?
Yes, it is fully compatible with both Bently Nevada 3300 NSv and 3300 XL monitoring platforms.

10. What type of connector does it use?
It uses a miniature coaxial ClickLoc connector with standard cable.
