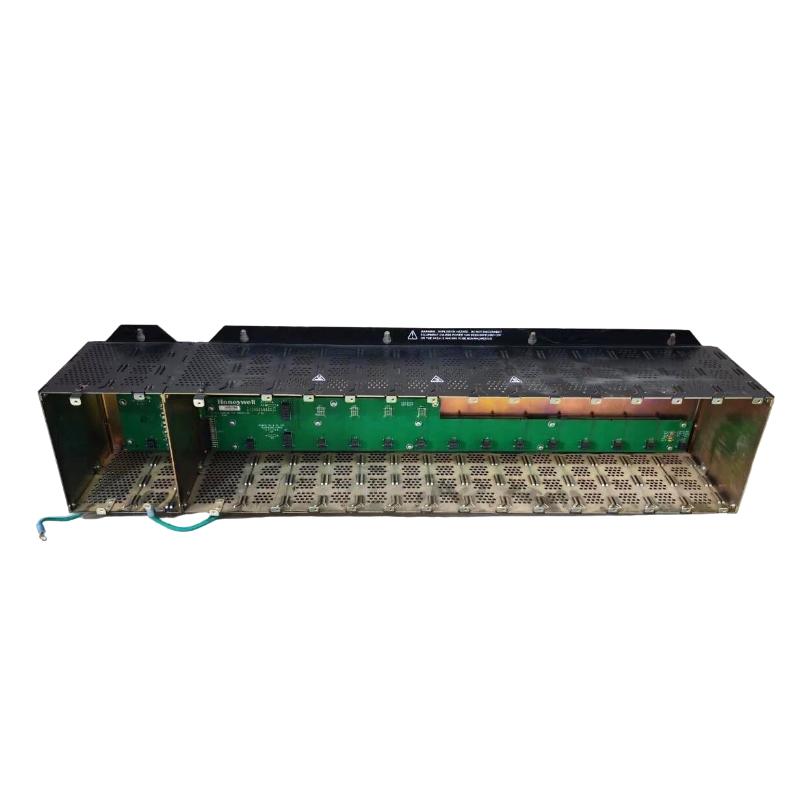

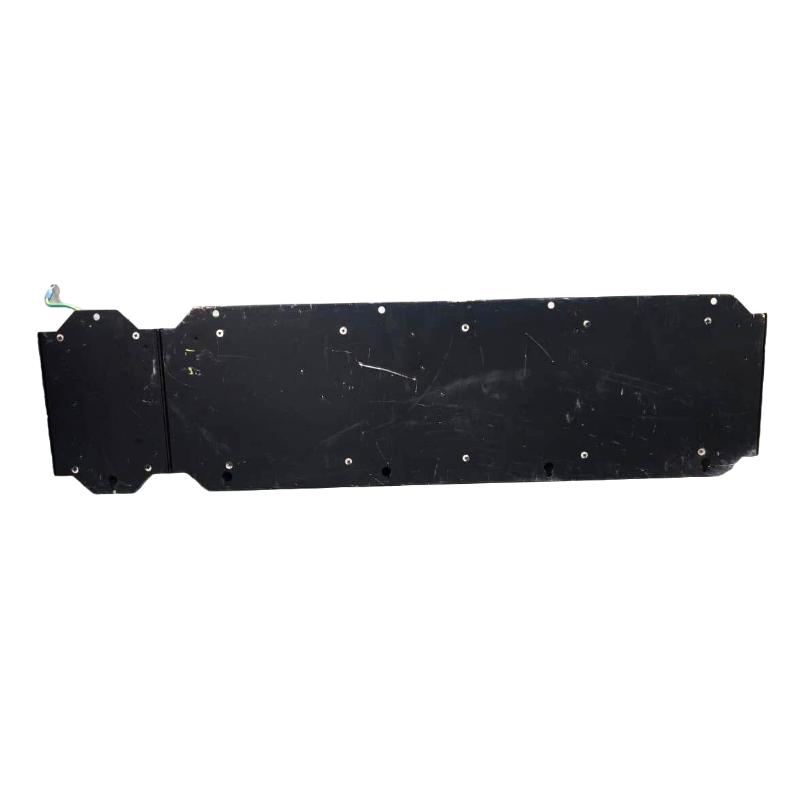

The Honeywell 900R12R‑0200 is an industrial‑grade redundant 12‑slot I/O rack engineered to provide high availability and structured expansion for I/O modules within Honeywell ControlEdge HC900 automation systems. Designed for mission‑critical control environments, this rack supports redundant power configurations to maximize uptime and reliability while hosting analog, digital, and communication modules in a modular backplane layout.

Technical Specifications

Specification	Details
Model Number	900R12R‑0200
Module Type	Redundant Power I/O Rack
Compatible Systems	Honeywell ControlEdge HC900 series
Slot Capacity	12 I/O module slots
Power Support	Redundant 24 V DC power
Backplane Power Distribution	5 V logic / 24 V DC field power
Mounting Method	Rack‑mount / Cabinet integration
Operating Temperature	0 °C to +60 °C
Storage Temperature	‑40 °C to +85 °C
Ambient Humidity	10 % – 95 % non‑condensing
Dimensions (L × W × H)	683.3 × 151.7 × 137 mm
Weight	5.25 kg

Physical dimensions and weight are typical values for this 12‑slot redundant rack design.

Recommended Related Modules

Honeywell 900RR0‑0200 – Redundant CPM Rack for enhanced control resilience
Honeywell 900H03‑0202 – High‑speed Digital Input Module
Honeywell 900H32‑0102 – High‑density Digital Output Module
Honeywell 900P24‑0601 – High‑capacity 24 V DC Power Supply
Honeywell 900G03‑0120 – Communication Interface Module

Popular Honeywell Components

Honeywell 900A16‑0001 – Analog Input Module
Honeywell 900B16‑0001 – Digital Output Module
Honeywell 900PSM‑0200 – Power Status Monitoring Module
Honeywell 900U02‑0100 – Universal I/O Module
Honeywell 900C75 – Control Processor Module

Applications

The 900R12R‑0200 is widely applied in systems where high availability and structured signal integration are essential:

Distributed control systems (DCS) in chemical, oil & gas, and power plants
Large‑scale manufacturing automation requiring high I/O counts
Industrial panels with mixed analog and digital I/O requirements
Redundant control architectures where system uptime is critical
Remote I/O racks in harsh environments with redundant power needs

Its support for redundant power supplies ensures uninterrupted operation even during maintenance or power transitions, making it well‑suited for mission‑critical automation infrastructures.

Key Advantages

Redundant Power Support: Dual 24 V DC redundancy enhances system uptime
High I/O Capacity: 12 slots enable extensive expansion
Modular Architecture: Mix analog, digital, and communication modules to meet diverse needs
Industrial Durability: Designed for continuous operation in challenging environments
Seamless Integration: Fully compatible with ControlEdge HC900 automation architectures

Technical FAQs

1. What is the main function of the 900R12R‑0200?
It provides a redundant‑power‑capable 12‑slot I/O rack for Honeywell automation systems.

2. How many I/O modules can it support?
Up to 12 I/O module slots.

3. Which controllers is it compatible with?
Designed for Honeywell ControlEdge HC900 series controllers.

4. Does it support redundant power configurations?
Yes — it supports redundant 24 V DC power for increased reliability.

5. What power does the backplane distribute?
It distributes 5 V logic power and 24 V DC field power to installed modules.

6. What are the operating temperature limits?
Rated approximately 0 °C to +60 °C.

7. How is the rack installed?
It is mounted within standard industrial control cabinets.

8. Can different module types be mixed?
Yes — analog, digital, and communication modules can coexist in the rack.

9. What humidity conditions can it operate in?
Designed for 10 % to 95 % non‑condensing humidity.

10. Why choose this rack for large systems?
Its combination of redundancy, I/O capacity, and industrial reliability makes it ideal for large, mission‑critical automation systems.
