Introduction

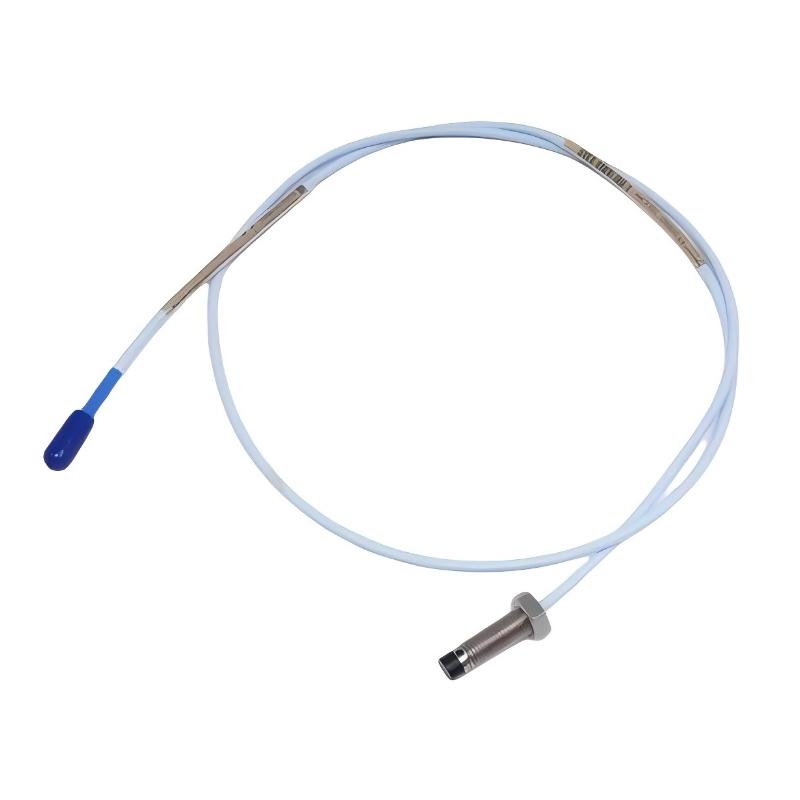

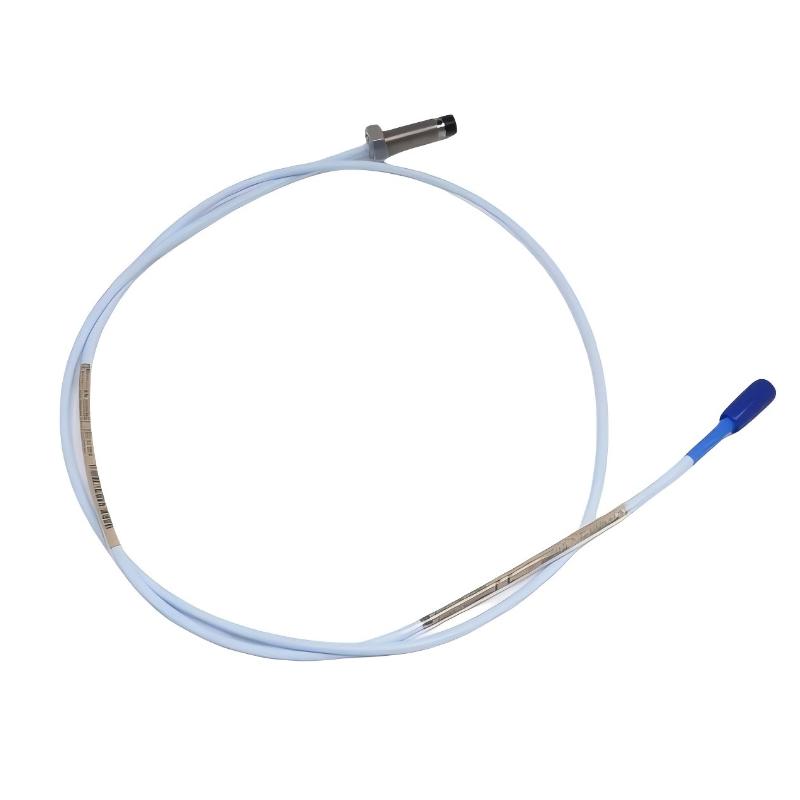

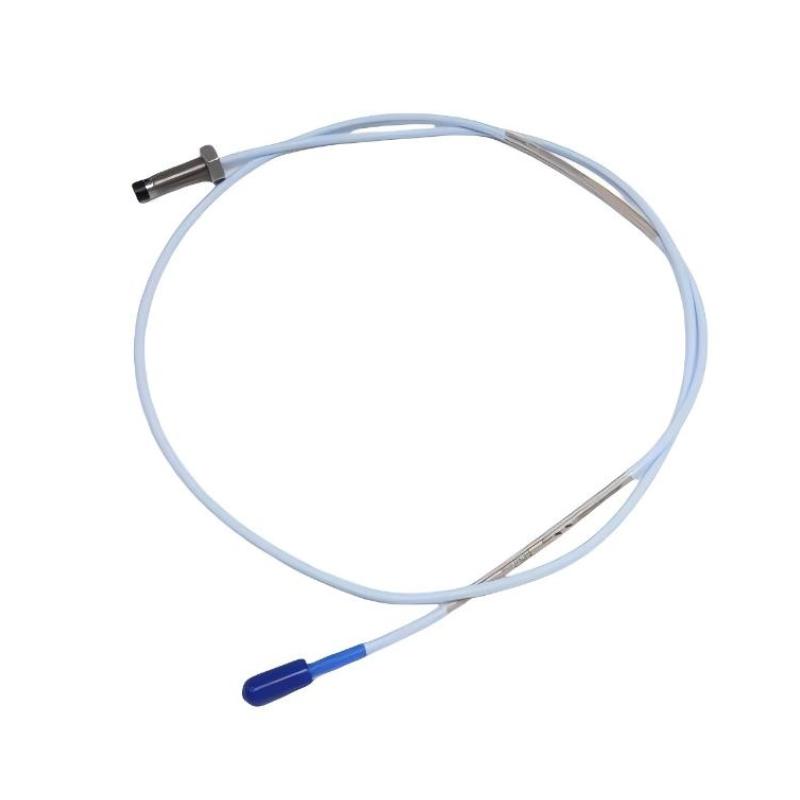

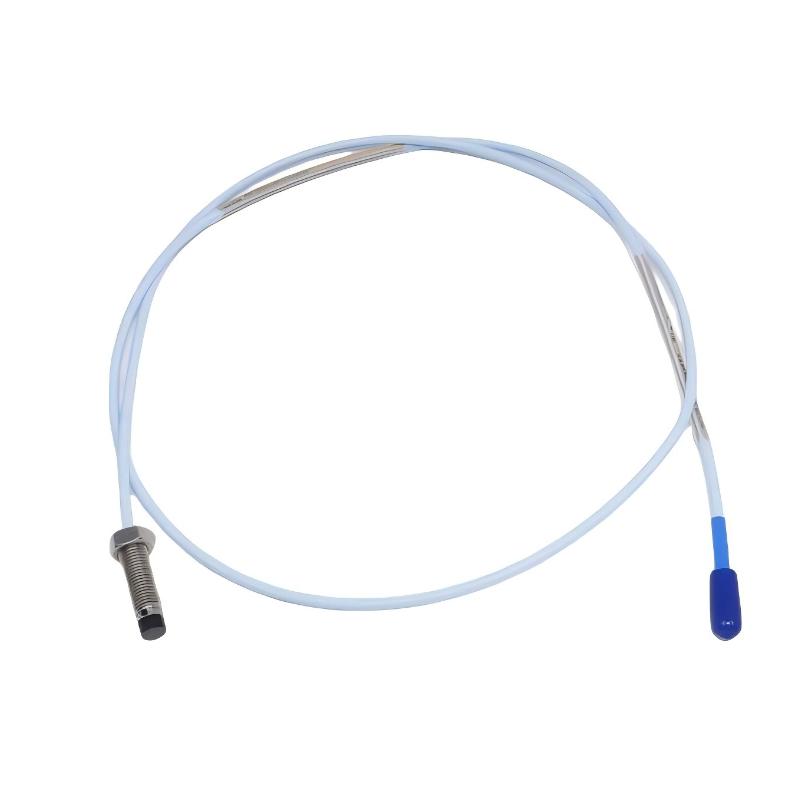

The Bently Nevada 330101-00-11-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor for accurate shaft displacement and vibration monitoring. Its 1.0 m length, robust design, and lightweight construction make it ideal for industrial condition monitoring in power generation and manufacturing environments.

Technical Specifications

Parameter	Specification
Sensor Type	3300 XL Proximity Probe
Probe Diameter	8 mm
Total Length	1.0 m
Measuring Range	Nominal 8 mm
Output Signal	AC proportional to displacement
Linearity	±1 % FS typical
Operating Environment	Industrial vibration, dust, oil
Housing Material	Stainless Steel
Weight	0.323 kg
Connector Type	Miniature coaxial ClickLoc

Recommended Related Models

Model	Product Name
330101-00-11-10-02-00	Bently Nevada 3300 XL 8 mm Proximity Probe – 1.0 m standard cable
330102-12-60-10-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe – 1.0 m cable variant
330102-00-02-10-02-00	Bently Nevada 3300 XL 8 mm Proximity Probe – 1.0 m standard variant
330102-00-43-05-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe – 0.5 m cable variant

Popular Related Models

Model	Product Name
330101-00-11-10-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe – this model
330101-00-11-10-02-00	Bently Nevada 3300 XL 8 mm Proximity Probe – 1.0 m standard cable
330102-12-60-10-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe – 1.0 m cable variant
330102-00-43-05-02-05	Bently Nevada 3300 XL 8 mm Proximity Probe – 0.5 m cable variant

Applications

• Rotating Machinery Monitoring – Accurately measures shaft displacement in turbines, compressors, and industrial generators.

• Vibration Analysis & Condition Monitoring – Captures subtle oscillations to support predictive maintenance strategies.

• Non-Contact Clearance Measurement – Provides precise readings without mechanical wear, enhancing reliability.

• Industrial Power & Process Systems – Designed for consistent performance in heavy-duty plant environments.

Key Advantages

• High Measurement Accuracy – Delivers micron-level precision for critical shaft position monitoring.

• Non-Contact Design – Reduces friction and maintenance requirements.

• Fast Response Time – Captures rapid shaft movements and transient events.

• Robust & Compact Construction – Withstands industrial vibration while fitting in constrained spaces.

• System Compatibility – Fully integrates with Bently Nevada 3300 XL monitoring systems.

Technical FAQs

1. What is the total probe length?
The probe has a total length of 1.0 meter.

2. What materials are suitable for measurement?
Designed for conductive metallic shafts such as steel.

3. What is the nominal sensing range?
The 8 mm nominal gap ensures precise displacement measurement.

4. Can it operate in harsh industrial environments?
Yes, resistant to dust, oil, vibration, and temperature variations.

5. Is factory calibration included?
Yes, factory calibration ensures accurate readings; periodic verification is recommended.

6. How is the probe mounted?
Standard 3300 XL threaded or flanged mounting ensures secure installation.

7. Does it support continuous monitoring?
Yes, suitable for continuous online shaft monitoring.

8. What is the typical response time?
Response time is under 1 ms, suitable for high-speed machinery.

9. Is it compatible with 3300 NSv systems?
Yes, fully compatible with Bently Nevada 3300 NSv and XL platforms.

10. What connector type is used?
It uses a miniature coaxial ClickLoc connector with standard cable.
