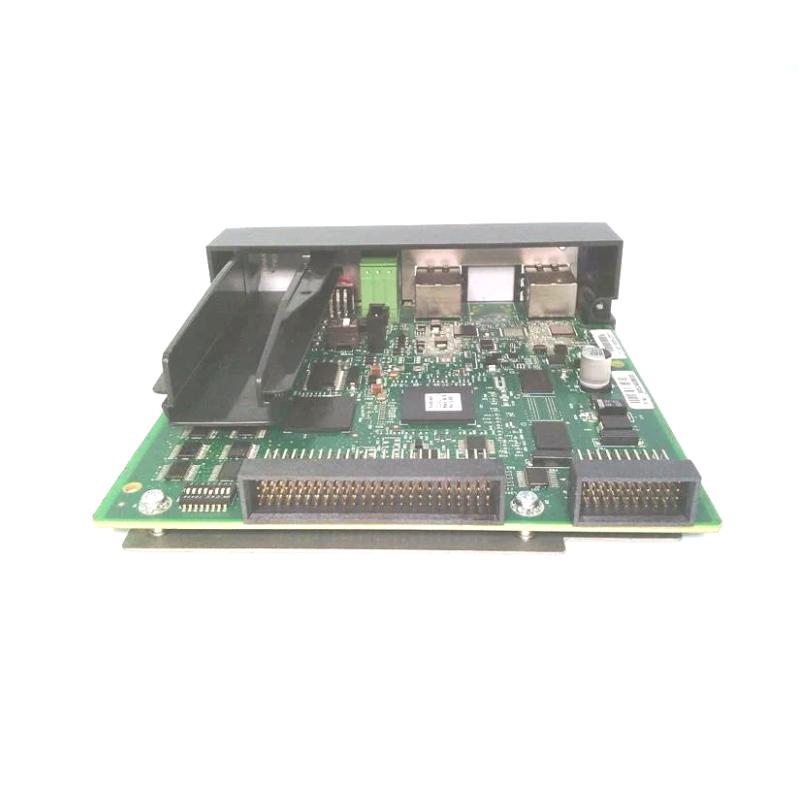

Honeywell 900S75S‑0460 Advanced Dual‑Port I/O Scanner Module for ControlEdge HC900 Distributed Automation Systems
Honeywell 900S75S‑0460 Advanced Dual‑Port I/O Scanner Module for ControlEdge HC900 Distributed Automation Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 900S75S‑0460 Product Origin:USA Product Dimensions:137 × 38.1 × 137 mm Product Weight:0.40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 900S75S‑0460 is a rugged industrial‑grade dual‑port I/O scanner module tailored for distributed automation systems built around the Honeywell ControlEdge HC900 platform. It provides reliable, high‑speed communication between the HC900 controller and multiple remote I/O racks, enabling real‑time data acquisition and precise signal coordination across complex process control architectures. Designed with industrial environments in mind, this module balances compact form factor with robust feature support to enhance scalability and distributed I/O performance.
Technical Specifications
Specification
Details
Model Number
900S75S‑0460
Module Type
Dual‑Port I/O Scanner Module
Compatible Systems
Honeywell ControlEdge HC900 series
Communication Ports
Dual Ethernet ports for multiple I/O rack links
Functionality
I/O scanning, real‑time field data exchange
Mounting Method
DIN‑rail (35 mm)
Operating Temperature Range
−40 °C to +70 °C
Storage Temperature Range
−40 °C to +85 °C
Humidity Range
5 % to 95 % non‑condensing
Dimensions (L × W × H)
137 × 38.1 × 137 mm
Weight
0.40 kg
Typical Power
Standard industrial I/O scanner power requirements
Certifications
Industrial compliance (typical CE/UL)
The scanner’s form factor and rugged ratings make it suitable for both centralized cabinets and remote panels in distributed systems.
Recommended Related Modules
Honeywell 900C75S‑0460 – Redundant Control Processor Module for advanced control logic
Honeywell 900P24‑0601 – Industrial 24 V DC Power Supply Module
Honeywell 900H03‑0202 – Digital Input Module
Honeywell 900H32‑0102 – Digital Output Module
Honeywell 900R12‑0200 – 12‑Slot I/O Rack Chassis
These modules together enable highly scalable, resilient distributed automation architectures that support diverse field I/O and control functions.
Popular Honeywell Automation Modules
Honeywell 900A16‑0001 – Analog Input Module
Honeywell 900B16‑0001 – Digital Output Module
Honeywell 900G03‑0120 – Communication Interface Module
Honeywell 900PSM‑0200 – Power Status Monitoring Module
Honeywell 900U02‑0100 – Universal I/O Module
These modules offer flexible signal interfacing options for varied industrial sensing and actuation needs.
Industrial Applications
The 900S75S‑0460 excels in applications requiring robust controller‑to‑remote communication and distributed I/O scanning:
Distributed Control Systems (DCS) in manufacturing and process plants
Large‑scale automation with multiple field I/O racks
Utility and infrastructure controllers with geographically separated signals
Energy, water/wastewater, and power automation requiring reliable data flow
Modular PLC systems where redundancy and quick diagnostics are critical
Its dual Ethernet ports and industrial ratings ensure dependable performance in demanding settings.
Advantages
Dual‑Port Connectivity: Supports simultaneous Ethernet links to multiple I/O racks, boosting system scalability and flexibility.
Compact Industrial Design: DIN‑rail mountable and built for reliable operation in constrained cabinet spaces.
Enhanced System Visibility: Real‑time I/O scanning improves responsiveness and control accuracy.
Wide Environmental Tolerance: Designed to operate across broad temperature and humidity ranges typical of industrial sites.
Seamless Honeywell Integration: Native compatibility with ControlEdge HC900 simplifies deployment and maintenance.
Technical FAQs
1. What does the 900S75S‑0460 module do?
It functions as a dual‑port I/O scanner, facilitating communication between the HC900 controller and multiple remote I/O racks for data acquisition and control.
2. How many communication links does it support?
It supports two Ethernet ports, allowing simultaneous connections to different I/O rack segments.
3. Which systems is it compatible with?
Designed for use with Honeywell ControlEdge HC900 automation controllers.
4. Is it suitable for harsh conditions?
Yes — rated for −40 °C to +70 °C with high humidity tolerance, suitable for industrial environments.
5. Where is it mounted?
It is mounted on a standard 35 mm DIN rail within control cabinets.
6. What is its typical weight and size?
It measures 137 × 38.1 × 137 mm and weighs approximately 0.40 kg.
7. Can it handle high I/O counts?
Yes — designed to scan large sets of input/output signals across distributed racks.
8. Does it require special protocols?
It supports standard industrial communication protocols over Ethernet (e.g., Modbus variants as typical).
9. What environments is it best for?
Ideal for manufacturing, utilities, and process automation systems that need distributed I/O support.
10. Why choose the 900S75S‑0460?
Its dual‑port capability, industrial reliability, and seamless ControlEdge integration make it a strong choice for scalable distributed automation networks.
