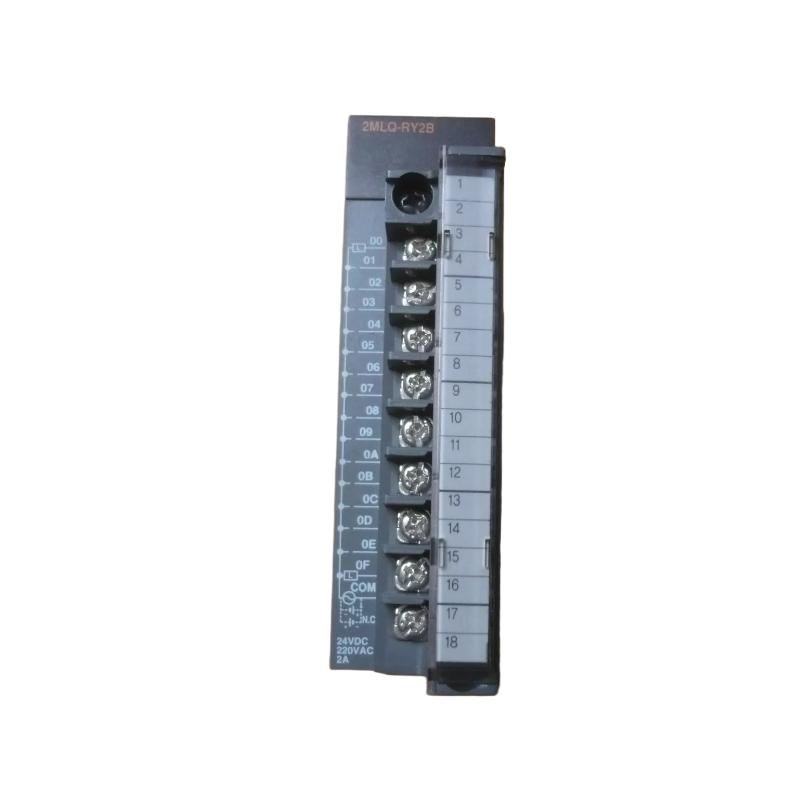

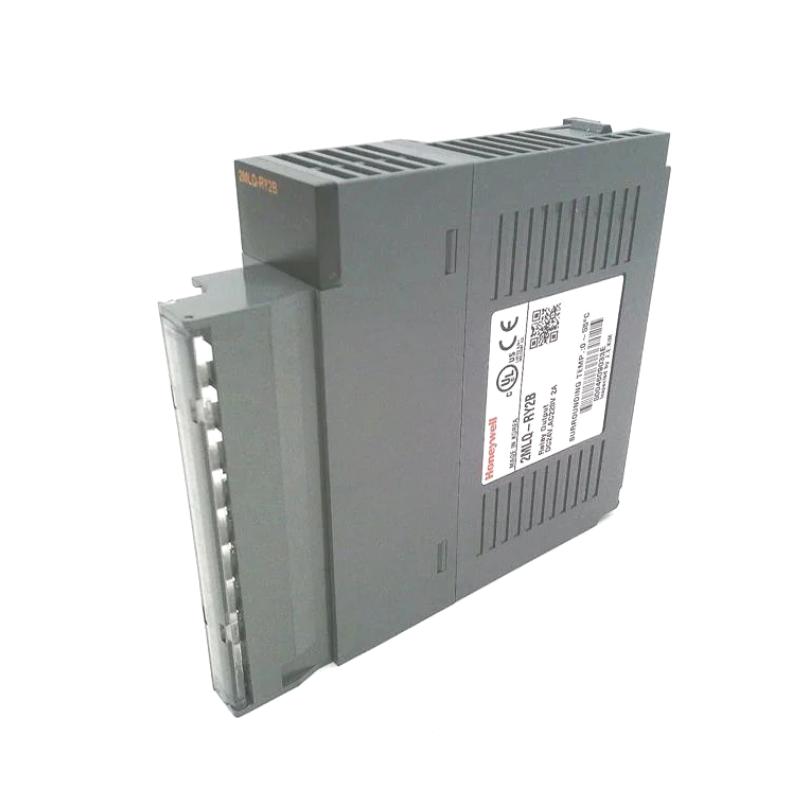

The Honeywell 2MLQ‑RY2B‑CC is a high‑performance 16‑channel relay output module engineered for industrial automation systems using the MasterLogic PLC platform. Designed to handle robust field switching tasks with precision and long‑term stability, this module ensures reliable control of actuators, contactors and loads across demanding applications.
Featuring relay isolation and surge absorption protection, the 2MLQ‑RY2B‑CC excels in protecting sensitive control logic while delivering crisp switching performance. Its densely packed architecture maximizes output capacity without requiring a large control panel footprint — an ideal fit for system integrators and automation teams focused on quality and scalability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Honeywell 2MLQ‑RY2B‑CC |
| Module Type | Relay Output Module |
| Output Channels | 16 points |
| Output Type | Electromechanical relay |
| Contact Configuration | 1 common with 16 outputs |
| Rated Load Voltage | DC 24 V / AC 220–250 V |
| Rated Load Current | 2 A per channel (resistive) |
| Minimum Load | 5 V DC / 1 mA |
| Maximum Load | AC 250 V / DC 125 V |
| Isolation Method | Relay isolation with varistor/CR absorber protection |
| Mechanical Life | > 20 million operations |
| Electrical Life | > 100,000 operations at rated loads |
| Response Time | Off → On ≤ 10 ms |
| Current Consumption | Approx. 500 mA (all outputs ON) |
| Connection | 18‑point terminal block |
| Operating Temperature | ‑40 °C to +85 °C |
| Mounting | Rack / PLC backplane |
| Dimensions (W × H × D) | 26 × 98 × 97 mm |
| Weight | ~0.16 kg (typical) |
