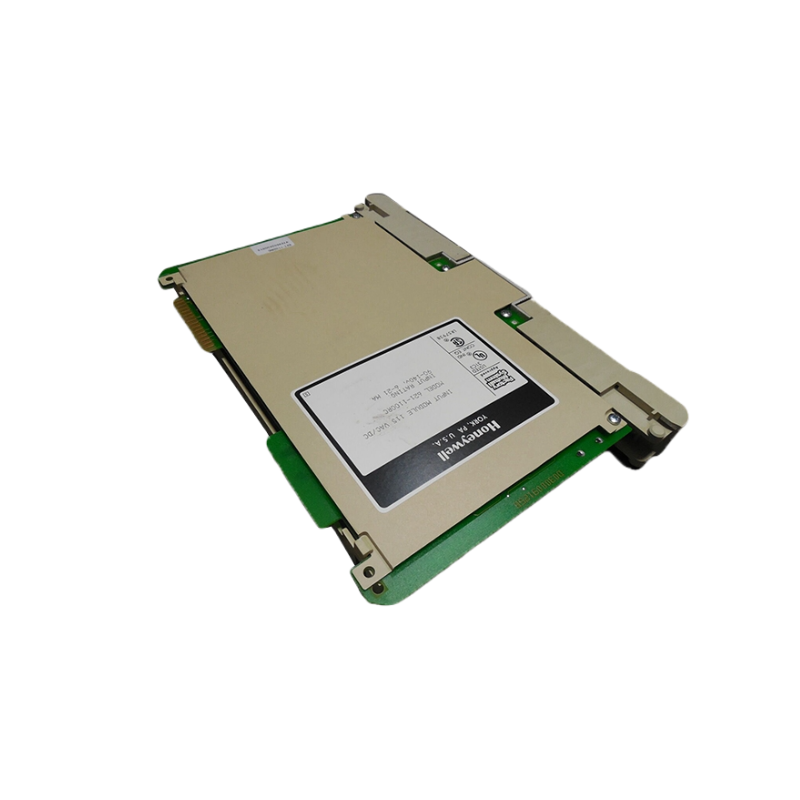

Name: Honeywell 621‑0022‑RC Industrial 8‑Channel Isolated Analog Input Module for High‑Accuracy Data Acquisition and PLC Integration
Brand: Honeywell DCS
SKU: 6539
Availability: InStock
Rating: 5.0 (1 reviews)

621-0022-RC

The Honeywell 621-0022-RC is a rugged, high‑performance isolated analog input module engineered for industrial automation systems. Designed to convert multiple analog field signals into precise digital data, this module enhances the performance and reliability of PLC and DCS control platforms. With eight isolated channels, configurable input ranges, and strong electrical isolation, it offers both flexibility and robustness for demanding process control environments.

Technical Specifications

Specification Item	Details
Model	Honeywell 621‑0022‑RC
Module Type	Isolated Analog Input Module
Input Channels	8 isolated analog inputs
Supported Signals	0–10 VDC, 4–20 mA (configurable)
Input Impedance	~50 kΩ
Accuracy	±0.5 % of full scale
Isolation	Channel‑to‑system optical isolation
Operating Temperature	‑40 °C to +70 °C
Humidity Range	5 % to 95 % non‑condensing
Dimensions (approx.)	127 × 127 × 127 mm (5" × 5" × 5")
Weight	~0.66 kg
Mounting	Rack‑mount / I/O backplane
Certifications	CE‑compliant (C suffix)
Warranty	12 months (typical supplier warranty)

Recommended Related Modules

Honeywell 621‑0022 – Standard analog input variant
Honeywell 621‑0022‑AR – Alternate isolated analog input module
Honeywell 621‑0002 – Analog output module
Honeywell 621‑0022‑ARC – Redundant analog input option
Honeywell IPC 621 – Compatible PLC controller platform

Popular Honeywell Models

Honeywell 900C75‑0460 – Industrial control expansion module
Honeywell 900G03‑0202 – System I/O interface
Honeywell 900H02‑0102 – Analog/digital signal module
Honeywell 900R12R‑0200 – Power distribution interface
Honeywell 900S75‑0460 – Communications I/O module

Applications

The 621‑0022‑RC module is ideal for industrial applications requiring precise and stable analog signal acquisition:

Multichannel sensor signal capture in process control
PLC systems for temperature, pressure, and flow measurement
Distributed control systems in oil & gas plants
Water/wastewater treatment monitoring
Manufacturing automation and quality control systems

Advantages

High‑Accuracy Data Conversion – Provides dependable analog‑to‑digital conversion with minimized error.
Isolated Inputs – Each channel features optical isolation to protect the control system from electrical noise and voltage transients.
Configurable Input Ranges – Supports a wide range of industrial signal types (0–10 V, 4–20 mA) for broad applicability.
Rugged Industrial Design – Built to survive harsh environments with wide temperature and humidity tolerance.
Compact and Space‑Efficient – Rack‑mount form minimizes cabinet space while maximizing I/O density.

Technical FAQs

1. What is the primary role of the 621‑0022‑RC module?
It converts field analog signals into isolated digital data for PLC processing.

2. How many input channels does it support?
This module offers 8 isolated analog input channels.

3. What input signal ranges are configurable?
It supports ranges such as 0‑10 VDC and 4‑20 mA.

4. Does it provide electrical isolation?
Yes — each channel is optically isolated to protect against noise and surges.

5. What is its typical accuracy?
Typically within ±0.5 % of full scale.

6. Is it suitable for harsh industrial environments?
Yes, designed for wide temperature and humidity ranges.

7. Can this module be hot‑swapped?
The “R” designation generally indicates the module can be removed or inserted while the rack is powered.

8. What mounting method is used?
It mounts via rack or I/O backplane typical of Honeywell PLC systems.

9. What systems is it compatible with?
Compatible with Honeywell DCS and PLC platforms such as IPC 621 series.

10. Is there a warranty?
Most suppliers offer a 12‑month warranty on new units.
