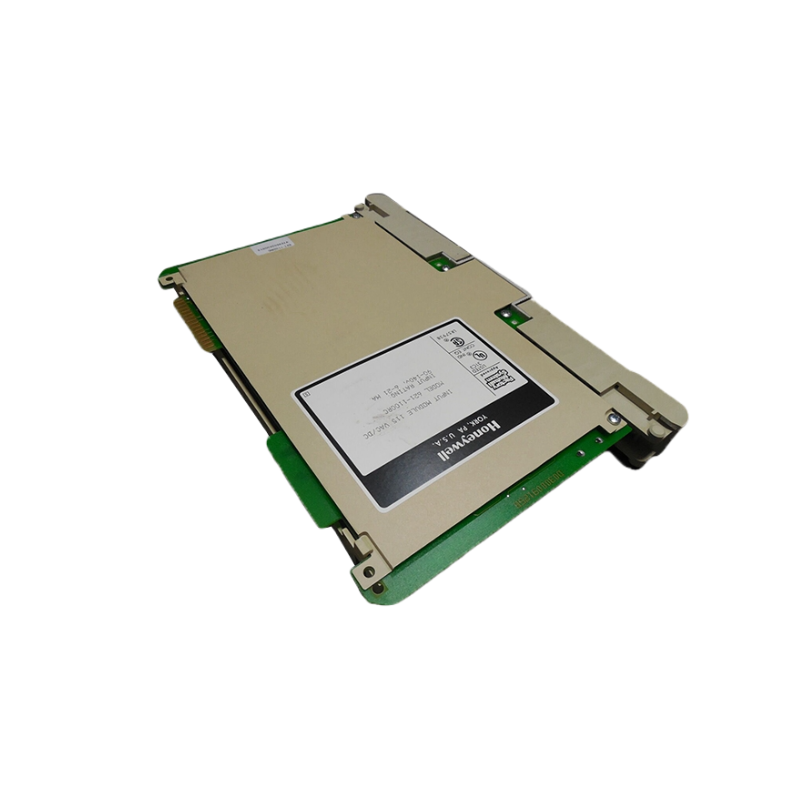

Honeywell 621‑0022‑RC High‑Performance Isolated Analog Input Module for Industrial PLC Systems
Honeywell 621‑0022‑RC High‑Performance Isolated Analog Input Module for Industrial PLC Systems
0.0
Points
Brand:Honeywell DCS Item No.:Honeywell 621‑0022‑RC Product Origin:USA Product Dimensions:127 × 127 × 127 mm Product Weight:0.66 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Honeywell 621‑0022‑RC is an isolated analog input module engineered for industrial automation environments, providing accurate acquisition of analog field signals and seamless integration into PLC or DCS control systems. With eight isolated input channels and flexible signal compatibility, this module enhances system performance and improves the reliability of process monitoring and control.
Designed for demanding applications where electrical noise, transients, and signal variations are concerns, the 621‑0022‑RC delivers robust isolation, high precision, and consistent analog data conversion. Its modular form factor and industrial‑grade durability make it a trusted choice for engineers focused on system uptime and long‑term service life.
Technical Specifications
Specification
Details
Model
Honeywell 621‑0022‑RC
Module Type
Isolated Analog Input Module
Input Channels
8 isolated inputs
Typical Input Range
0–10 V DC (configurable)
Signal Compatibility
0–10 V DC; 4–20 mA with converter
Input Impedance
~50 kΩ
Accuracy
±0.5 % of reading
Isolation
Optical isolation per channel
Operating Temperature
-40 °C to +70 °C
Humidity (non‑condensing)
5 % to 95 %
Power Supply
Backplane supplied
Mounting
Rack / PLC backplane
Dimensions (W × H × D)
127 × 127 × 127 mm
Weight
~0.66 kg (1.46 lb)
Certifications
CE (typically for C suffix modules)
Recommended Related Models
Honeywell 621‑0022‑AR – Alternate isolated analog input variant
Honeywell 621‑0022‑ARC – Redundant capable analog input module
Honeywell 621‑0002 – Analog output expansion module
Honeywell 900C75‑0460 – Industrial signal expansion module
Honeywell 900G03‑0202 – System I/O interface
Honeywell 900H02‑0102 – Analog/digital signal module
Honeywell 900R12R‑0200 – Power distribution interface
Honeywell 900S75‑0460 – Communications I/O module
Applications
The 621‑0022‑RC analog input module is suited for a wide range of industrial control scenarios where accurate and reliable sensor data is required:
PLC‑based process monitoring and control
Measurement of pressure, temperature, flow, and level signals
Distributed control systems in oil & gas and chemical plants
Water and wastewater treatment automation
Manufacturing and quality assurance systems
Advantages
Eight Isolated Input Channels – Provides reliable analog data collection with electrical isolation for noise immunity.
Flexible Signal Compatibility – Accepts common industrial ranges such as 0–10 V and 4–20 mA.
High Accuracy and Stability – ±0.5 % typical accuracy supports precise measurement needs.
Rugged Industrial Design – Wide temperature and humidity range ensures suitability for harsh environments.
Modular and Compact Form Factor – Saves panel space while maximizing field I/O capacity.
Technical FAQs
1. What is the primary function of the 621‑0022‑RC?
It converts analog field signals into isolated digital data for processing by PLC systems.
2. How many analog inputs does it support?
It provides 8 isolated analog input channels.
3. What types of input signals can it handle?
Typical input ranges include 0–10 V DC and 4–20 mA with suitable front‑end signals.
4. What is the typical operating temperature range?
The module operates from -40 °C to +70 °C, suitable for industrial conditions.
5. Is the module electrically isolated?
Yes, each analog input channel is optically isolated to reduce noise and protect system components.
6. Can it be mounted in a standard PLC rack?
Yes, it is designed for rack or backplane mounting in Honeywell PLC systems.
7. What kind of accuracy does it deliver?
It typically offers ±0.5 % accuracy for precise signal conversion.
8. What is the input impedance?
The input impedance is approximately 50 kΩ for most analog inputs.
9. Is this module still actively manufactured?
The 621‑0022‑RC may be legacy or discontinued, but it remains commonly stocked by industrial parts suppliers.
10. What advantages does isolation provide?
Isolation helps protect the PLC from electrical transients, noise, and ground loops, improving system robustness.
