Brand:ABB Bailey Item No.:IMASO01 Product Origin:Sweden (SE) Product Dimensions:173 x 102 x 50 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

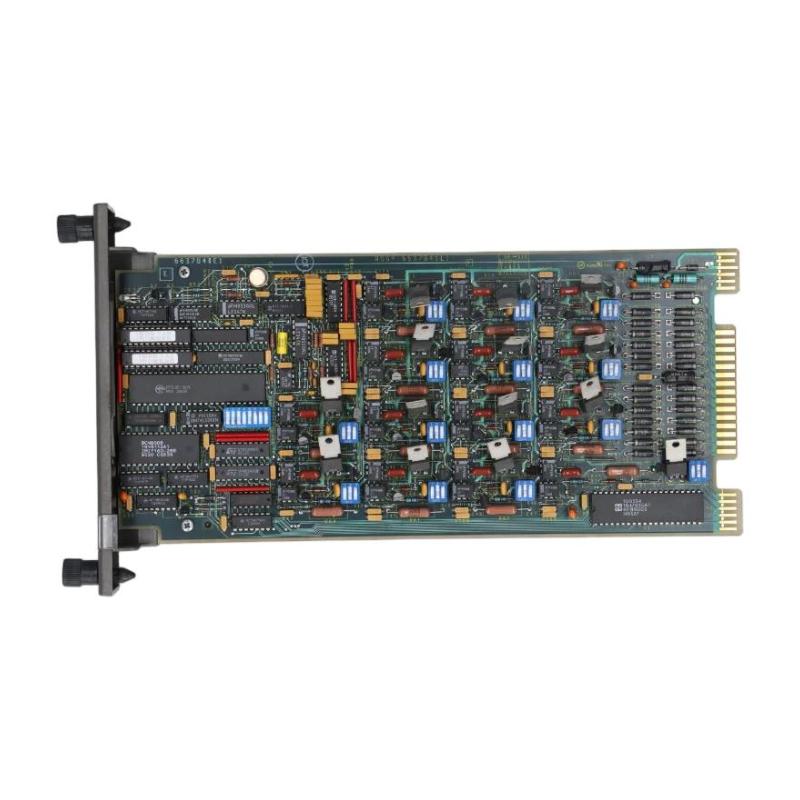

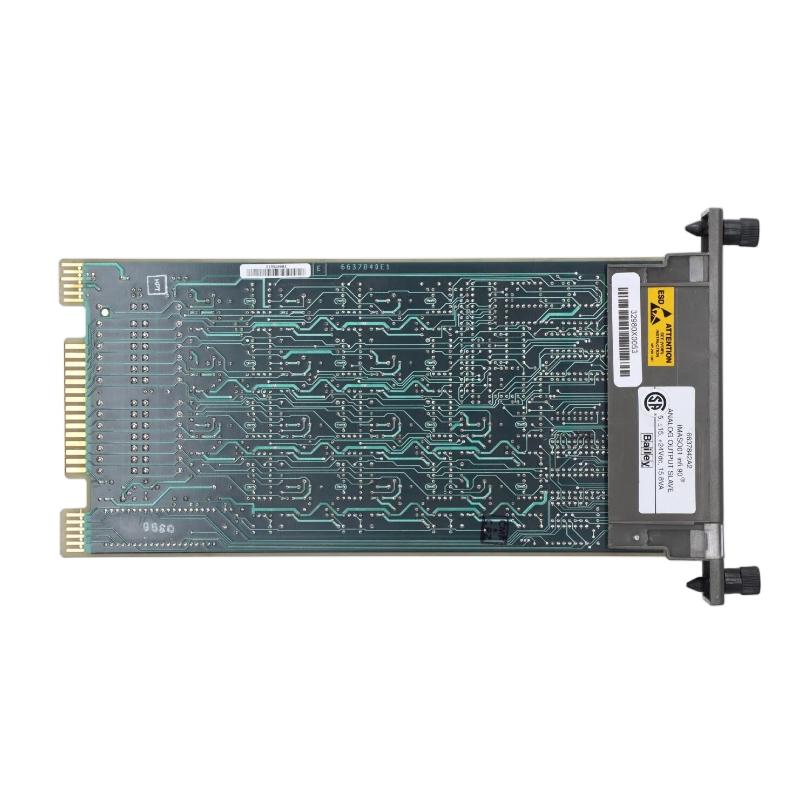

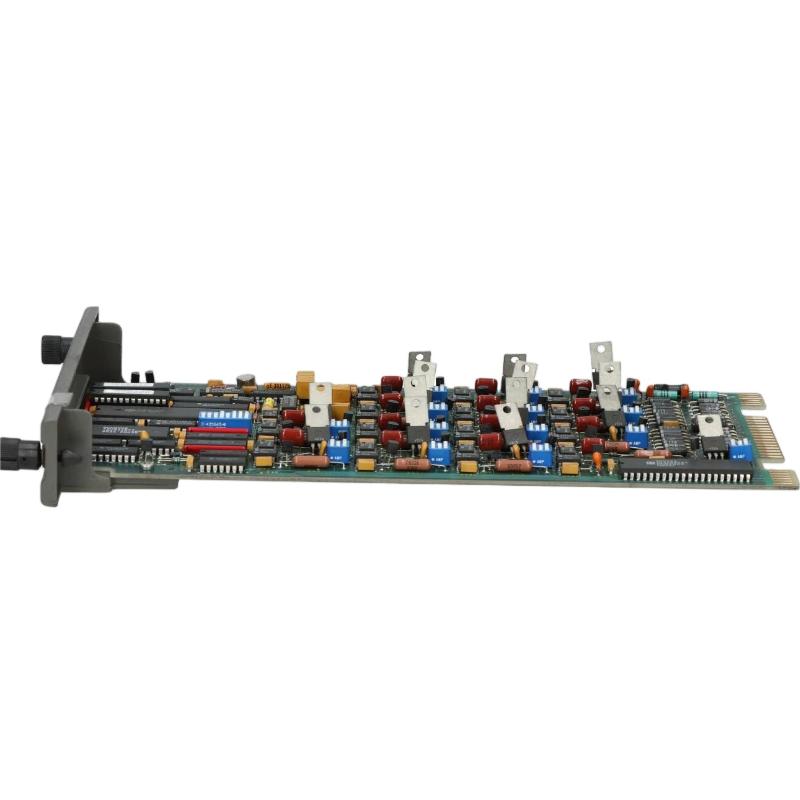

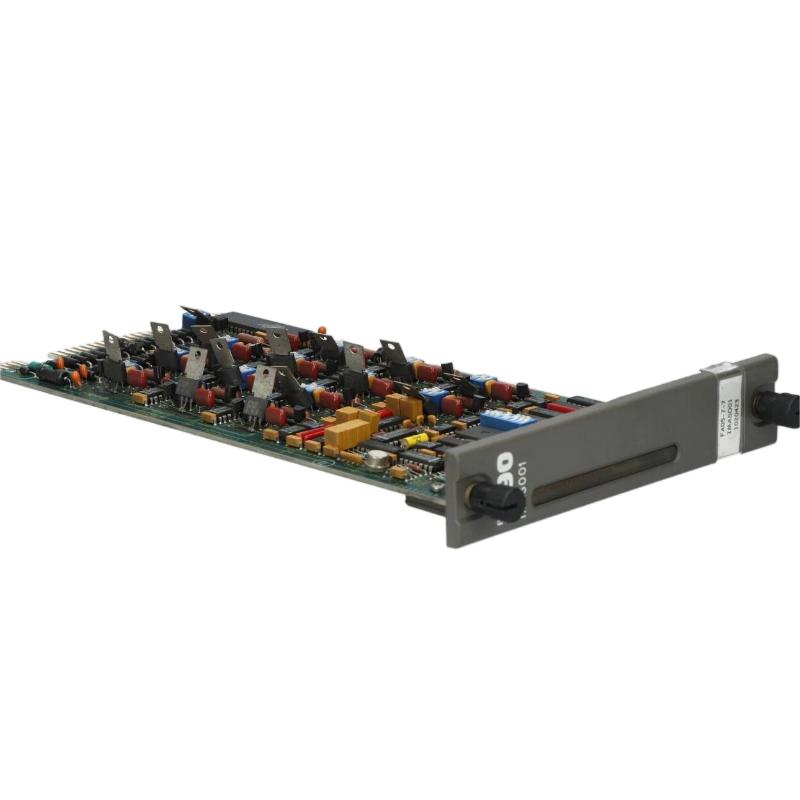

The ABB Bailey IMASO01 Analog Output Slave Module delivers high-precision analog outputs for industrial automation and process control. Designed for reliable performance, it converts digital signals from controllers into accurate analog outputs, driving valves, actuators, and other devices with confidence. Its robust construction, flexible compatibility, and advanced diagnostics make IMASO01 ideal for both upgrading legacy systems and deploying new ABB automation projects. Engineers benefit from fast commissioning, reduced downtime, and consistent process control.
Technical Specifications
Parameter
Specification
Output Channels
8 analog outputs
Supported Signals
0–20 mA, 4–20 mA, ±10 V
Conversion Time
10 ms per channel
Output Isolation
Galvanic isolation per channel
Operating Temperature
-20°C to +70°C
Humidity
5–95% non-condensing
Power Supply
24 V DC ±10%
Weight
0.34 kg
Dimensions
173 × 102 × 50 mm
Recommended Related Models
Model
Description
IMASO02
16-channel analog output module with extended range
IMASO03
High-precision analog output module for critical processes
IMASI23
Analog input module compatible with IMASO01
IMASO05
Diagnostic-enhanced analog output module
Popular Related Models
Model
Description
IMASO01
Standard analog output slave module
IMASO04
Analog output module with fast response
IMASI21
Standard analog input module often paired with output modules
IMASO06
Multi-channel analog output module for process control
Applications
• Industrial Process Control: Provides accurate analog output signals for controlling actuators, valves, and motors.
• Power and Energy Management: Ideal for controlling equipment in power plants, substations, and renewable energy facilities.
• Chemical & Pharmaceutical Manufacturing: Ensures precise process control for critical analog outputs.
• Automation Upgrades: Perfect for replacing legacy analog output modules in ABB Bailey and modern DCS systems.
• Research & Laboratory Automation: Supports precise analog output for experimental setups and test facilities.
Key Advantages
• High Precision Output: Delivers stable analog signals to ensure smooth operation of process devices.
• Flexible Compatibility: Works seamlessly with both legacy Bailey control networks and modern ABB DCS platforms.
• Robust Design: Resistant to electrical noise, vibration, and industrial temperature fluctuations.
• Diagnostic Monitoring: Supports real-time detection of output anomalies to minimize downtime.
• Quick Integration: Simple configuration and fast commissioning reduce setup time and operational costs.
Technical FAQs
Q1: What types of analog output signals does IMASO01 support?
It supports 0–20 mA, 4–20 mA, and ±10 V outputs for versatile process control applications.
Q2: How many channels does the module provide?
IMASO01 offers up to 8 analog output channels per module.
Q3: What is the typical response time for signal updates?
The module updates output signals in approximately 10 ms per channel.
Q4: Does it support electrical isolation between channels?
Yes, each output channel is galvanically isolated to ensure signal integrity.
Q5: Can it work with legacy ABB Bailey control systems?
Yes, it is fully backward compatible while also supporting modern ABB DCS platforms.
Q6: Is there diagnostic support for output faults?
Yes, the module can detect short-circuits, open circuits, and abnormal load conditions.
Q7: What is the operating temperature range?
It operates reliably from -20°C to +70°C under typical industrial conditions.
Q8: Can the module be calibrated in the field?
Yes, field calibration is supported to avoid downtime and service interruptions.
Q9: How does IMASO01 handle electrical noise?
It includes internal filtering and supports shielded cabling for accurate analog outputs.
Q10: Can it integrate with predictive maintenance or monitoring systems?
Yes, diagnostic data can be fed into condition monitoring systems for predictive maintenance.
