Brand:ABB Bailey Item No.:IPCHS01 Product Origin:Sweden (SE) Product Dimensions:223.5 x 482.6 x 444.5 mm Product Weight:7.55 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

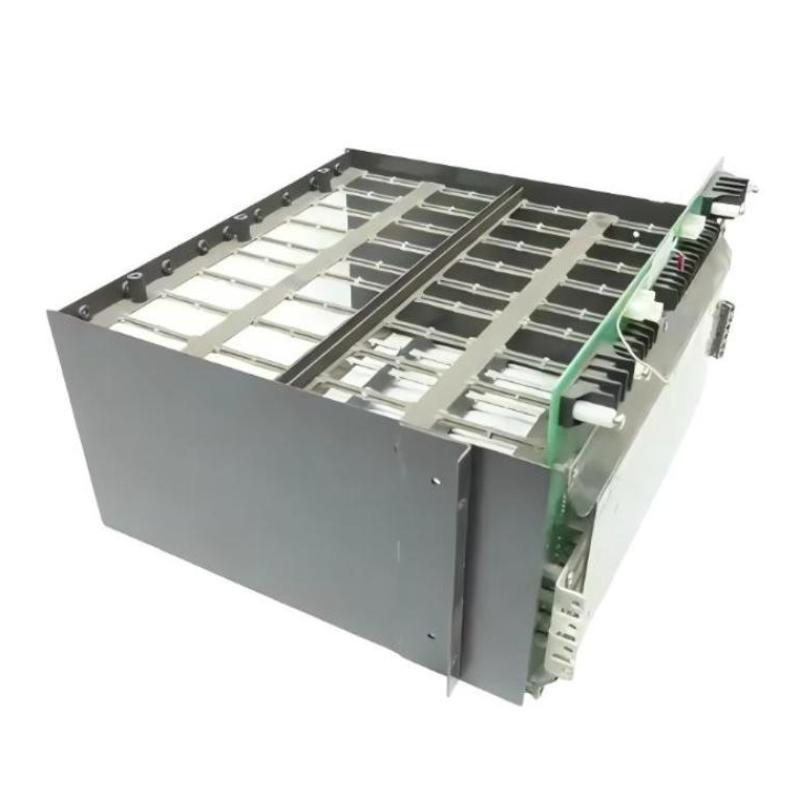

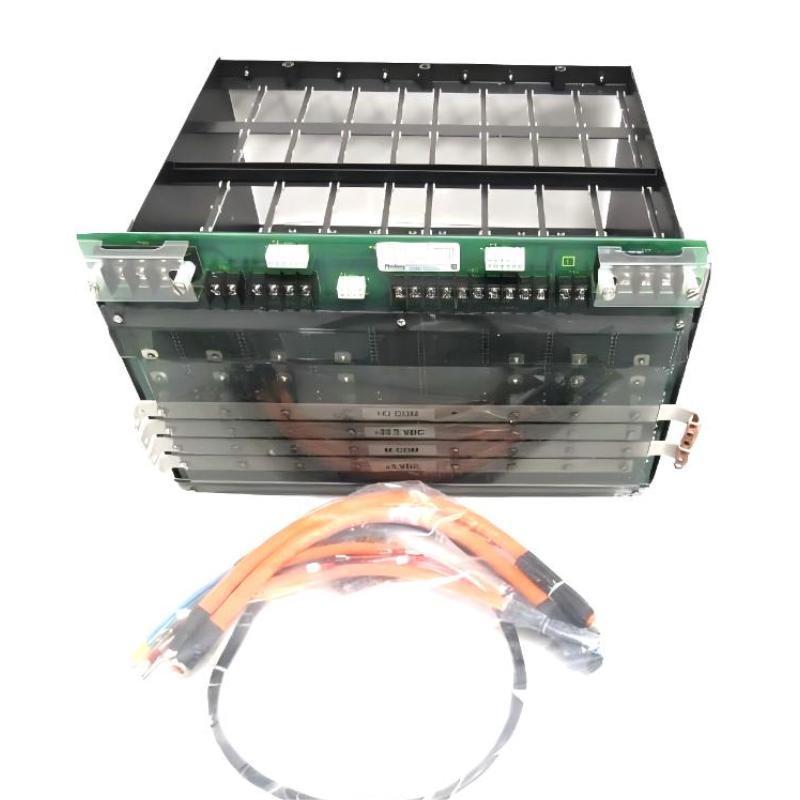

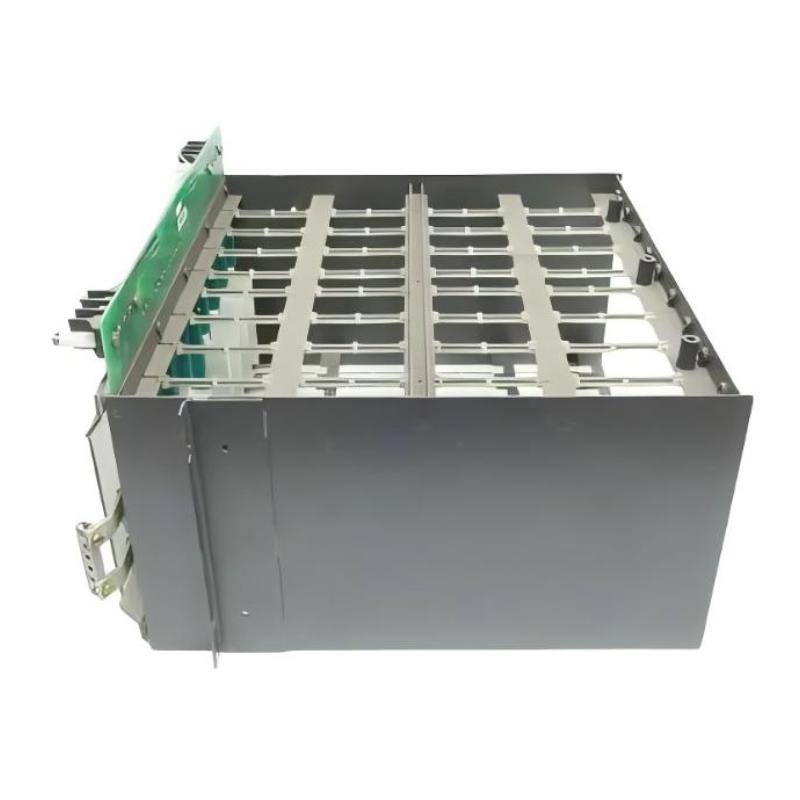

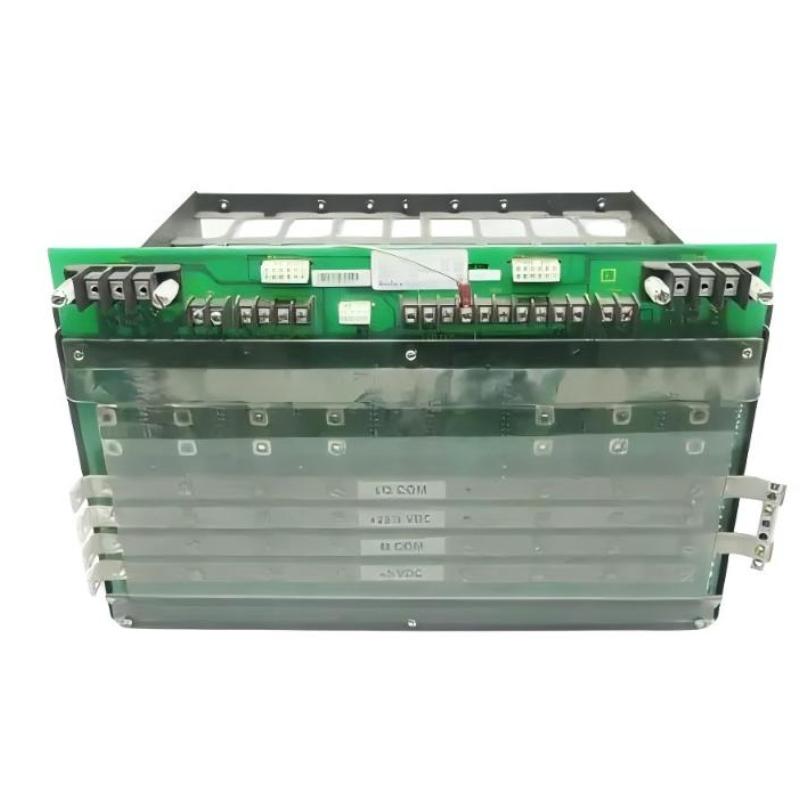

The ABB Bailey IPCHS01 Power Module Chassis is a robust and reliable solution for organizing and supporting power modules in industrial automation systems. Designed for durability and efficiency, it provides secure mounting, optimized airflow, and seamless integration within ABB Bailey architectures. Its rack-compatible design and maintenance-friendly structure make it an ideal choice for both new installations and system expansions. Engineers benefit from improved system organization, enhanced reliability, and simplified maintenance operations.
Technical Specifications
Parameter
Specification
Module Type
Power Module Chassis
Installation Type
Rack-mounted
Compatibility
ABB Bailey power modules
Cooling Method
Natural airflow (passive cooling)
Material
Industrial-grade metal construction
Operating Temperature
-20°C to +70°C
Humidity
5–95% non-condensing
Weight
7.55 kg
Dimensions (H × W × D)
223.5 × 482.6 × 444.5 mm
Recommended Related Models
Model
Description
IPBLC01
Power supply module for chassis integration
IPBLC02
High-capacity power module for expanded systems
IPBPS01
Reliable power supply module for DCS applications
IPCHS02
Extended chassis version for larger configurations
Popular Related Models
Model
Description
IPCHS01
Standard power module chassis
IPCHS03
Compact chassis for smaller installations
IPBPS02
Redundant power supply module
IMMFP02
Processor module used in integrated control systems
Applications
• Control Cabinet Infrastructure: Serves as a stable mounting platform for ABB Bailey power modules within industrial control cabinets.
• Distributed Control Systems (DCS): Provides structured housing for power modules in complex automation architectures.
• Power Generation Facilities: Ensures organized and secure installation of power components in power plants and substations.
• Oil & Gas and Process Industries: Supports rugged deployment in demanding environments requiring reliable system layout.
• System Expansion Projects: Ideal for scaling existing systems with additional power modules and structured chassis support.
Key Advantages
• Robust Structural Design: Engineered for durability, ensuring long-term mechanical stability in industrial environments.
• Optimized Module Integration: Designed to accommodate ABB Bailey power modules with precise alignment and secure mounting.
• Efficient Space Utilization: Rack-compatible dimensions allow streamlined installation within standard control cabinets.
• Enhanced Heat Dissipation: Open structure and layout support effective airflow and thermal management.
• Simplified Maintenance: Easy access to installed modules reduces service time and operational interruptions.
Technical FAQs
Q1: What is the primary function of the IPCHS01 chassis?
It provides a structured mounting platform for installing and organizing ABB Bailey power modules within control systems.
Q2: Is the chassis compatible with multiple power modules?
Yes, it is designed to support multiple modules, enabling flexible system configuration.
Q3: Can the chassis be installed in standard industrial racks?
Yes, its dimensions are suitable for standard rack-mounted control cabinets.
Q4: Does the chassis support proper ventilation?
Yes, its design promotes airflow to help dissipate heat generated by installed modules.
Q5: Is it suitable for harsh industrial environments?
Yes, it is built with durable materials to withstand vibration, temperature variation, and industrial conditions.
Q6: Does it require special tools for installation?
No, standard mounting hardware and tools are sufficient for installation.
Q7: Can the chassis support system expansion?
Yes, it allows easy addition of modules, making it ideal for scalable automation systems.
Q8: How does it improve system reliability?
By securely housing modules and supporting proper cooling, it enhances overall system stability.
Q9: Is it compatible with legacy ABB Bailey systems?
Yes, it is designed for seamless integration with existing Bailey infrastructure.
Q10: Does the chassis contribute to cable management?
Yes, it provides organized layout support that simplifies wiring and cable routing.
