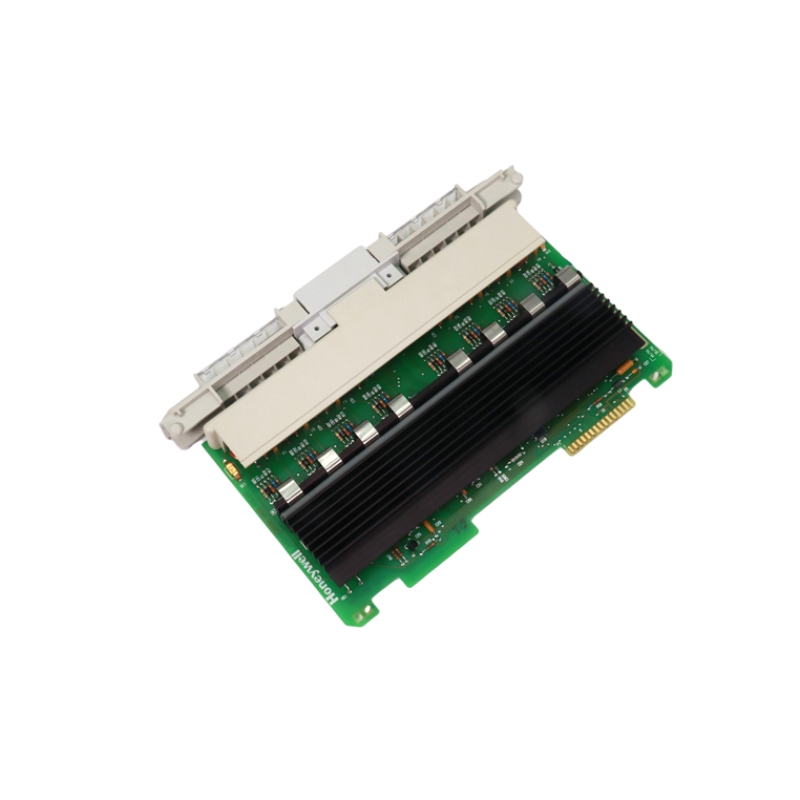

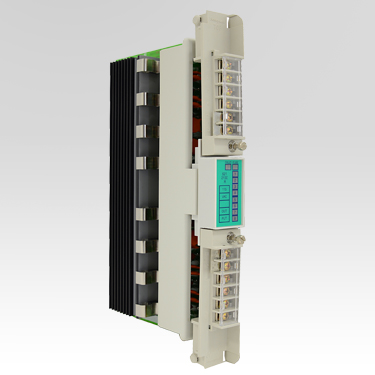

621-2100R

The Honeywell 621‑2100R is a rugged digital output module designed to deliver reliable switching of field devices in industrial automation systems. Suitable for control panels, distributed control systems (DCS), and programmable logic controller (PLC) racks, this module provides eight discrete output points capable of driving AC or DC loads.

Built with industrial durability and ease of integration in mind, the 621‑2100R enables efficient control of actuators, lamps, relays, contactors, and other field devices while minimizing system downtime. Its robust output design and modular form factor ensure consistent performance even under demanding field conditions.

Technical Specifications

Specification Item	Details
Model	621‑2100R
Module Type	Digital Output Module
Output Channels	8 discrete points
Output Voltage	DC/AC compatible (field dependent)
Rated Load Voltage	Up to 230 VAC / 30 VDC
Output Type	Discrete switching outputs
Load Current per Channel	Typically up to 2 A
Output Protection	Short‑circuit / overcurrent tolerant
Mounting	PLC rack / modular backplane
Operating Temperature	–20 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Relative Humidity	5 % – 95 % non‑condensing
Dimensions (W × H × D)	76 mm × 241 mm × 175 mm
Weight	≈ 0.35 kg
System Compatibility	Honeywell UCN / IPC / Modular PLC systems

All dimensions and weights are typical values for this class of module.

Recommended Related Models

Honeywell 621‑2100 – Standard digital output module
Honeywell 621‑1100 – 8‑point digital input module
Honeywell 621‑1151 – 16‑point digital input module
Honeywell 621‑1180RC – 32‑point removable input module
Honeywell 621‑0022‑RC – Isolated analog input module

Popular Honeywell Control Modules

Honeywell 900C75‑0460 – Expansion I/O interface
Honeywell 900G03‑0202 – System I/O adapter
Honeywell 900H02‑0102 – Mixed signal I/O module
Honeywell 900R12R‑0200 – Power management interface
Honeywell 900S75‑0460 – Communications I/O module

Applications

The 621‑2100R module is ideal for control applications requiring reliable discrete output switching, including:

Actuator and solenoid control
Lamp indication and alert systems
Relay and contactor drivers
Conveyor and automation line output control
Discrete device interfacing in PLC and DCS panels

Advantages

Eight Independent Output Points
Provides flexible control of field devices with one compact module.
AC/DC Load Support
Compatible with a range of output devices requiring either AC or DC supply voltages.
Industrial‑Grade Reliability
Engineered for stable performance under electrical noise and temperature variation.
Robust Output Protection
Designed to tolerate common industrial load faults such as short circuits and overloads.
Modular Backplane Compatibility
Integrates seamlessly with Honeywell modular PLC racks and control systems.

Technical FAQs

1. What types of devices can the 621‑2100R control?
It can switch actuators, indicator lamps, relays, contactors, and other discrete loads.

2. How many output channels does the module have?
It features 8 discrete output points.

3. What voltages does it support?
It is compatible with AC up to 230 V and DC up to 30 V (field dependent).

4. What is the typical current capacity per channel?
Each channel typically supports up to 2 A.

5. Is output protection built in?
Yes — the design includes protections for common industrial load conditions.

6. Can this module work in harsh environments?
Yes — it is designed for industrial temperature and humidity conditions.

7. Does it require configuration software?
No — it operates as a discrete hardware output interface.

8. How is it mounted?
It mounts in a PLC rack or modular backplane system.

9. Is it suitable for legacy systems?
Yes — compatible with Honeywell UCN, IPC, and similar modular PLC platforms.

10. What is the benefit of this module’s compact design?
Its compact footprint enables efficient use of control panel space while maintaining high output capacity.
