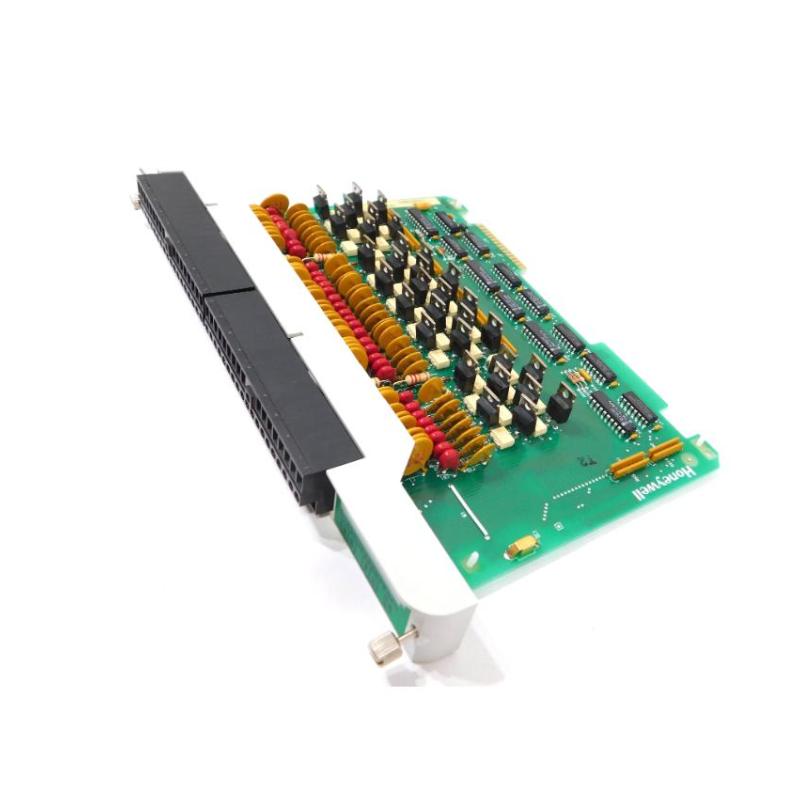

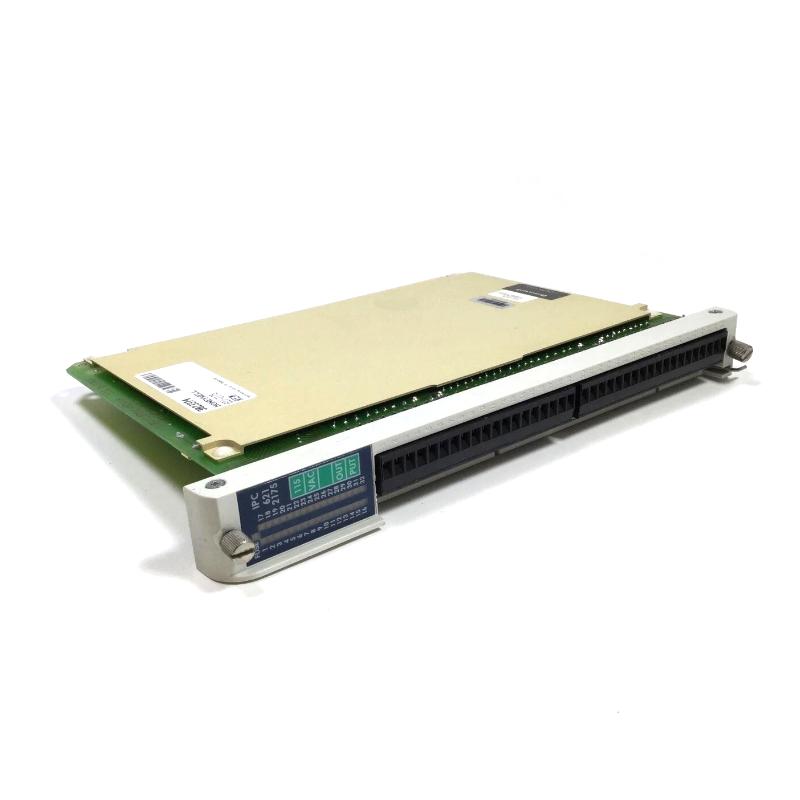

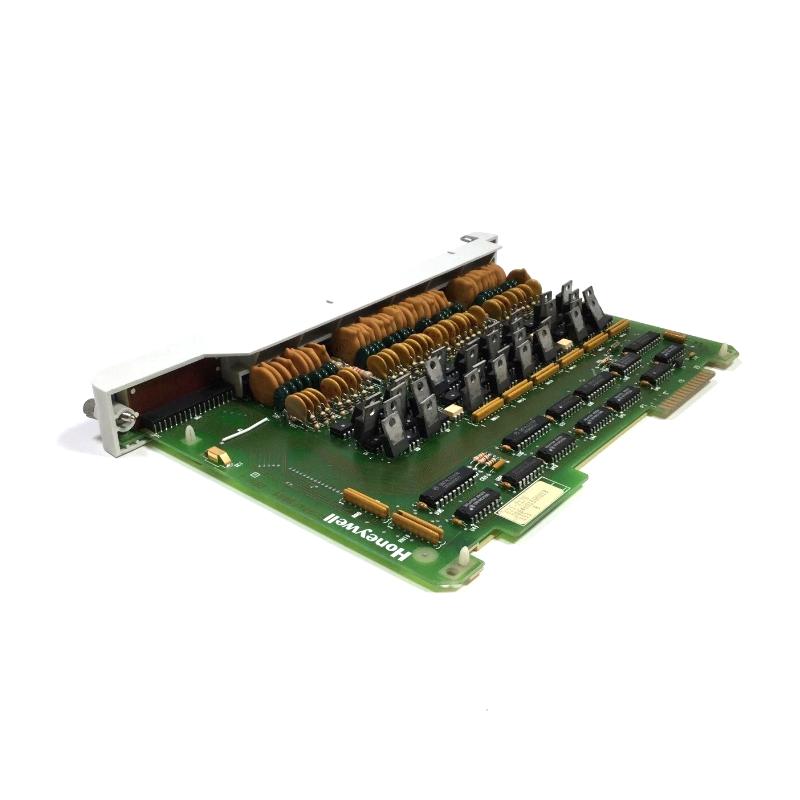

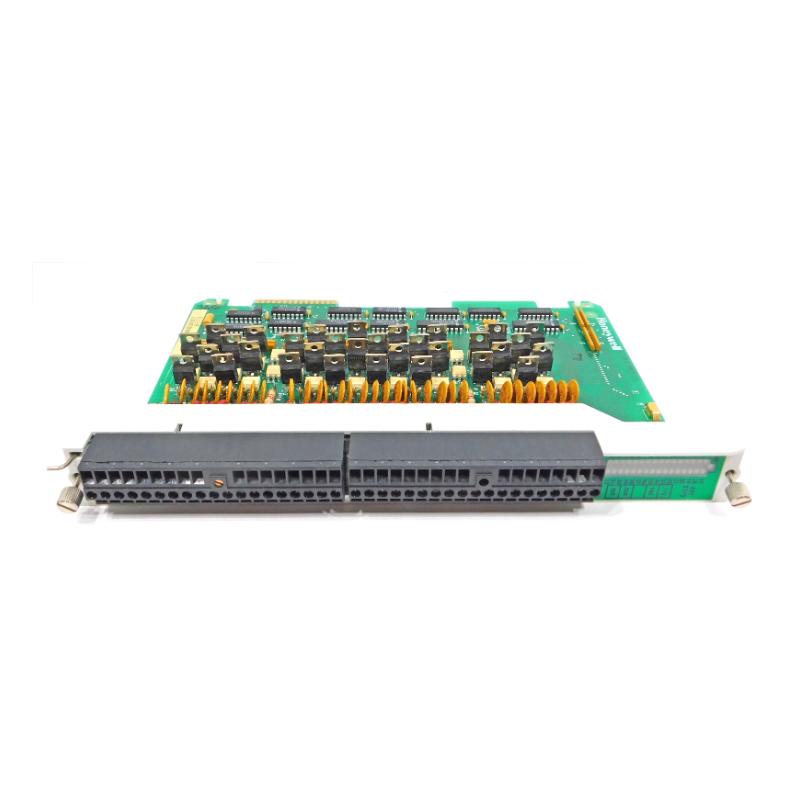

The Honeywell 621-2175 is a high-density 32-point AC digital output module designed for industrial automation systems based on the Honeywell IPC 620 platform. Built to control a large number of field devices simultaneously, this module converts PLC logic signals into reliable AC outputs for actuators, relays, lamps, and contactors.

Engineered for demanding industrial environments, the 621-2175 features stable switching performance and robust electrical characteristics, making it a dependable choice for legacy systems and long-term plant operation. It is widely used in applications where high channel density and consistent AC load control are required.

Technical Specifications

Specification Item	Details
Model	621-2175
Module Type	Digital Output Module
Output Channels	32 points
Output Type	AC Digital Output
Rated Voltage	115 VAC
Output Current	~0.5 A per channel
Output Configuration	High-density grouped outputs
Switching Type	Industrial AC switching
Isolation	System/backplane dependent
Mounting	IPC rack / PLC backplane
Operating Temperature	Industrial standard range
Dimensions (W × H × D)	76 mm × 241 mm × 175 mm (typical class size)
Weight	≈ 1.00 kg
System Compatibility	Honeywell IPC 620 / legacy PLC systems

Recommended Related Models

Honeywell 621-2175RC – Removable (hot-swap) output module variant
Honeywell 621-2150RC – 16-point AC output module
Honeywell 621-2100R – 8-point digital output module
Honeywell 621-1180RC – 32-point digital input module
Honeywell 621-0022-RC – Isolated analog input module

Popular Honeywell Modules

Honeywell 900C75-0460 – Expansion I/O module
Honeywell 900G03-0202 – System interface module
Honeywell 900H02-0102 – Mixed I/O module
Honeywell 900R12R-0200 – Power interface
Honeywell 900S75-0460 – Communication module

Applications

The 621-2175 module is ideal for industrial environments requiring large-scale output control:

PLC control of relays, lamps, and actuators
Process automation in oil & gas and chemical plants
Power generation and electrical control systems
Manufacturing and assembly line automation
Legacy Honeywell IPC system maintenance and upgrades

Advantages

High-Density Output Design
32 output channels significantly reduce module count and cabinet space.
Stable AC Output Performance
Designed for consistent 115 VAC switching in industrial environments.
Reliable Field Device Control
Ensures accurate actuation of relays, contactors, and indicators.
Industrial-Grade Durability
Built for long-term operation in harsh electrical conditions.
Seamless Integration with IPC Systems
Fully compatible with Honeywell IPC 620 architecture for easy replacement and expansion.

Technical FAQs

1. What is the function of the 621-2175 module?
It provides 32 AC digital outputs to control field devices in PLC systems.

2. How many output channels are available?
The module supports 32 output points.

3. What voltage does it operate at?
It is designed for 115 VAC output signals.

4. What is the typical current per channel?
Approximately 0.5 A per channel, depending on load.

5. What systems is it compatible with?
It is used in Honeywell IPC 620 PLC systems and similar legacy platforms.

6. Is this module suitable for large systems?
Yes, its 32-point design makes it ideal for high-density control panels.

7. Does it support hot-swap replacement?
The standard version does not; the RC variant supports removable replacement.

8. What types of loads can it control?
Relays, contactors, lamps, and other AC field devices.

9. Is it still manufactured?
It is considered legacy equipment, typically available as surplus or refurbished.

10. What makes this module reliable?
Its proven industrial design, stable AC switching, and compatibility with long-running Honeywell systems.
