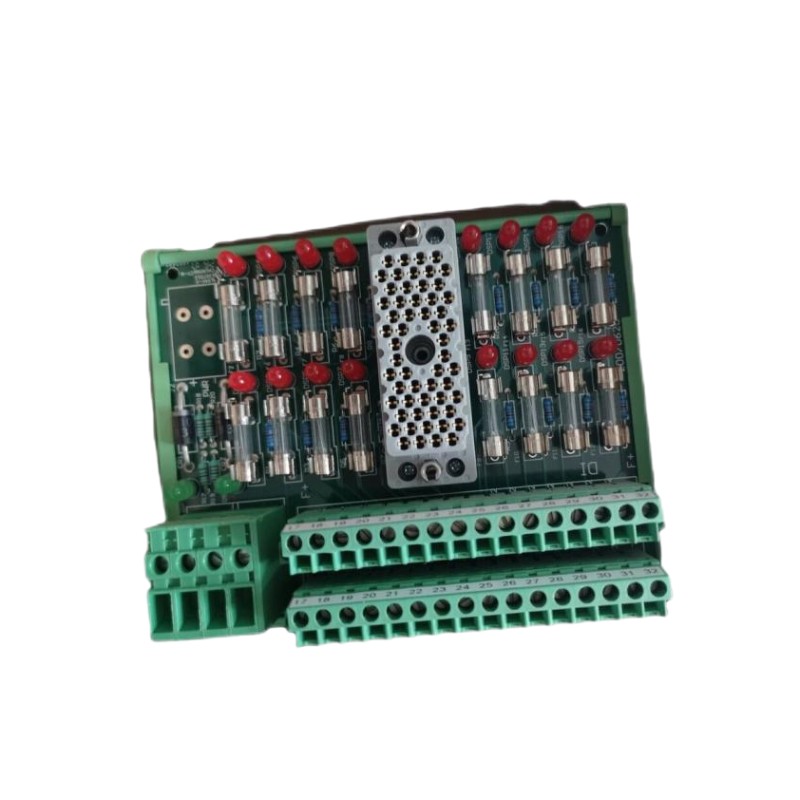

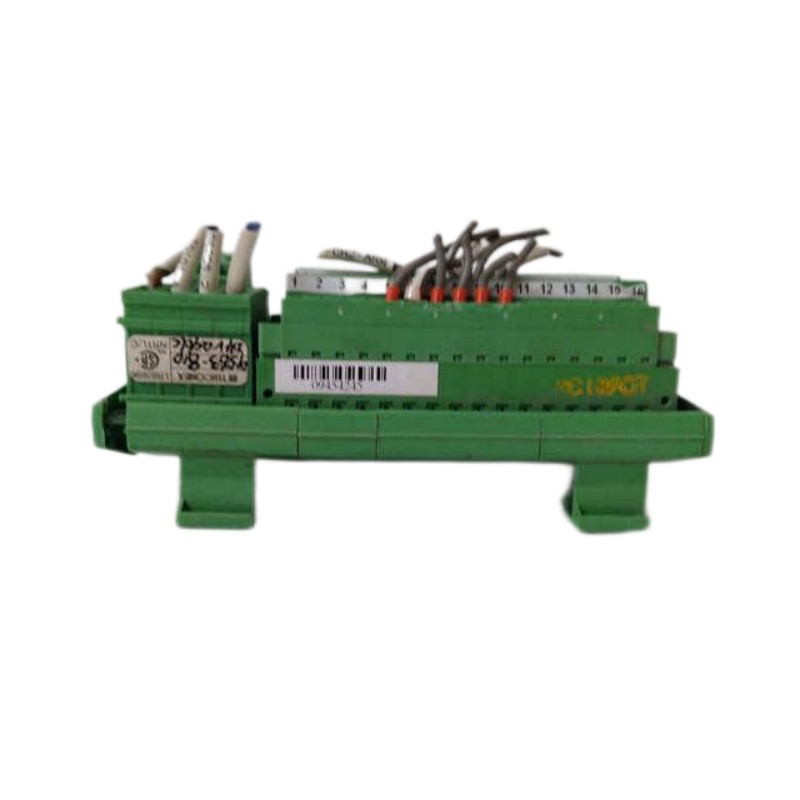

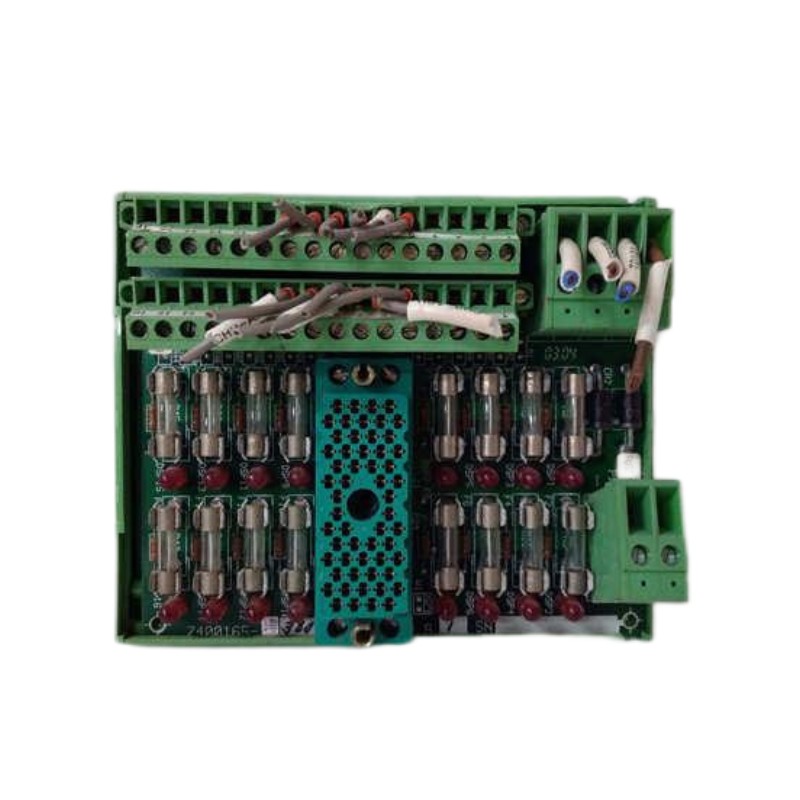

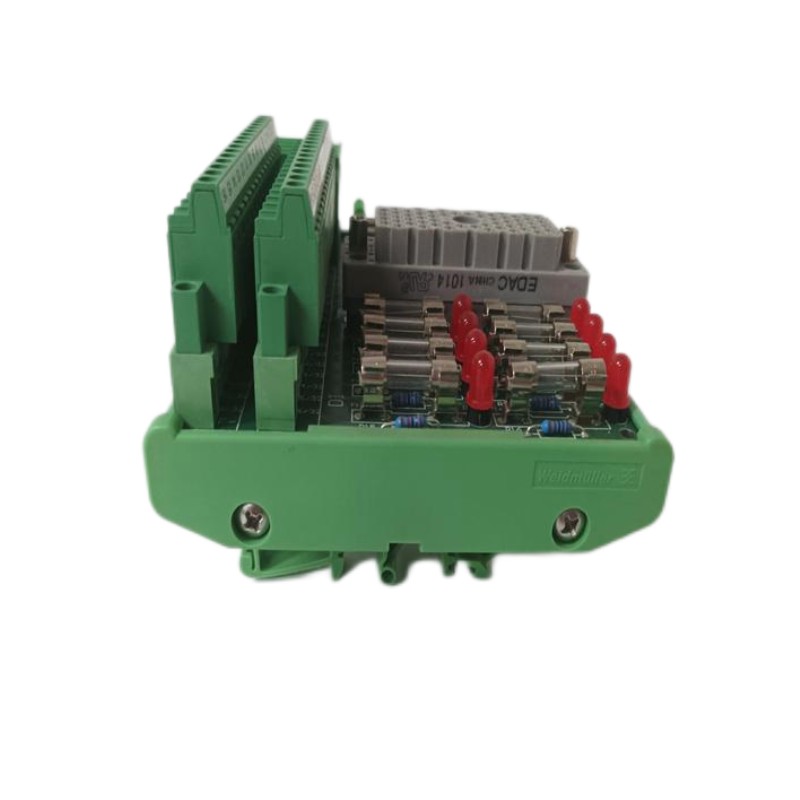

The Triconex 9563-810NJ Digital Input Termination Panel is a critical interface component within Tricon safety systems, specifically designed to connect field devices with high-integrity control platforms. Built for Safety Instrumented Systems (SIS), it ensures secure, stable, and accurate transmission of digital signals from field equipment to the controller.
Engineered with industrial-grade robustness and fault-tolerant design principles, this termination panel supports mission-critical operations where system availability and safety compliance are non-negotiable. It is widely trusted in industries that demand continuous uptime and SIL-rated performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Termination Panel |
| Model | 9563-810NJ |
| System Compatibility | Triconex Safety Systems (TMR Architecture) |
| Input Channels | 16 / 32 digital inputs (depending on configuration) |
| Signal Type | Dry Contact / Pulse / Switching Signals |
| Operating Voltage | 24 V DC |
| Input Current | Approx. 2–3.3 mA per channel |
| Protection | Fuse per channel with blown-fuse indication |
| Redundancy Support | Yes (Triple Modular Redundancy - TMR) |
| Mounting Type | Rack-mounted / DIN rail |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -50°C to +85°C |
| Humidity | 5% – 95% (non-condensing) |
| Dimensions (H × W × D) | 230 × 170 × 43 mm |
| Weight | Approx. 2.7 – 3.0 kg |
