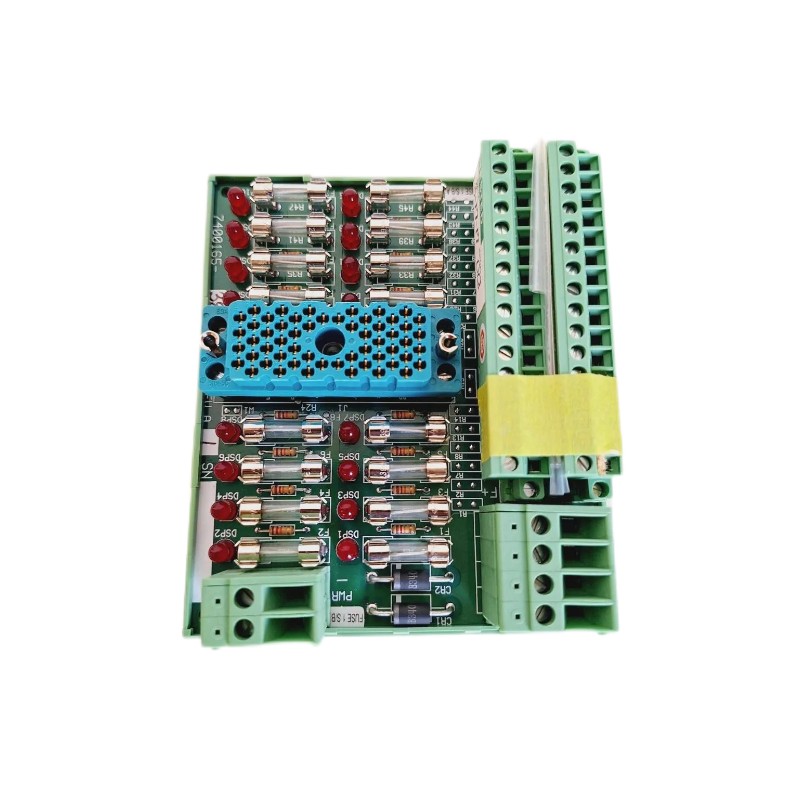

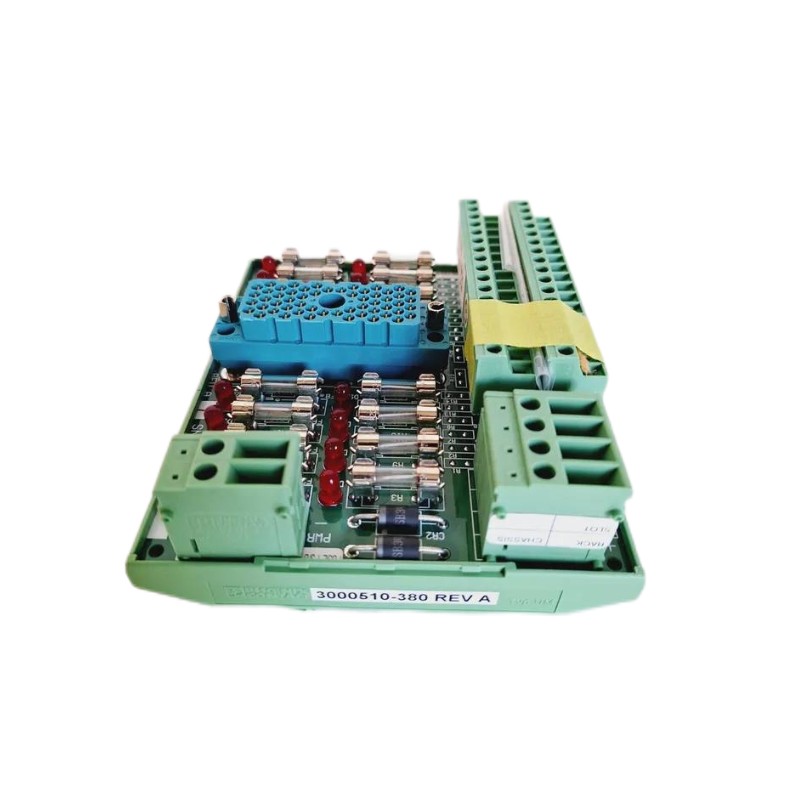

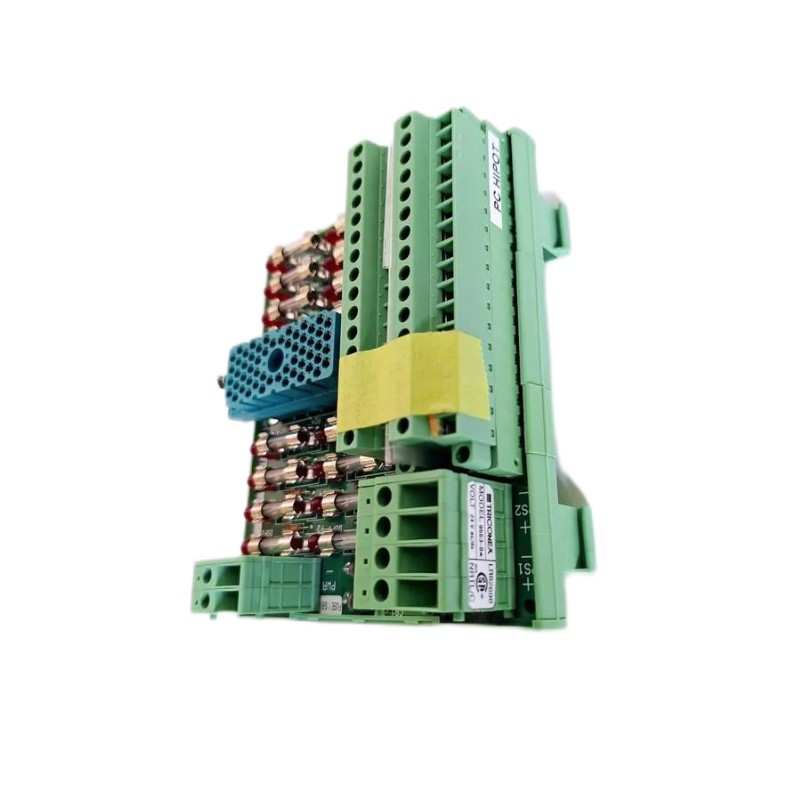

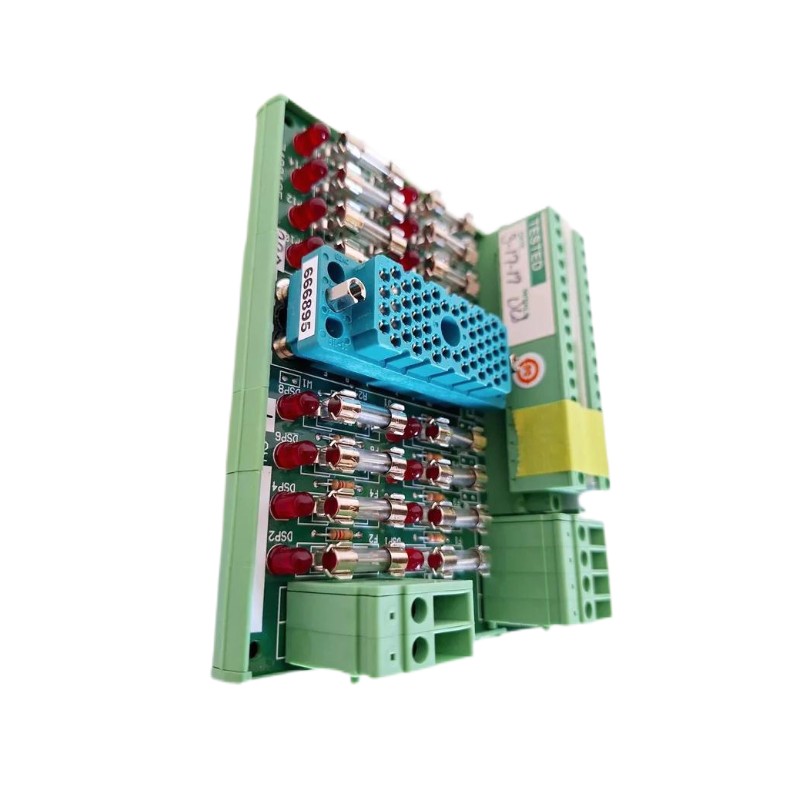

The Triconex 9563-8 Digital Input Termination Panel Module is designed to provide a secure and organized interface between field devices and Tricon safety systems. As part of the 9563 series, it plays a key role in ensuring accurate and stable signal transmission for digital inputs in Safety Instrumented Systems (SIS).
Built with fault-tolerant architecture in mind, this module supports high-integrity operations where reliability and safety are critical. Its structured terminal design simplifies wiring while maintaining the performance standards required in mission-critical industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Termination Panel Module |
| Model | 9563-8 |
| System Compatibility | Triconex Tricon Safety System (TMR) |
| Input Points | 16 digital input channels |
| Signal Type | Dry contact / 24V digital input |
| Operating Voltage | 24 V AC/DC |
| Protection | Fuse per channel with status indication |
| Leakage Current | Typical 2.5 mA (Max 3.3 mA) |
| Mounting Type | Panel / DIN rail |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 127 × 114 × 108 mm |
| Weight | Approx. 0.4 – 1.2 kg |
