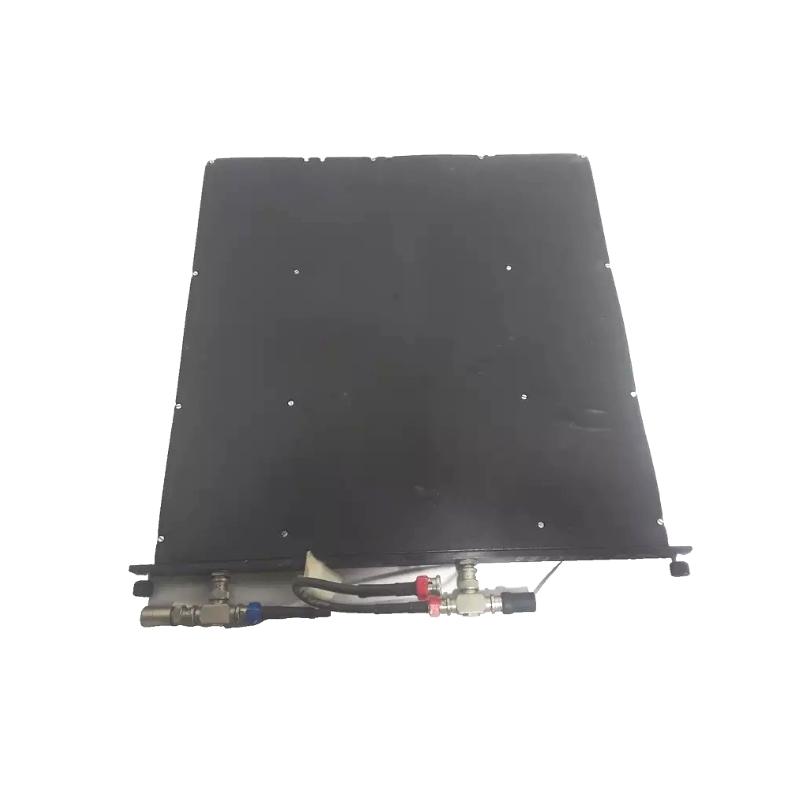

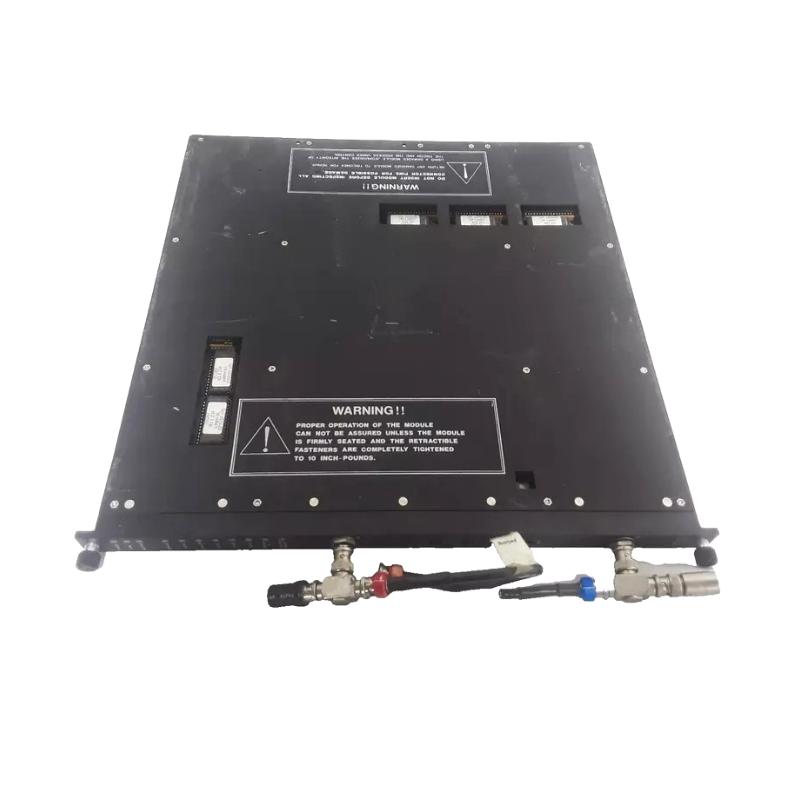

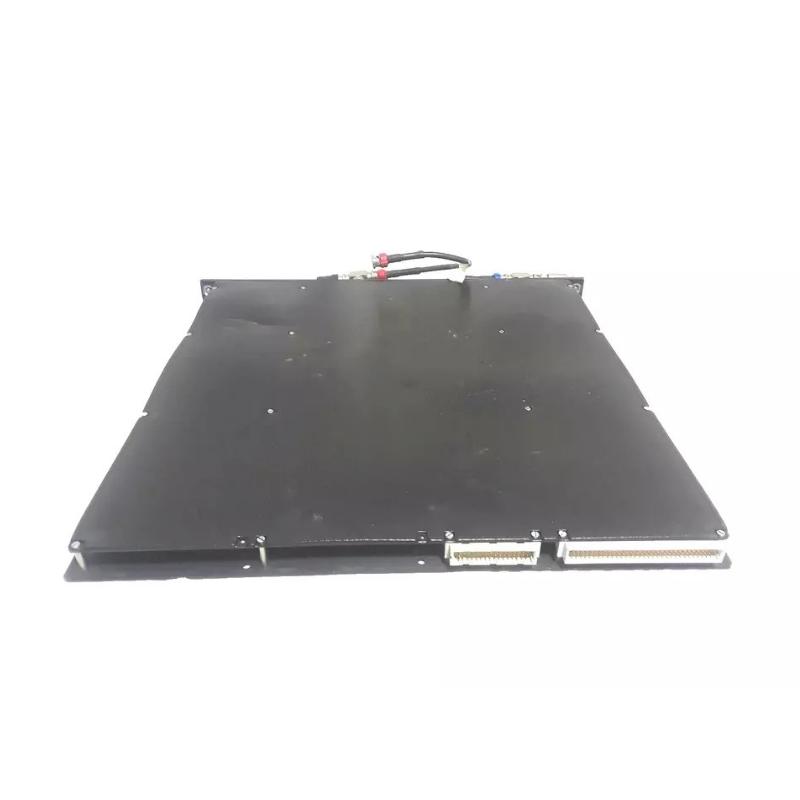

The Triconex 4500 is a high-performance safety system controller and communication interface module designed for mission-critical industrial applications. As part of the Tricon safety platform, it leverages Triple Modular Redundancy (TMR) architecture to ensure continuous operation even in the presence of faults.
Widely deployed in Safety Instrumented Systems (SIS), the 4500 module delivers exceptional reliability, real-time diagnostics, and seamless integration with complex control networks. Its robust design and advanced communication capabilities make it an ideal choice for industries where system failure is not an option.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Safety System Controller / Highway Interface Module |
| Model | 4500 |
| System Compatibility | Triconex Tricon Safety System (TMR Architecture) |
| Communication Protocols | TCP/IP, Modbus, TriStation, Ethernet/IP |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| Serial Interfaces | RS-232 / RS-485 |
| Operating Voltage | 24 VDC / 220 VAC (model dependent) |
| Power Consumption | Approx. 5 W |
| Processing Architecture | Triple Modular Redundancy (TMR) |
| I/O Capacity | Up to 128 I/O channels (system dependent) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Rating | NEMA 4X / IP66 |
| Dimensions (H × W × D) | Approx. 250 × 250 × 250 mm |
| Weight | Approx. 1.2 kg |
