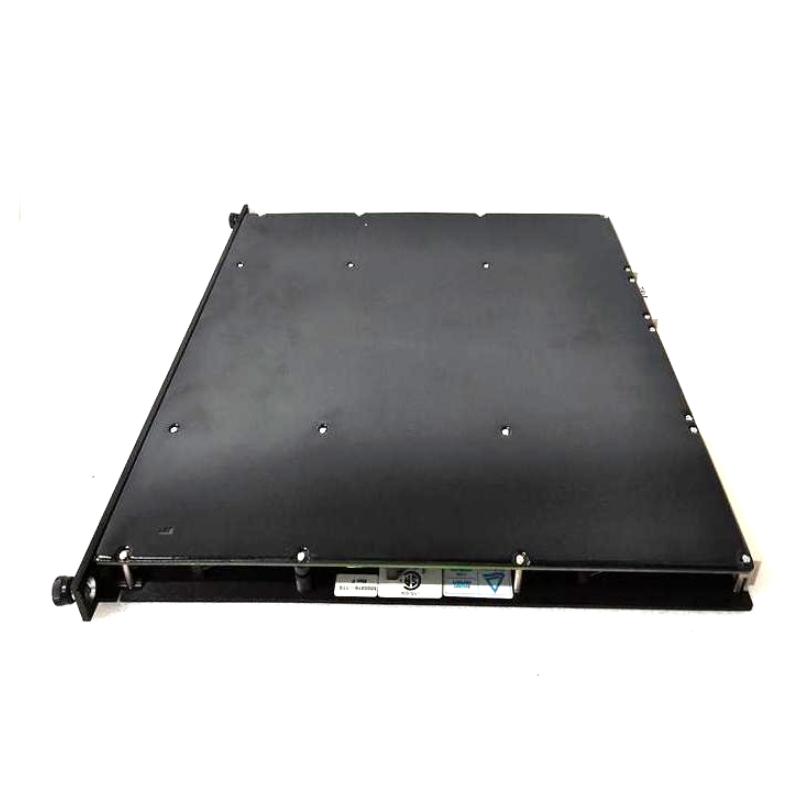

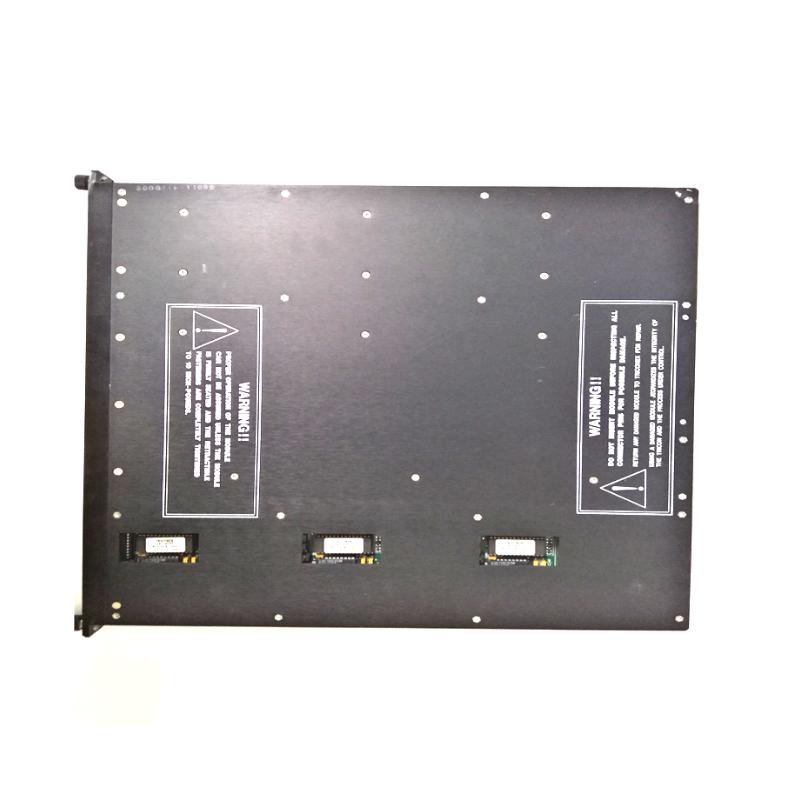

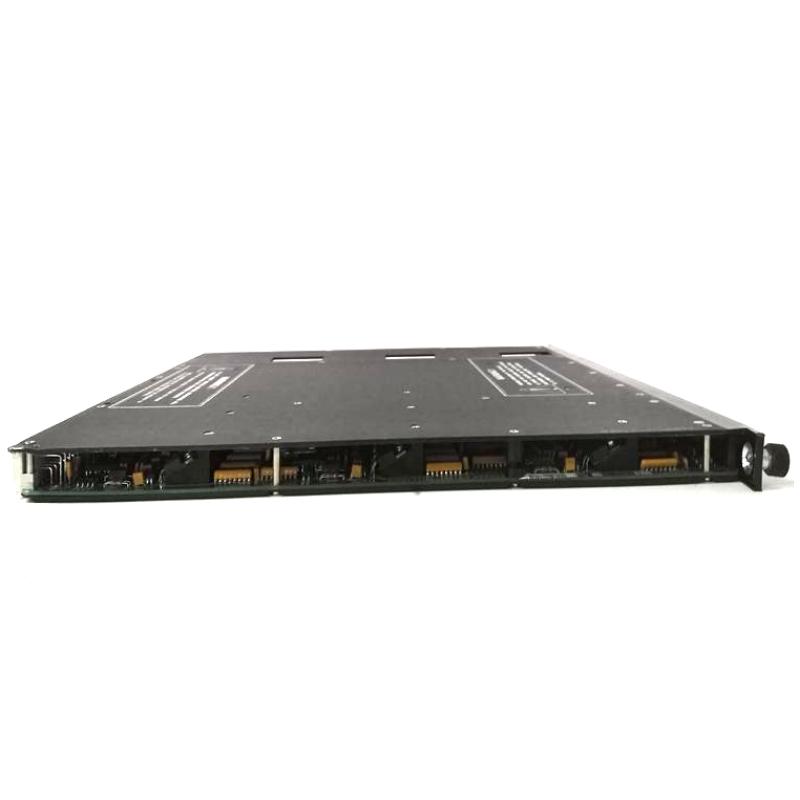

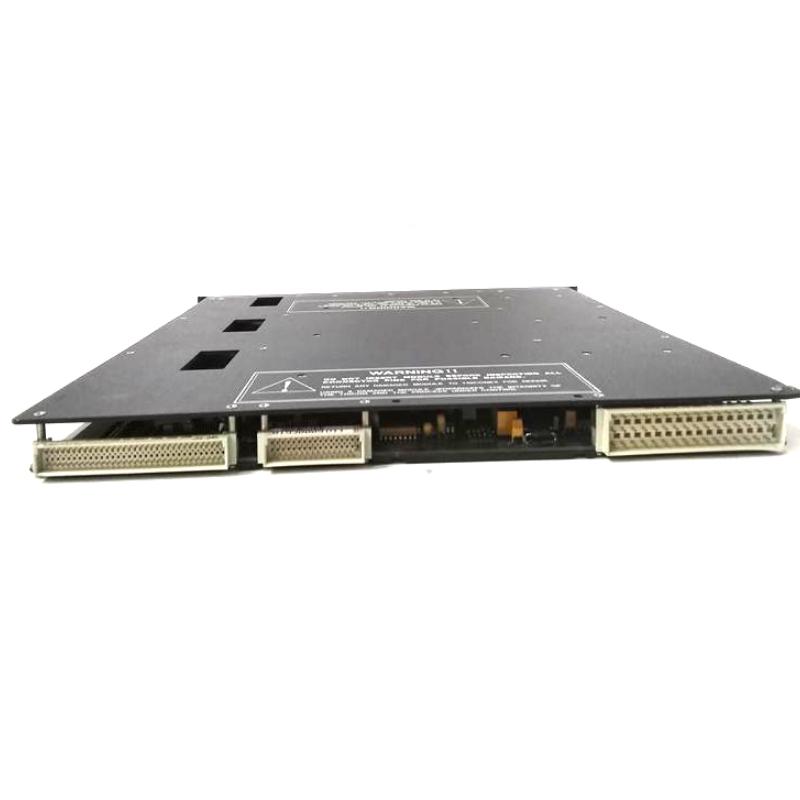

The Triconex 4409 Safety Manager Module (SMM) is a high-reliability communication interface designed to connect Tricon safety systems with distributed control systems (DCS), especially Honeywell UCN networks. It plays a critical role in enabling real-time data exchange, diagnostics visibility, and alarm handling between safety and control layers.
Built on fault-tolerant principles and aligned with SIL-rated applications, the 4409 ensures that safety-critical data is transmitted securely without compromising system integrity. Its robust design and proven performance make it a preferred solution in high-risk industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Safety Manager Module (SMM) / Communication Module |
| Model | 4409 |
| System Compatibility | Triconex Tricon Safety System (TMR) |
| Communication Interface | Honeywell UCN |
| Ports | 2 Isolated UCN Ports |
| Data Transfer Rate | Up to 5 MBytes/s |
| Power Consumption | < 20 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | Tricon chassis installation |
| Dimensions (H × W × D) | 490 × 453 × 68 mm |
| Weight | Approx. 2.5 – 4.8 kg |
Note: Dimensions and weight may vary slightly depending on hardware revision and configuration.
