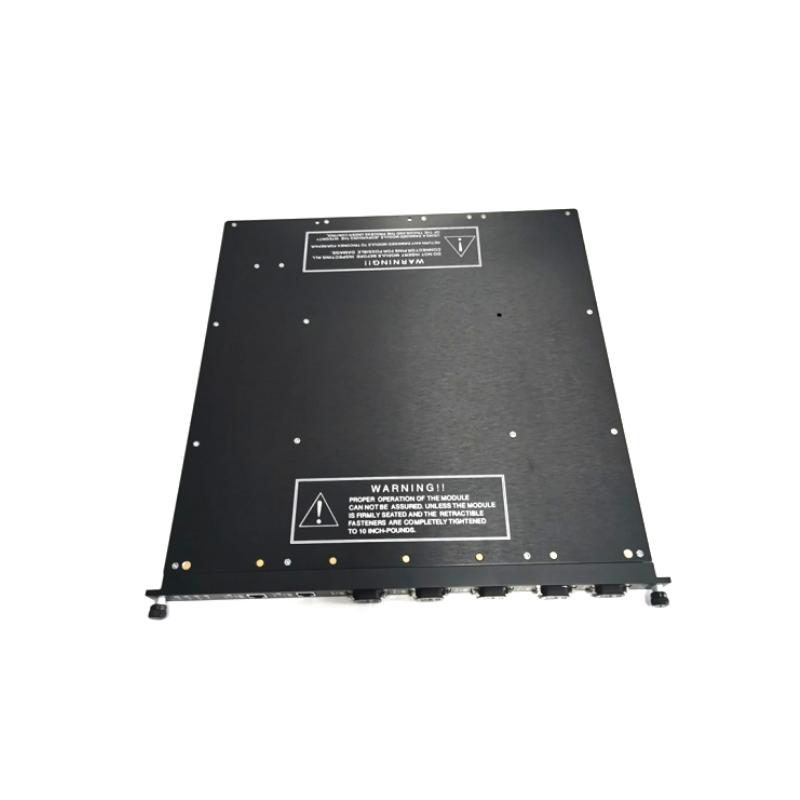

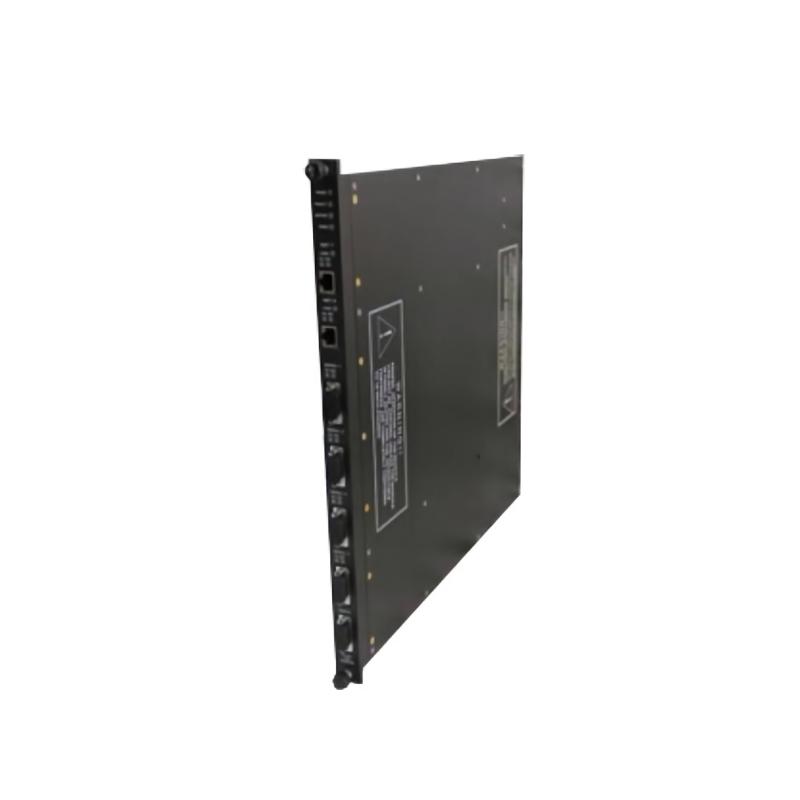

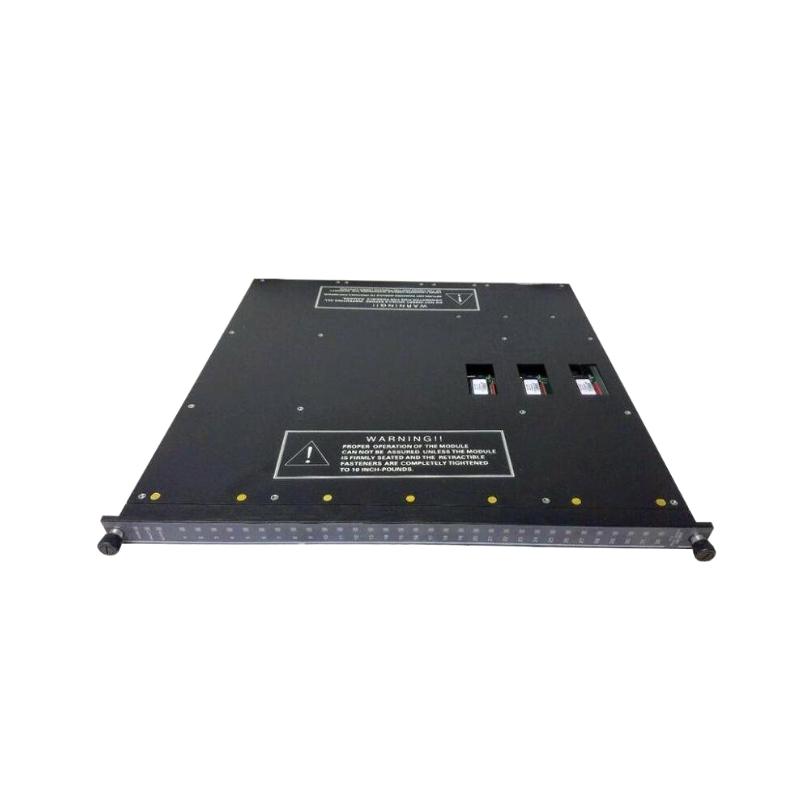

The Triconex 3706A Thermocouple Analog Input Module is a high‑reliability temperature acquisition component engineered for Safety Instrumented Systems (SIS) using Tricon’s trademark Triple Modular Redundancy (TMR) architecture. It is designed to collect and condition thermocouple signals from critical field sensors, convert them into accurate digital measurements, and feed them into the safety logic for decision‑making. This ensures continuous, fault‑tolerant temperature monitoring in industrial applications where safety and uptime are paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Thermocouple Analog Input Module |
| Model | 3706A |
| System Compatibility | Triconex SIS (TMR Architecture) |
| Input Channels | 32 differential thermocouple inputs |
| Supported Thermocouple Types | J, K, T (linearization with external termination panel) |
| Input Coupling | DC‑coupled |
| Cold Junction Compensation | Enabled (via external termination panel) |
| Burnout Detection | Upscale / downscale configurable |
| Accuracy | ±3.0 °F to ±6.0 °F typical (process range dependent) |
| Operating Temperature | 0 °C to +60 °C |
| Installation Method | Plug‑in module in Tricon chassis |
| Backplane Power | Supplied by Tricon chassis (no external power) |
| Dimensions (H × W × D) | Standard Tricon chassis module size (approx. 185 × 135 × 45 mm) |
| Weight | Approx. 2.1 – 2.7 kg |
| Diagnostics | Module and channel self‑diagnostics, fault indicators |
Typical dimensions and weight reflect standard Tricon I/O module form factor; exact mechanical details depend on system chassis and configuration.
