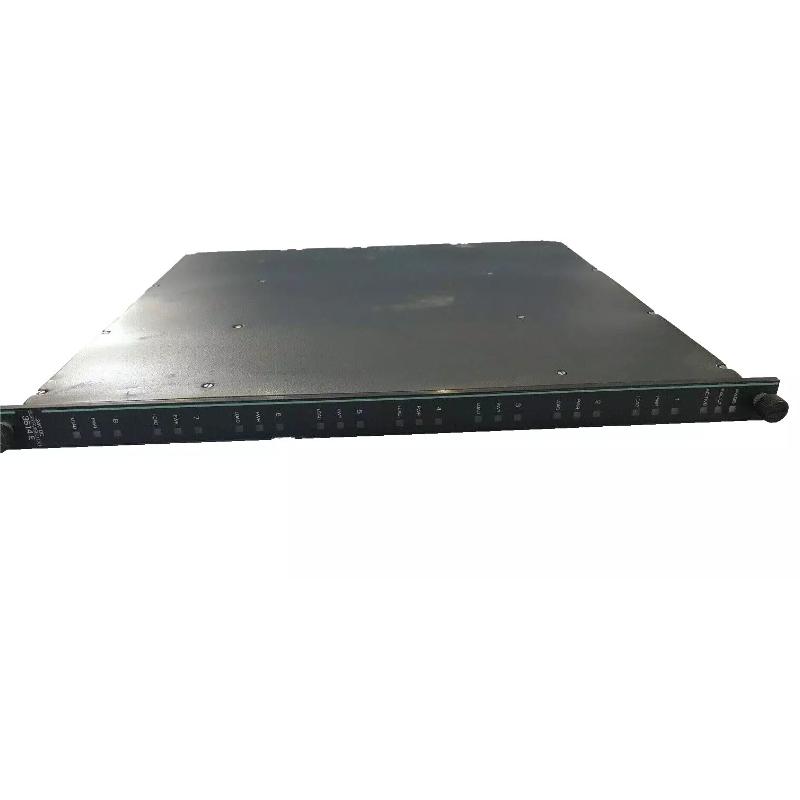

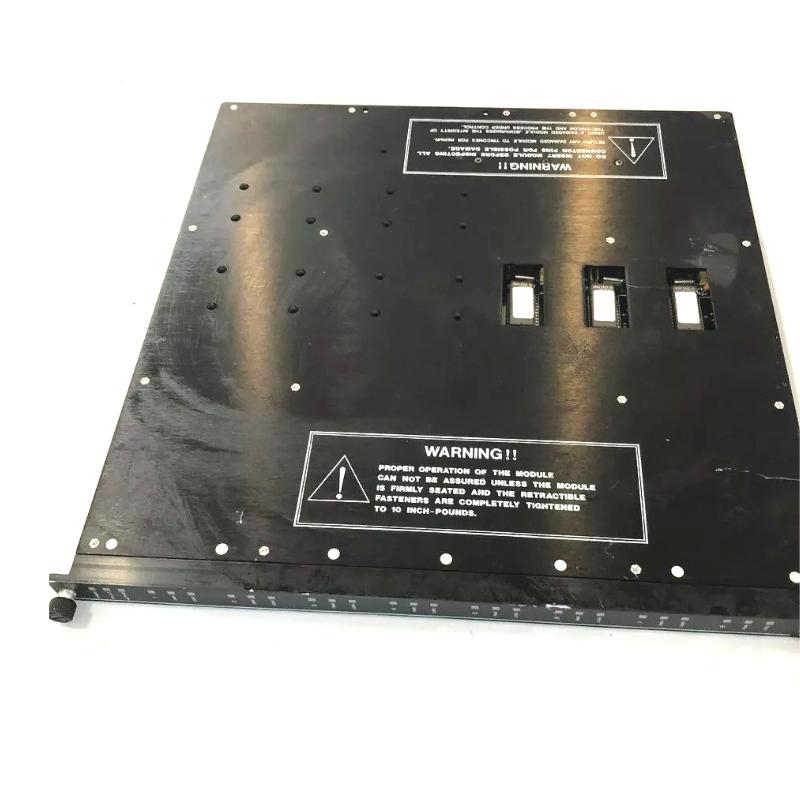

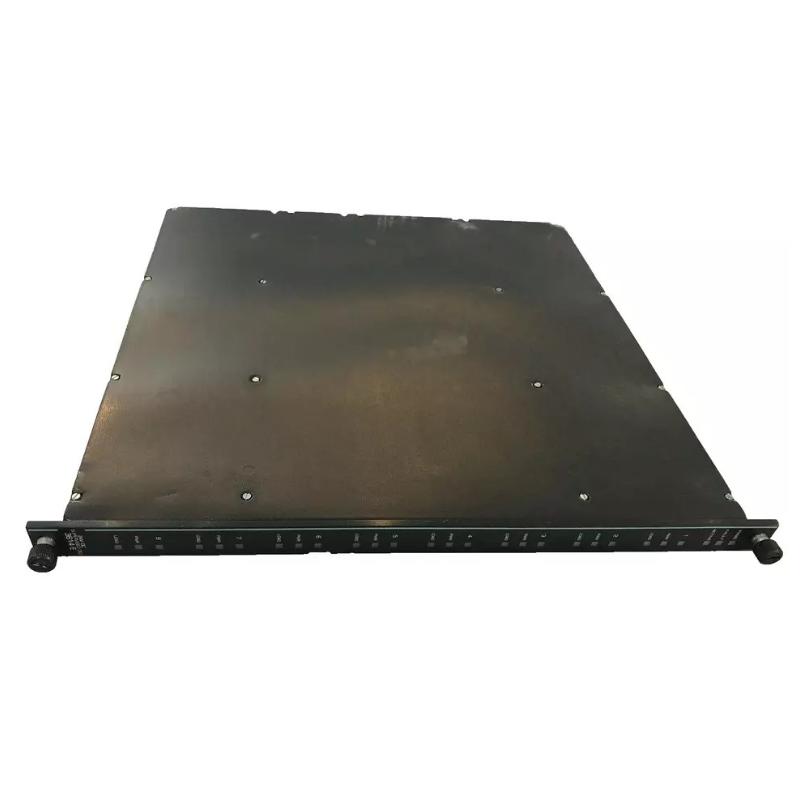

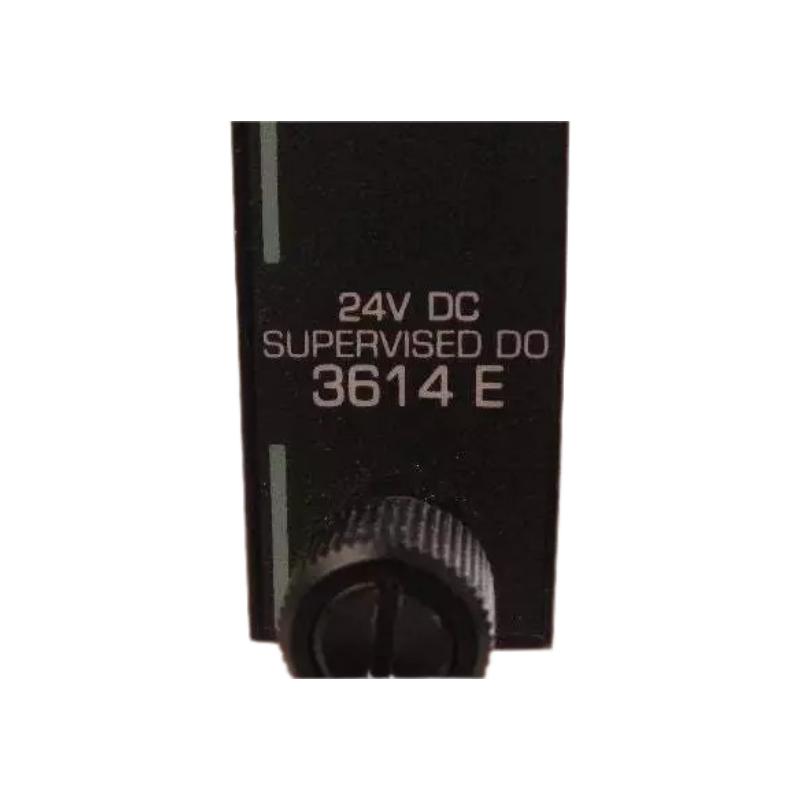

The Triconex 3614E Supervised Digital Output Module is a safety‑rated I/O device built for use within Triconex Safety Instrumented Systems (SIS). Engineered around Triple Modular Redundancy (TMR) architecture and output supervision, this module reliably converts logic decisions from the safety controller into field‑actuated digital signals. It features comprehensive diagnostic coverage and fault reporting, making it ideal for applications where both actuation reliability and system health visibility are vital.

The 3614E is commonly used in process industries that require high system availability, fault detectability, and compliance with SIL‑level safety standards—especially where supervision of output circuits reduces the risk of undetected field wiring failures.

Technical Specifications

Parameter	Specification
Product Type	Supervised Digital Output Module
Model	3614E
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Channels	16 supervised digital output points
Output Type	Low‑power DC outputs
Nominal Voltage	24 V DC (operating range 16–30 V DC)
Current per Channel (Max)	~0.5 A
Total Module Current Capacity	~8 A
Power Consumption	< 15 W
Isolation Between Logic & Field	≥ 1500 V DC
Diagnostic Features	Open/short fault detection, channel status reporting
Hot‑Swap Support	Yes
Operating Temperature	–20 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Mounting	Rack‑mounted within a Tricon chassis
Dimensions (H × W × D)	Approx. 160 × 160 × 120 mm (industry typical)
Weight	Approx. 0.9 – 1.6 kg

Physical dimensions and weight are typical for this type of module; specific figures vary with regional variations and manufacturer revision.

Recommended Related Models

Triconex 3008 Main Processor Module – Core safety logic controller
Triconex 3703E Digital Input Module – Field discrete input acquisition
Triconex 3721 Analog Input Module – Process signal acquisition
Triconex 3805E Analog Output Module – Analog actuation outputs
Triconex 3615E Supervised Digital Output Module – Another digital output option

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3614E module is used in safety‑critical industrial control environments where reliable actuation and supervised digital outputs are needed:

Emergency Shutdown (ESD) Systems – Drives safety trip circuits and shutdown elements
Fire & Gas Safety Systems – Acts upon safety logic to initiate alarms and isolation actions
Process Automation Safety – Provides supervised actuation for motors, solenoids, and relays
High Integrity Pressure Protection Systems (HIPPS) – Delivers verified safety outputs for pressure trips
Burner Management Systems (BMS) – Controls safety interlock outputs for combustion systems

Supervision of output circuits helps detect field wiring faults and prevents undetected failures from compromising safety actions.

Product Applications

The 3614E module is used in safety‑critical industrial control environments where reliable actuation and supervised digital outputs are needed:

Emergency Shutdown (ESD) Systems – Drives safety trip circuits and shutdown elements
Fire & Gas Safety Systems – Acts upon safety logic to initiate alarms and isolation actions
Process Automation Safety – Provides supervised actuation for motors, solenoids, and relays
High Integrity Pressure Protection Systems (HIPPS) – Delivers verified safety outputs for pressure trips
Burner Management Systems (BMS) – Controls safety interlock outputs for combustion systems

Supervision of output circuits helps detect field wiring faults and prevents undetected failures from compromising safety actions.

Technical FAQs

What is the primary function of the Triconex 3614E?
It provides supervised digital outputs to field devices under safety logic control.
How many digital outputs does it support?
It supports 16 supervised digital output points.
What voltage does it operate on?
The nominal operating voltage is 24 V DC, with an operating range of 16–30 V DC.
Does it supervise output wiring?
Yes, it detects open circuits, short circuits, and other field wiring faults.
Is diagnostic feedback available?
Yes, the module reports channel status and fault conditions.
Is hot‑swap replacement supported?
Yes, it can be replaced without taking the safety system offline.
What temperature range is supported?
It operates from –20 °C to +70 °C, suitable for industrial conditions.
How is the module installed?
It installs in a standard Tricon chassis slot.
What industries commonly use this module?
Oil & gas, petrochemical, power generation, and heavy industrial automation.
What advantage does supervision provide?
Output supervision increases system safety by detecting wiring or load failures before output action.
