The Triconex 3604E Digital Output Module is a mission‑critical safety I/O component designed for use in Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). It delivers 16 independent, non‑commoned digital outputs with robust diagnostics and fault tolerance, ensuring dependable actuation control for safety‑critical devices such as solenoid valves, alarms, contactors, and shutdown relays. This module is engineered for high availability and continuous operation, even under harsh industrial conditions.

The 3604E’s TMR architecture and continuous verification features make it ideal for systems where safety integrity, uptime, and rapid fault detection are essential, especially in oil & gas, chemical, power generation, and other process industries.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	3604E
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Channels	16 non‑commoned digital outputs
Nominal Operating Voltage	24 V DC
Voltage Operating Range	22–45 V DC
Maximum Current per Output	Up to 2 A per point (surge ~10 A for 10 ms)
Output Voltage Drop	< 4 V typical
Load Leakage	≤ 2 mA per point
Field Fusing	2.5 A fast‑acting fuses (on external termination)
Point Isolation	≥ 1500 V DC
Hot‑Swap Support	Yes
Operating Temperature	Typical –40 °C to +70 °C

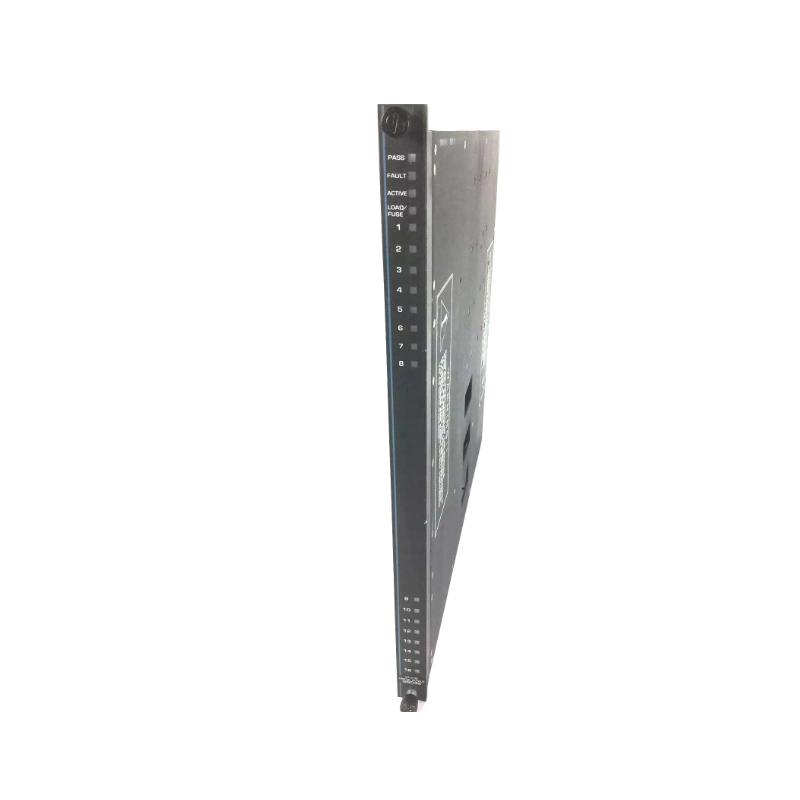

Diagnostics	PASS / FAULT / ACTIVE, LOAD/FUSE alarms per point
Mounting	Rack‑mounted Tricon chassis
Dimensions (H × W × D)	Approx. 490 × 453 × 68 mm (industry standard)
Weight	Approx. 3.65 kg

Specifications are aggregated from multiple industrial references and typical field data.

Recommended Related Models

Triconex 3008 Main Processor Module – Core SIS logic solver
Triconex 3703E Digital Input Module – Discrete input acquisition
Triconex 3721 Analog Input Module – Analog process signal input
Triconex 3805E Analog Output Module – Analog field actuation outputs
Triconex 3624 Supervised Digital Output Module – Alternate supervised output option

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface Module
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3604E is widely deployed in safety‑critical environments that require reliable digital output actuation and continuous health monitoring:

Emergency Shutdown (ESD) Systems – Drives safety shutoff valves and trip relays
Fire & Gas (F&G) Safety Logic – Activates alarms and protective devices
High Integrity Pressure Protection Systems (HIPPS) – Executes verified output actions
Process Industry Safety Controls – Interfaces with motor starters, indicators, and alarms
Power Generation – Controls safety interlocks and protective shutdown circuits

Its triple‑redundant design ensures that output decisions are maintained even under component failure, supporting compliance with stringent safety standards.

Product Advantages

Triple Modular Redundancy (TMR)
Ensures high fault tolerance by voting on triplicate signals, maintaining correct outputs even if individual channels fail.
Independent, Non‑Commoned Outputs
Each output is isolated and operates independently, reducing cross‑channel interference and simplifying diagnostics.
Comprehensive Diagnostics
Continuous diagnostics and load/fuse supervision support early detection of issues before they impact system integrity.
Wide Voltage Range Support
Designed to work within 22–45 V DC range, suitable for diverse industrial power supplies.
Hot‑Swap Capability
Allows module replacement online in many SIS configurations, minimizing downtime.
Industrial‑Grade Design
Built to withstand harsh process conditions with robust electrical isolation and temperature tolerance.

Technical FAQs

What is the primary function of the Triconex 3604E?
It provides 16 independent digital outputs for safety‑critical actuation within a Triconex SIS.
What output voltage does it use?
It operates on nominal 24 V DC with a range of 22–45 V DC.
How many points does the module have?
The module offers 16 non‑commoned digital outputs.
Does it support hot swapping?
Yes, it supports hot‑swap replacement in compatible SIS systems.
What diagnostics are available?
PASS, FAULT, ACTIVE, and load/fuse supervision per output point.
Is the module suitable for harsh industrial environments?
Yes, it is designed to operate across a wide temperature range and withstand industrial stresses.
What is the typical current per output?
Up to 2 A per point with surge handling capabilities.
Does it have electrical isolation?
Yes, it provides high isolation between points and backplane.
Can it be integrated with other Triconex modules?
Yes, it interfaces with processors and I/O modules within Tricon systems.
What industries use this module?
Oil & gas, petrochemicals, power generation, and process automation safety systems.
