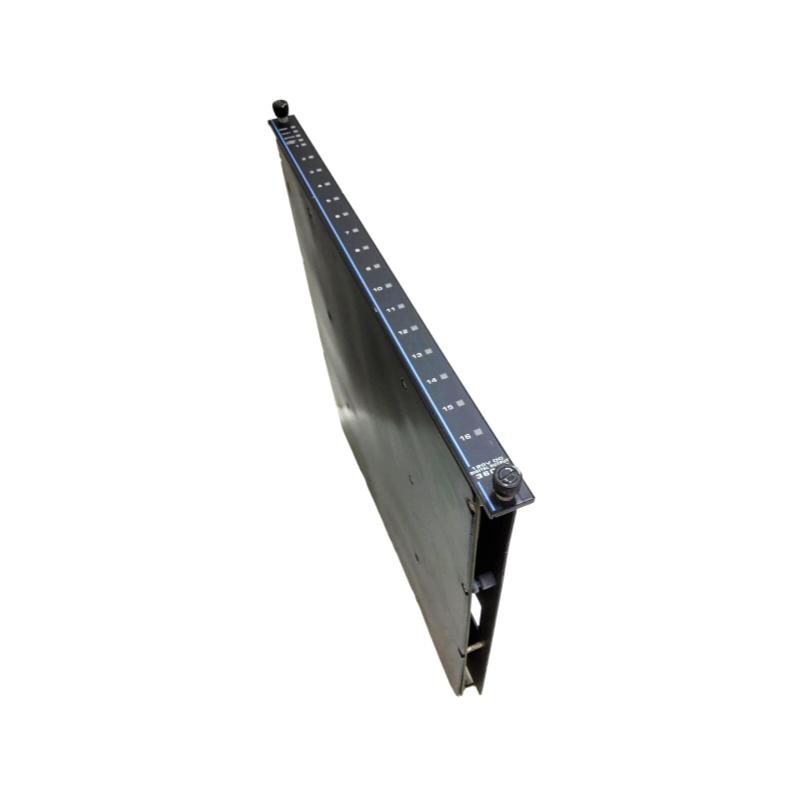

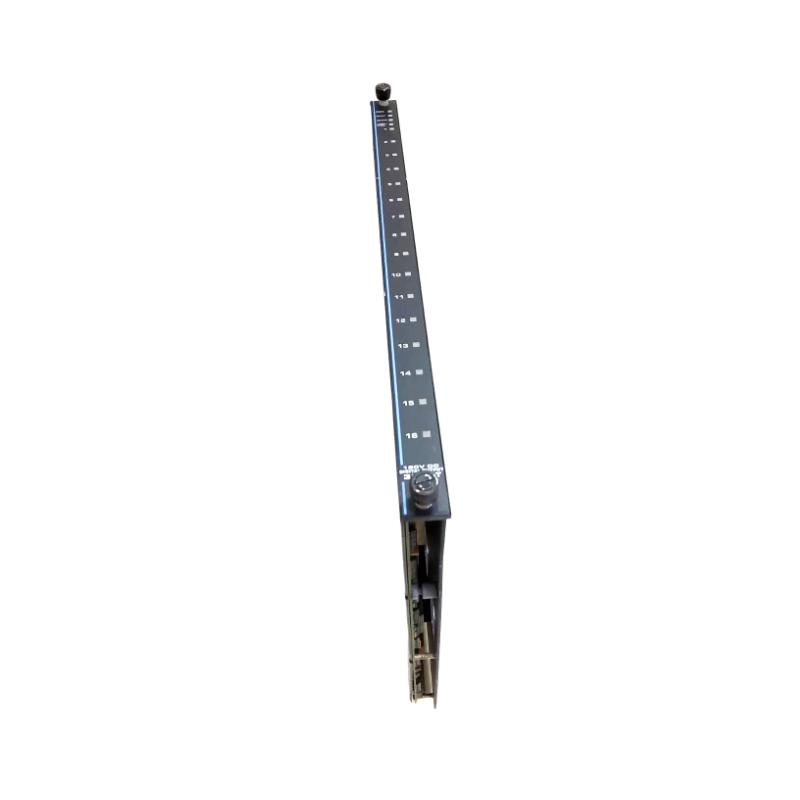

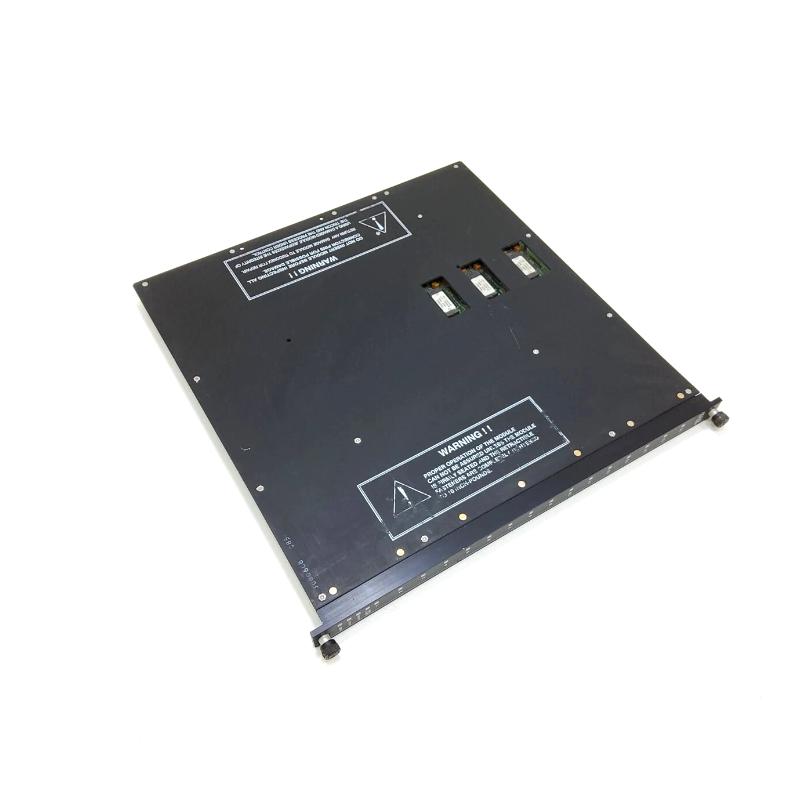

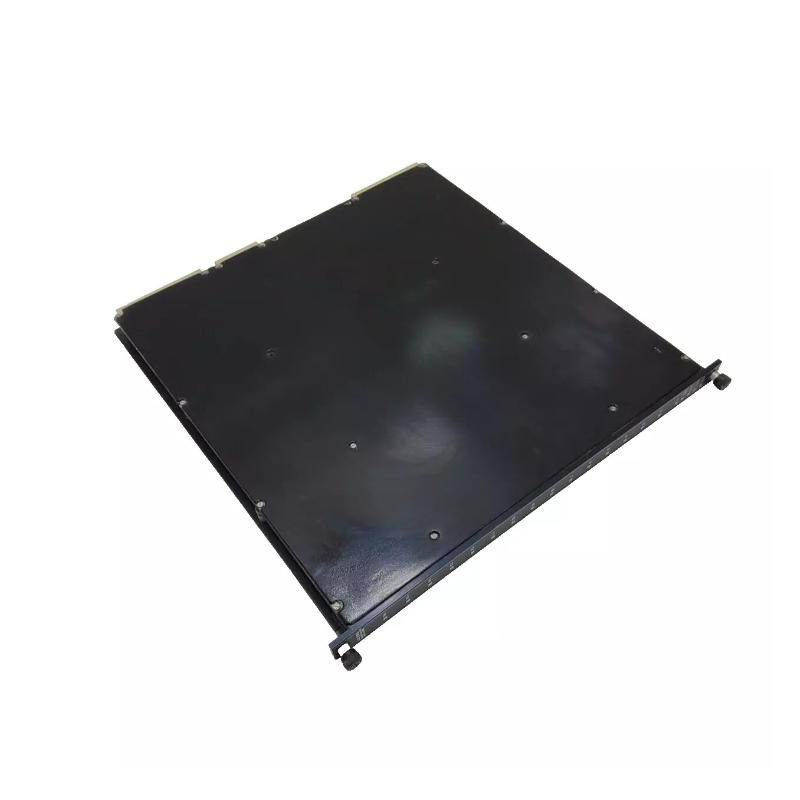

The Triconex 3603T Digital Output Module is a mission‑critical safety I/O component engineered for integration into Triconex Safety Instrumented Systems (SIS). It delivers 16 independent commoned digital outputs used to drive field devices such as solenoids, relays, indicators, and other actuators in high‑risk industrial environments. Designed for fault‑tolerant operation using Triple Modular Redundancy (TMR), this module ensures reliable performance, continuous diagnostics, and high availability in demanding process automation and safety applications.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	3603T
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Channels	16 commoned digital outputs
Output Voltage Range	90–150 V DC nominal (max ~160 V DC)
Maximum Current per Output	0.8 A per point (surge approx. 4 A for 10 ms)
Leakage Current to Load	≤ 2 mA (typical)
Point Isolation	≥ 2500 V DC minimum
Logic Power Consumption	< 10 W (typical)
Diagnostics	Continuous fault detection, status indicators
Hot‑Swap Support	Yes (system dependent)
Operating Temperature	–40 °C to +70 °C (industrial grade)
Storage Temperature	–40 °C to +85 °C
Mounting	Rack‑mounted in Triconex chassis
Dimensions (H × W × D)	Standard Triconex I/O module form factor approx. 203 × 127 × 51 mm
Weight	Approx. 0.5 kg (typical)

The 3603T shares mechanical compatibility with other Triconex digital output modules and fits standard SIS chassis slots, enabling modular expansion.

Recommended Related Models

Triconex 3008 Main Processor Module – Core safety logic controller
Triconex 3703E Digital Input Module – Field discrete input acquisition
Triconex 3721 Analog Input Module – Process analog acquisition
Triconex 3805E Analog Output Module – Analog signal control
Triconex 3624 Supervised Digital Output Module – Supervised digital output alternative

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3603T module is widely deployed in safety‑critical industrial systems where dependable discrete actuation and robust diagnostics are essential:

Emergency Shutdown (ESD) Systems – Drives safety solenoids and shutdown relays
Fire & Gas Protection – Activates alarms and mitigation devices
High Integrity Pressure Protection Systems (HIPPS) – Executes verified output decisions
Process Safety Interlocks – Interfaces with field actuators in petrochemical, oil & gas, and chemical plants
Power Generation Safety Controls – Controls protective output devices with high reliability

Its TMR architecture ensures that output decisions remain valid even if faults occur, supporting continuous safety operation.

Product Advantages

TMR Fault‑Tolerant Architecture
Built to maintain correct output actions even in the presence of internal faults, enhancing safety system resilience.
High Isolation Ratings
≥ 2500 V DC isolation ensures electrical separation between logic and field circuits for safety and noise immunity.
Comprehensive Diagnostics
Continuous diagnostics and status reporting facilitate rapid fault detection and maintenance planning.
Industrial‑Grade Operating Range
Designed to operate reliably across wide temperature extremes and harsh process environments.
Modular Scalability
Seamlessly integrates with other Triconex SIS modules to scale system I/O for expanding safety requirements.
Compact, Rack‑Mounted Design
Standardized I/O form factor supports efficient system layout and easy replacement.

Technical FAQs

What is the primary function of the Triconex 3603T?
It delivers safe and reliable digital output signals to field devices as part of a Triconex SIS.
How many output channels does it have?
It provides 16 commoned digital output channels.
What voltage range does it support?
Typical output range is 90–150 V DC nominal, with a maximum around 160 V DC.
What is the maximum current per output?
Up to 0.8 A per point, with surge capability up to 4 A for short durations.
Is diagnostic feedback included?
Yes; built‑in diagnostics continuously monitor output and module health.
What operating temperature range does it support?
Between –40 °C and +70 °C, suitable for industrial applications.
Can the module be hot‑swapped?
Yes, in many Triconex SIS configurations, modules can be replaced without system shutdown.
What industries commonly use this module?
Oil & gas, petrochemical, power generation, and other process safety sectors.
What advantage does TMR provide?
It ensures continued safe output operation even in the presence of faults.
Does the module support redundancy?
Yes; the triple modular redundancy design enables fault detection and voting for output reliability.
