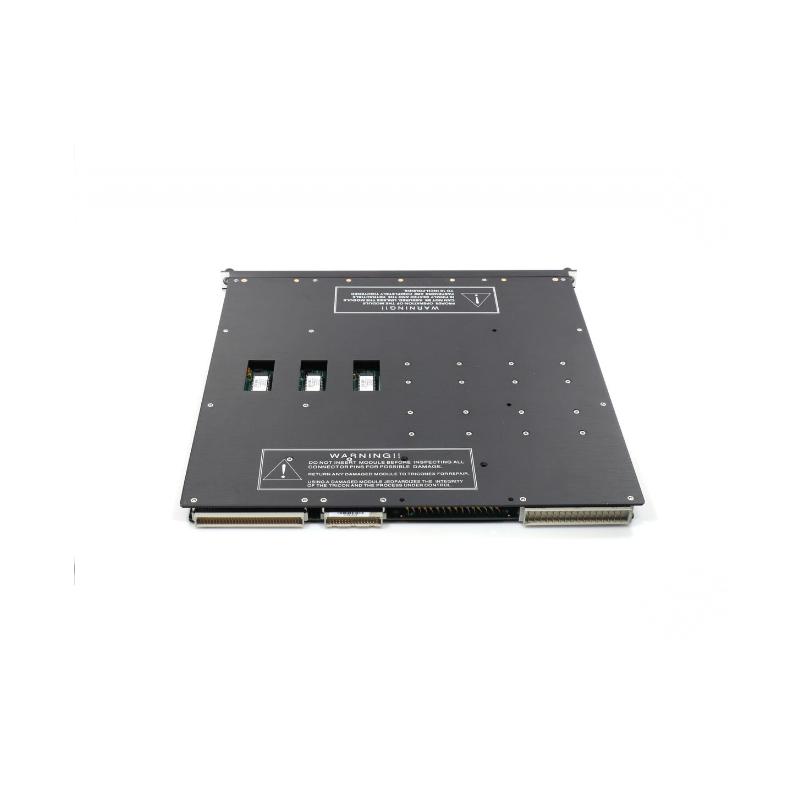

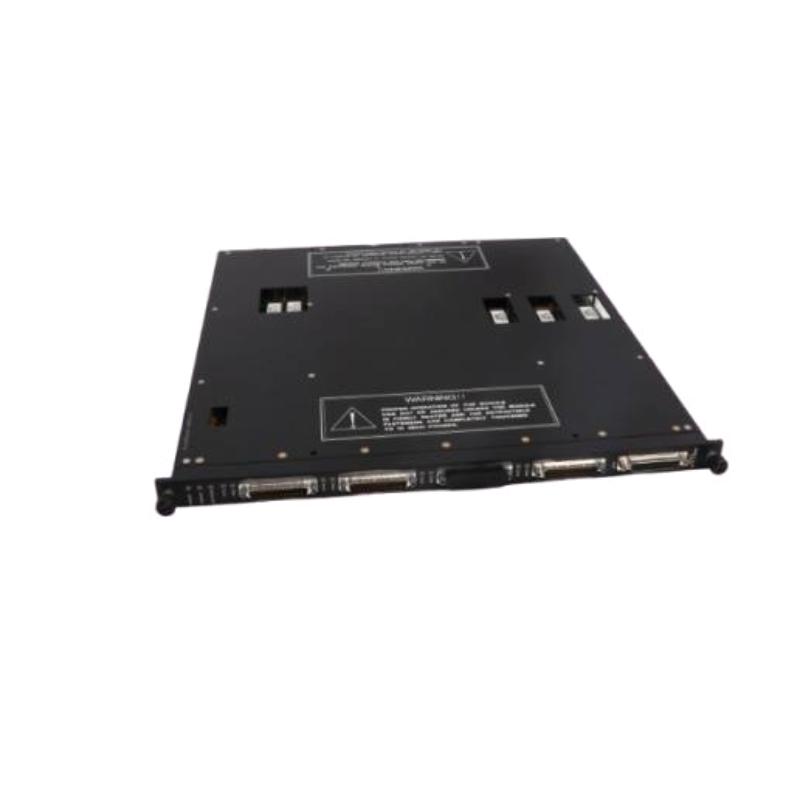

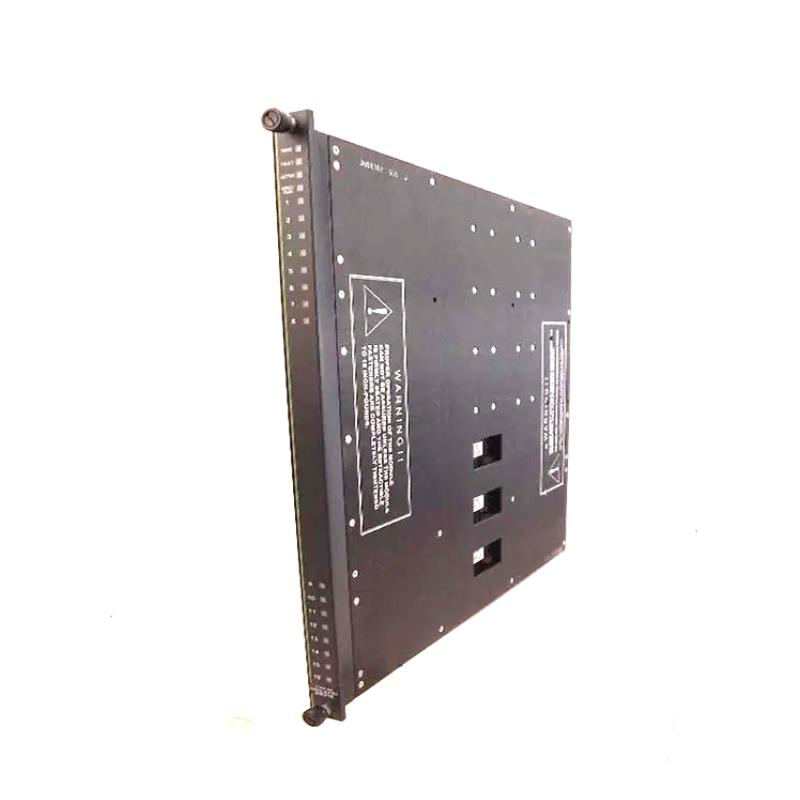

Triconex 3601T Triconex 3601T-1 Triconex 3601T-2 Triconex 3601T 4

The Triconex 3601T Digital Output Module is a robust safety I/O component engineered for deployment in Triconex Safety Instrumented Systems (SIS) where high‑integrity actuation of field devices is critical. Designed with fault‑tolerant principles, it delivers 16 discrete output points optimized for driving higher voltage DC loads (typically 120 – 150 VDC range) used in industrial solenoids, contactors, safety trip coils, and other heavy‑duty actuation devices.

Built to integrate smoothly within a Triple Modular Redundancy (TMR) architecture, the 3601T ensures that safety decisions are executed reliably and that failure modes are detected early—supporting continuous diagnostics and system availability in demanding process applications.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	3601T
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Channels	16 commoned digital outputs
Nominal Output Voltage	120 – 150 V DC typical
Operating Voltage Range	90 – 160 V DC
Max Output Current per Point	Approx. 0.5 – 0.8 A
Output Surge Capability	Up to 4 A (10 ms)
Output Isolation	≥ 1500 V DC (field to logic)
Leakage Current	≤ 2 mA per output
Diagnostics	PASS / FAULT / ACTIVE indicators per point
Hot‑Swap Support	Yes (system configuration dependent)
Operating Temperature	–40 °C to +70 °C industrial range
Storage Temperature	–40 °C to +85 °C
Mounting	Rack‑mounted in Tricon chassis
Dimensions (H × W × D)	Approx. 203 × 127 × 51 mm (standard I/O form factor)
Weight	Approx. 0.9 – 1.5 kg

Typical module dimensions and weight reflect the standard Triconex I/O card form factor used for output modules; actual values may vary slightly by revision.

Recommended Related Models

Triconex 3008 Main Processor Module – Core SIS logic controller
Triconex 3703E Digital Input Module – Discrete input acquisition
Triconex 3721 Analog Input Module – Process analog acquisition
Triconex 3805E Analog Output Module – Analog actuation outputs
Triconex 3624 Supervised Digital Output Module – Supervised digital output alternative

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Communication Module
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3601T module is ideal for safety‑critical applications that require high‑voltage discrete outputs, including:

Emergency Shutdown (ESD) Systems – Drives high‑voltage solenoid valve coils and trip actuators
Fire & Gas (F&G) Safety Logic – Activates protective or isolation devices at higher DC voltages
High Integrity Pressure Protection Systems (HIPPS) – Issues verified safety outputs to safety trip circuits
Process Interlock Systems – Interfaces with industrial controls requiring DC loads > 100 V
Turbomachinery & Rotating Equipment Safeguards – Sends discrete commands to protective relay coils

This module’s ability to handle elevated DC voltages makes it well‑suited for industrial installations where 24 V outputs are insufficient and robust actuation at higher levels is needed.

Product Advantages

Fault‑Tolerant TMR Architecture
Works within the Triconex triple redundancy framework to maintain output integrity even in the presence of partial faults.
High‑Voltage Output Capability
Supports elevated DC voltage actuation loads common in field devices such as trip coils and heavy actuators.
Per‑Point Diagnostics
PASS, FAULT, and ACTIVE indicators provide clear status and help speed troubleshooting.
High Electrical Isolation
Strong isolation between logic and field circuits enhances safety and noise immunity.
Hot‑Swap Support
In supported system configurations, the module can be replaced during live operation to minimize downtime.
Industrial‑Grade Design
Designed for wide operating temperature ranges and rugged environments typical of heavy industry.

Technical FAQs

What load voltages does the Triconex 3601T support?
It is designed for high‑voltage DC loads, typically 90 – 160 V DC.
How many output channels are on this module?
It offers 16 commoned digital output points.
What industries commonly use this module?
Oil & gas, petrochemical, power generation, and industrial automation with high‑voltage actuation needs.
Is diagnostic feedback provided?
Yes; each output point has PASS, FAULT, and ACTIVE status indicators.
Can the module be replaced without system shutdown?
Yes, in many Triconex configurations, it supports hot‑swapping.
Does it work with standard Triconex controllers and I/O?
Yes; it integrates with other Triconex CPU, I/O, and communication modules.
What is the output current capacity?
Typically ~0.5 – 0.8 A per channel with surge capability up to 4 A for brief intervals.
What is the operating temperature range?
Designed for industrial environments from –40 °C to +70 °C.
What safety standard does it support?
Compatible with SIL‑rated SIS architectures (IEC 61508) when deployed as part of a certified Triconex safety system.
How is it installed?
Installed in a rack slot within a Triconex system chassis with standard backplane connectivity.
