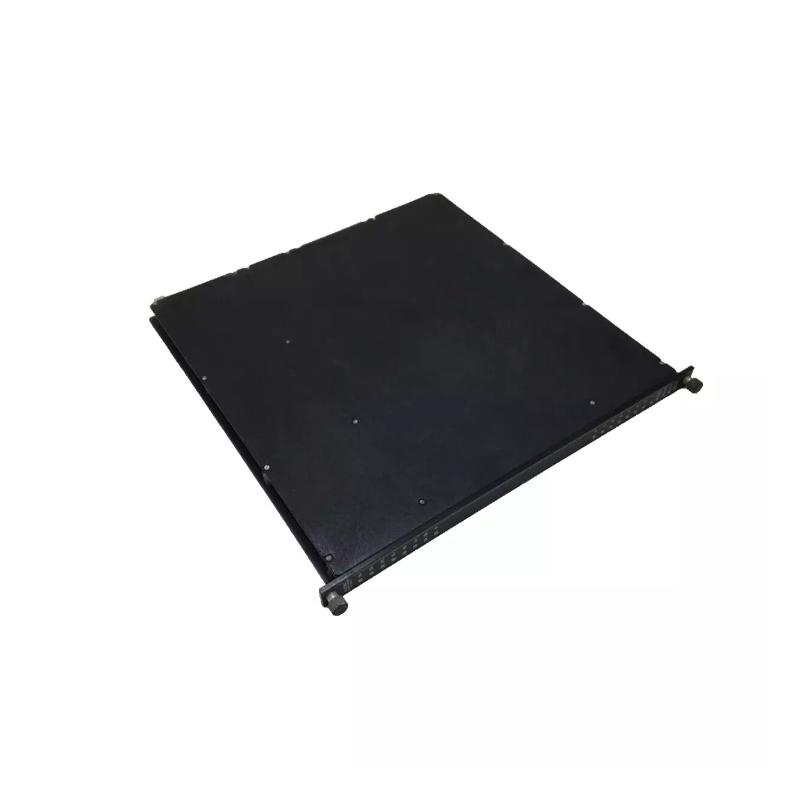

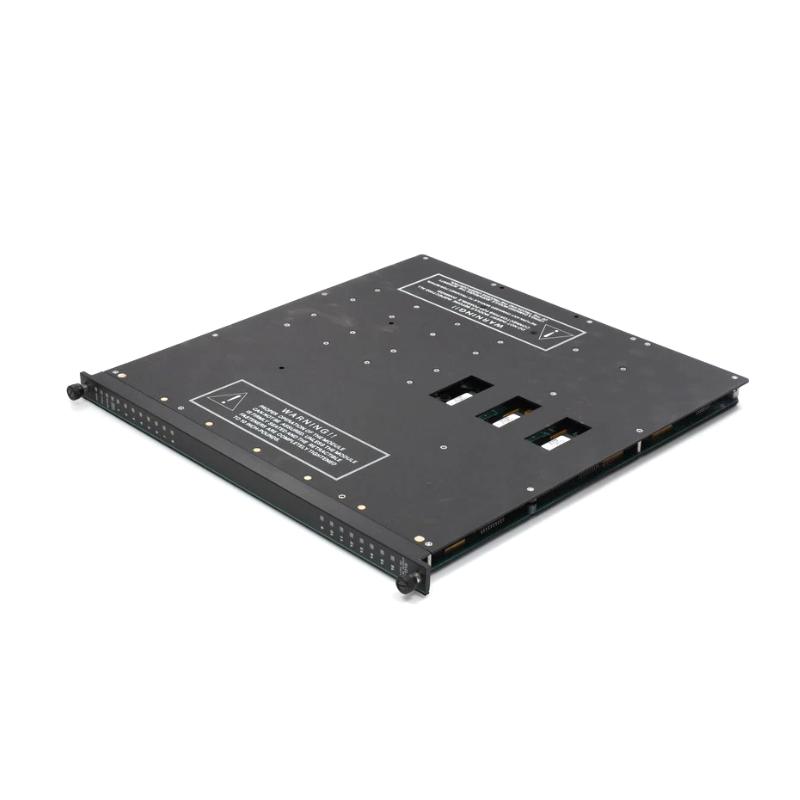

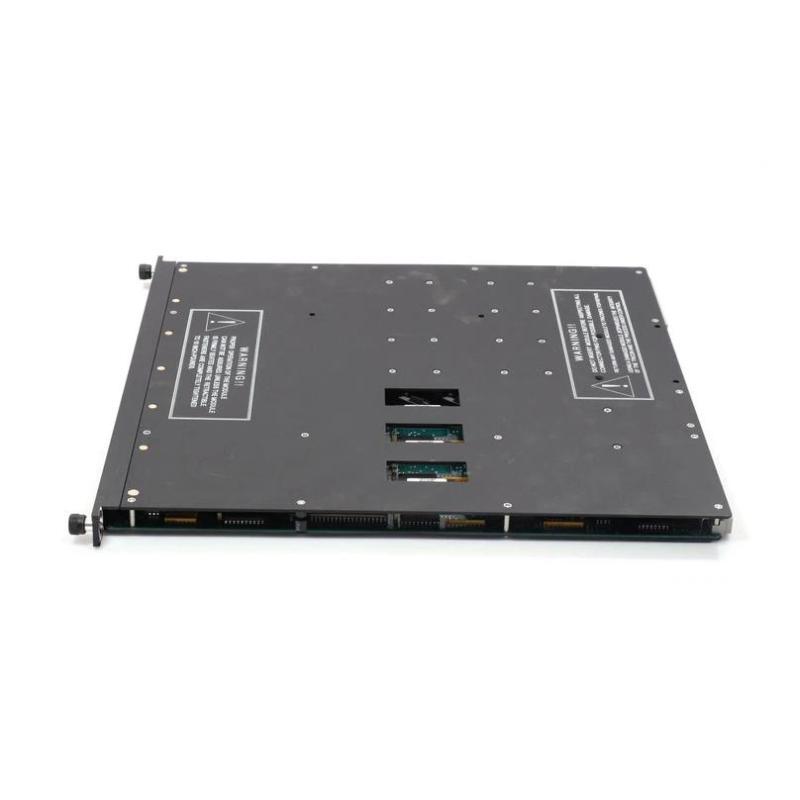

The Triconex 3601 Digital Output Module is a reliable safety I/O interface designed to convert SIS logic decisions into discrete field actuation in industrial environments. As a core component of Triple Modular Redundancy (TMR) architectures, it delivers consistent, fault‑tolerant digital output performance used to drive relays, solenoid coils, alarm circuits, and interlock devices.

Engineered for high availability and continuous diagnostics, the 3601 supports mission‑critical systems where deterministic output behavior and system health visibility are required for maintaining operational safety and regulatory compliance. Its modular design allows seamless integration into Triconex racks and safety networks, enhancing engineering flexibility and maintenance efficiency.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Module
Model	3601
System Compatibility	Triconex Safety Instrumented Systems (TMR Architecture)
Output Channels	16 commoned discrete outputs
Nominal Operating Voltage	24 V DC
Operating Voltage Range	16 – 32 V DC
Maximum Output Current	~0.5 A per output point
Output Voltage Drop	< 3 V typical
Leakage Current	< 2 mA per point
Isolation Between Logic & Field	≥ 1500 V DC

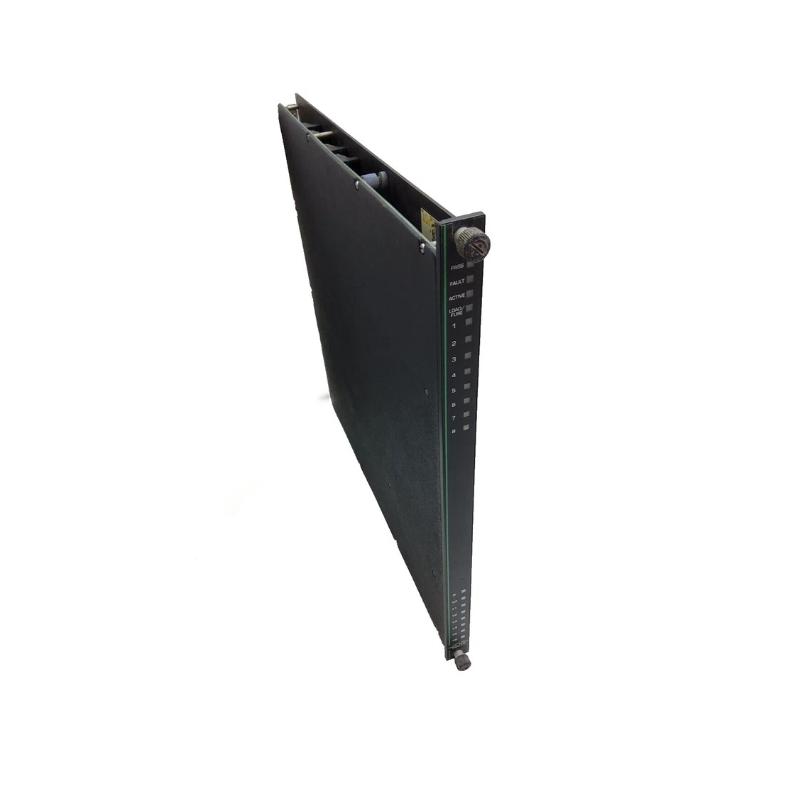

Diagnostics	PASS / FAULT / ACTIVE per output
Hot‑Swap Support	Yes (depending on system configuration)
Operating Temperature	–40 °C to +70 °C industrial grade
Storage Temperature	–40 °C to +85 °C
Mounting	Rack‑mounted in Triconex chassis
Dimensions (H × W × D)	Approx. 203 × 127 × 51 mm (standard I/O card form)
Weight	Approx. 1.0 – 1.6 kg

Dimensions and weight reflect typical Triconex digital output module form factor and may vary slightly by revision.

Recommended Related Models

Triconex 3008 Main Processor Module – Core logic solver for SIS
Triconex 3703E Digital Input Module – Field discrete signal acquisition
Triconex 3721 Analog Input Module – Process analog input interface
Triconex 3805E Analog Output Module – Analog actuation control
Triconex 3611E Supervised Digital Output Module – Output supervision variant

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface Module
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The Triconex 3601 module is widely deployed in systems that require dependable discrete outputs with built‑in diagnostics and safety integrity:

Emergency Shutdown (ESD) Systems – Sends discrete commands to shutdown valves, breakers, and actuators
Fire & Gas (F&G) Detection Logic – Activates alarms or protective devices upon safety conditions
High Integrity Pressure Protection Systems (HIPPS) – Executes discrete actuation to mitigate overpressure events
Process Interlock Logic – Interfaces with plant controls for safety interlocks and permissive actions
Power Generation Safety Controls – Drives status and protective outputs in turbine, generator, and plant safety architectures

Through its integration with Triconex SIS, the 3601 helps bridge logic decisions to real‑world actions, ensuring safety events are executed reliably under all operational conditions.

Product Advantages

Fault‑Tolerant TMR Architecture
Built to operate within Triconex’s triple redundancy framework to maintain output validity even if subcomponent issues occur.
Proven Digital Actuation Reliability
Supports continuous and deterministic output switching for field devices requiring discrete logic signals.
Comprehensive Diagnostics
Status and fault indicators at each output point help identify wiring and load issues before they escalate.
High Electrical Isolation
Robust isolation between logic and field circuits minimizes noise impact and enhances safety boundary enforcement.
Hot‑Swap Support
In compatible configurations, modules can be replaced without shutting down the SIS, reducing maintenance impact.
Industrial Performance Design
Engineered for wide temperature ranges and rugged environments common in process automation industries.
Modular Integration
Seamlessly integrates with Triconex safety racks and other I/O modules for scalable system design.

Technical FAQs

What is the primary function of the Triconex 3601?
It provides 16 discrete digital outputs for commanding field devices in safety systems.
What voltage range does this module support?
Nominal 24 V DC with an operating range of 16 – 32 V DC.
How many output points does it have?
It supports 16 commoned digital outputs.
Is diagnostic reporting included?
Yes; PASS / FAULT / ACTIVE status indicators per output point assist in troubleshooting.
Can the module be replaced during live operation?
Yes, in many Triconex configurations, hot‑swap replacement is supported.
What is the typical operating temperature range?
–40 °C to +70 °C, suitable for industrial use.
Are these outputs suitable for safety‑rated applications?
Yes, designed for use within SIS architectures requiring high safety integrity (TMR).
What devices can it drive?
Relays, solenoids, alarms, and other devices compatible with 24 V discrete outputs.
How is it installed?
The 3601 mounts in a standard Triconex safety chassis rack.
What industries commonly use this module?
It is widely used in oil & gas, petrochemical, chemical processing, power generation, and industrial automation.
